Automatic Edge Banding
Designed for automatic edge banding production with a practical function set for furniture factories.
Edge Banding Machine

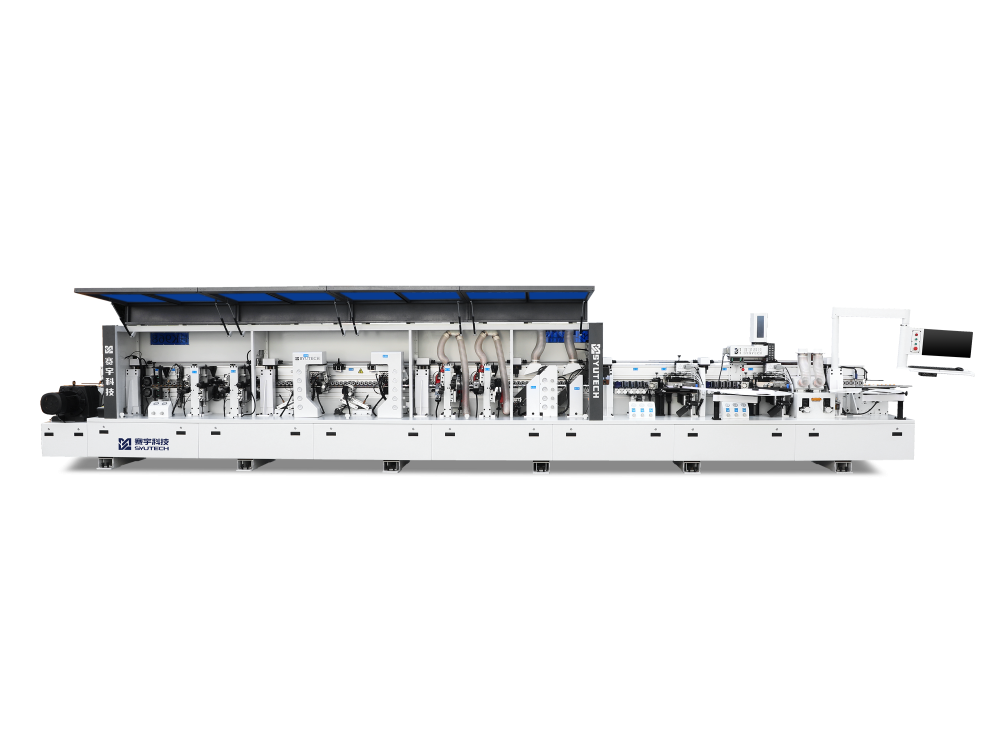

HK968P Automatic Edge Banding Machine
A higher-configuration automatic edge banding machine for high-speed panel production, with touch screen interface, pre-milling, trimming, corner rounding, scraping and buffing.
Automatic Edge Banding Machine
Upper Glue Pot
Pre-Milling Unit
Touch Screen PLC Control
Servo Edge Scraping
Built for Small Factory Edge Banding Production
Multiple servo systems control key processing units, reducing manual setup while improving edge banding stability and consistency.
- Suitable for continuous, high-output edge banding
- Processes cabinet panels, door panels, filler panels and narrow panels
- Rapid adjustment for different panel thicknesses
Core Features
HK968P Automatic Edge Banding Machine focuses on stable edge banding workflow, practical operation and production efficiency.
Stable Gluing
Stable glue application and pressure help improve edge banding consistency.
End Trimming
End cutting removes front and rear excess edge banding material accurately.
Fine Trimming
Rough and fine trimming refine upper and lower panel edges for a cleaner finish.
Scraping and Buffing
Scraping and buffing improve the final surface quality of the edge band.
Factory Upgrade
A suitable upgrade path for factories improving edge banding speed and stability.
Key Structures and Technology
The HK968P configuration covers key edge banding steps for cabinet and panel furniture production.
Machine Body
A stable frame and processing layout support long-term edge banding operation.

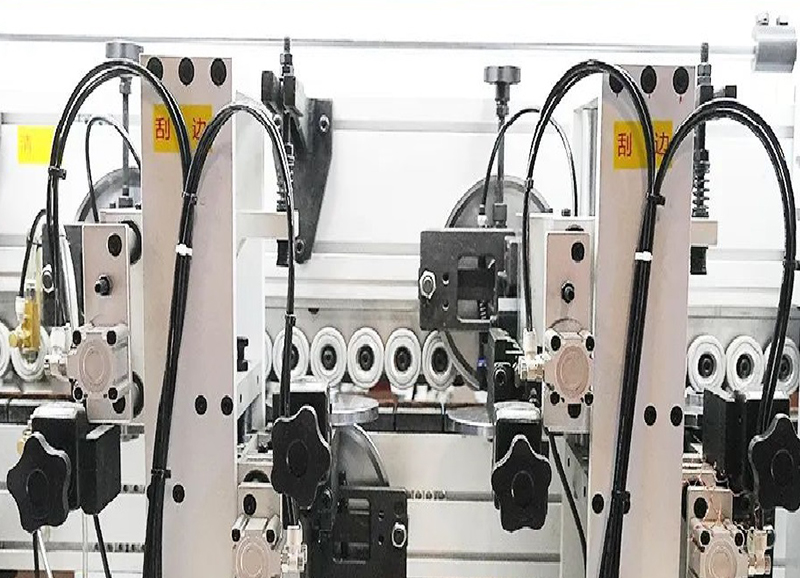

Gluing Unit
The gluing unit supports consistent adhesive application during panel processing.

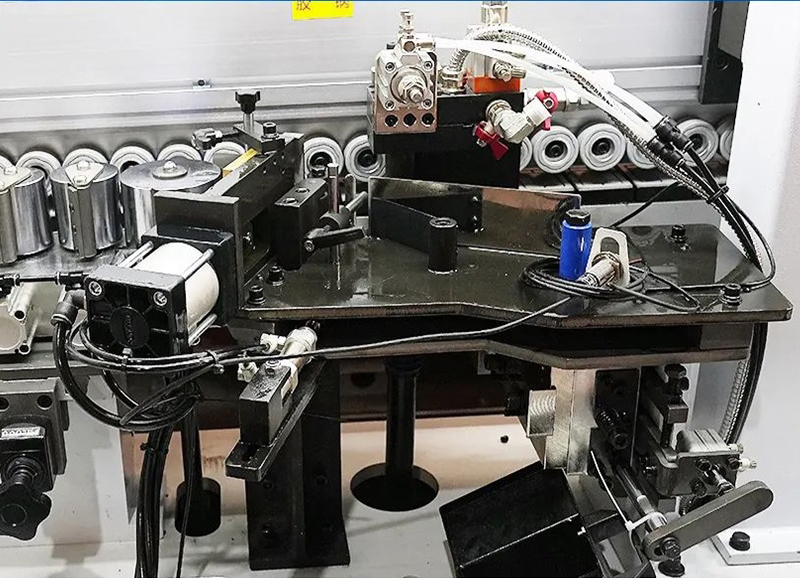

End Cutting
End cutting improves front and rear edge finishing accuracy.

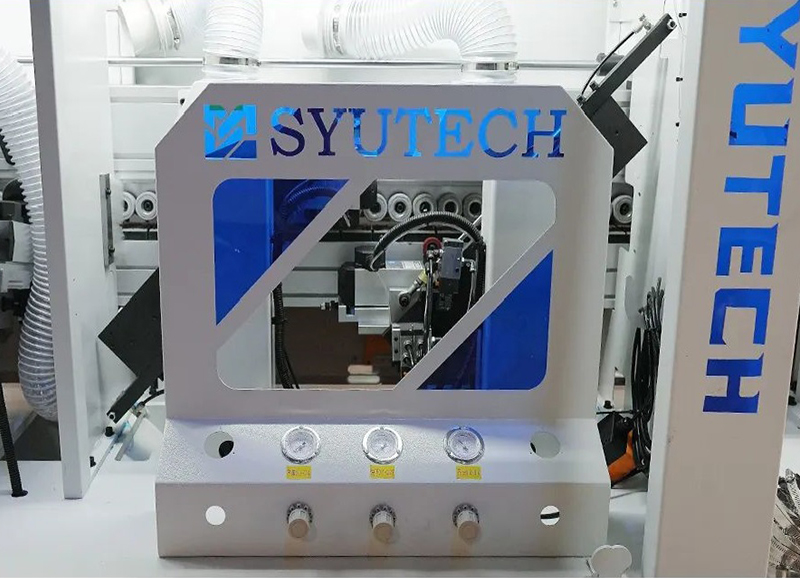

Rough Trimming
Rough trimming removes excess edge material efficiently.

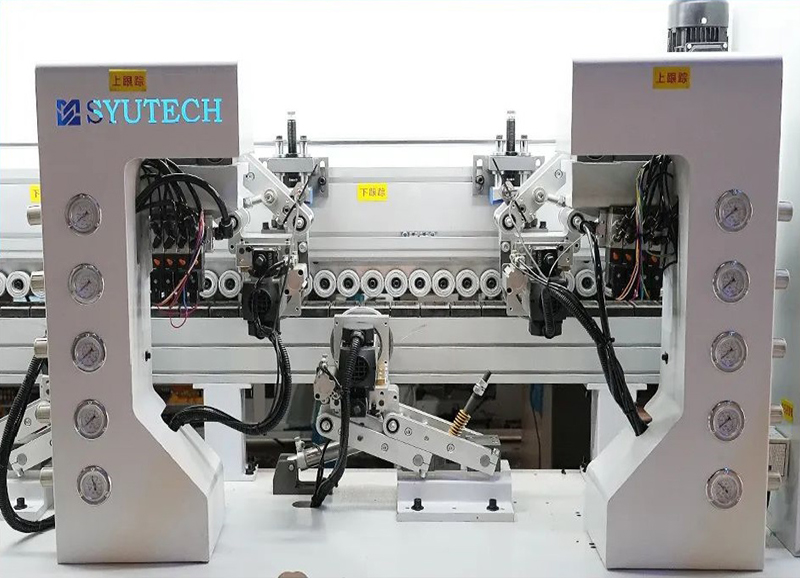

Fine Trimming
Fine trimming improves edge quality and panel appearance.

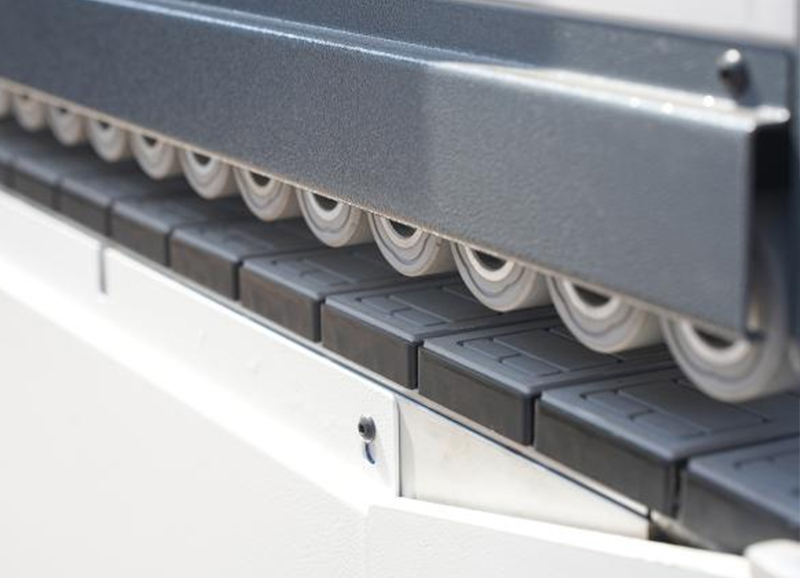

Corner Rounding
Corner rounding supports smoother finished panel corners.
Scraping
Scraping removes fine residue for a cleaner edge surface.
Buffing
Buffing polishes the edge for improved final appearance.
Applications
Suitable for panel furniture production, cabinet workshops and edge banding capacity upgrades.
Cabinet Production
Edge banding for cabinet side panels, shelves, base cabinets and furniture components.
Panel Furniture
Stable edge finishing for batch panel furniture production.
Workshop Upgrade
Improves edge banding speed, consistency and machine workflow.
Production Line Support
Can work with cutting, drilling and cabinet production processes.
Edge Banding Result
Technical Specifications
Key parameters for HK968P Automatic Edge Banding Machine.
| Model | HK968P |
|---|---|
| Machine Type | Automatic Edge Banding Machine |
| Functions | Pre-milling, glue and pressure, double motor end cut, rough trim, fine trim, corner rounding, radius scrape, buffing |
| Panel Length | Min. 150mm |
| Panel Width | Min. 40mm |
| Edge Band Width | 10-60mm |
| Edge Band Thickness | 0.4-3mm |
| Feed Speed | 20-22-28m/min |
| Installed Power | 35kW |
| Voltage | 380V 50Hz |
| Pneumatic Pressure | 0.7-0.9MPa |
| Overall Dimensions | 9500*1200*1650mm |
Suitable Users
Furniture factories, cabinet workshops, custom furniture producers and edge banding capacity upgrade projects.
Processing Applications
Cabinet panels, furniture boards, shelves, doors and common panel furniture edge banding tasks.
Configuration Note
Final configuration may vary by voltage, options and factory requirements. Confirm details before quotation.
Factory Strength

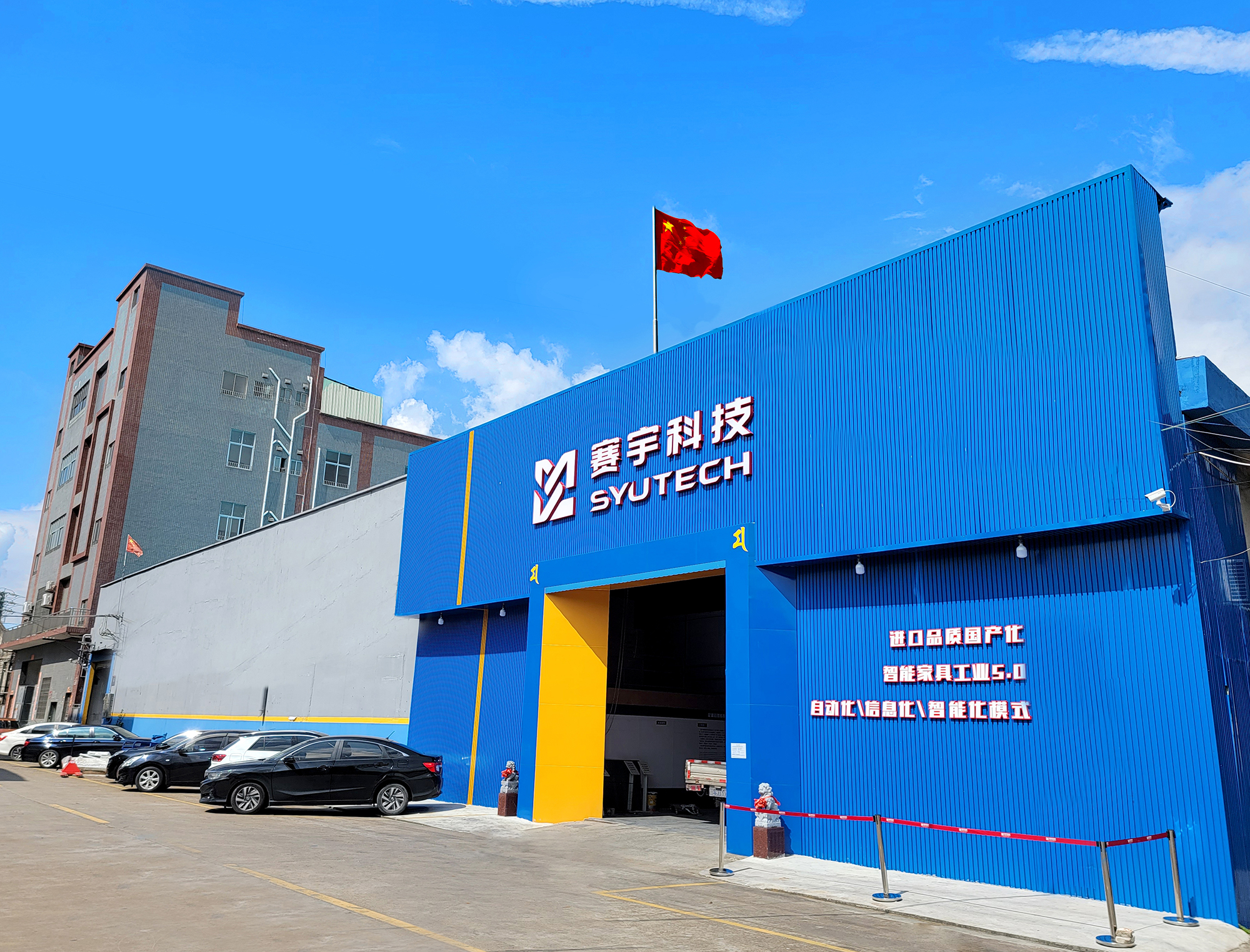

Factory Exterior
Factory exterior view.

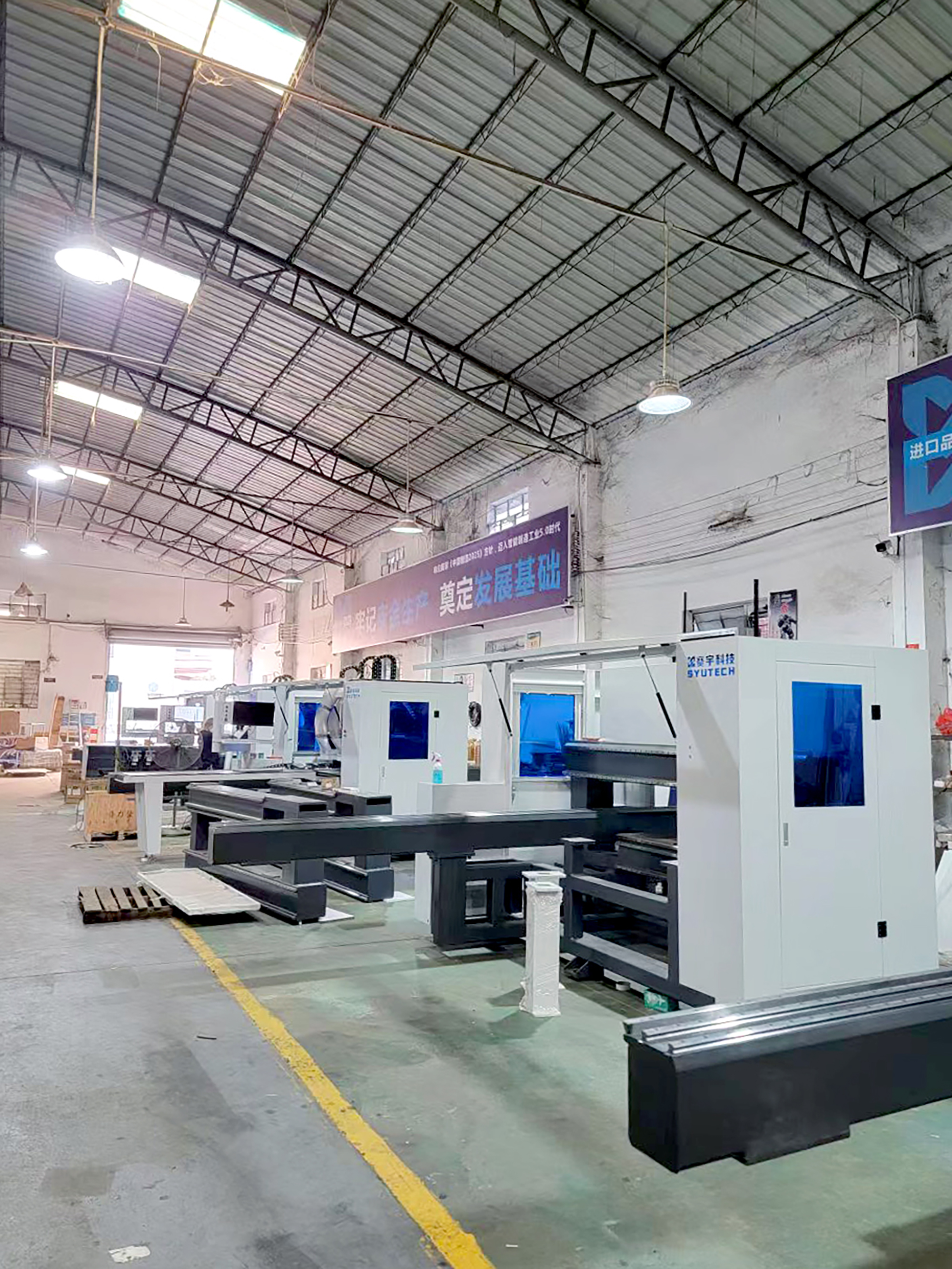

Six-Sided Drilling Workshop
Mainly produces six-sided drilling machines and production lines.

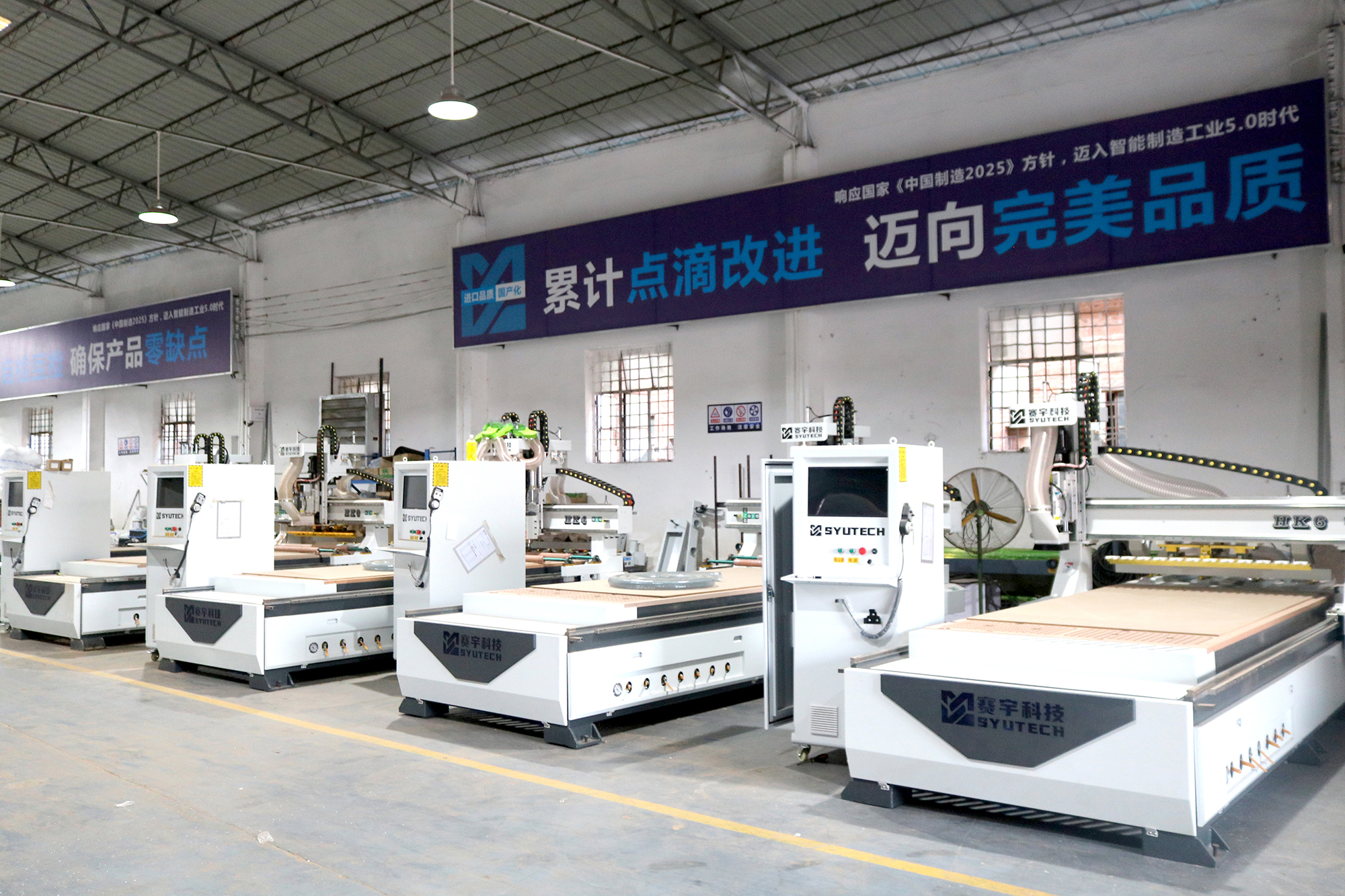

CNC Cutting Workshop
Mainly produces CNC cutting machines and cutting lines.

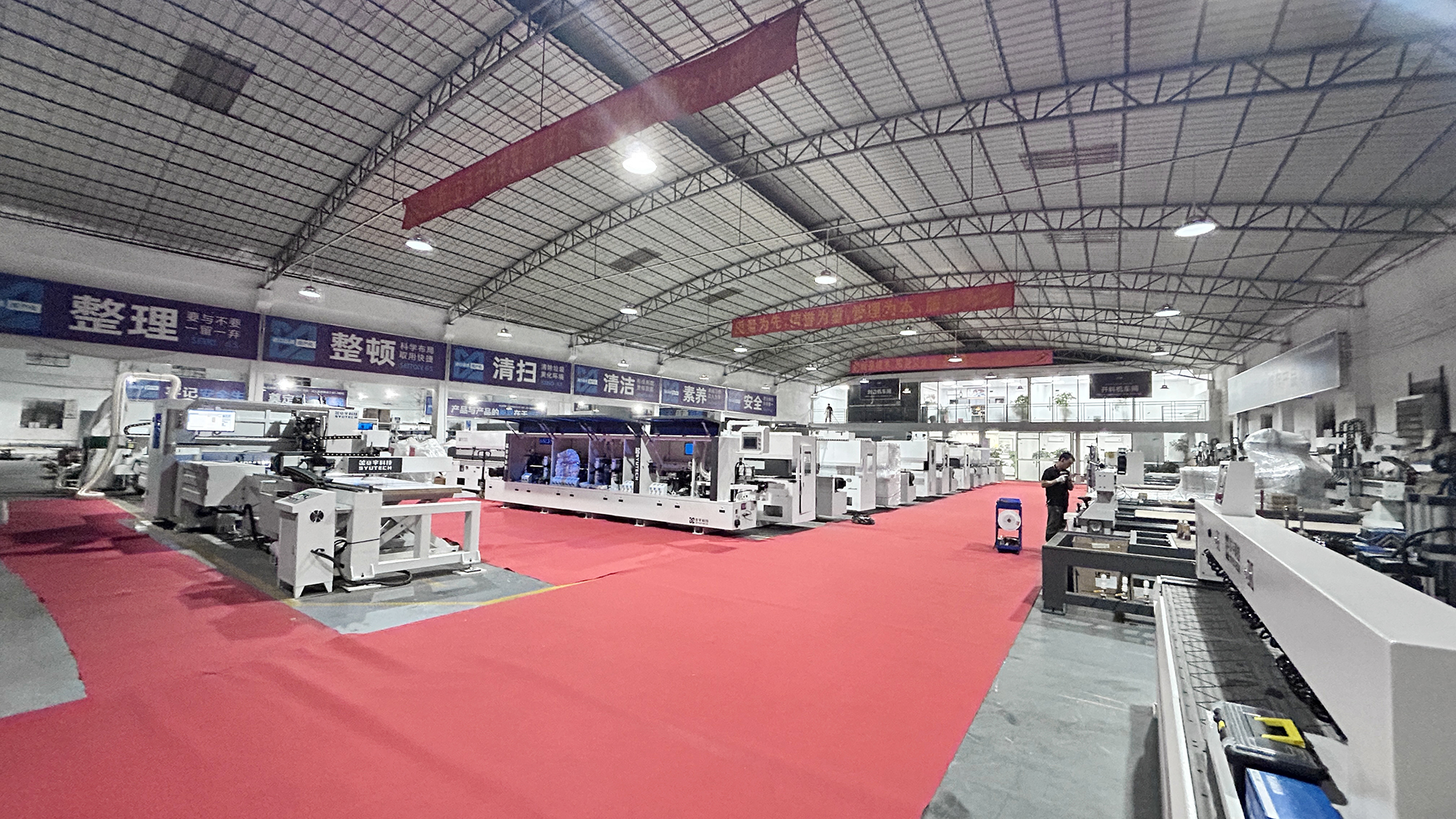

Edge Banding Workshop
Mainly produces small and large edge banding machines.
Shanghai Exhibition Site
Team photo at the exhibition.
Foshan Lunjiao Exhibition Site
Team photo at the exhibition.
FAQ
Common questions about HK968P Automatic Edge Banding Machine.
What type of machine is the HK968P?
HK968P is a automatic edge banding machine for panel furniture edge banding production.
What functions does it include?
It includes pre-milling, glue and pressure, double motor end cut, rough trim, fine trim, corner rounding, radius scrape, buffing.
What is the feed speed?
The specified feed speed is 20-22-28m/min.
What edge band thickness can it use?
The specified edge band thickness range is 0.4-3mm.
What is the minimum panel size?
The minimum panel length is 150mm and the minimum panel width is 40mm.
What is the installed power?
The installed power is 35kW with 380V 50Hz power supply.
Who is it suitable for?
It is suitable for furniture factories, cabinet workshops and production upgrade projects.
Can configuration be confirmed before quotation?
Yes. Final options, voltage and production requirements should be confirmed before quotation.
