Narrow-Board Edge Banding
Processes end panels and long narrow boards for top cabinet panels, closing panels, and cabinet strips.

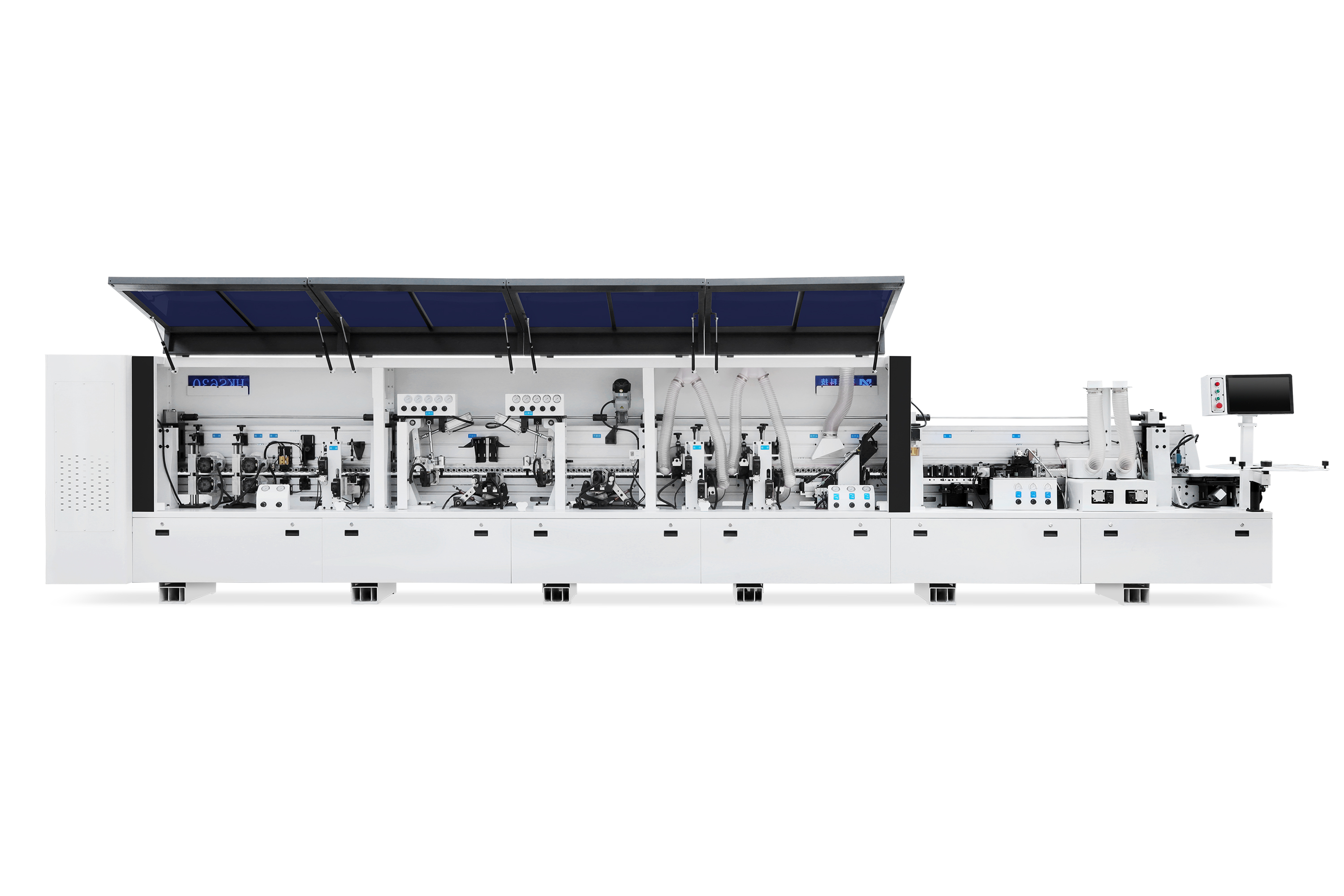

HK-630 German-Style Edge Banding Machine
HK-630 is designed for panel furniture, cabinet parts, and narrow-board edge banding. It integrates pre-milling, PUR gluing, servo edge feeding, end trimming, trimming, tracking, scraping, cleaning, thread cutting, and double polishing.
Narrow-Board Auxiliary FeedingPUR No-Clean GluingServo Edge FeedingFour-Motor TrackingGlue Thread Cutting Device
Stable Edge Banding for Narrow Boards and End Panels
The machine is used for top cabinet closing panels, closing panels, kitchen cabinet strips, base cabinet strips, and cabinet corner lines, helping handle narrow-board and end-panel edge banding tasks.
- Suitable for panel furniture and cabinet production
- Supports small boards, narrow boards, and standard panel edge banding
- Improves edge banding stability and finished edge quality
Core Features
Configured around narrow-board edge banding, PUR gluing, servo edge feeding, and stable finished results.
PUR No-Clean Gluing
Uniform gluing and a fine glue line for panels requiring better edge appearance and bonding quality.
Servo Feeding and Pressing
The servo system controls edge band feeding speed and position to reduce stretching, deviation, and material waste.
Four-Motor Profile Tracking
High-speed tracking rounds all four corners for smoother finished edges.
Thread Cutting Protection
Reduces edge-band thread wrapping around flat scraping or polishing units, lowering jam and motor damage risk.
Stable Machine Structure
A 300 mm high pressure beam with a low-mounted structure lowers the center of gravity and improves stability for narrow boards and end panels.
Key Structures & Technology

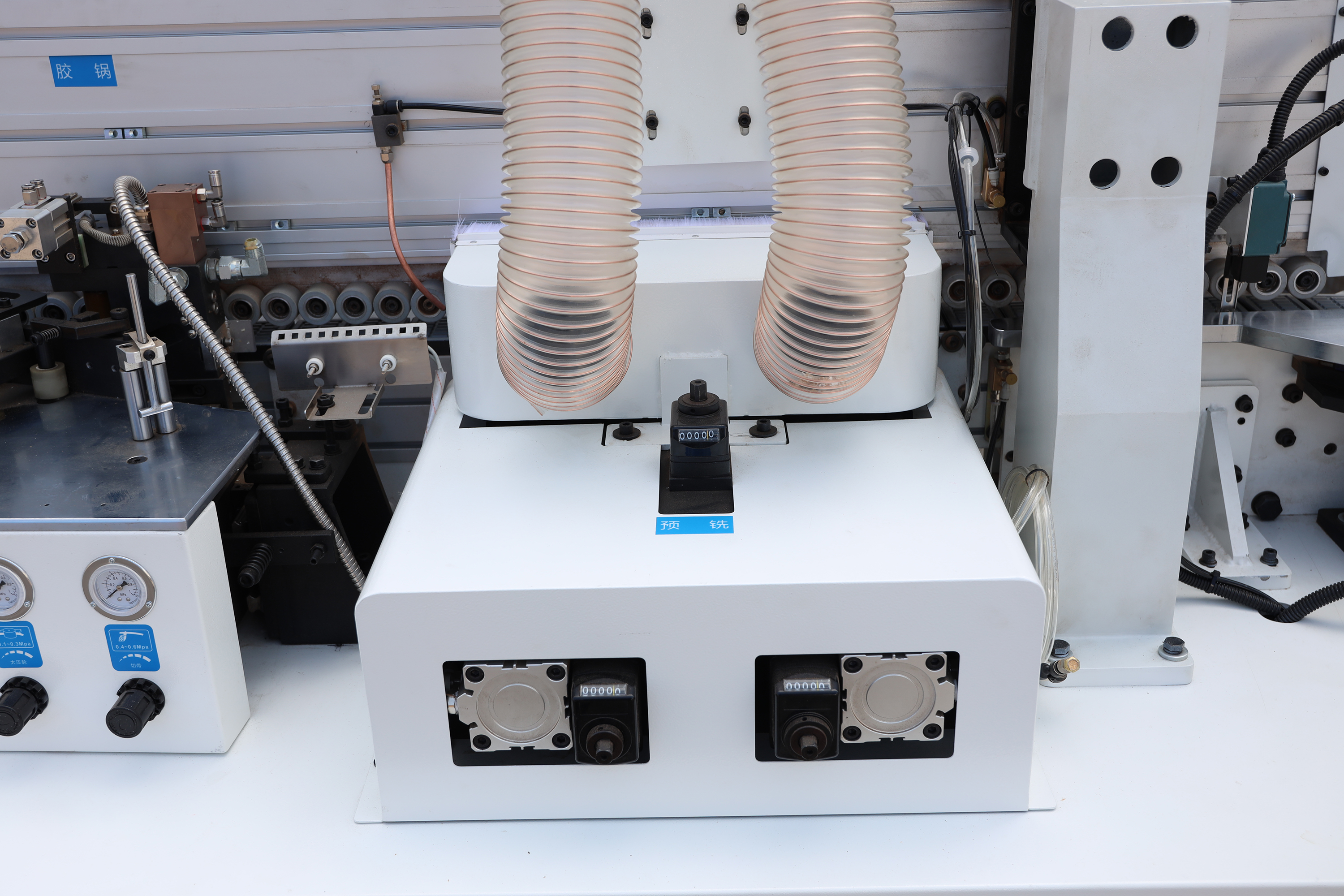

Pre-Milling
Diamond double-cutter pre-milling with inlet dust blowing removes waves and expanded edges for flatter panel edges.

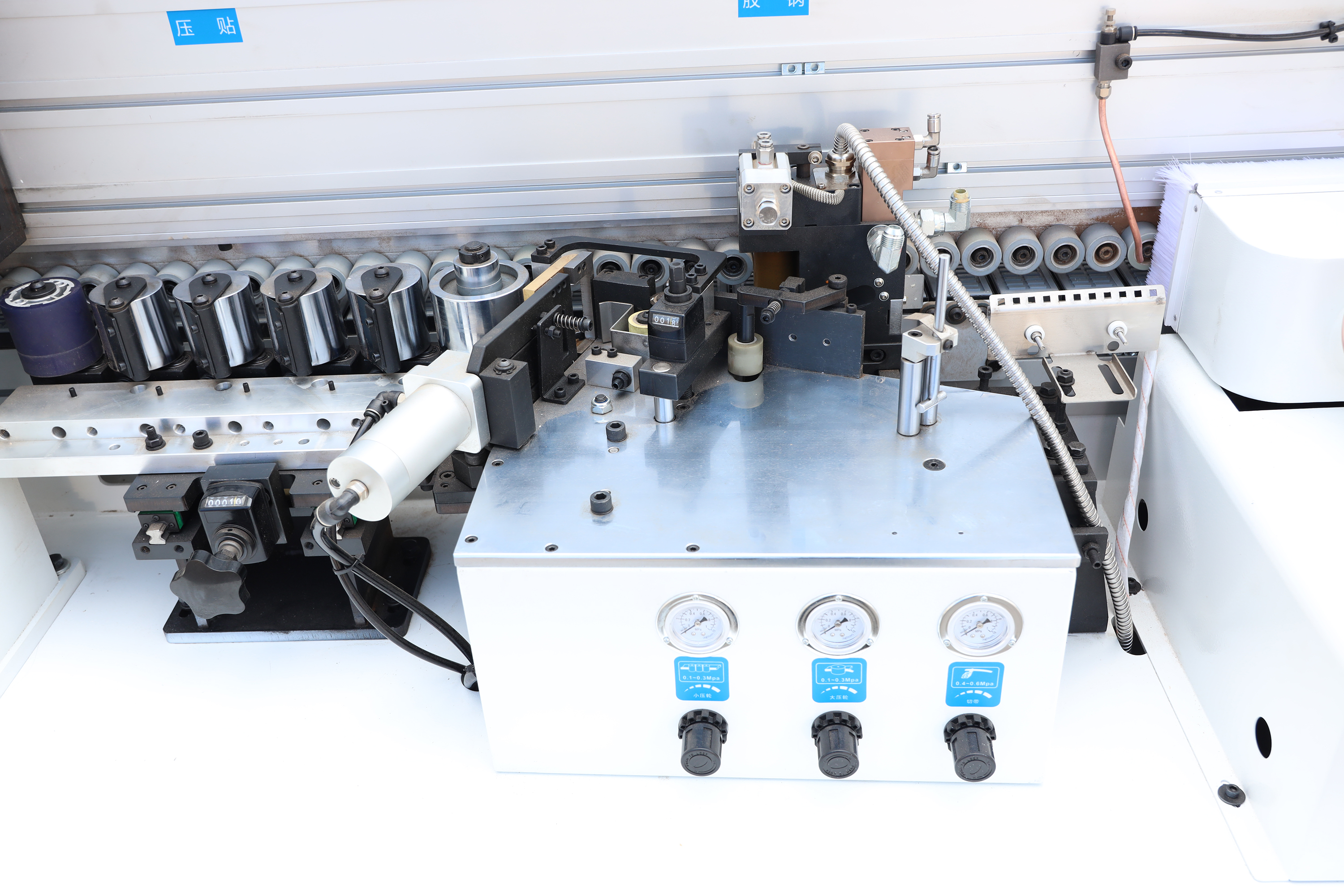

Gluing & Edge Banding
PUR no-clean gluing creates uniform glue application and a fine glue line for better bonding.

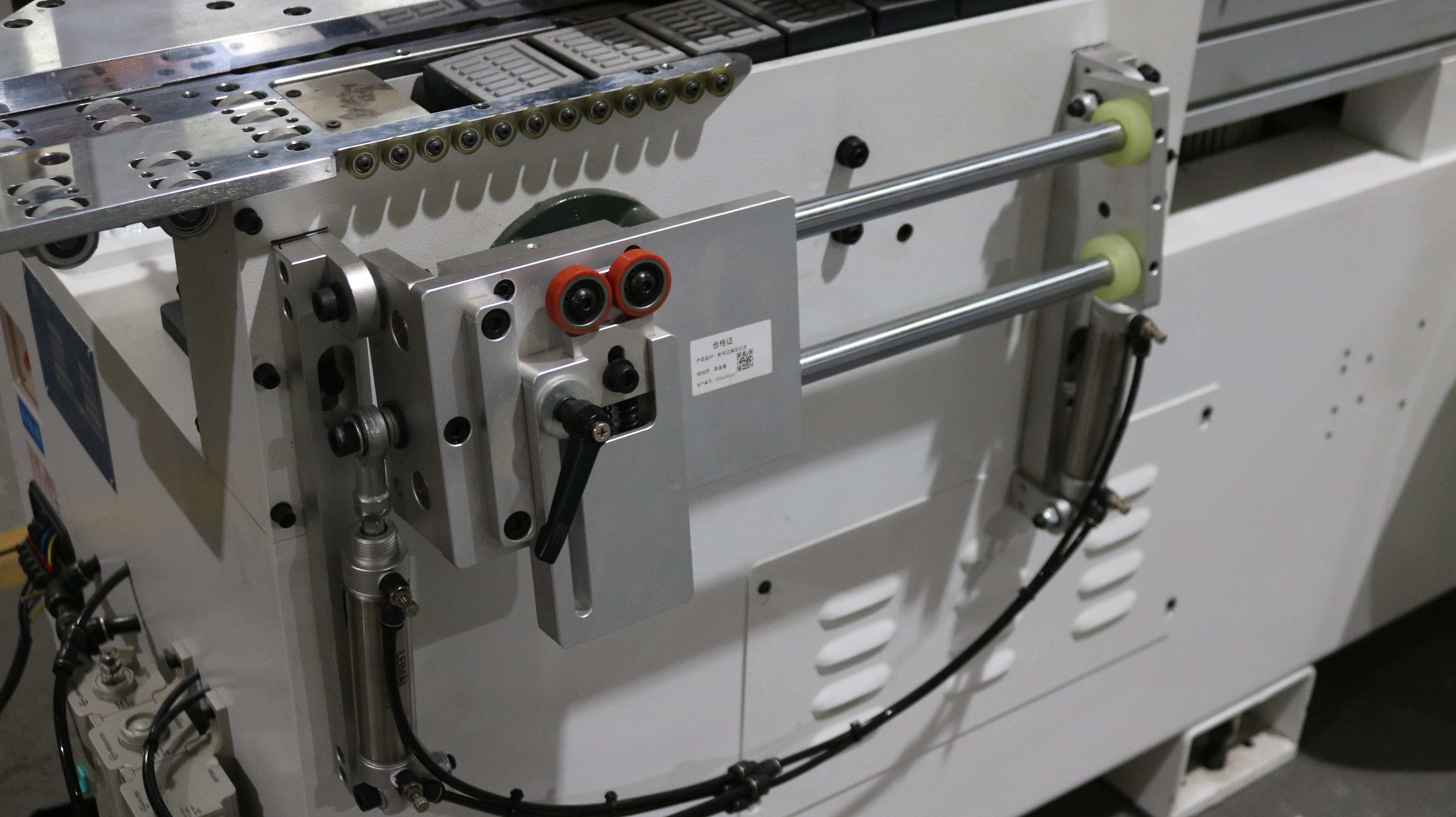

Narrow-Board Auxiliary Feeding
Auxiliary feeding for small boards supports end panels from 45*200 mm and long narrow boards from 40*300 mm.

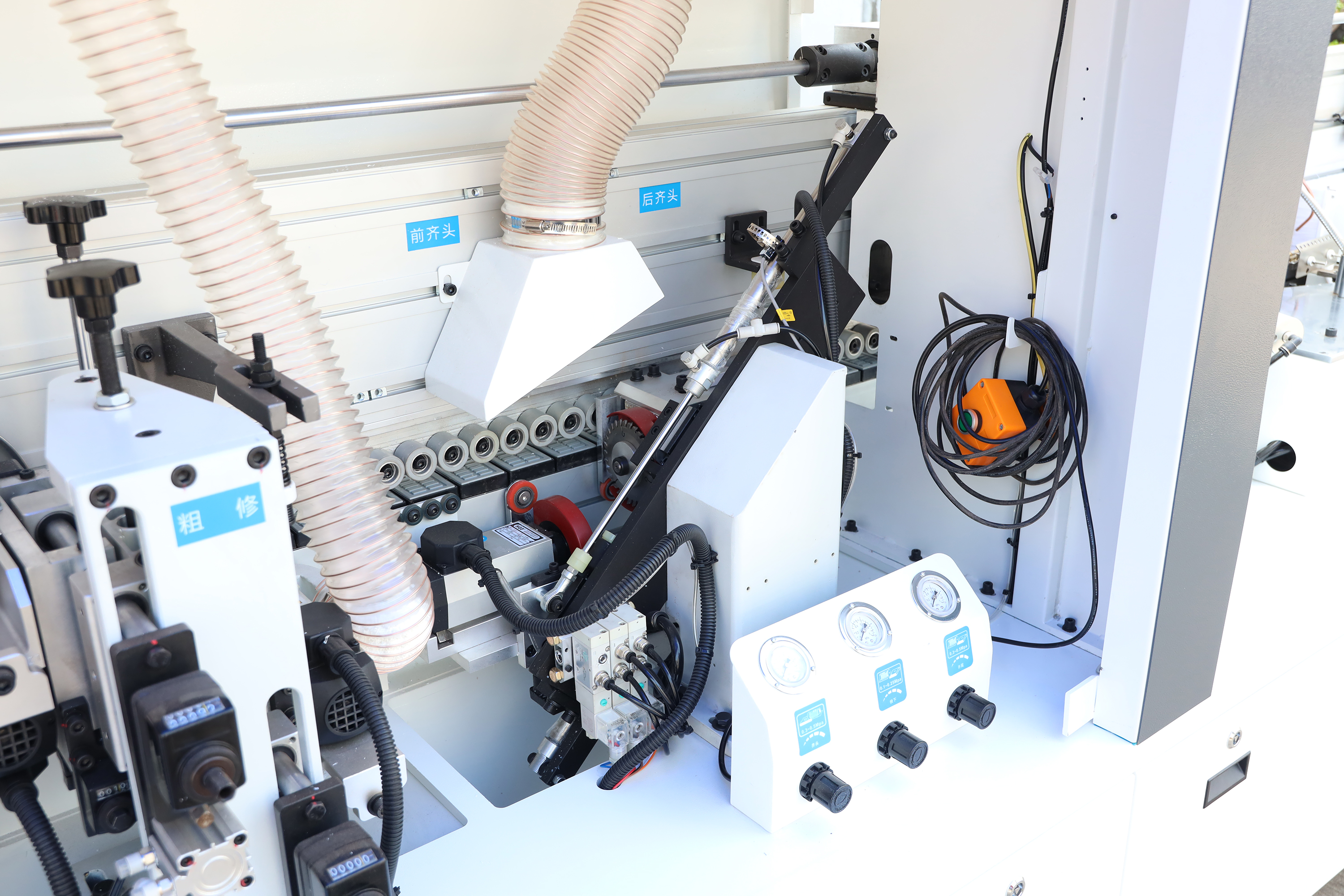

Front & Rear End Trimming
Two independent high-frequency motors with linear guides quickly trim front and rear excess material.

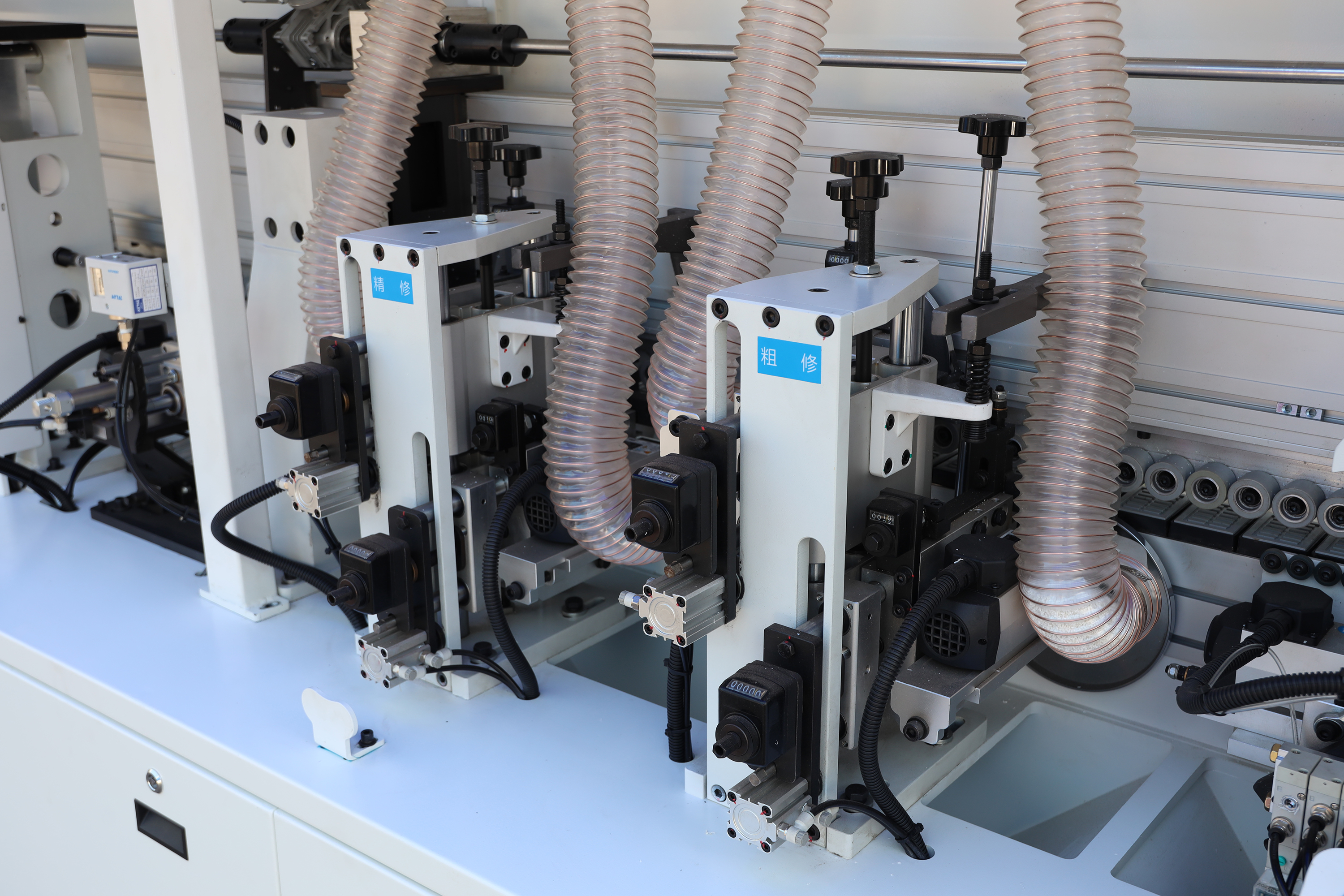

Rough + Fine Trimming
Rough trimming removes excess edge banding, while R-knife fine trimming forms smoother radius edges.

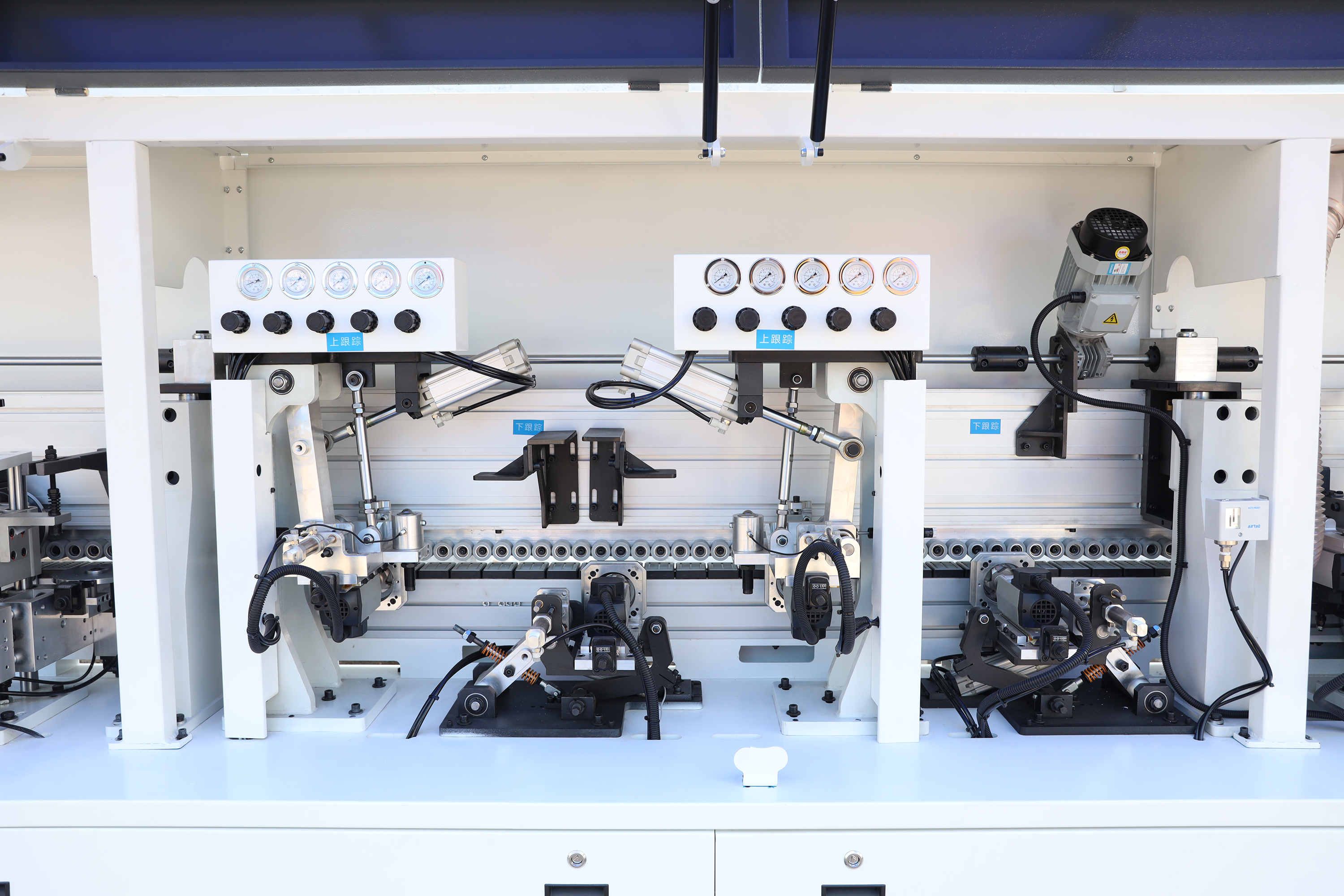

Four-Motor Profile Tracking
Four independent high-speed motors profile the four panel corners into R-shaped corners.

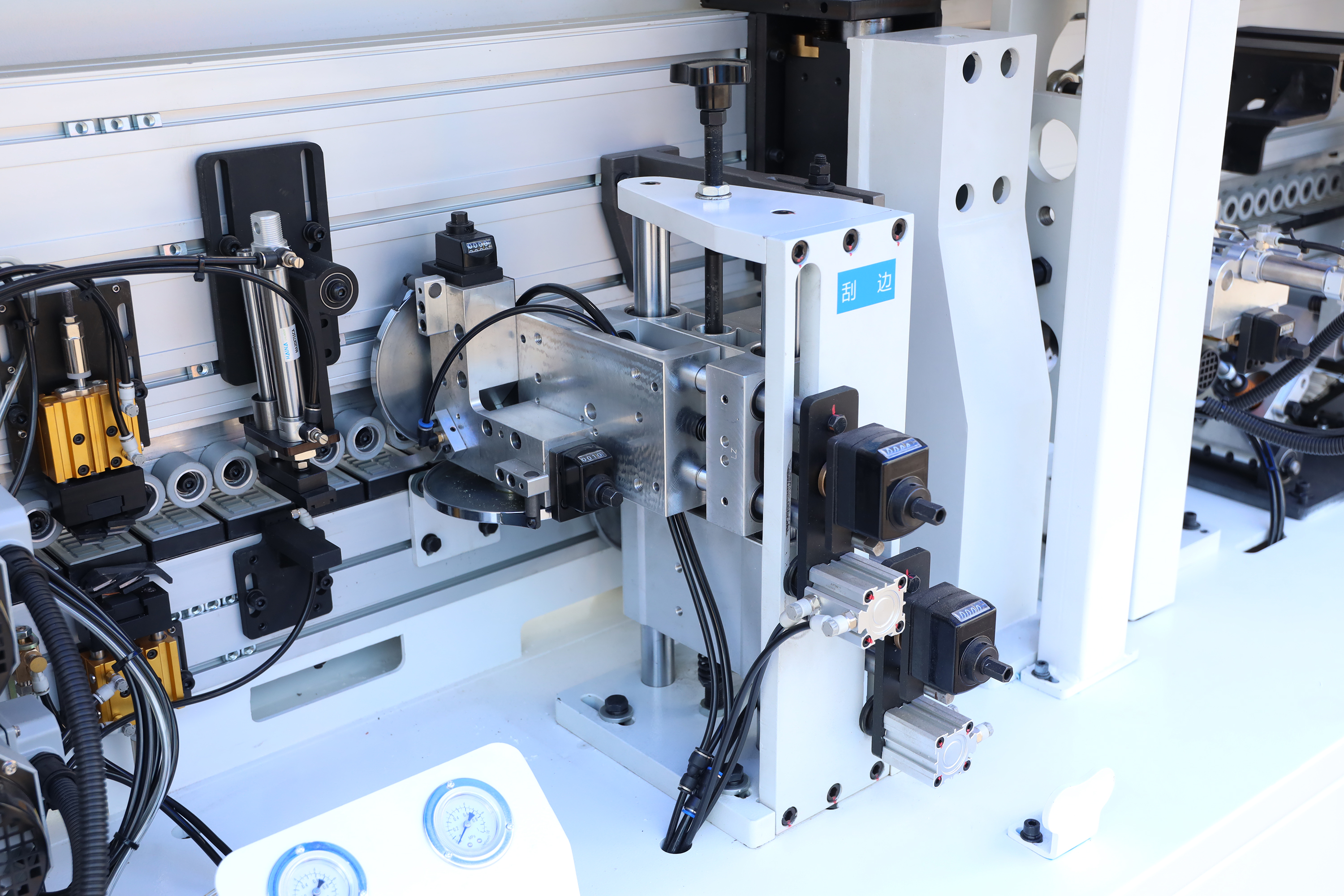

Edge Scraping
Two scraping knife groups with different radii can be switched for different edge band thicknesses.

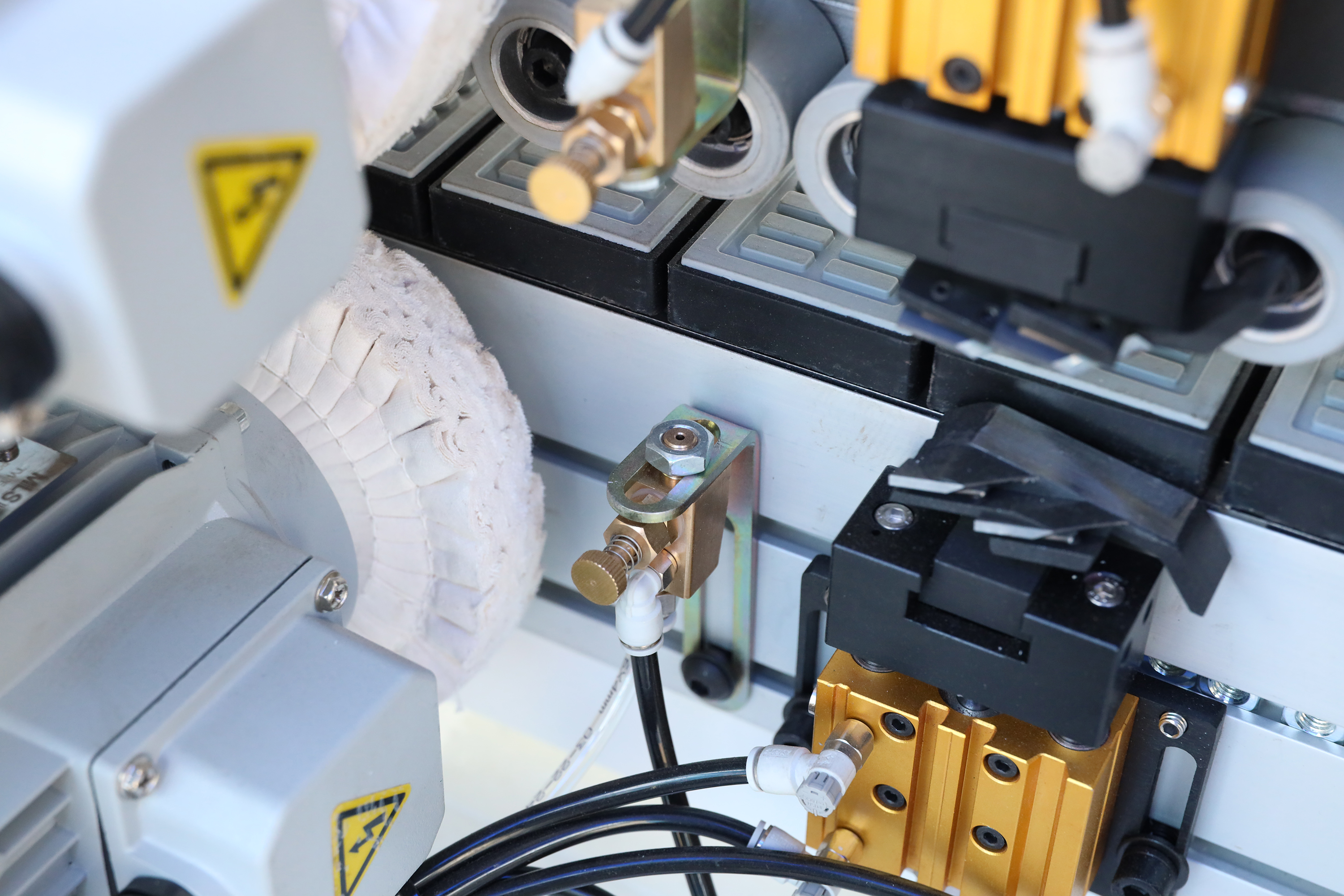

Flexible Flat Scraping + Cleaning
Removes excess glue from upper and lower joints and cleans residual glue and chips before polishing.

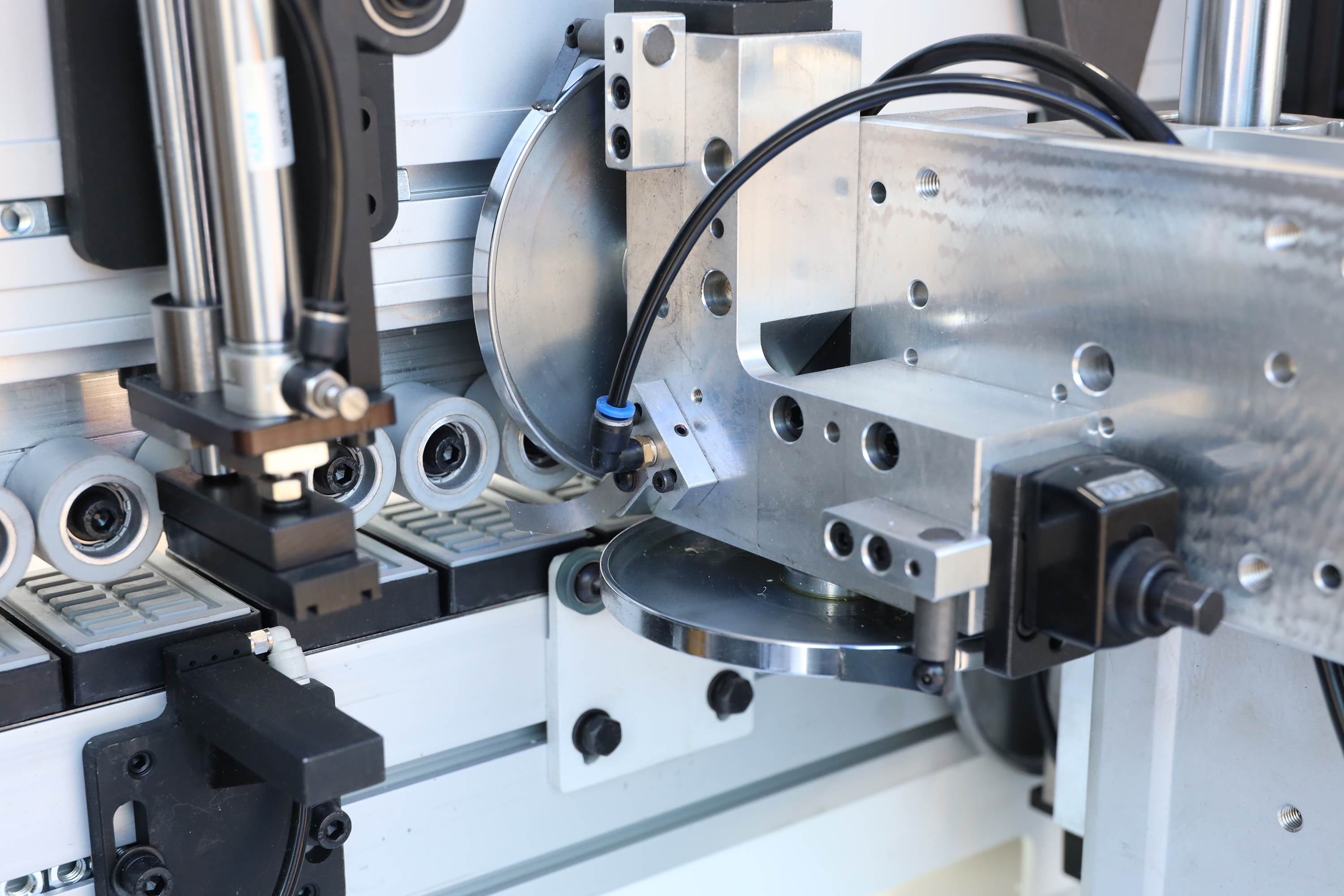

Glue Thread Cutting Device
Cuts scraped edge-band threads to reduce wrapping and jamming around the polishing unit.

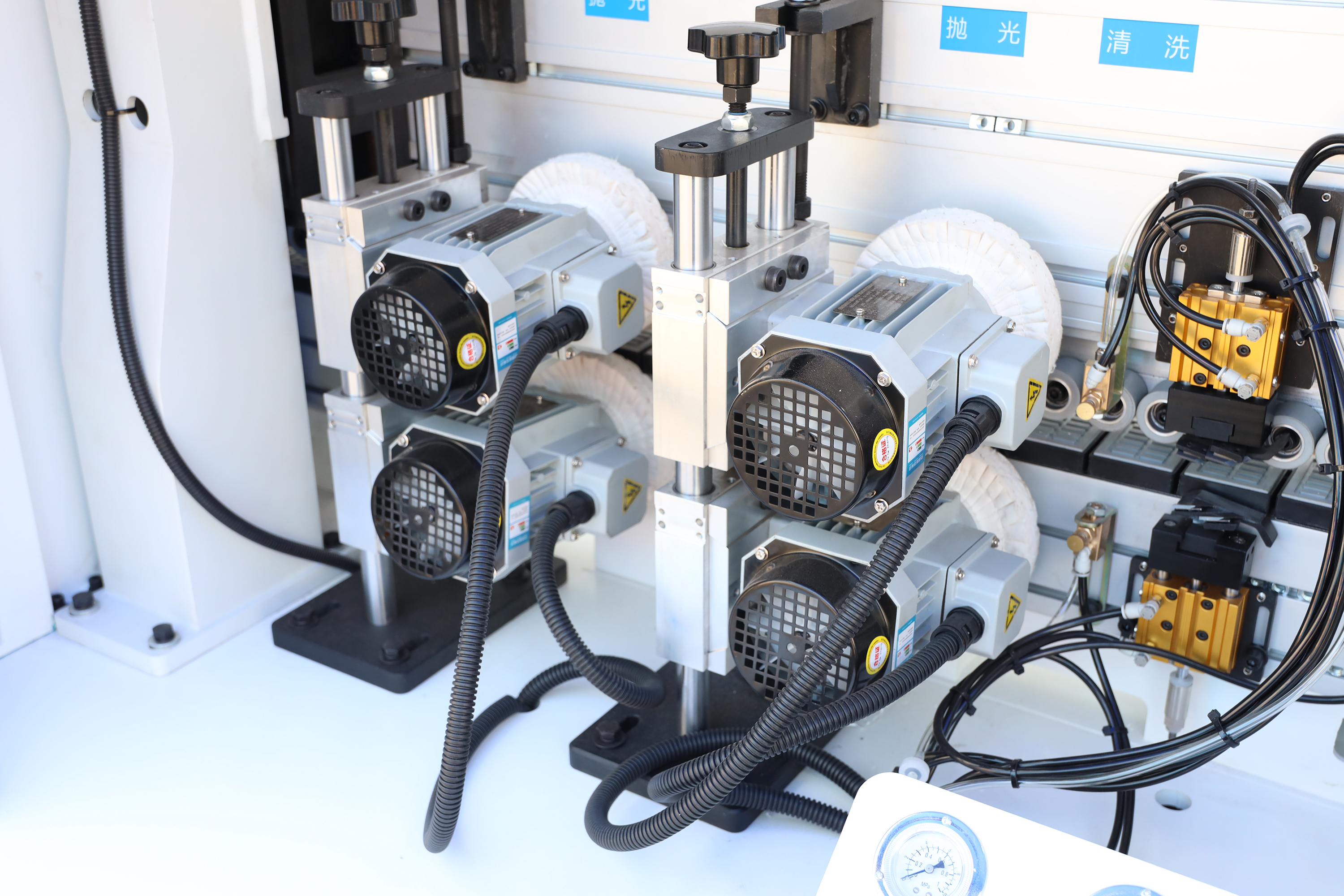

Double Polishing
High-speed double polishing wheels clean the processed panel for a smoother and cleaner edge surface.
Applications
Suitable for cabinet, panel furniture, and narrow-board edge banding production.
Top Cabinet Closing Panels
For end-panel edge banding on top cabinets, wall cabinets, and closing panels.
Kitchen and Base Cabinets
For edge banding front and rear strips on kitchen cabinets and base cabinets.
Cabinet Corner Lines
For cabinet corner lines and special narrow-board edge banding.
Panel Furniture Factories
For workshops that need higher narrow-board edge banding efficiency and stability.

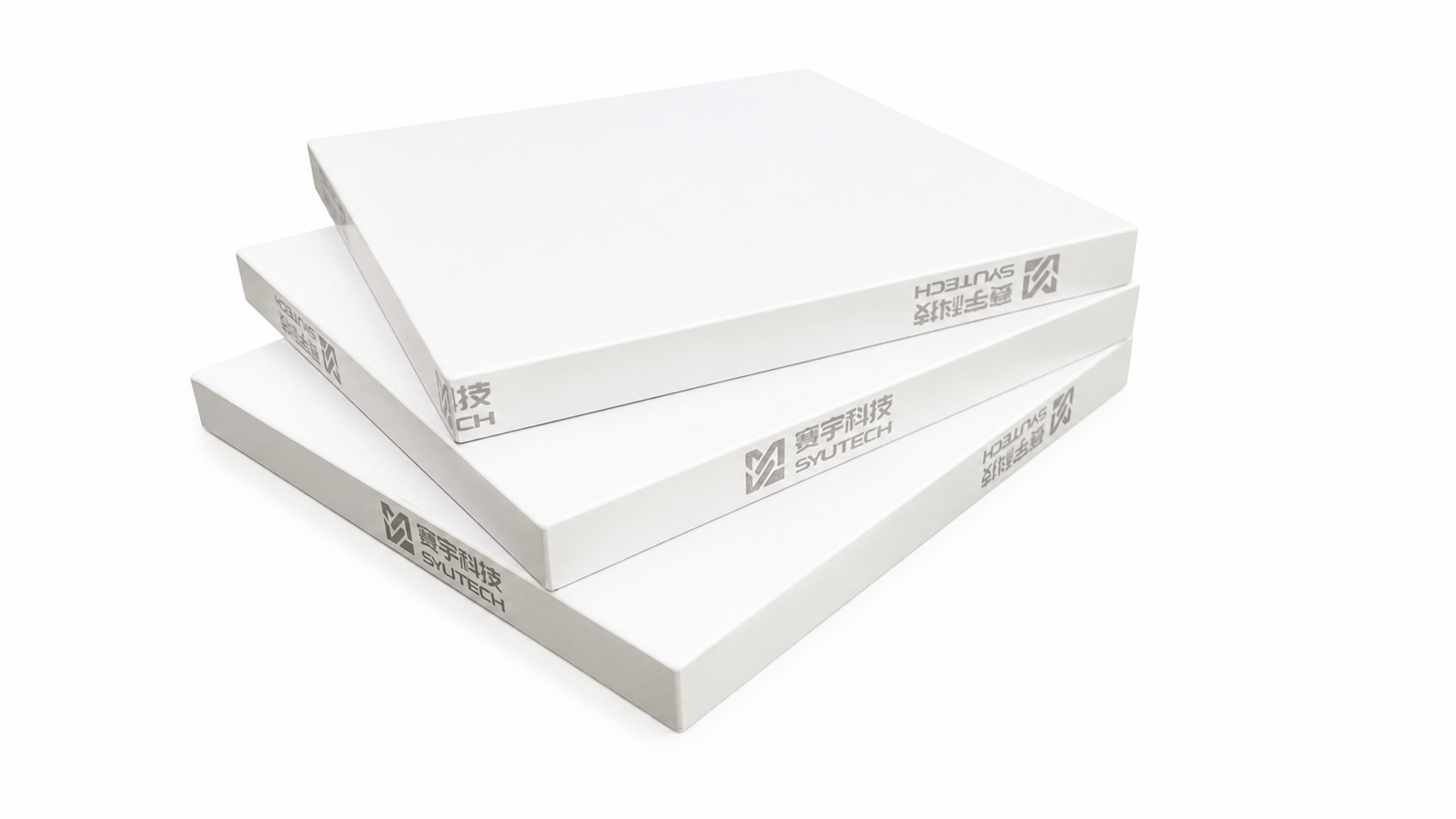

Edge Banding Result
Technical Specifications
Specifications are subject to the actual machine and final confirmed configuration.
| Model | HK-630 |
|---|---|
| Overall Dimensions | 8740*740*1650mm |
| Machine Weight | 3T |
| Panel Thickness | 9-60mm |
| Edge Band Thickness | 0.4-3mm |
| Minimum Workpiece Length | >=100mm |
| Minimum Workpiece Width | >=40mm |
| Feed Speed | 16-18-23m/min |
| Total Power | 19kW |
| Conveyor Motor Power | 5.5kW |
Suitable Users
Panel furniture factories, cabinet factories, kitchen cabinet manufacturers, and workshops requiring narrow-board edge banding.
Applications
Top cabinet closing panels, closing panels, kitchen and base cabinet strips, cabinet corner lines, small boards, and narrow-board edge banding.
Factory Strength

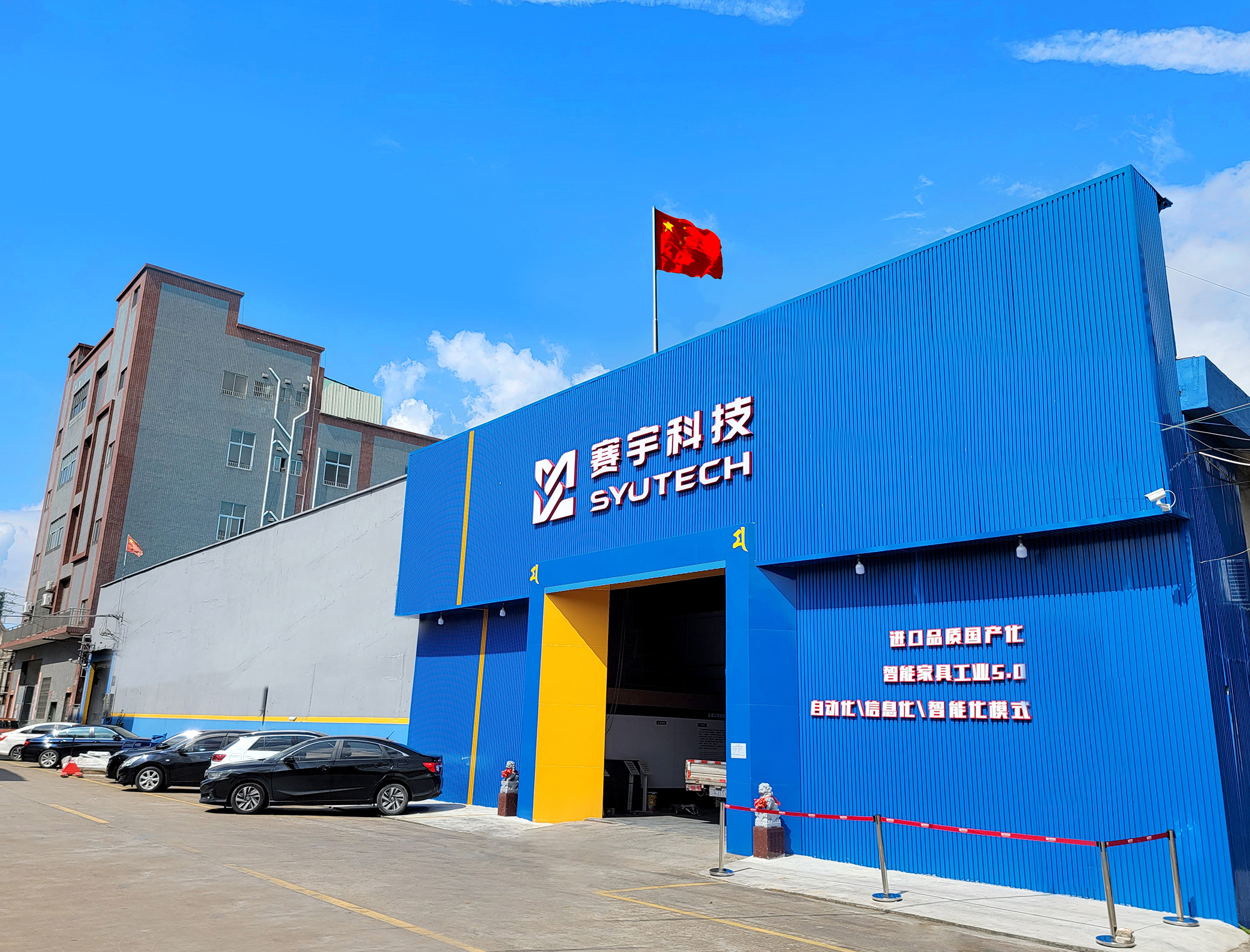

Factory Exterior
Factory exterior view.

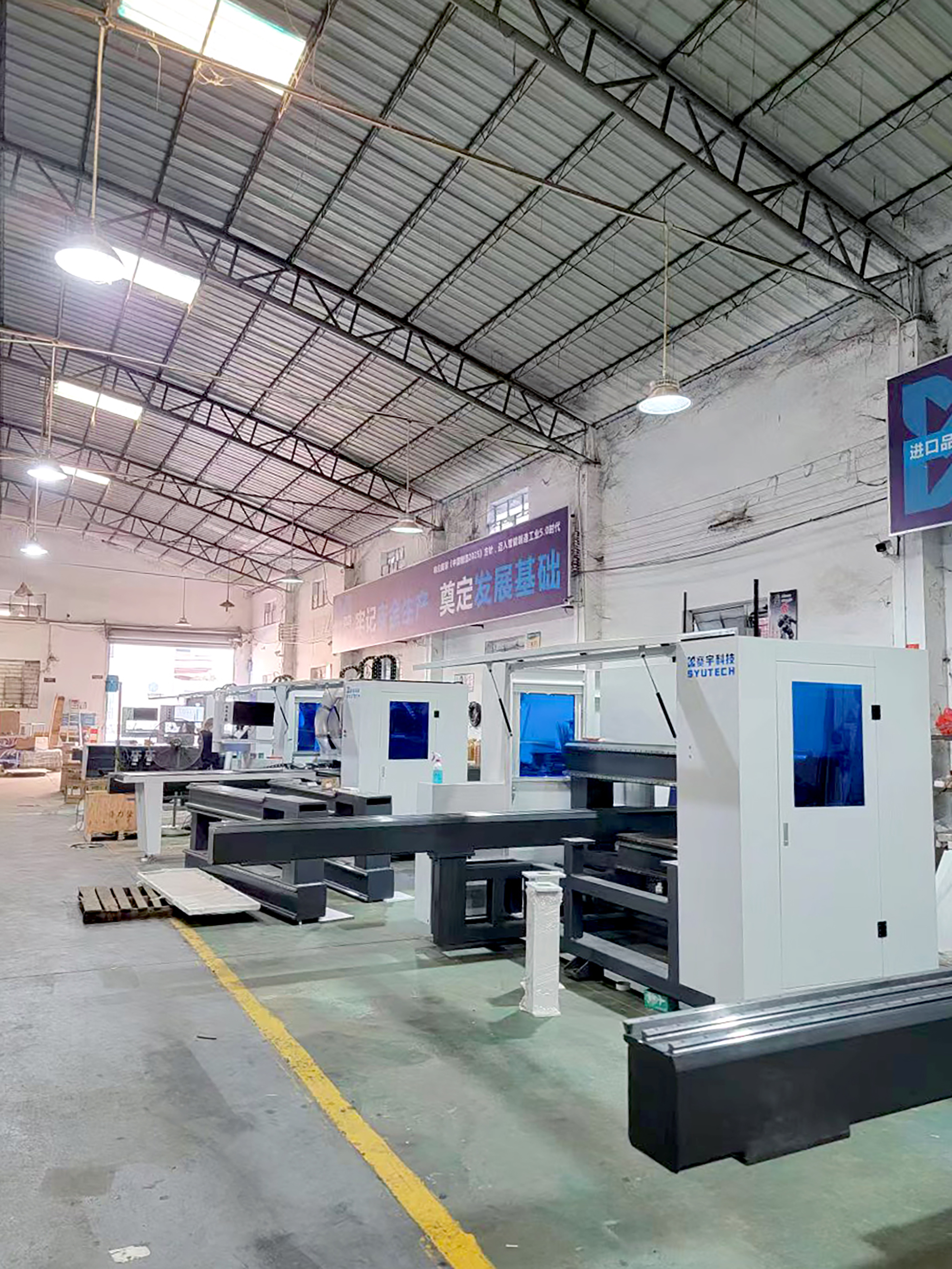

Six-Sided Drilling Workshop
Main production area for six-sided drilling machines and line solutions.

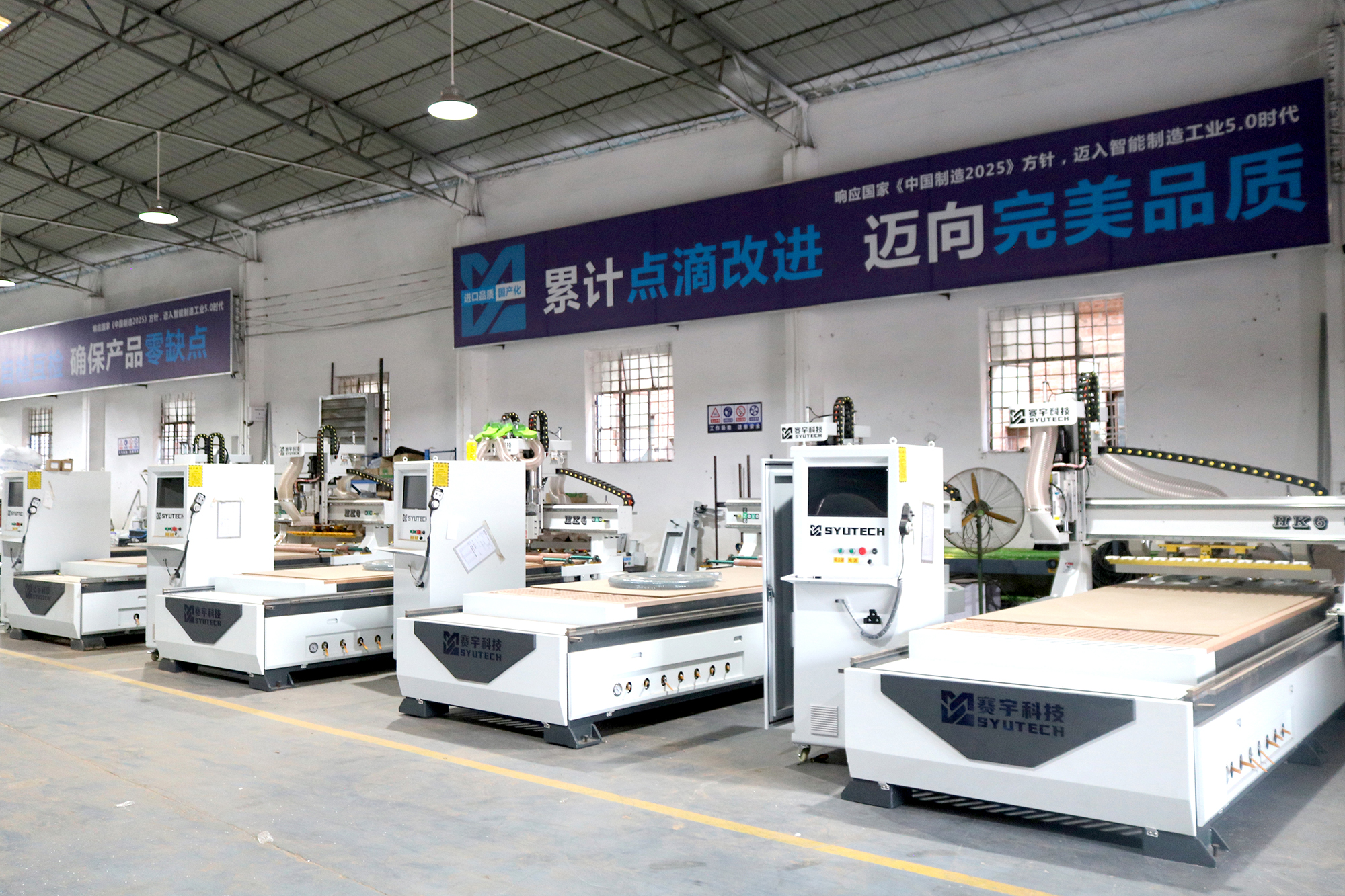

CNC Cutting Workshop
Main production area for CNC nesting machines and cutting line solutions.

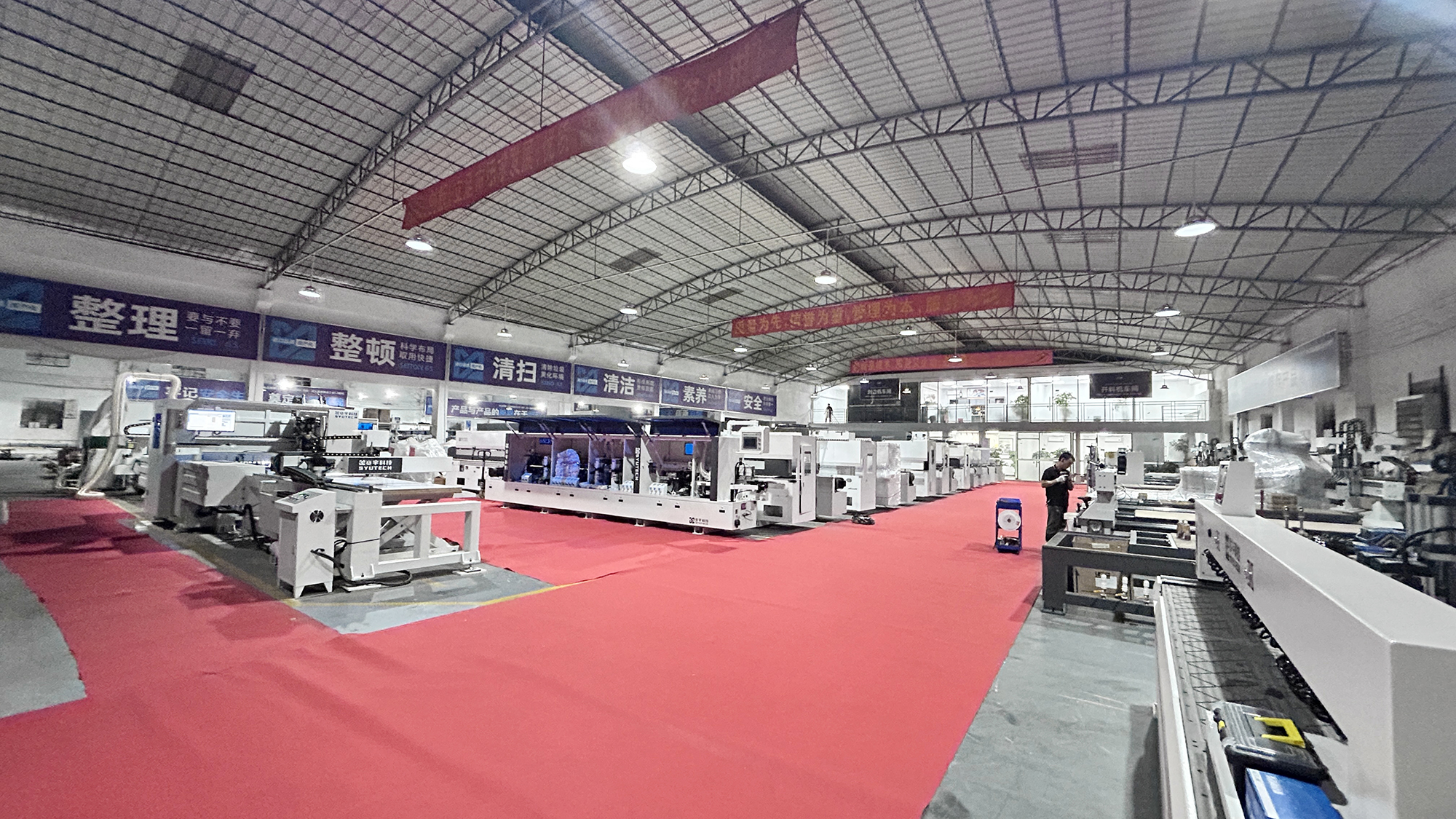

Edge Banding Workshop
Main production area for small, medium and large edge banding machines.
Shanghai Exhibition Site
Exhibition team display.
Foshan Lunjiao Exhibition Site
Exhibition team display.
FAQ
HK-630 German-Style Edge Banding MachineFAQ.
What type of machine is HK-630?
HK-630 is a German-style edge banding machine for panel furniture, cabinet parts, narrow boards, and end-panel edge banding.
What narrow boards can it process?
It can process end panels from 45*200 mm and long narrow boards from 40*300 mm.
Does it support PUR no-clean gluing?
Yes. The machine is configured with PUR no-clean gluing for uniform glue application and a fine glue line.
What does servo edge feeding do?
Servo feeding precisely controls edge band feeding speed and position to reduce stretching, deviation, and material waste.
What is four-motor profile tracking used for?
It profiles the four panel corners into R-shaped corners for smoother corner finishing.
What problem does the glue thread cutting device solve?
It reduces edge-band thread wrapping around flat scraping or polishing units, lowering jam and motor damage risk.
What applications is it suitable for?
It is suitable for top cabinet closing panels, closing panels, kitchen cabinets, base cabinet front and rear strips, cabinet corner lines, and narrow-board edge banding.
What are the production lead time and warranty?
The production lead time is 30 working days, and the warranty period is one year.
