45 Degree Bevel Profile
Creates a clear bevel closing effect on the panel edge, suitable for refined cabinet closures and decorative parts.

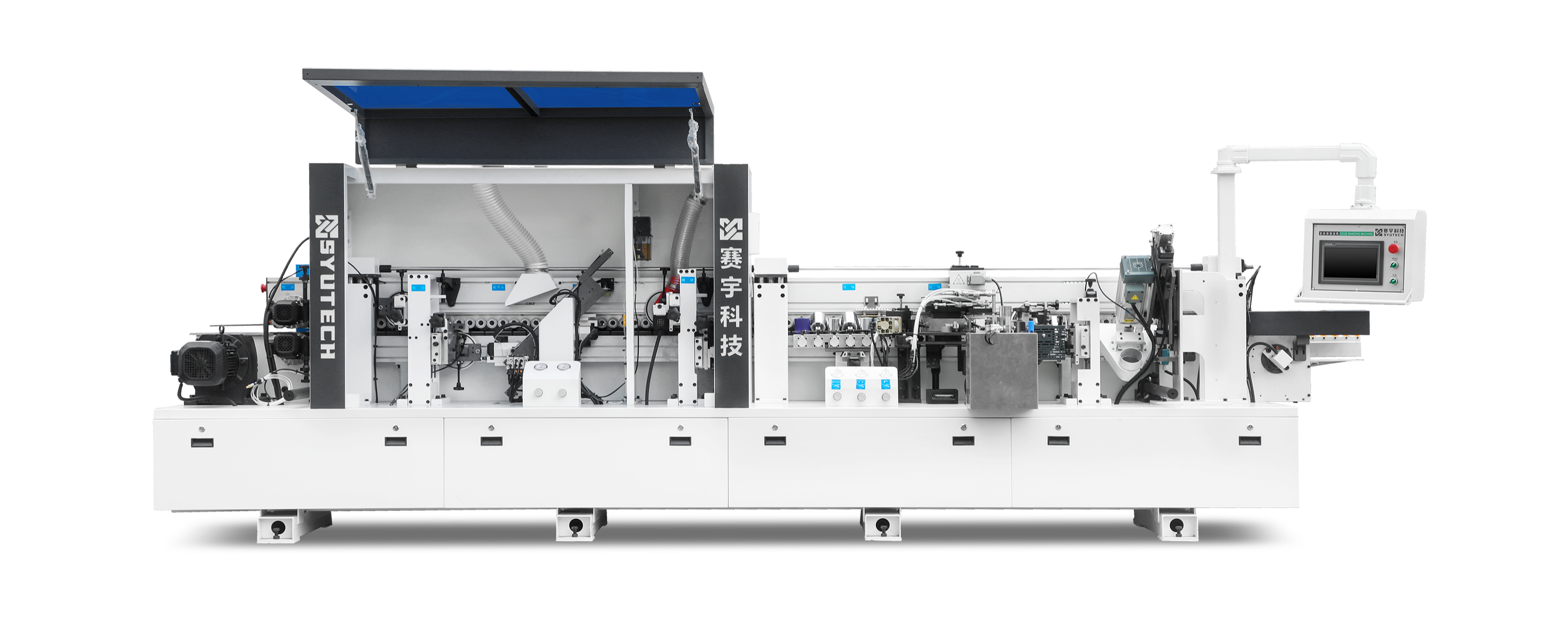

HK-465X-1 45 Degree Bevel Edge Bander
HK-465X-1 is built around the 45 degree bevel edge banding process for furniture factories, giving top cabinet panels, closing panels, cabinet pull strips, and base cabinet corner lines a more dimensional and refined edge finish.
45 Degree Bevel Edge Banding
Process Upgrade
Bevel Gluing and Pressing
Six-Wheel Bevel Pressing
Front and Rear End Trimming
Bring 45 Degree Bevel Edge Banding Into Batch Production
HK-465X-1 focuses on 45 degree bevel edge banding, helping furniture factories turn bevel closing details into a stable production process for cabinet closures, top panels, and decorative strips.
- Turns bevel edge processing from a skill-dependent operation into a repeatable machine process.
- Suitable for top cabinet panels, closing panels, pull strips, and base cabinet corner lines with stronger design details.
- Bevel sawing, 45 degree gluing and pressing, and final trimming work together to reduce rework.
45 Degree Bevel Process Highlights
Built around bevel forming, 45 degree gluing and pressing, continuous feeding, and edge finishing, the machine helps furniture factories produce more distinctive cabinet parts.
Narrow Panel Process Upgrade
Supports top panels, closing panels, pull strips, and base cabinet corner lines, helping factories offer a new edge process.
45 Degree Bevel Gluing
Gluing and pressing are arranged for the bevel angle, keeping the glue line and bonding strength stable at special edge positions.
Stable Pressing
The pressing wheel structure works with continuous feeding to keep bevel edge banding consistent in batch production.
Less Manual Rework
Bevel forming, grooving, fine trimming, end trimming, scraping, cleaning, and polishing are completed in sequence.
Product Differentiation
Adds a new cabinet edge process for furniture factories and helps finished products stand out through edge details.
Structure and Function Modules
The 45 degree bevel edge banding process is shown in order: bevel sawing, gluing and pressing, edge band grooving, fine trimming, end trimming, scraping, cleaning, and polishing.

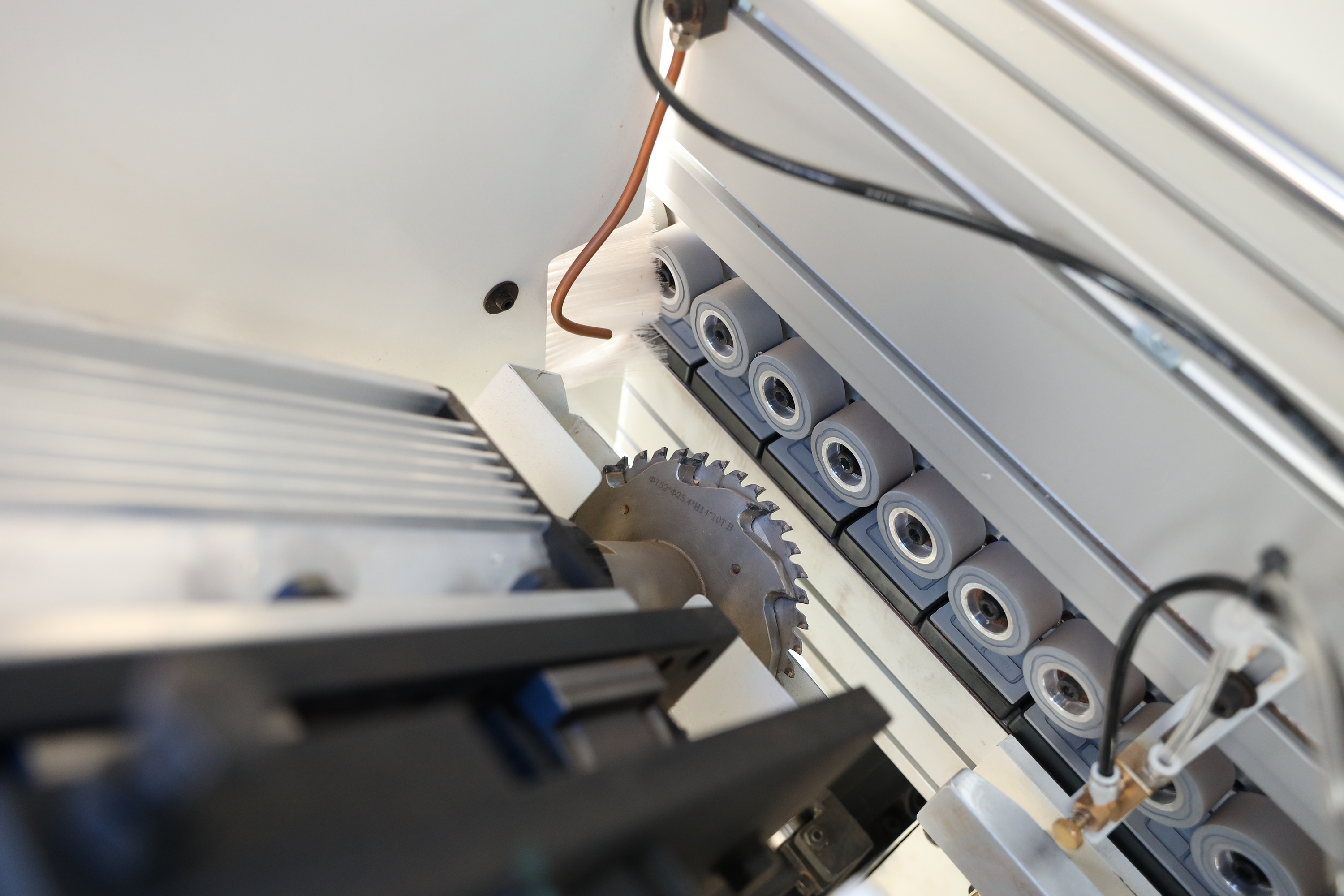

Bevel Sawing
Forms the 45 degree bevel surface first, creating a stable process base for cabinet closures, corner lines, and narrow panel ends.

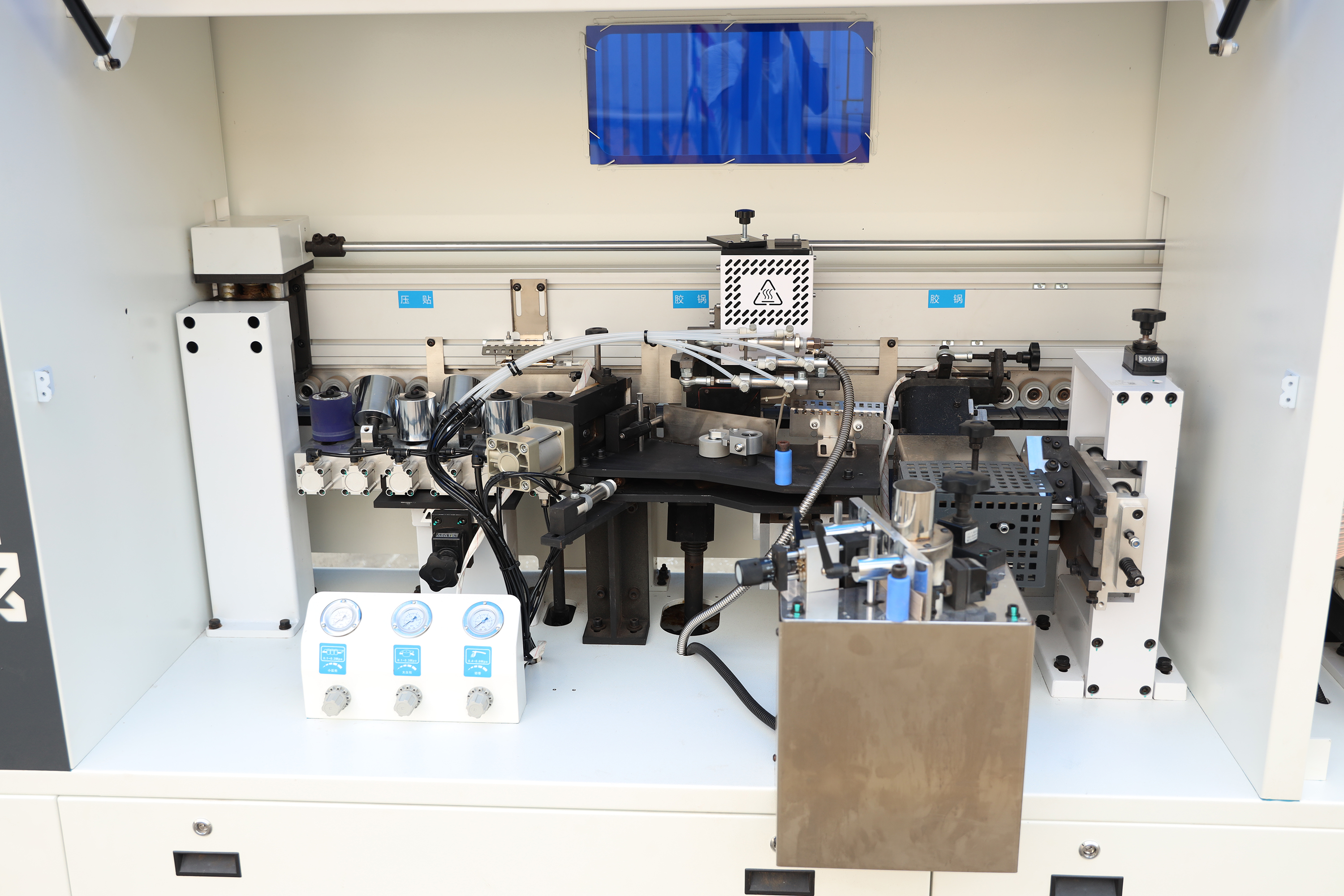

45 Degree Bevel Gluing and Pressing
Gluing and multi-wheel pressing work together to keep the edge band firmly bonded on the bevel surface.

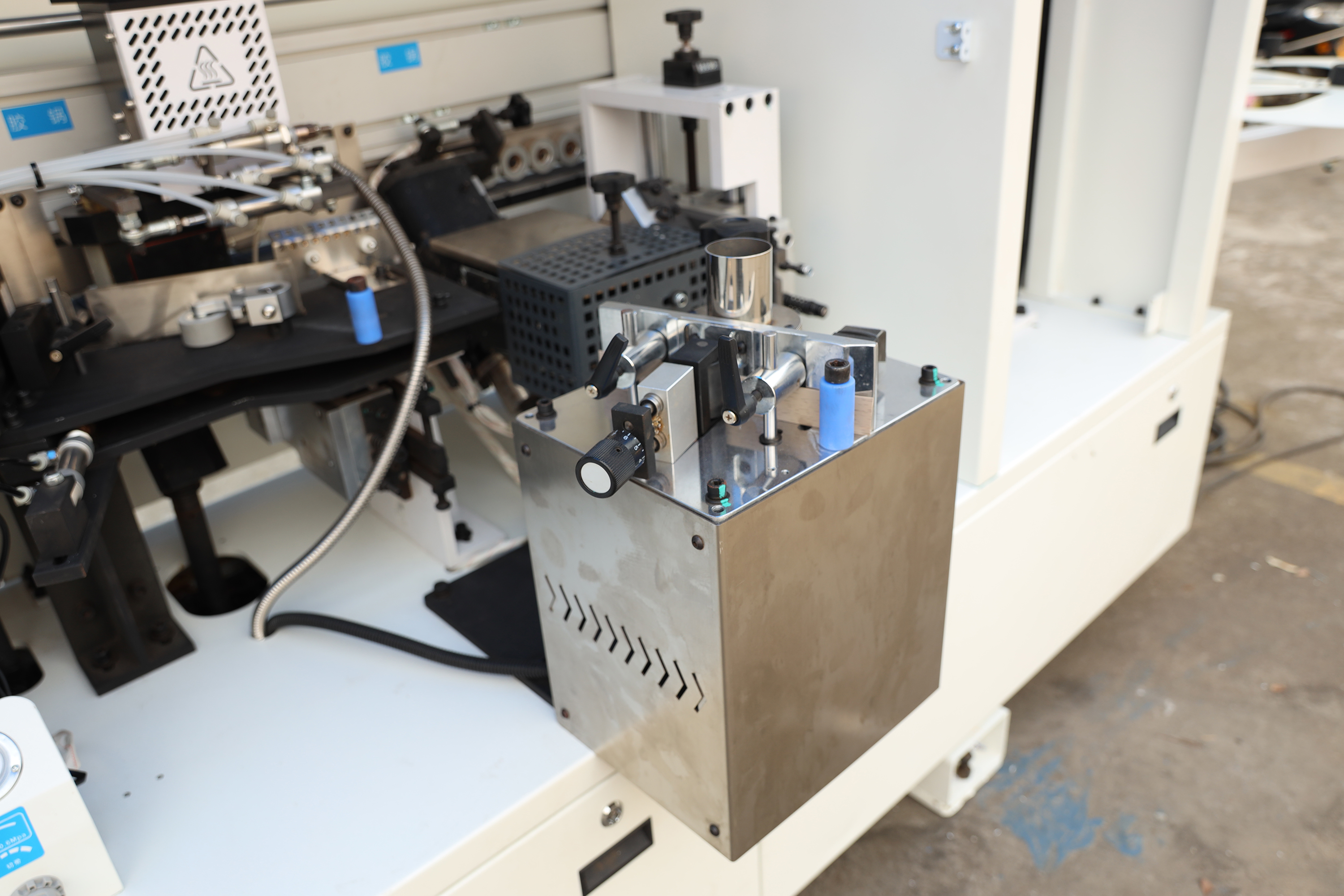

Edge Band Grooving
Grooving helps the edge band adapt to the bevel angle, making the special profile fit more naturally.

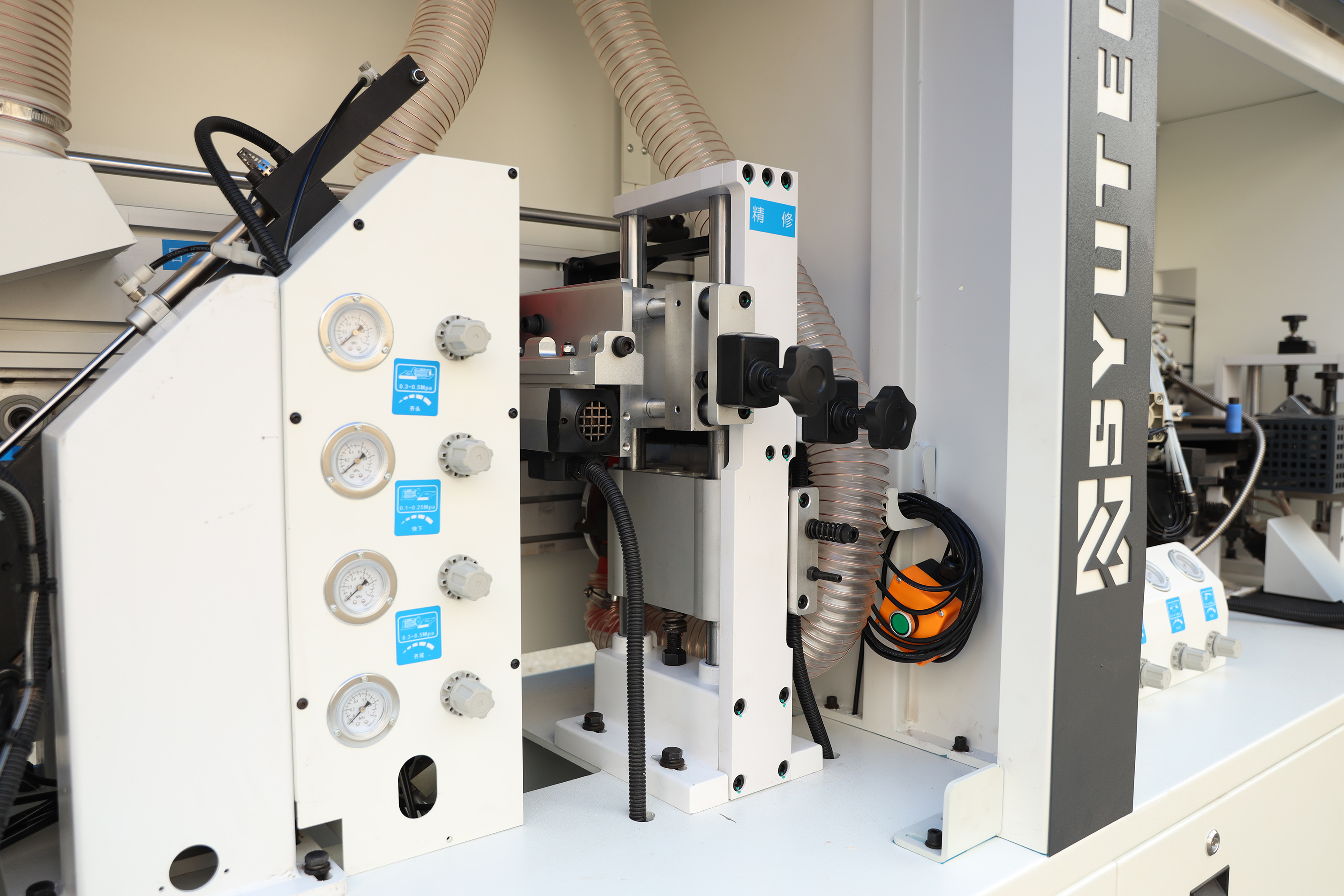

Fine Trimming
Finishes the upper and lower edges after 45 degree bevel edge banding for cleaner edge lines and less manual repair.

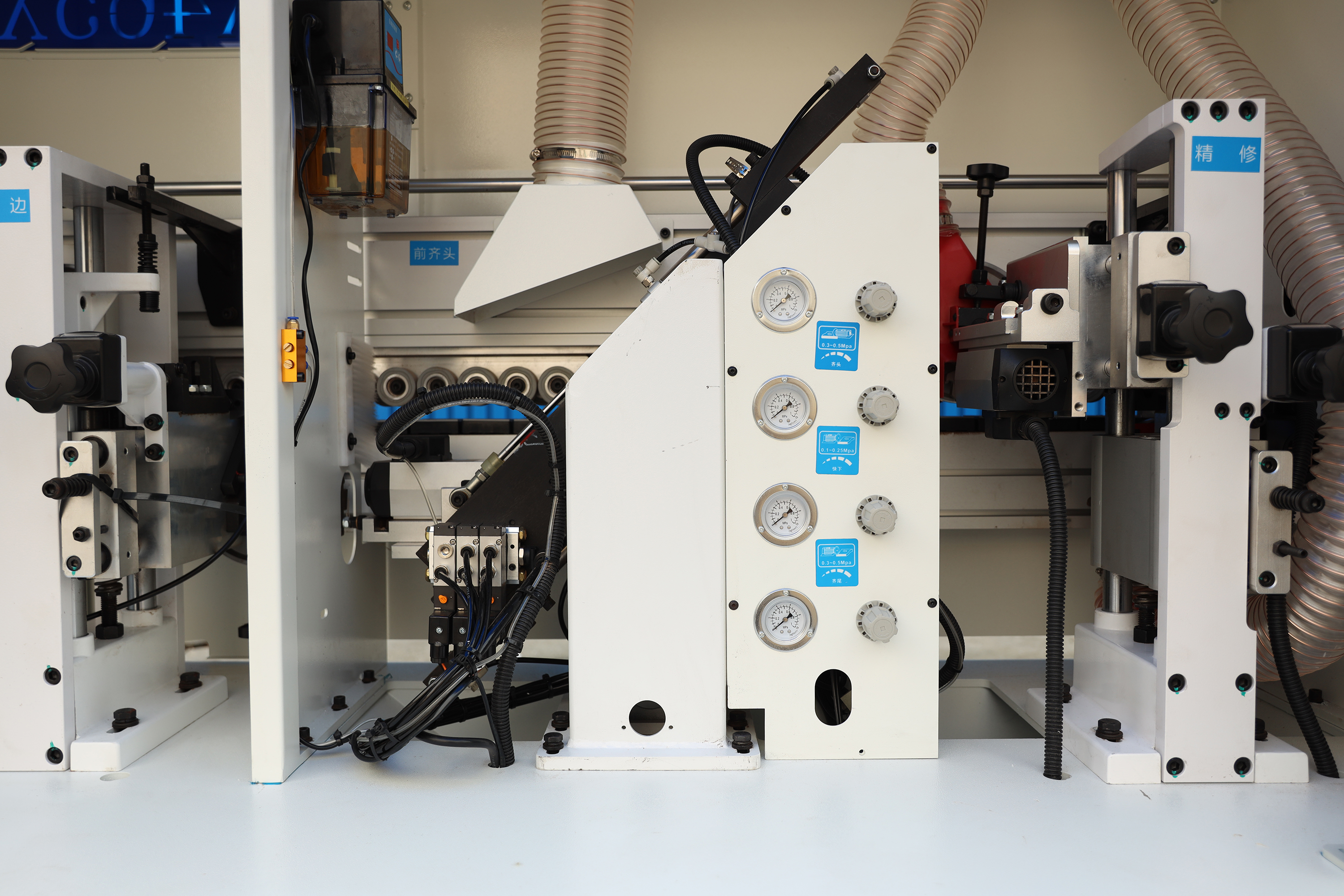

End Trimming
Trims the front and rear excess material so the finished bevel edge has a cleaner end transition for continuous production.

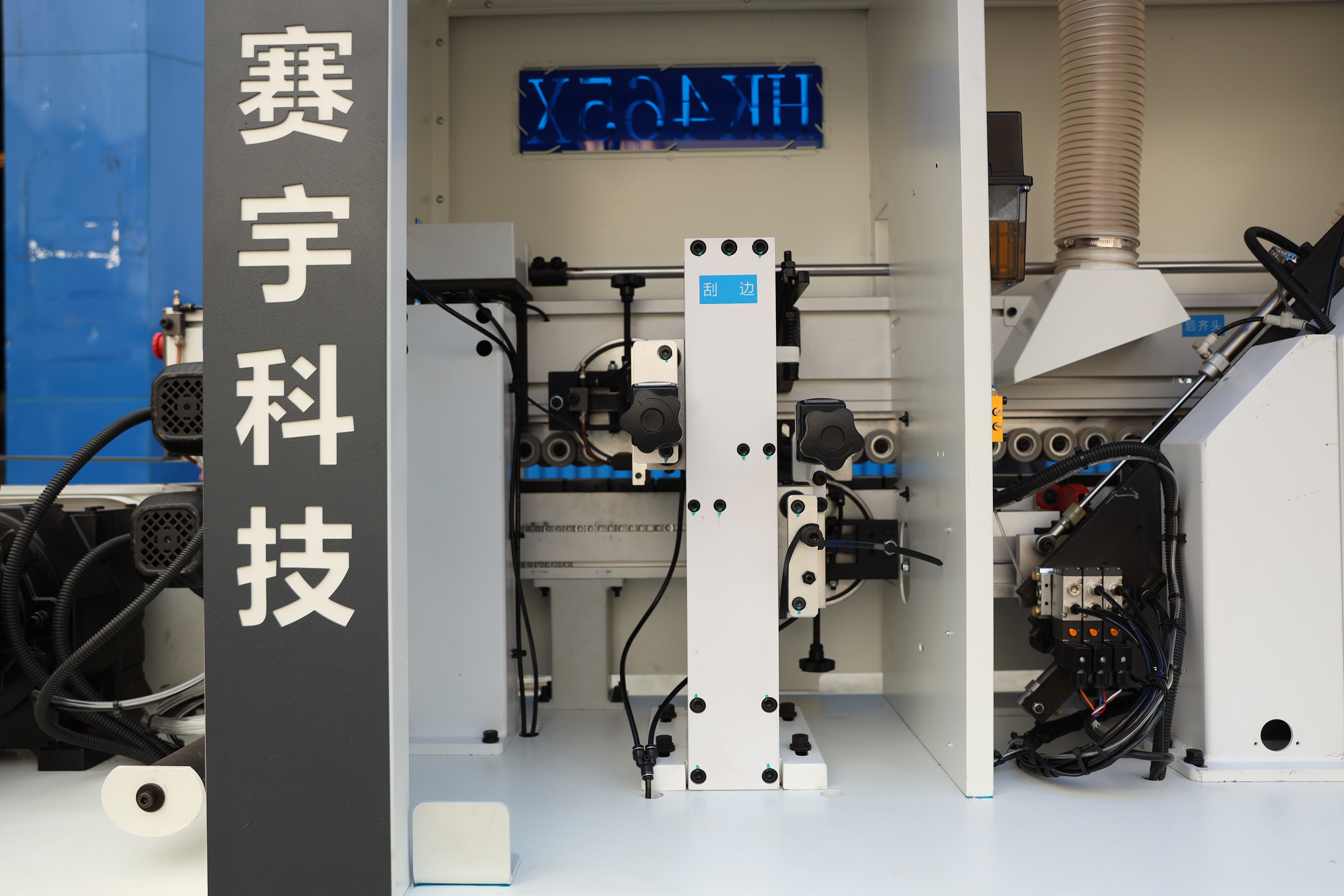

Scraping
Improves the edge radius and detail quality, making the 45 degree bevel process look more refined on finished parts.

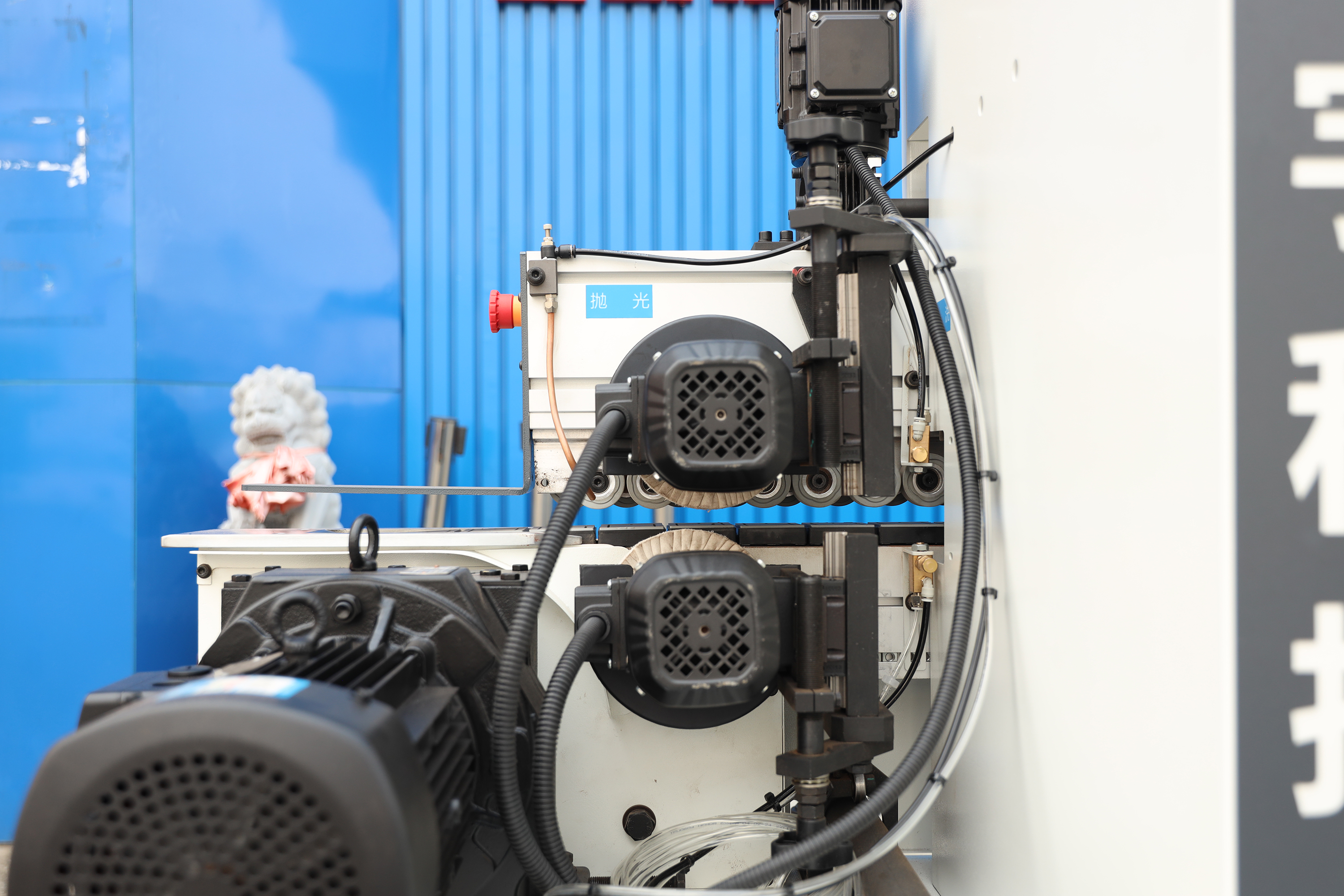

Cleaning + Polishing
Removes glue residue, chips, and surface marks so the bevel edge finish is cleaner and smoother.
45 Degree Bevel Edge Applications
Suitable for panel furniture factories, custom furniture plants, and cabinet workshops that want to add a new edge process and improve cabinet detail quality.
Cabinet Closures
Used on visible positions such as top cabinet panels and closing panels to create a more layered edge detail.
Decorative Strips
Suitable for base cabinet corner lines, front and rear pull strips, and parts that require a 45 degree bevel finish.
Process Upgrade
Helps furniture factories add a 45 degree bevel edge banding process for more distinctive cabinet parts.
Batch Delivery
Integrates bevel processing into the machine workflow to improve stable delivery of the new process.

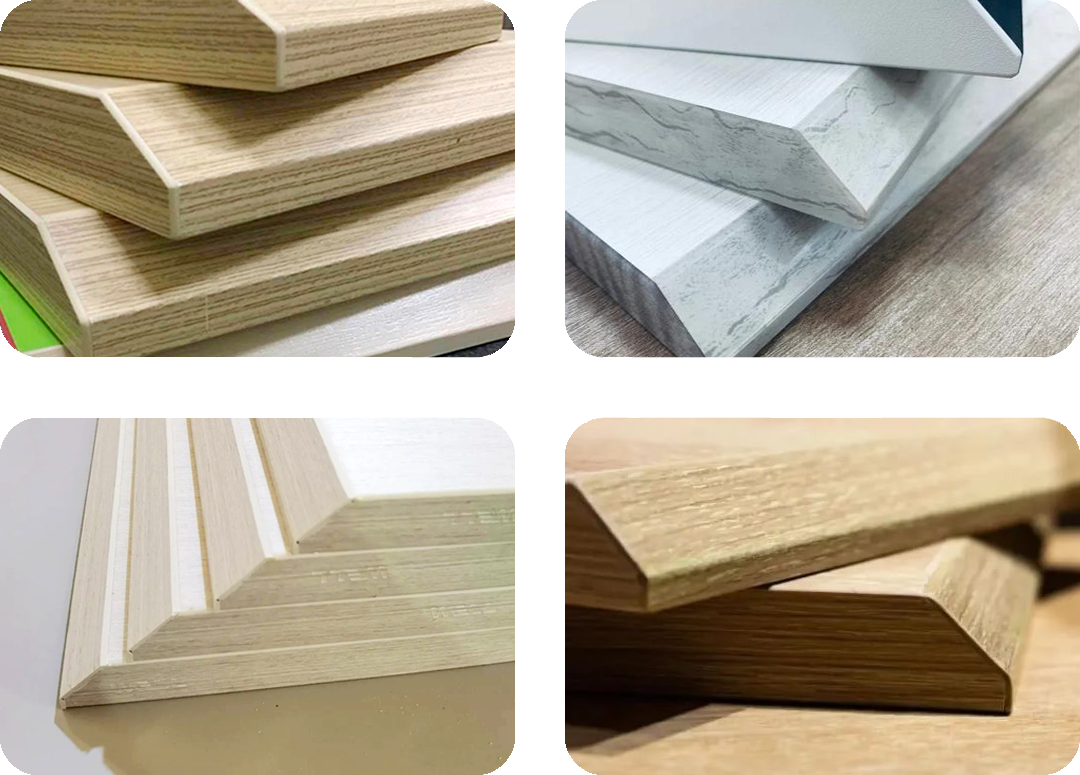

45 Degree Bevel Edge Banding Result
Technical Specifications
Final configuration is subject to the actual machine and official proposal.
| Model | HK-465X-1 | Overall Dimensions | 4950*900*1650mm |
|---|---|---|---|
| Minimum Workpiece Width | ≥80mm | Edge Band Width | 10-30mm |
| Polishing Motor Power | 0.18KW*4 | Machine Weight | 2T |
| Feeding Motor Power | 3KW | Edge Band Thickness | 1-3mm |
| End Trimming Motor Power | 0.3KW*2 | Total Power | 16kw |
| Rough Trimming Motor Power | 0.75KW*2 | Rated Voltage | 380V 50HZ |
| Tracking Motor Power | 0.3KW*2 | Minimum Workpiece Length | ≥120mm |
| Glue Pot Heating Power | 1.8KW | Rated Air Pressure | 0.7MPA-0.9MPA |
| Workpiece Feed Speed | 14-16-18m/min | ||
Factory Strength

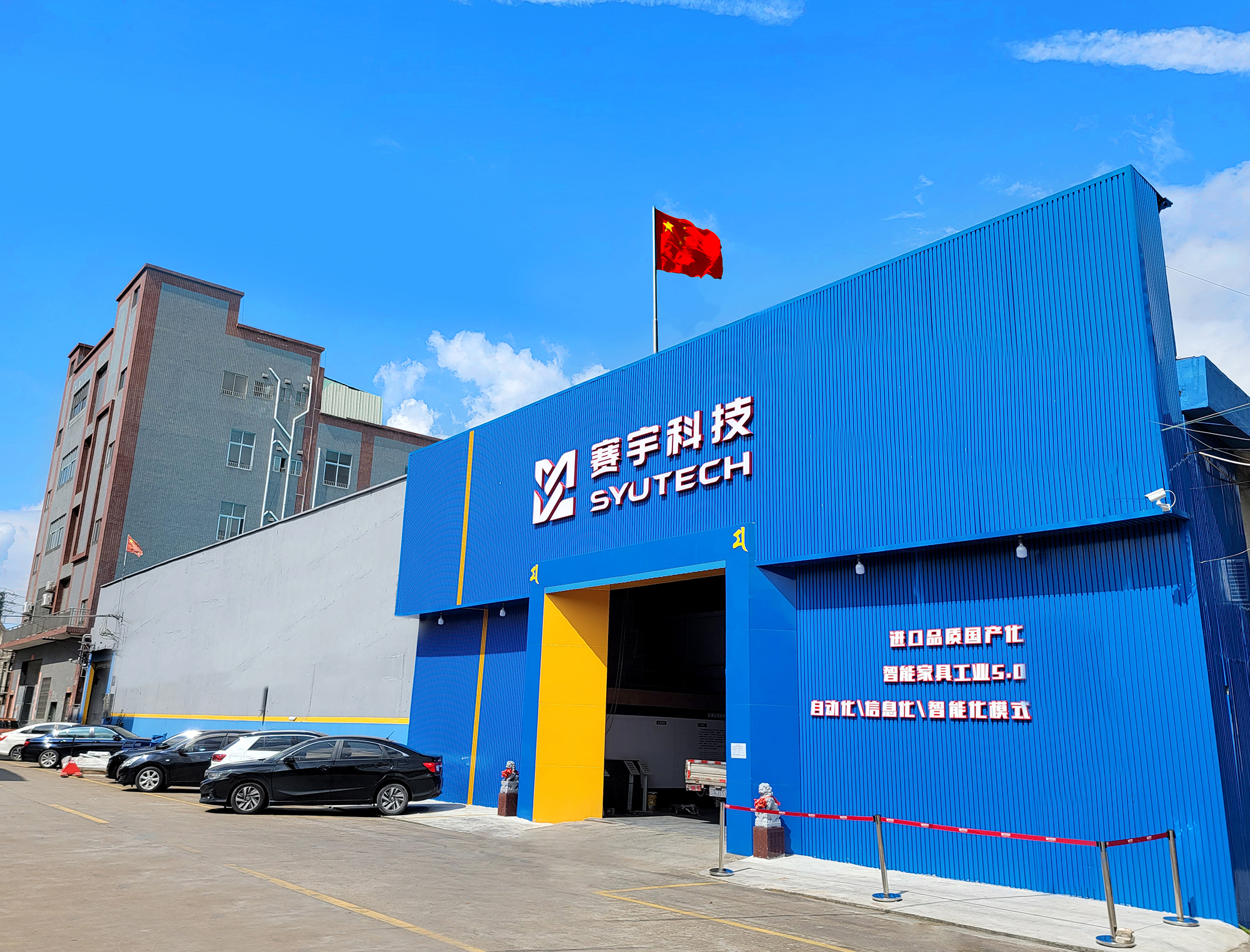

Factory Exterior
Exterior view of the SYUTECH factory.

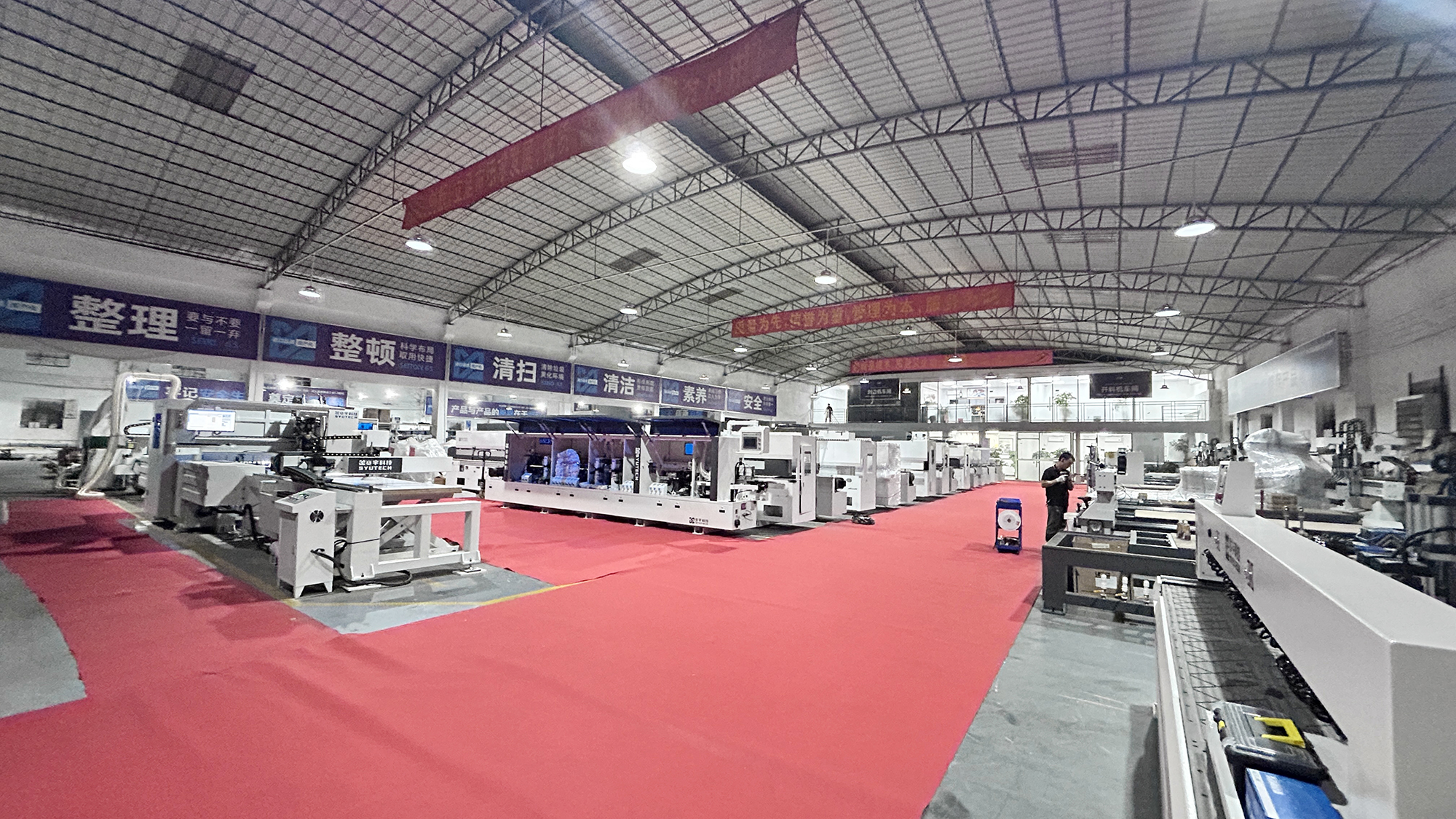

Edge Banding Machine Workshop
Production area for small, medium, and large edge banding machines.

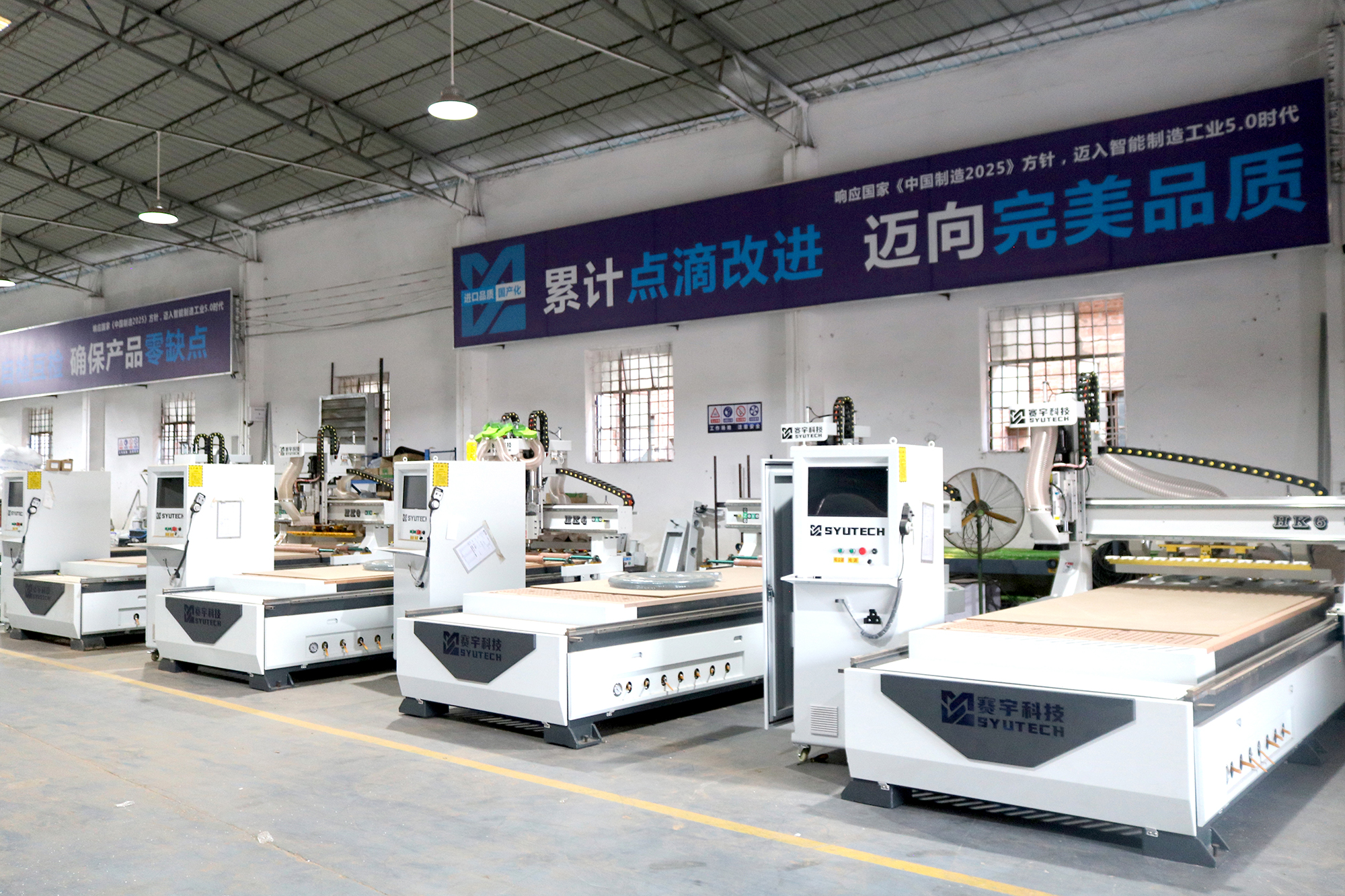

CNC Nesting Machine Workshop
Production area for CNC nesting machines and cutting line solutions.

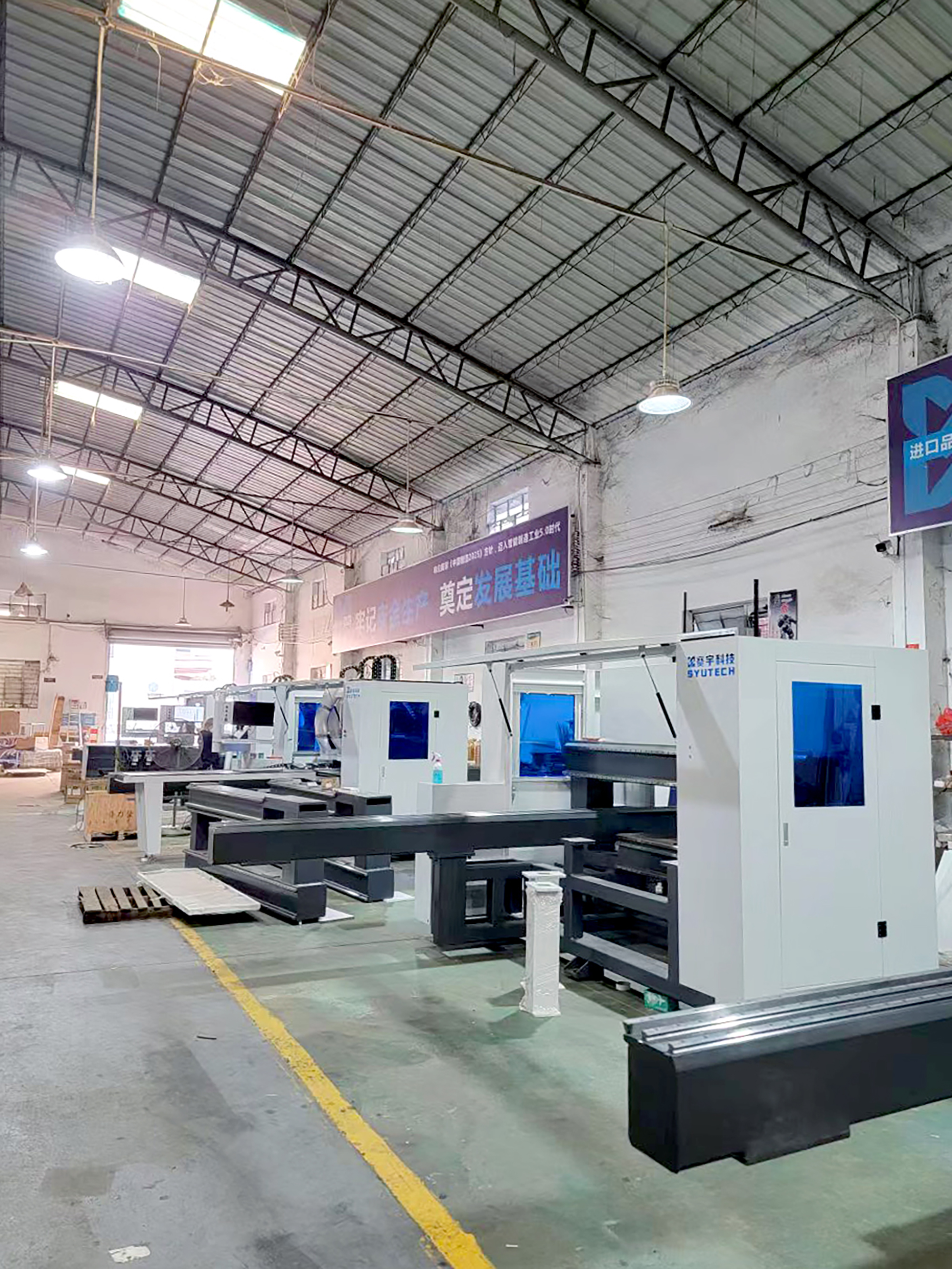

Six-Sided Drilling Machine Workshop
Production area for six-sided drilling machines and line solutions.
Shanghai Exhibition
Exhibition team and machine display.
Foshan Lunjiao Exhibition
Exhibition team and machine display.
FAQ
Common questions for furniture factories considering the 45 degree bevel edge banding process.
What process need does HK-465X-1 solve?
It is used for 45 degree bevel edge banding, allowing furniture factories to produce more dimensional cabinet closures, corner lines, and narrow panel end parts.
What does a 45 degree bevel edge add?
It makes cabinet edges look more dimensional, improves finished product details, and helps factories develop a new closing-edge process.
Which furniture parts is it suitable for?
It is suitable for top cabinet panels, closing panels, cabinet pull strips, base cabinet corner lines, and other parts requiring a bevel profile.
Why use 45 degree bevel gluing and pressing?
The bevel position requires higher bonding stability. The dedicated gluing and pressing structure helps keep the glue line and pressing result stable on the bevel surface.
Is it suitable for batch production?
The machine links bevel sawing, gluing, pressing, finishing, and polishing into one process, making the 45 degree bevel process more stable for batch production.
What value does it bring to a factory upgrade?
It helps factories add a sellable 45 degree bevel process, enrich cabinet design options, and create more differentiated product details.
