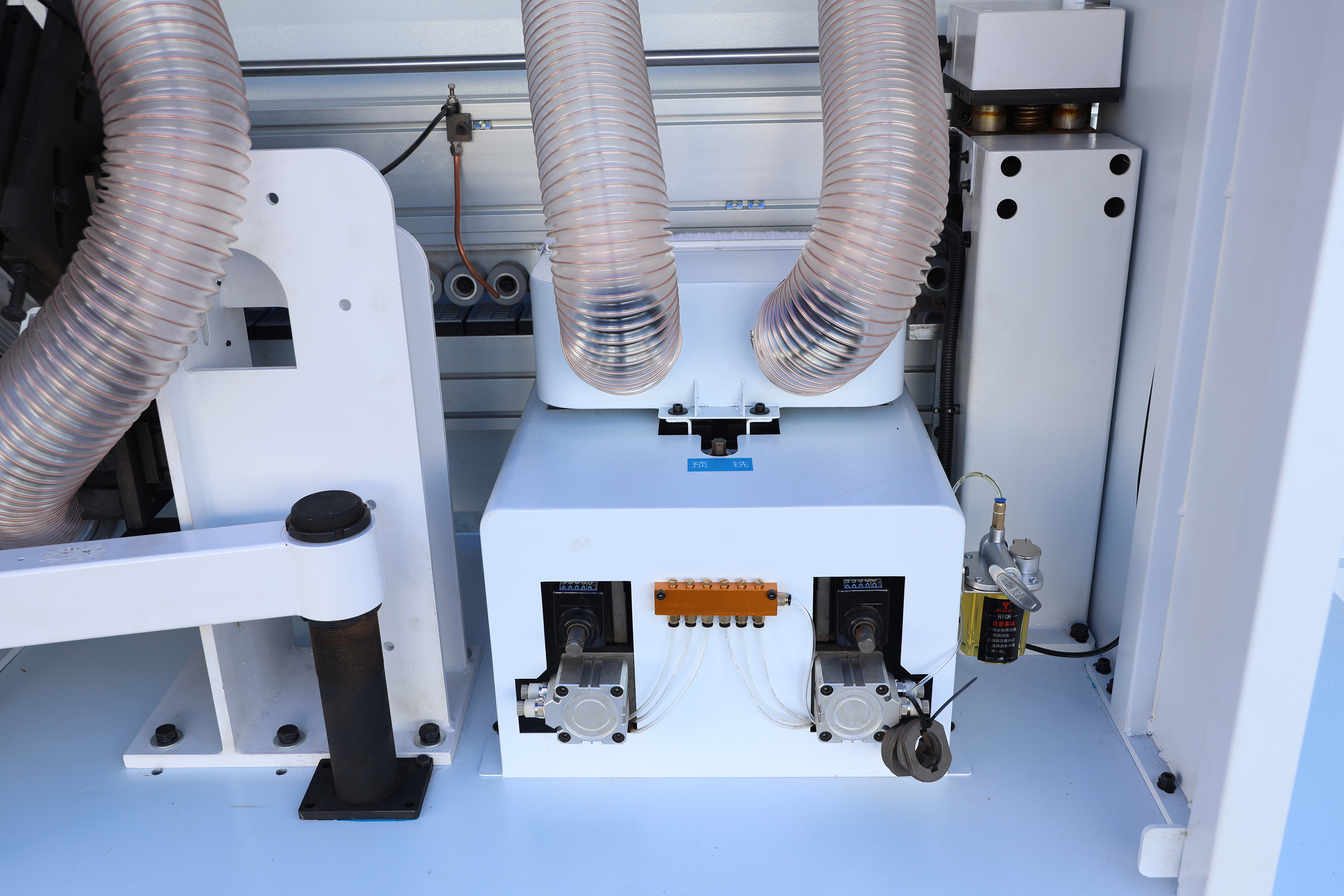

Straight Edge Pre-Milling
Diamond double-cutter pre-milling with pneumatic front and rear feeding removes wave marks and swollen board edges, creating a flatter edge while inlet dust blowing reduces debris impact.

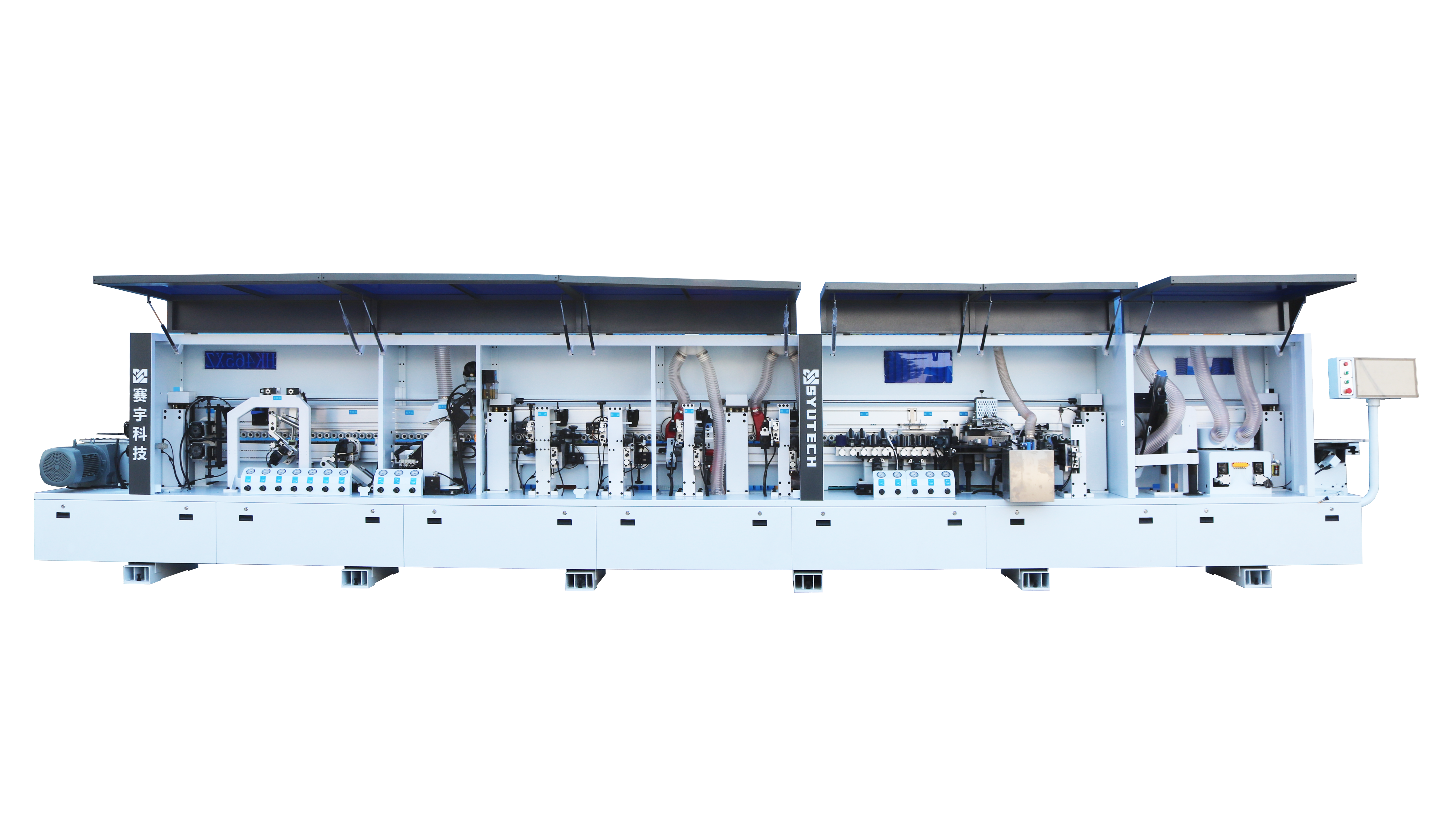

HK-465X-Z 45 Degree Angled and Straight Edge Bander
The HK-465X-Z is designed for narrow-board 45 degree edge banding and straight edge banding. It is suitable for top cabinet cover panels, closing panels, front and rear rails for kitchen and floor cabinets, and base cabinet corner lines, helping furniture factories complete end-edge and narrow-board edge banding in one machine.
45 Degree Angled and Straight Edge Banding
Upper Glue Pot
Bevel Saw Cutting
Grooving and Trimming
Integrated Narrow-Board 45 Degree and Straight Edge Banding
The HK-465X-Z combines straight edge pre-milling, bevel saw cutting, angled and straight gluing, edge band grooving, trimming, scraping, cleaning, and polishing. It is suitable for furniture factories processing end edges, narrow boards, and cabinet line components.
- Suitable for top cabinet cover panels, closing panels, kitchen and floor cabinet rails, and base cabinet corner lines.
- Bevel saw cutting forms the angled edge in one pass, creating a stable base for gluing, edge banding, and grooving.
- Dual-motor corner rounding, cleaning, and double polishing improve end trimming, corner quality, and the final edge surface.
Structure and Function Modules
Key units include straight edge pre-milling, bevel saw cutting, angled and straight gluing, edge band grooving, rough trimming, fine trimming, scraping, front and rear end trimming, dual-motor corner rounding, cleaning, and double polishing.

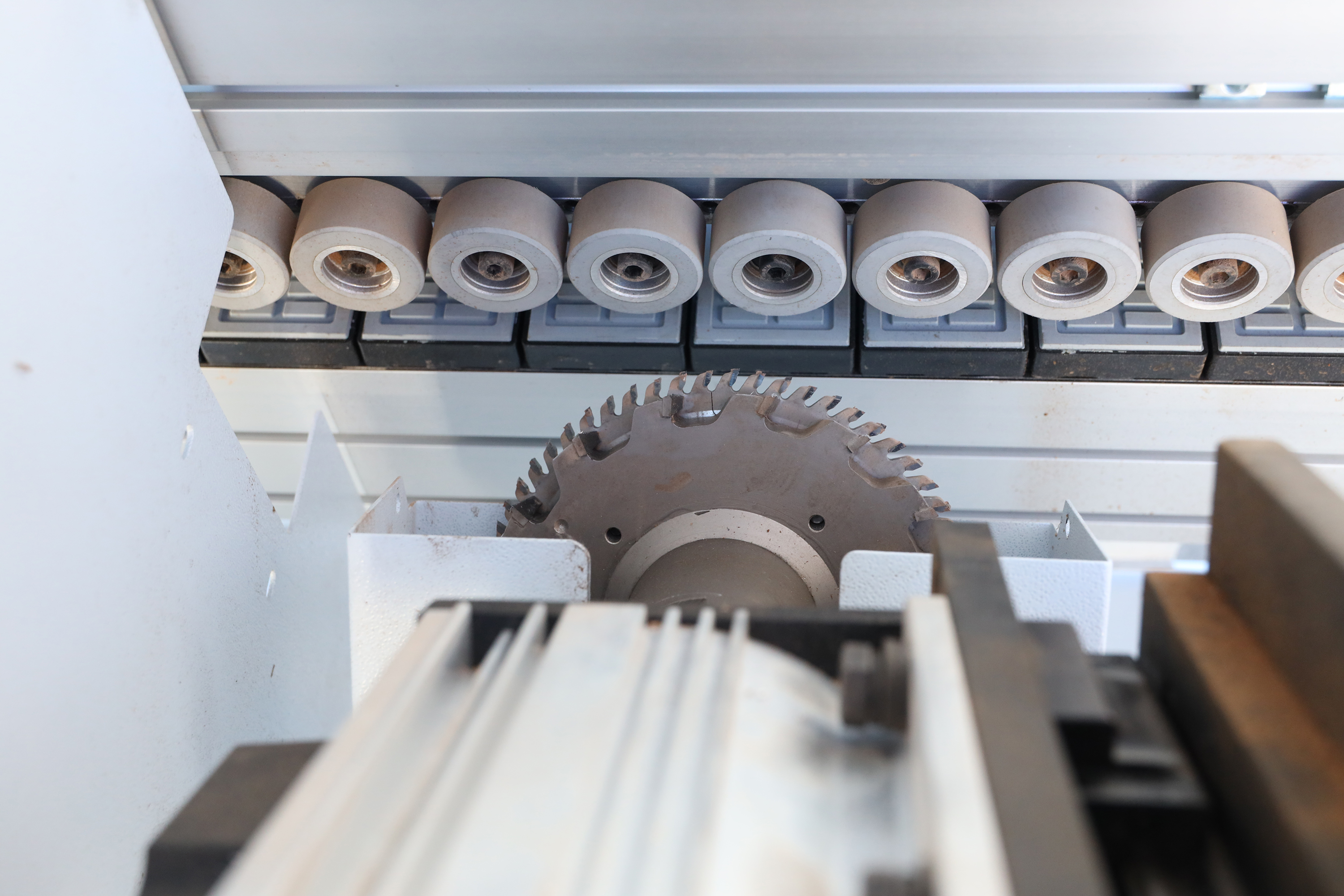

Bevel Saw Cutting
Accurately cuts the board bevel in one pass, providing a stable base for subsequent gluing and edge banding on narrow-board 45 degree applications.

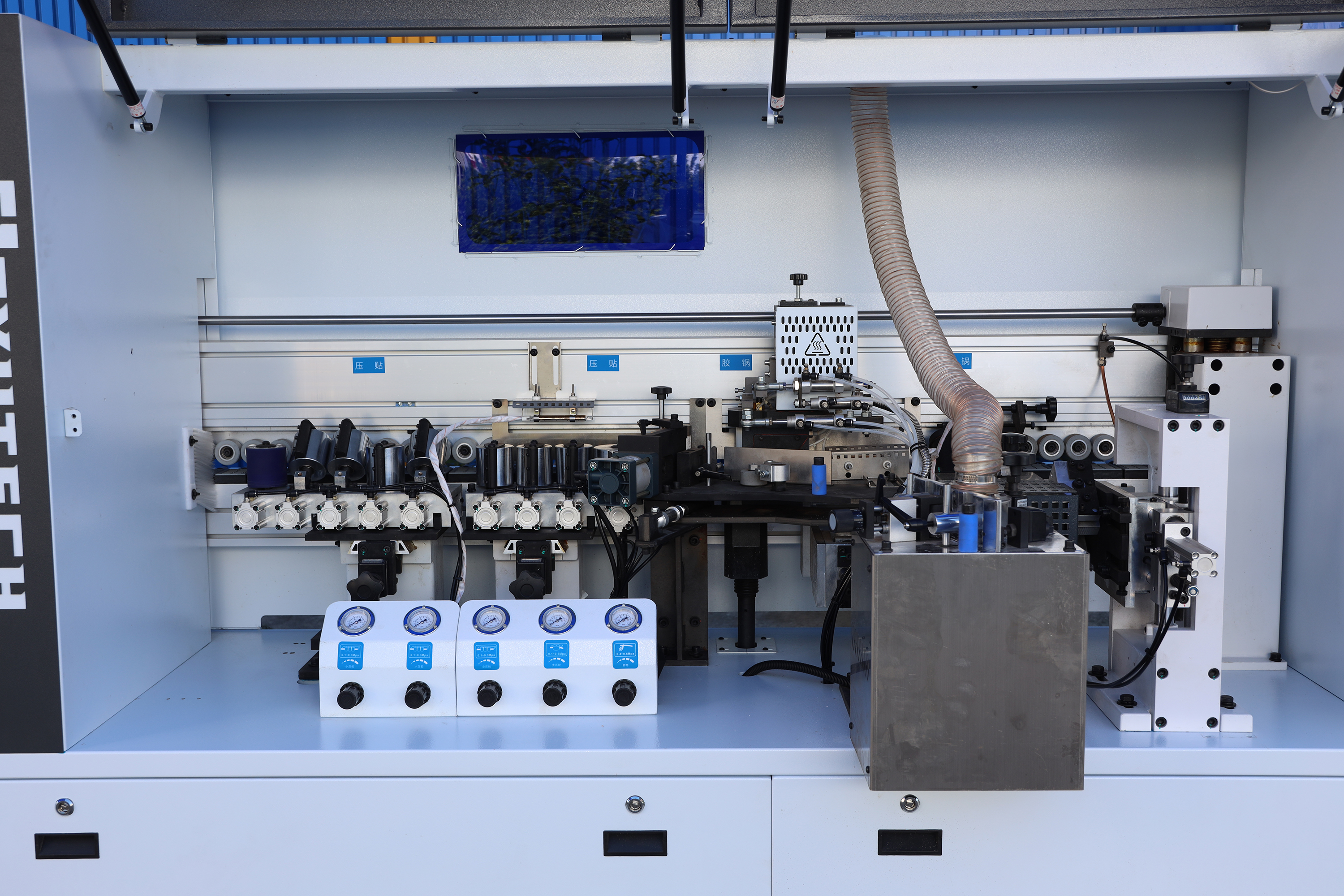

Angled and Straight Gluing
The thickened aluminum heating plate heats quickly for even glue application. The pressure wheel structure improves bonding strength, and the wheel angle can be adjusted independently.

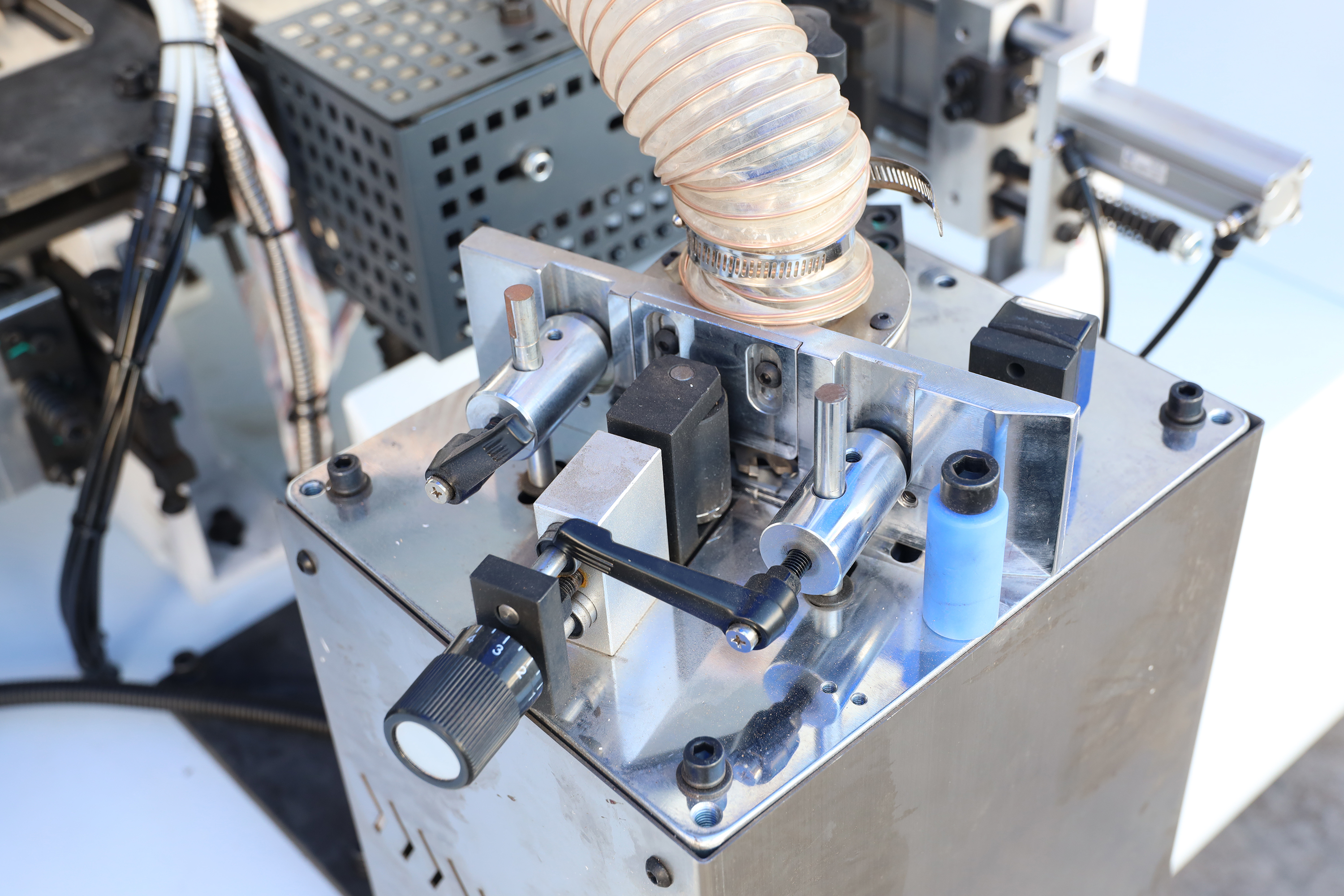

Edge Band Grooving
Designed for angled and straight edge banding, the grooving unit creates accurate grooves and helps the edge band fit cleanly around angle transitions.

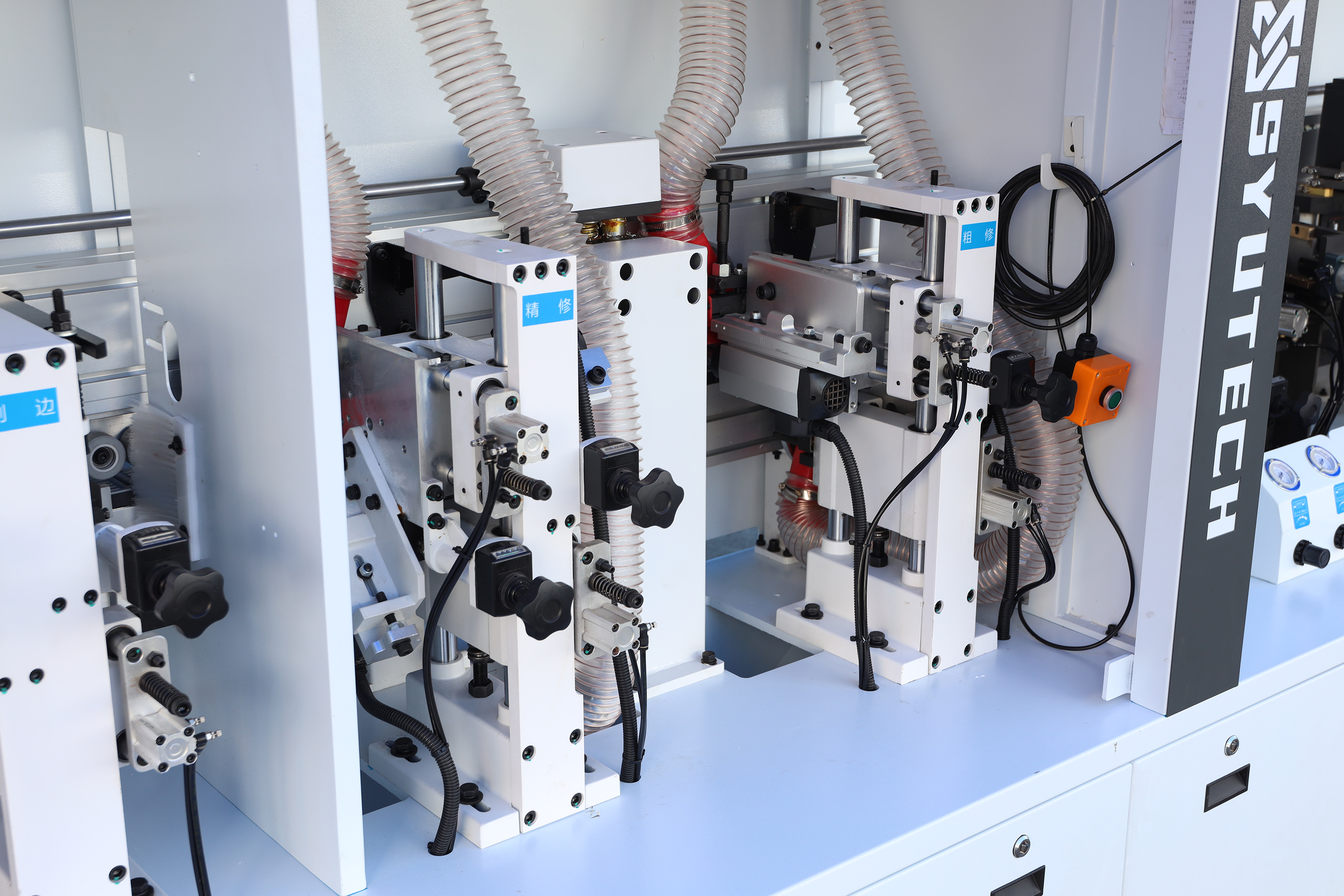

Rough + Fine Trimming
Rough trimming uses high-frequency motors with automatic tracking to remove excess edge banding from the upper and lower sides. Fine trimming uses an R cutter to form a rounded R profile.

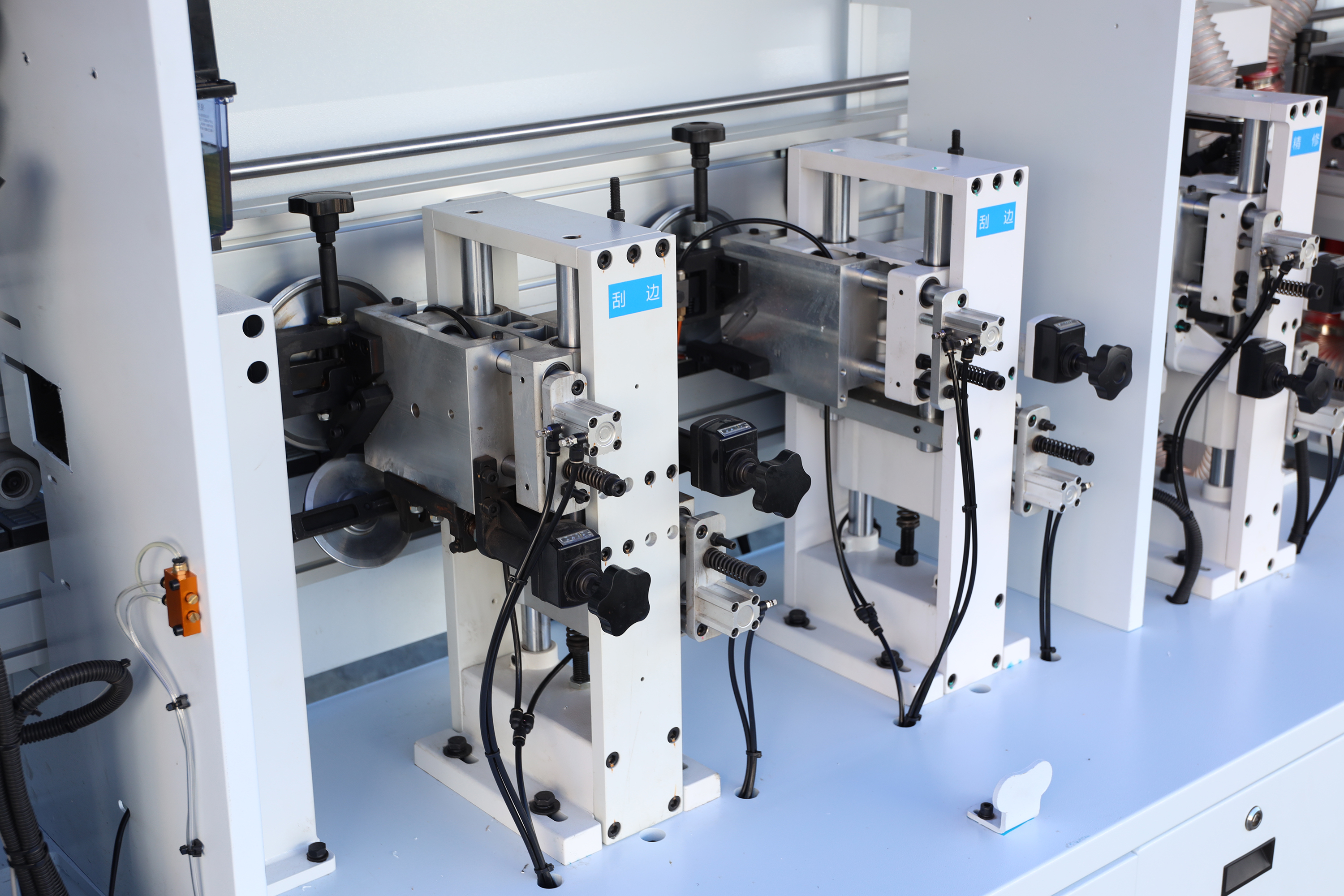

Scraping 1 + Scraping 2
Two scraping cutters with different radii can be switched flexibly according to edge band thickness, making the edge radius smoother.

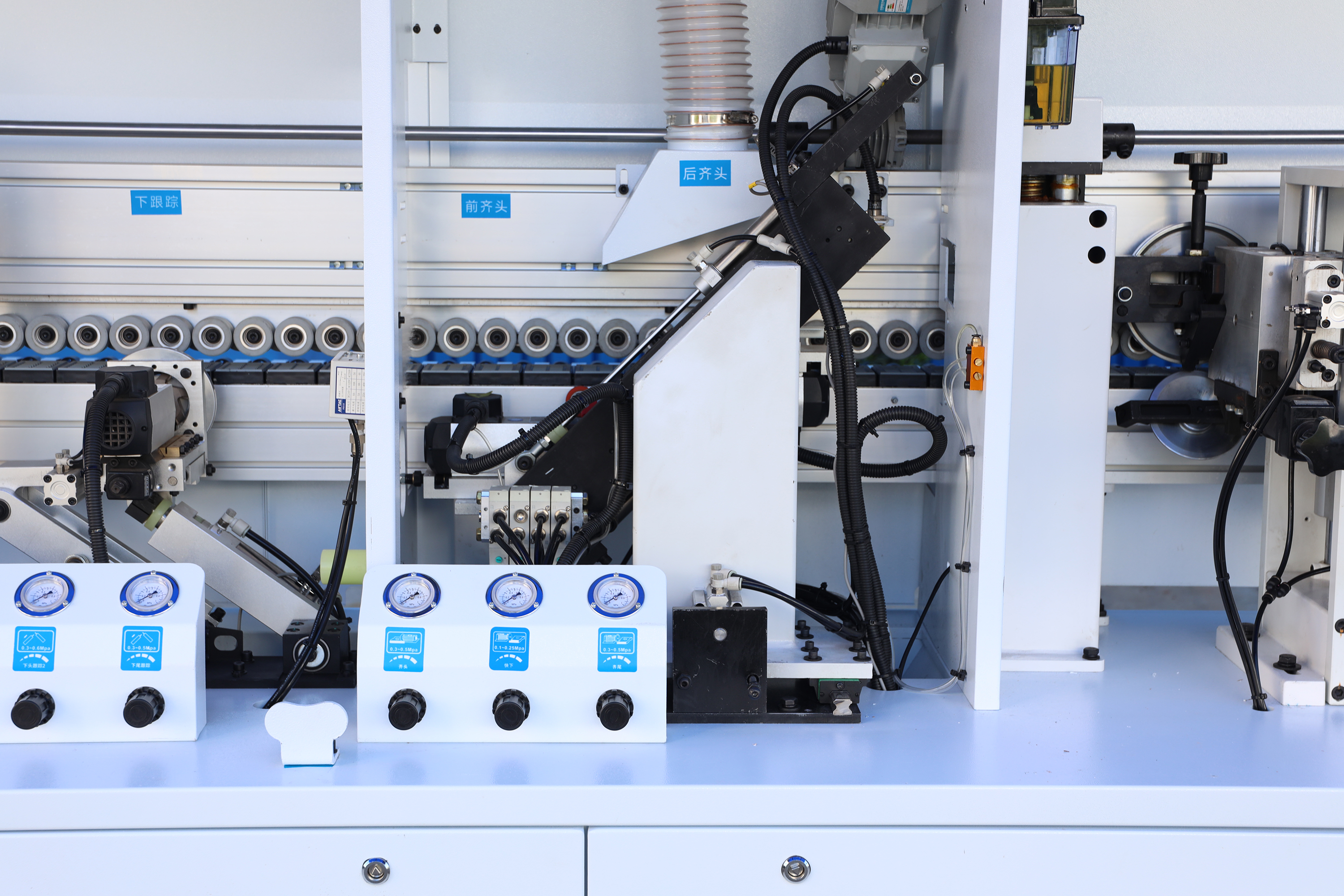

Front and Rear End Trimming
Two independent high-frequency motors cut the front and rear end material. Linear guides improve cutting speed and accuracy, while an independent profiling block makes adjustment easier.

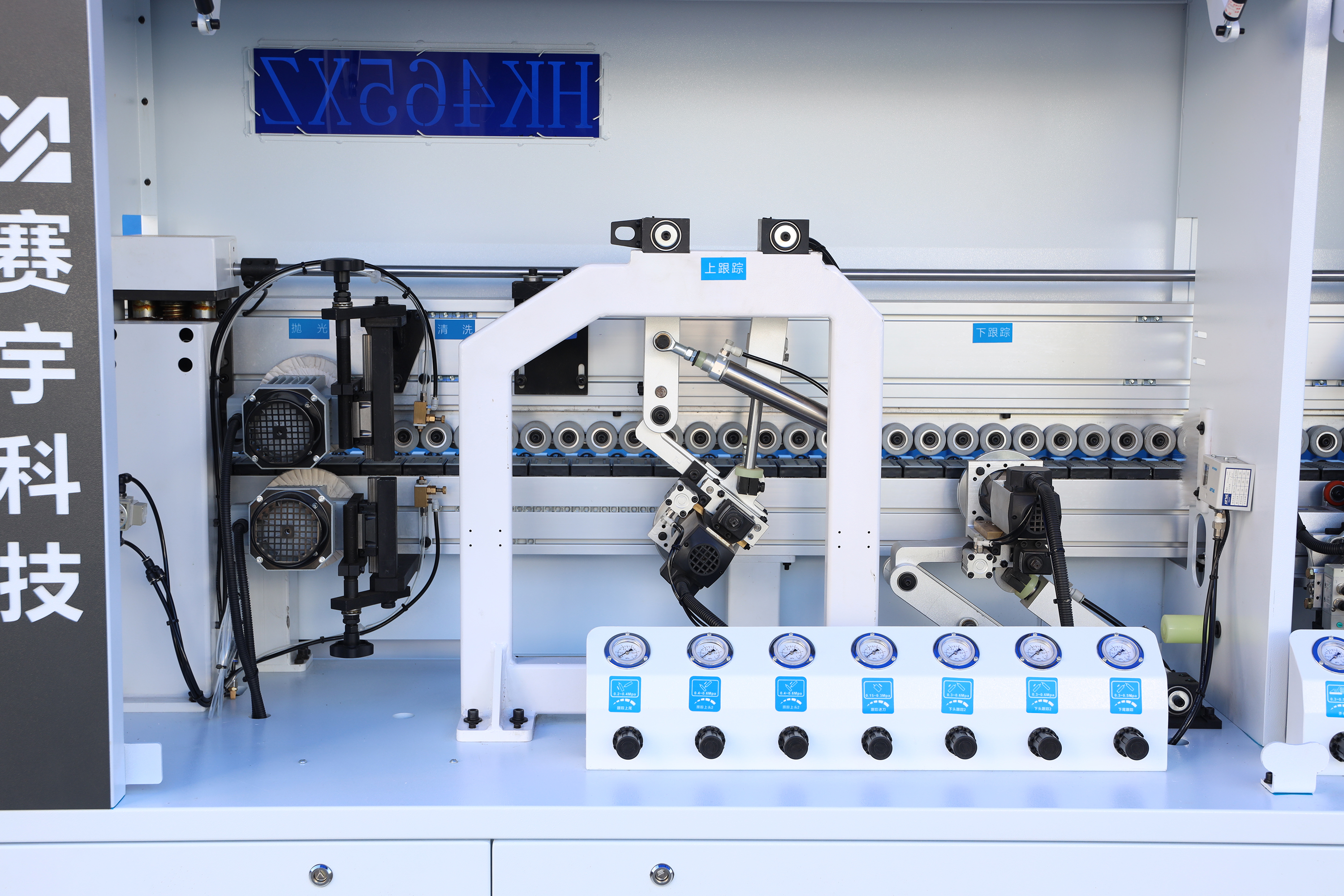

Dual-Motor Corner Rounding
Dual-motor profiling corner rounding responds quickly, tracks trimming synchronously, and mills four corners in one pass for a smoother and cleaner edge banding result.

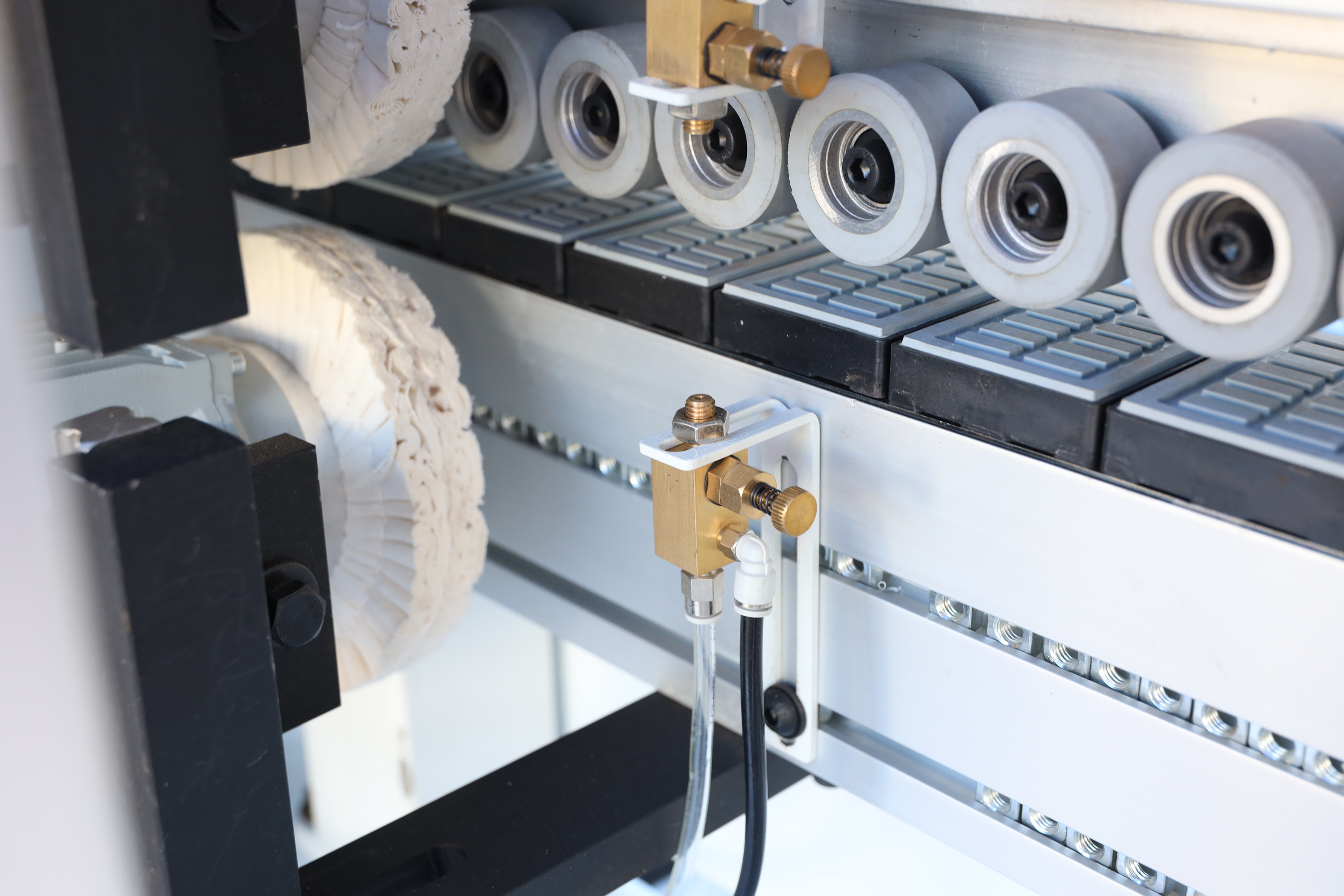

Cleaning
Before polishing, cleaning agent is atomized and sprayed onto both sides of the workpiece to remove hot-melt glue residue and chips, helping the board surface retain its original gloss.

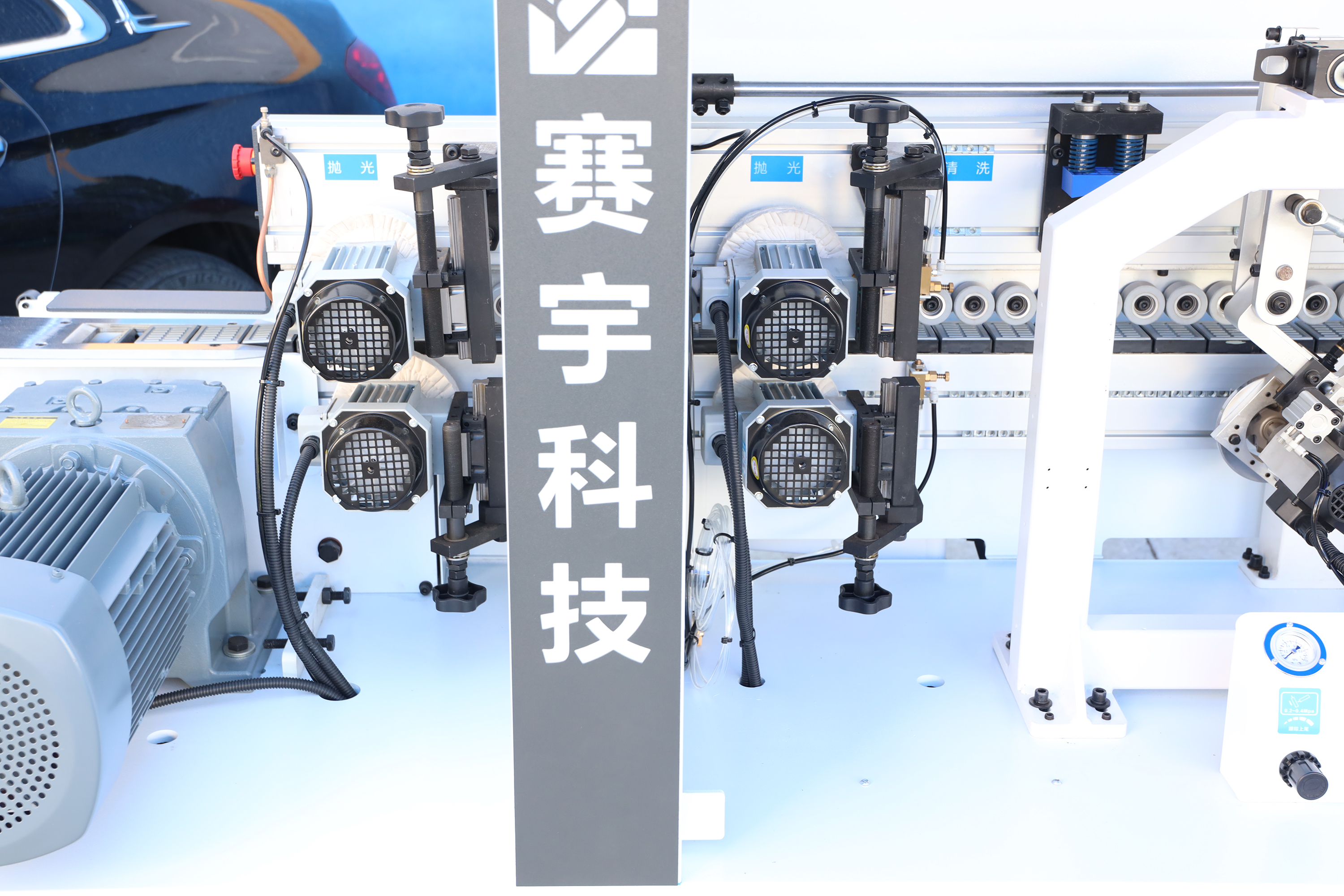

Double Polishing
Two sets of high-speed polishing wheels clean the processed board, making the edge banding section smoother and more attractive while keeping wheel wear more even.
Application Scenarios
Suitable for panel furniture production that requires narrow-board 45 degree edge banding, end-edge banding, and straight edge banding.
Top Cabinet Cover Panels
Suitable for top cabinet cover panels and closing panels that require a 45 degree angled edge effect.
Kitchen and Floor Cabinet Rails
Used for edge banding front and rear rails on kitchen cabinets and floor cabinets.
Base Cabinet Corner Lines
Suitable for base cabinet corner lines and components with higher end-edge and corner appearance requirements.
Narrow-Board Edge Banding
A multi-function machine for narrow-board 45 degree edge banding and straight edge banding needs.

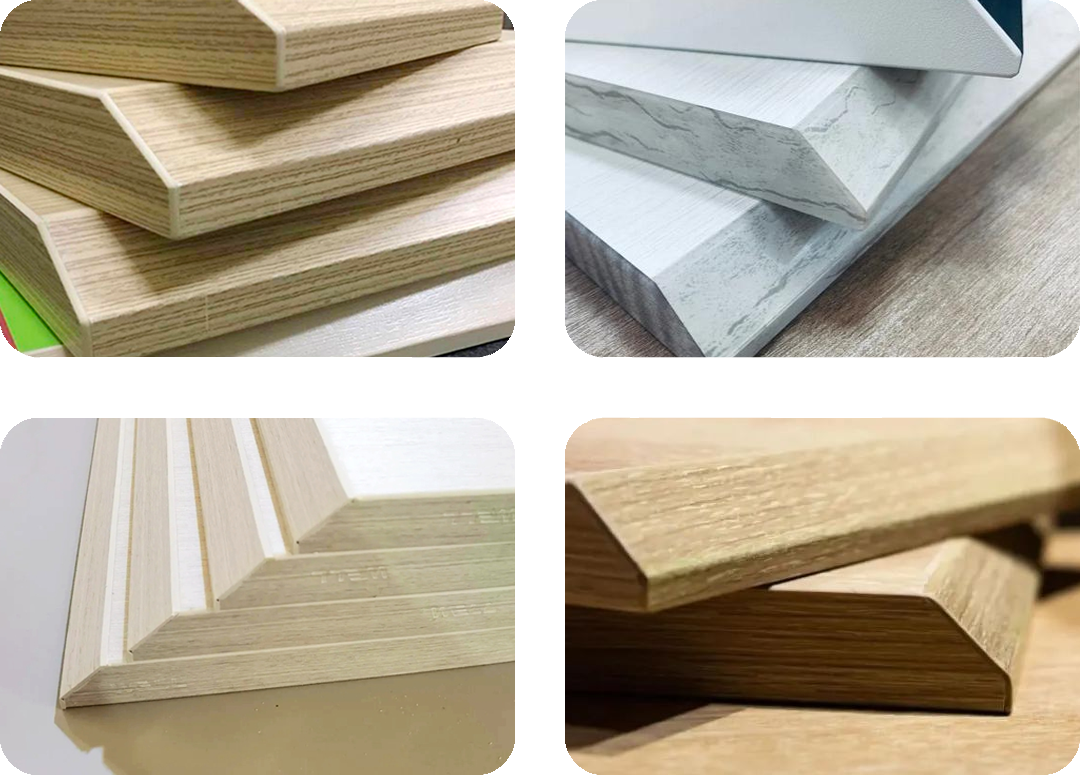

Edge Banding Result
Technical Specifications
Specifications may change. If changes occur, the actual machine shall prevail.
| Model | HK-465X-Z | Overall Dimensions | 9150*850*1650mm |
|---|---|---|---|
| Straight Edge Board Thickness | 9-60mm | Angled Edge Board Thickness | 12-25mm |
| Straight Edge Band Thickness | 0.35-3mm | Angled Edge Band Thickness | 0.6-1.5mm |
| Edge Band Width | 25-32mm | Minimum Workpiece Length | >=150mm |
| Minimum Workpiece Width | >=120mm | Straight Edge Feed Speed | 20-26m/min |
| Angled Edge Feed Speed | 16m/min | Total Power | 26.37kW |
| Machine Weight | 4T | Machine Type | 45 Degree Angled and Straight Edge Bander |
Factory Strength

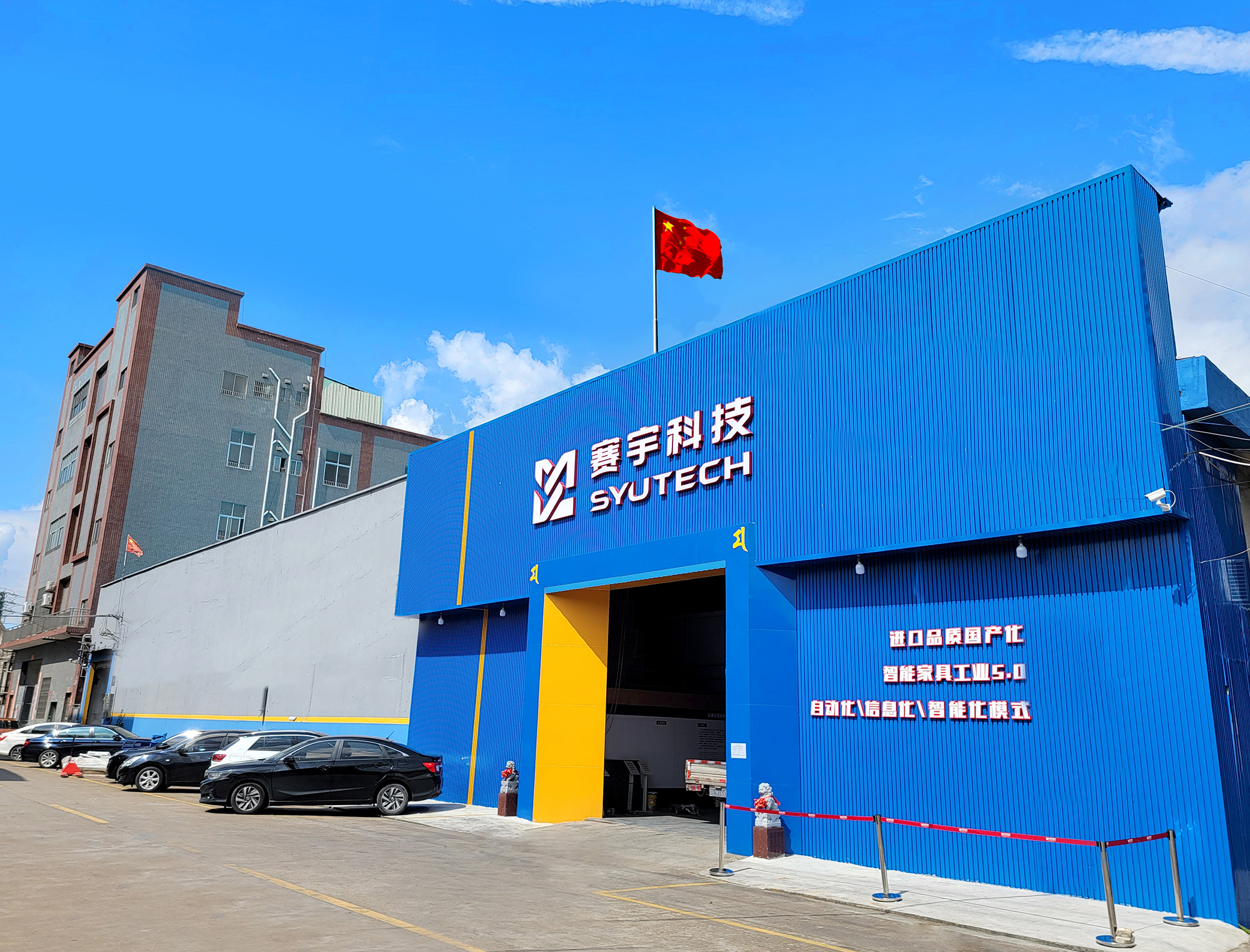

Factory Exterior
Exterior view of the Saiyu Technology factory.

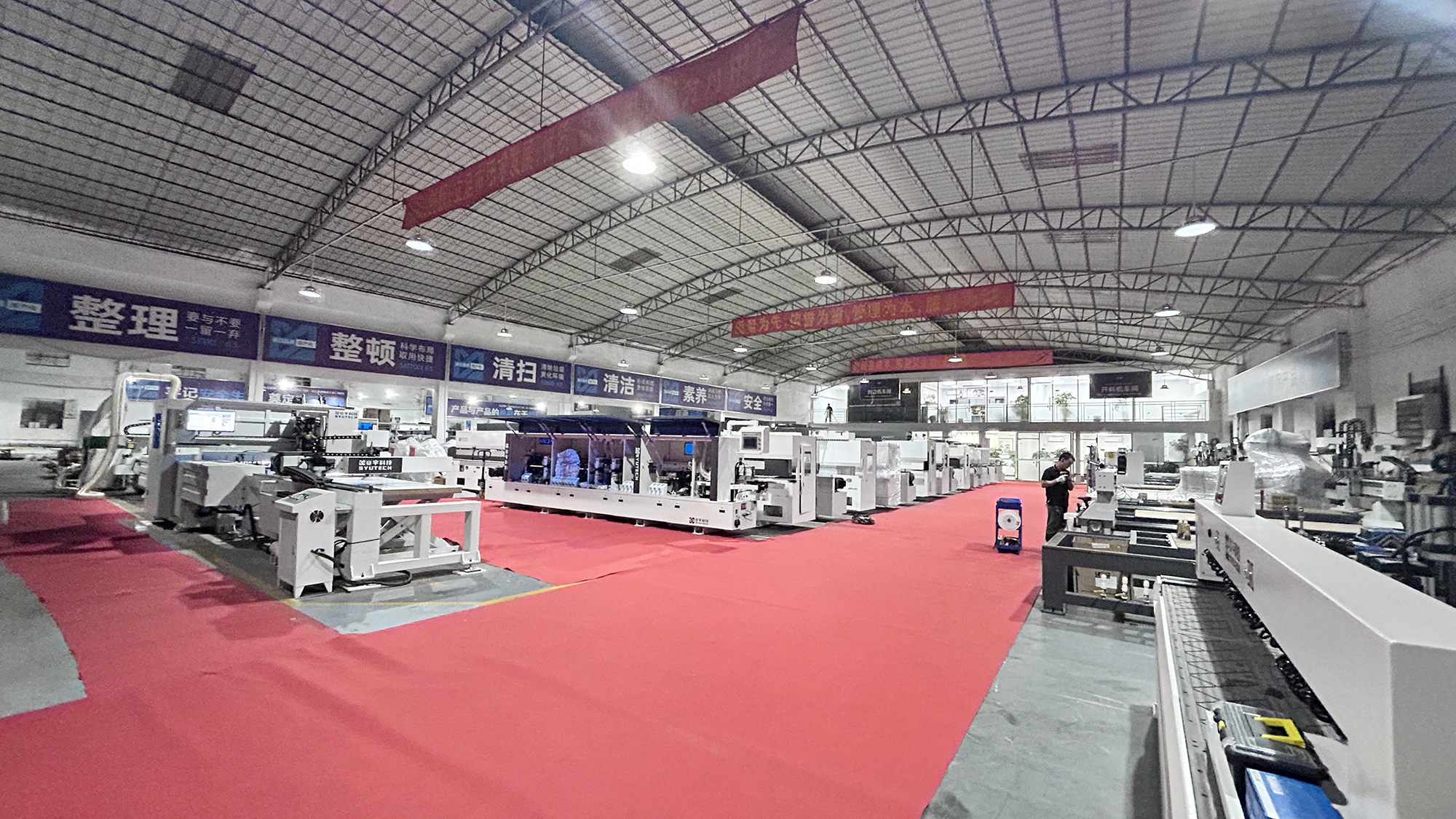

Edge Banding Machine Workshop
Production area for small, medium, and large edge banding machines.

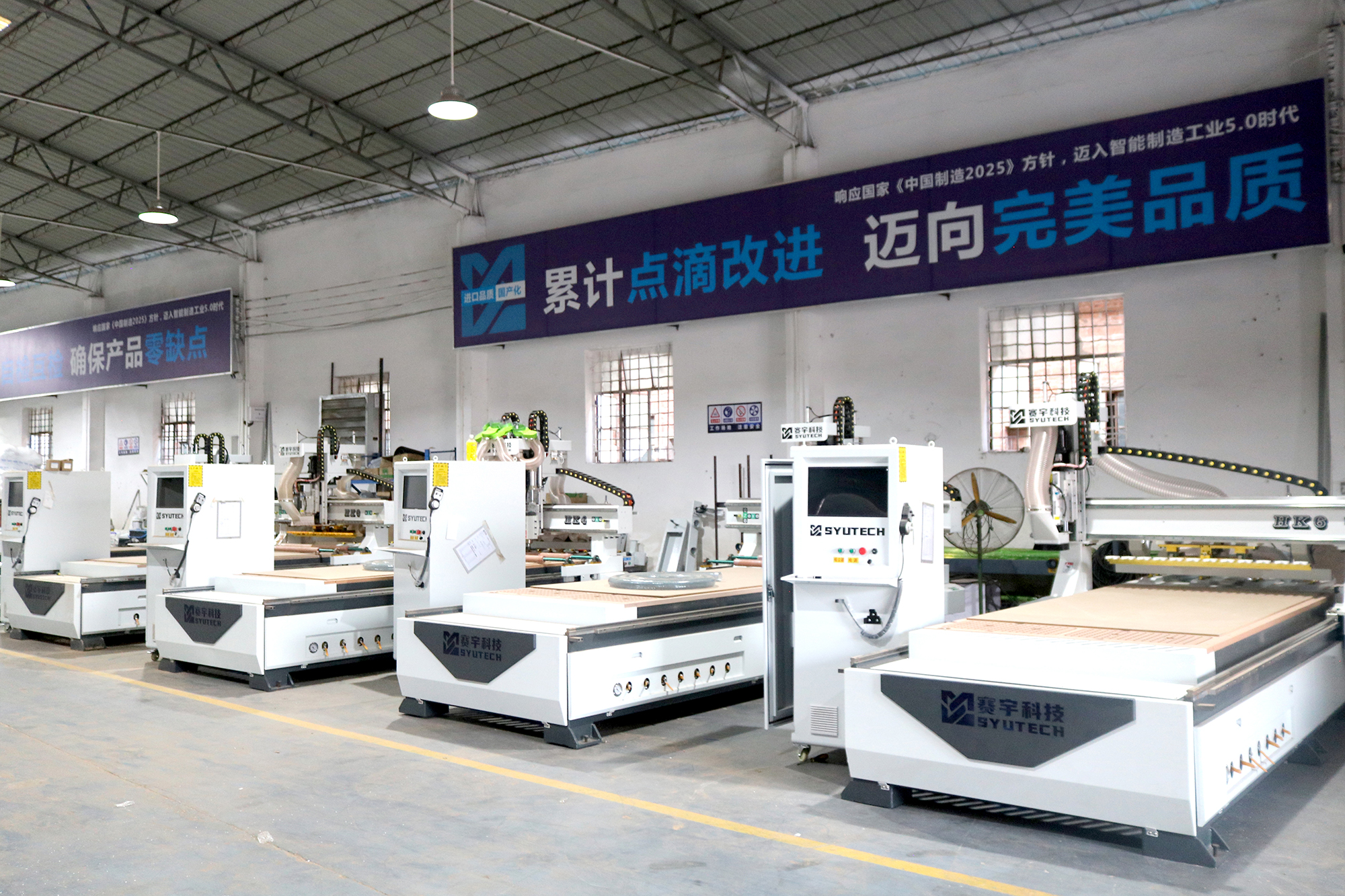

CNC Cutting Machine Workshop
Production area for CNC nesting machines and cutting line solutions.

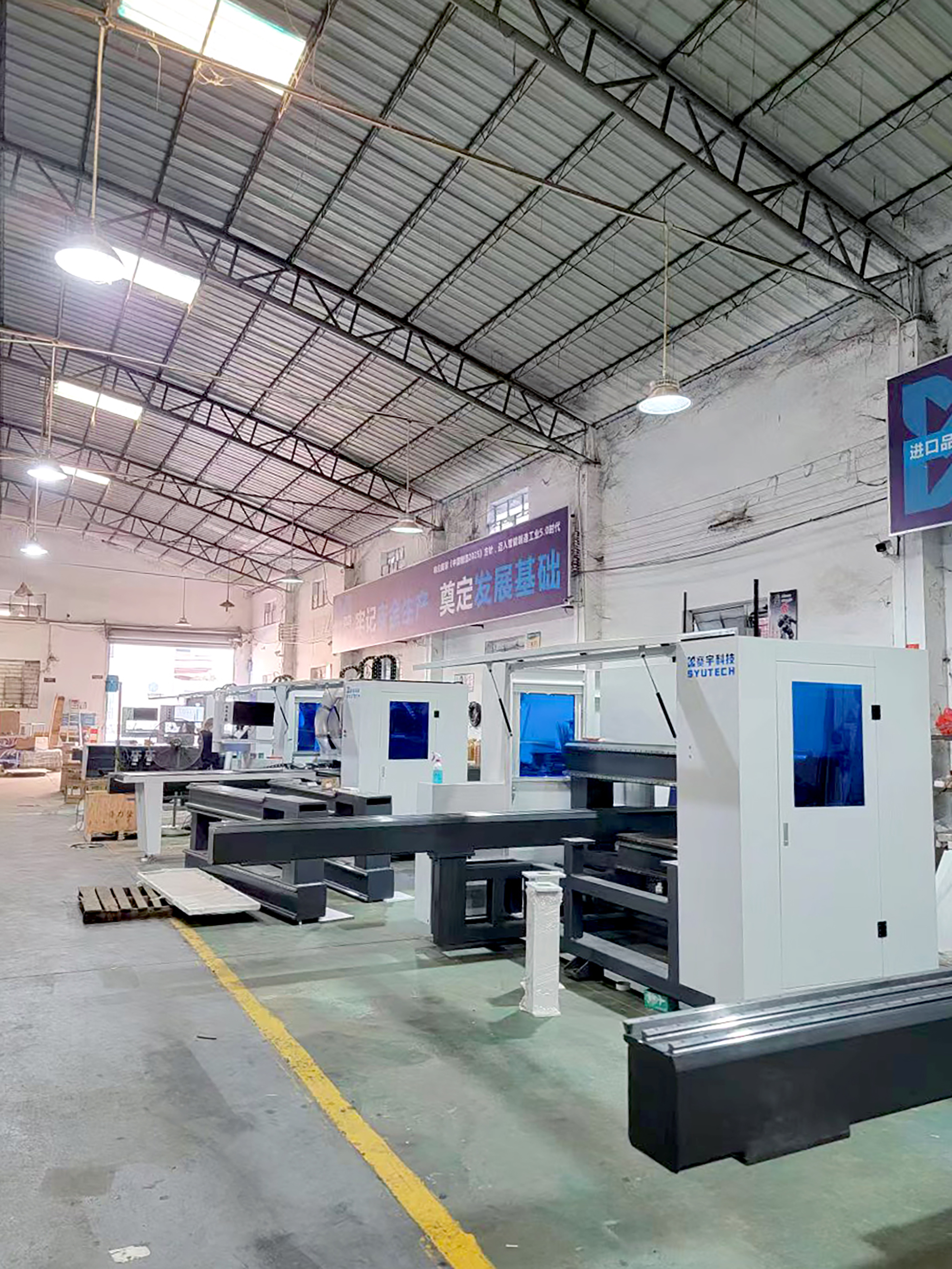

Six-Sided Drilling Machine Workshop
Production area for six-sided drilling machines and line solutions.
Shanghai Exhibition
Exhibition team and machine display.
Foshan Lunjiao Exhibition
Exhibition team and machine display.
FAQ
Common questions about machine selection, delivery, operation, and after-sales service.
What production needs does this machine solve?
The HK-465X-Z is suitable for narrow-board 45 degree edge banding, end-edge banding, and straight edge banding. It is commonly used for top cabinet cover panels, closing panels, kitchen and floor cabinet rails, and base cabinet corner lines.
Can it process both 45 degree angled edges and straight edges?
Yes. The machine integrates bevel saw cutting, angled and straight gluing, edge band grooving, trimming, scraping, cleaning, and polishing, making it suitable for combined angled and straight edge banding production.
What board and edge band thicknesses are supported?
The straight edge board thickness range is 9-60mm, and the angled edge board thickness range is 12-25mm. Straight edge band thickness is 0.35-3mm, while angled edge band thickness is 0.6-1.5mm.
What is the production lead time?
The standard production lead time is 30 working days. The final delivery schedule depends on order configuration, production planning, and transportation arrangements.
How long is the warranty period?
The machine warranty period is one year. The after-sales team can assist with installation, commissioning, operator training, and daily operation support.
What should be confirmed before purchasing?
Before ordering, confirm the workpiece type, board thickness, edge band specification, factory voltage and air pressure, capacity requirements, and whether any special configuration is needed.
