High-speed four-spindle machining
Designed for the SM3100 processing workflow.
SM3100 Four-Spindle Solid Wood Mortising Machine
A four-spindle solid wood mortising machine with independent vertical and horizontal spindle motors and left/right dual workstations. Confirm the final configuration with our team for your workpiece and process requirements.
High-speed four-spindle machiningPneumatic material pressing deviceCylinder lifting baffleDual-workstation independent control with special 45-degree back plate
Applications and Processing
Male and female tenons, slots, round grooves, V-notches, square tenons, 45-degree angled tenons, complex pointed tenons, dovetail drawer work, slotting and drilling for solid-wood components.
Confirm your drawing, material, tooling and process requirement before final configuration and quotation.
Key Machine Features
Core machine features for solid-wood mortise and tenon processing.
Pneumatic material pressing device
Designed for the SM3100 processing workflow.
Cylinder lifting baffle
Designed for the SM3100 processing workflow.
Dual-workstation independent control with special 45-degree back plate
Designed for the SM3100 processing workflow.
Machine Details
Key components and operating arrangements for the SM3100.

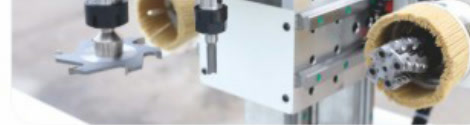

Four-spindle machining head
Four independent spindle positions for the SM3100 configuration.

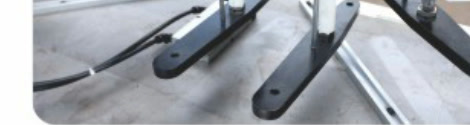

Pneumatic material pressing
Workpiece pressing arrangement for the SM3100 configuration.
Cylinder lifting baffle
Adjustable baffle detail for the SM3100 configuration.
Dual-station independent control
Dual-workstation control detail for the SM3100 configuration.
Processing Examples
Typical joint and mortise examples for solid-wood component production.
Machine Videos
See the SM3100 in operation.
SM3100 machine demonstration
A concise SM3100 machine-operation overview.
Supported Processing Applications
Share your workpiece drawing and process requirements for configuration guidance.
45-degree elongated tenons
Discuss suitability for your workpiece and required joint geometry.
45-degree elongated slots
Discuss suitability for your workpiece and required joint geometry.
Mitered cross-lap joints
Discuss suitability for your workpiece and required joint geometry.
Chinese three-way mitered lap joints
Discuss suitability for your workpiece and required joint geometry.
Launched tenons
Discuss suitability for your workpiece and required joint geometry.
Oval mortise-and-tenon joints
Discuss suitability for your workpiece and required joint geometry.
Door and window round tenons
Discuss suitability for your workpiece and required joint geometry.
Round-tenon male tenons
Discuss suitability for your workpiece and required joint geometry.
Technical Specifications
Review the standard configuration below, then confirm the final setup before quotation.
| X-axis working stroke | 2800 mm |
|---|---|
| Y-axis working stroke | 150 mm |
| Z-axis working stroke | 100 mm |
| Reducer | Planetary reducer |
| Guide rail | Taiwan Hiwin |
| Drive motor power | 750 W servo x 3 |
| Spindle motor power | 6 kW air-cooled spindle x 2; 3.5 kW x 2 |
| Processing speed | 20 m/min |
| Rack | High-precision ground 1.5 helical rack |
| Inverter | Zhongda |
| Electrical components | Chint electrical components |
| Workbench calibration stroke | 2800 mm |
| Processing height | 100 mm |
| Idle speed | 50 m/min |
| Overall dimensions | 3800 x 1500 x 1400 mm |
Before a Quote
Provide the workpiece drawing, material, dimensions, processing sequence and required output.
Configuration Notes
Specifications are provided for configuration discussion. Confirm the final setup before quotation.
Factory Strength
Factory and workshop images used across existing Wood Machinery Network product-detail pages.
Factory Exterior
Factory exterior view.

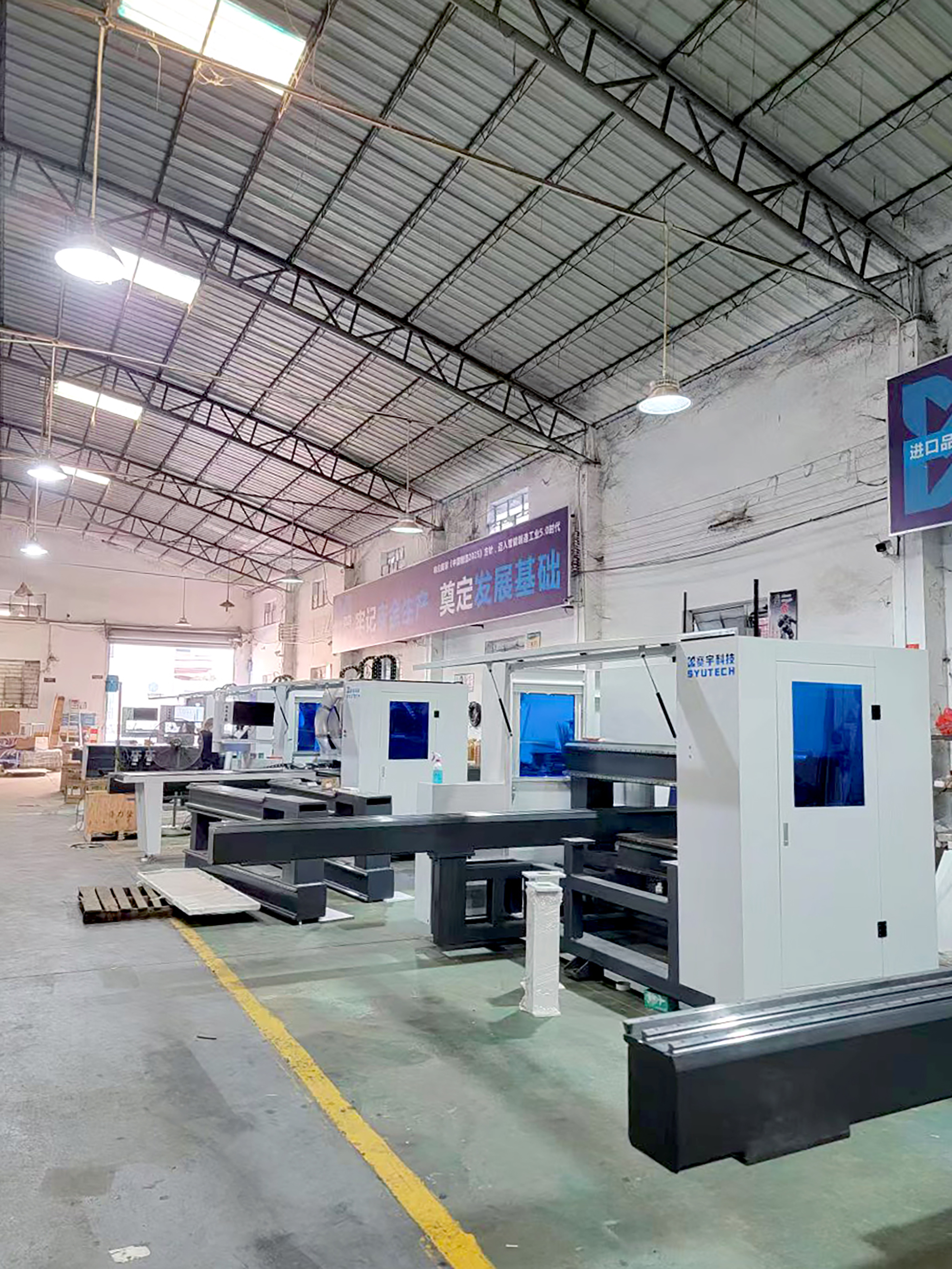

Six-Sided Drilling Workshop
Production workshop view.

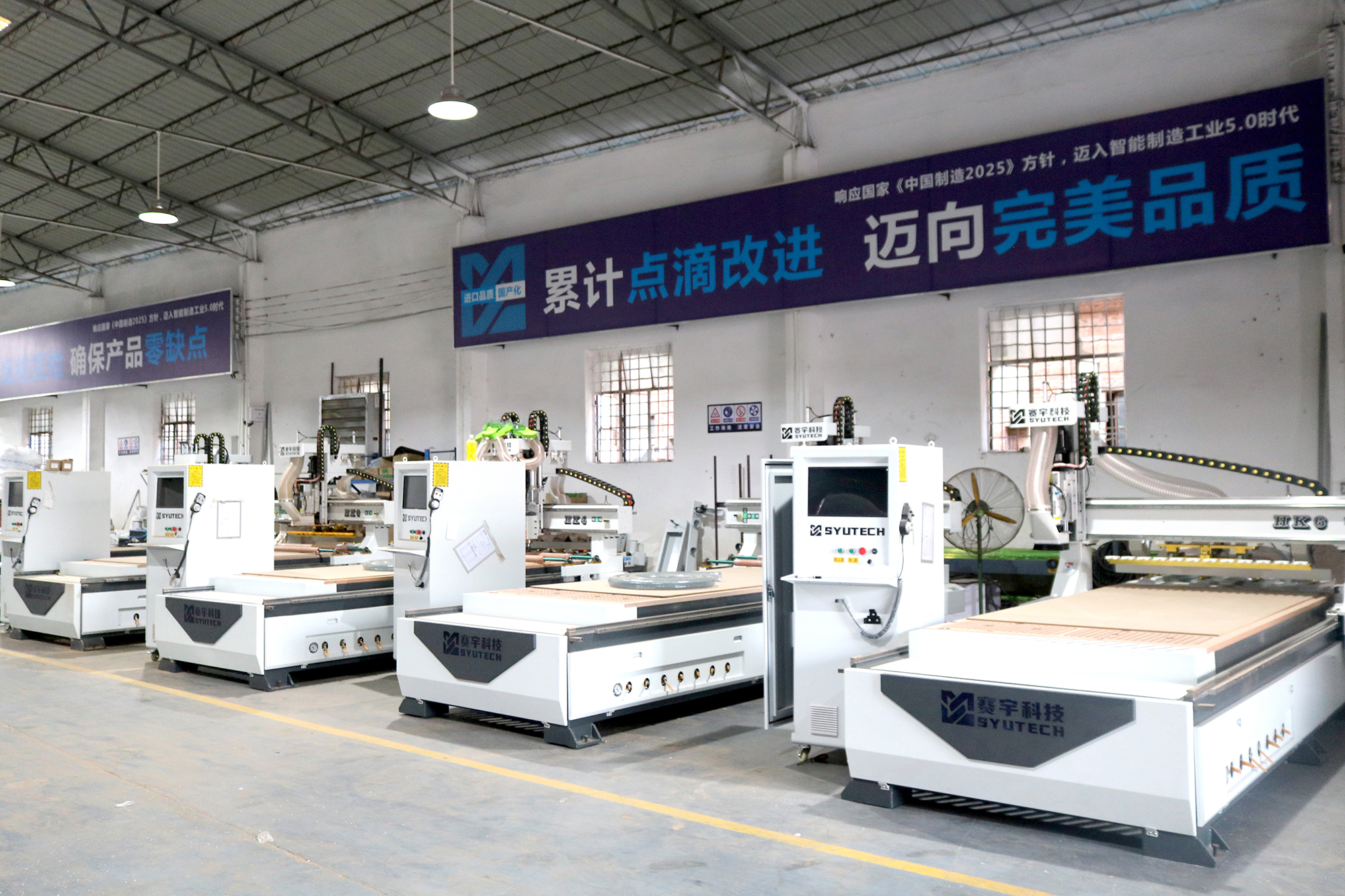

CNC Cutting Workshop
Production workshop view.

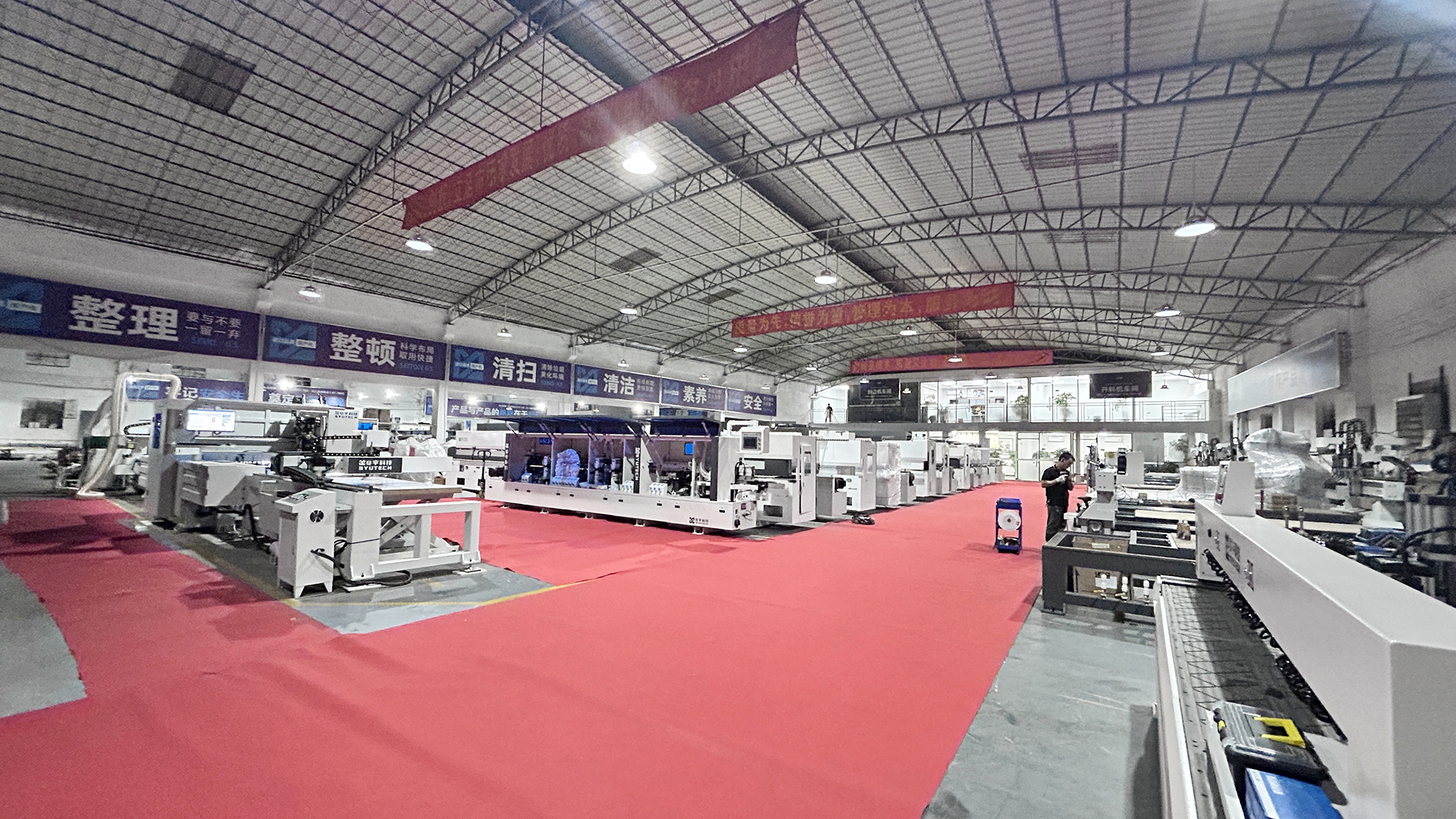

Edge Banding Workshop
