Six-Spindle Multi-Process Configuration
Horizontal, 45-degree and vertical spindle combinations cover common side hole and connector processing.

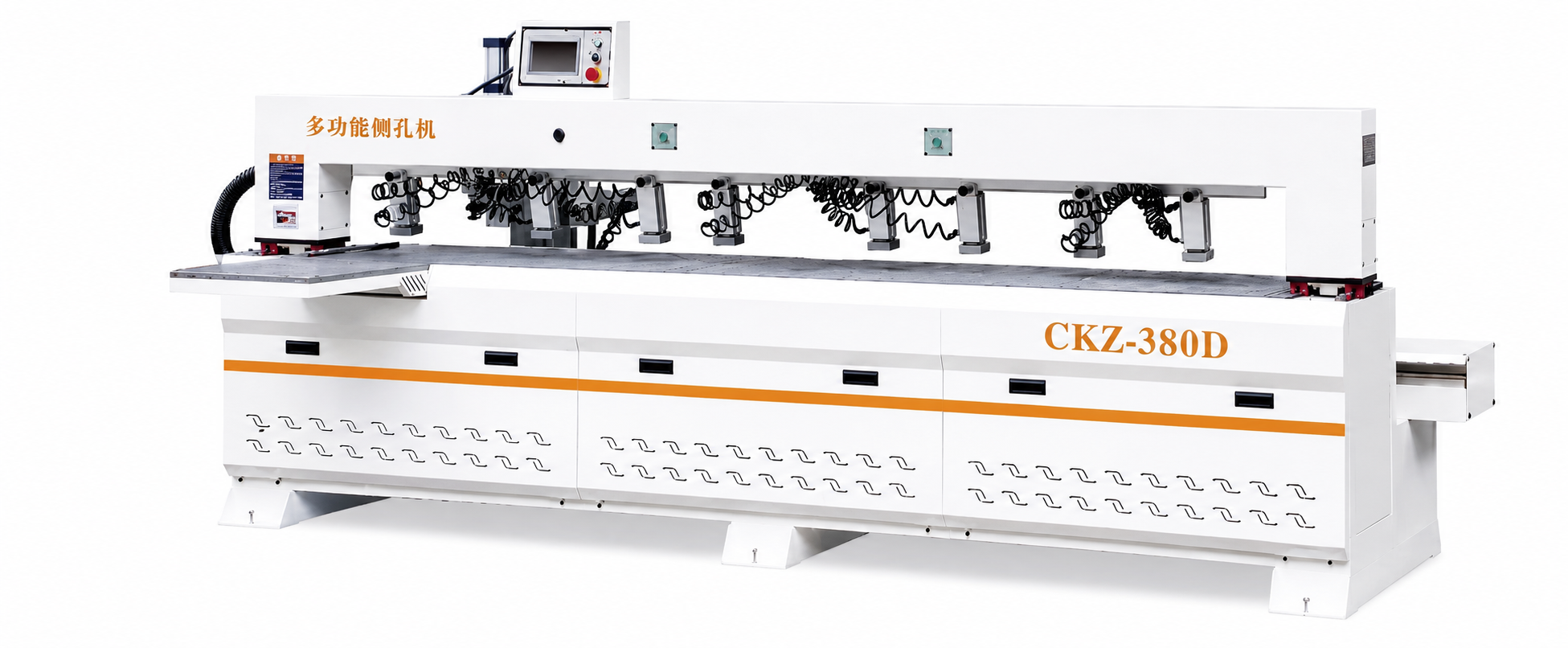

Multi-Function Side Hole Drilling Machine
Designed for panel furniture side holes and connector processing, covering three-in-one holes, dowel holes, blind holes, grooving, invisible connectors, Lamello, hinge holes, straighteners and invisible handles.
Six-Spindle ConfigurationSide Hole ProcessingCode Scanning ProcessingInvisible Connector ProcessingMulti-Process Integration
For Panel Furniture Connector Holes and Side Hole Processing
The machine integrates horizontal spindles, 45-degree spindles and vertical spindles to cover multiple connector holes, grooves and hardware processing needs.
- Suitable for custom furniture, cabinet furniture and panel furniture production
- Supports common processes such as three-in-one holes, dowel holes, Lamello and hinge holes
- Can be used for side hole and connector processing after code scanning identification
Product Features
Multiple spindle groups are configured for side holes, connector holes and hardware processing, reducing separate multi-step machining.
Connector Hole Processing
Supports common panel furniture connector holes such as three-in-one holes, dowel holes and blind holes.
Groove and Hardware Processing
Suitable for grooving, Lamello, straighteners, invisible handles and related processing needs.
Code Scanning Support
Supports code scanning workflows for order-based panel identification and processing management.
Applications
Suitable for side holes, connectors and local groove processing in custom furniture and panel furniture production.
Cabinet Production
For three-in-one holes, dowel holes and connector processing on cabinet panels.
Custom Furniture
Suitable for side hole and hardware processing on panels from multi-specification orders.
Door Panels and Decorative Panels
Can be used for local grooves, invisible handles and related connection structures.
Panel Supporting Processing
Used for supplementary drilling, grooving and connector processing after panel cutting.
Applicable Materials
Designed for common panel furniture materials. Final processing results depend on tools, panels and on-site process configuration.
Particle Board
Suitable for particle board used in cabinets and custom furniture.
Plywood
Can be used for connector holes and groove processing on plywood.
MDF
Suitable for door panels, decorative panels and selected hardware groove processing.
Melamine Board
Suitable for structural parts in regular panel furniture.

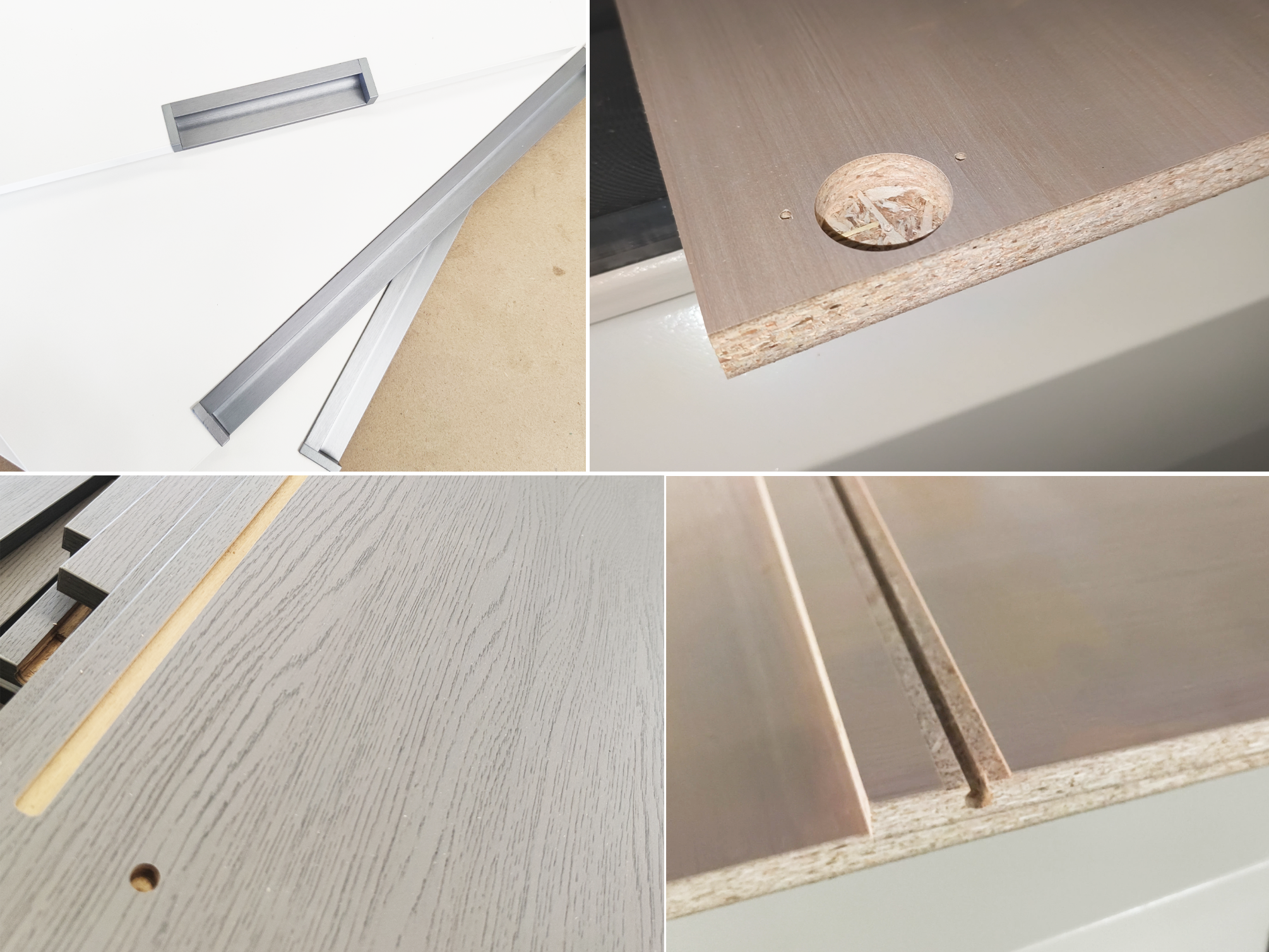

Processing Result
Technical Specifications
Specifications are subject to the actual machine and final confirmed configuration.
| Product Name | Multi-Function Side Hole Drilling Machine |
|---|---|
| Horizontal Air-Cooled Spindle | 2.2kW |
| 3.5kW Spindle | 1 Unit |
| 45 Degree Air-Cooled Spindle | 3.5kW x 2 Units |
| Vertical Air-Cooled Spindle | 3.5kW x 2 Units |
| Main Functions | Three-in-one holes, dowel holes, blind holes, grooving, code scanning, invisible connectors, Lamello, hinge holes, straighteners, invisible handles |
Suitable Users
Panel furniture factories, custom furniture factories, cabinet production workshops and users requiring side hole and connector processing.
Applications
Cabinet panels, furniture panels, door panels, decorative panels and common panel furniture connection structures.
Factory Strength

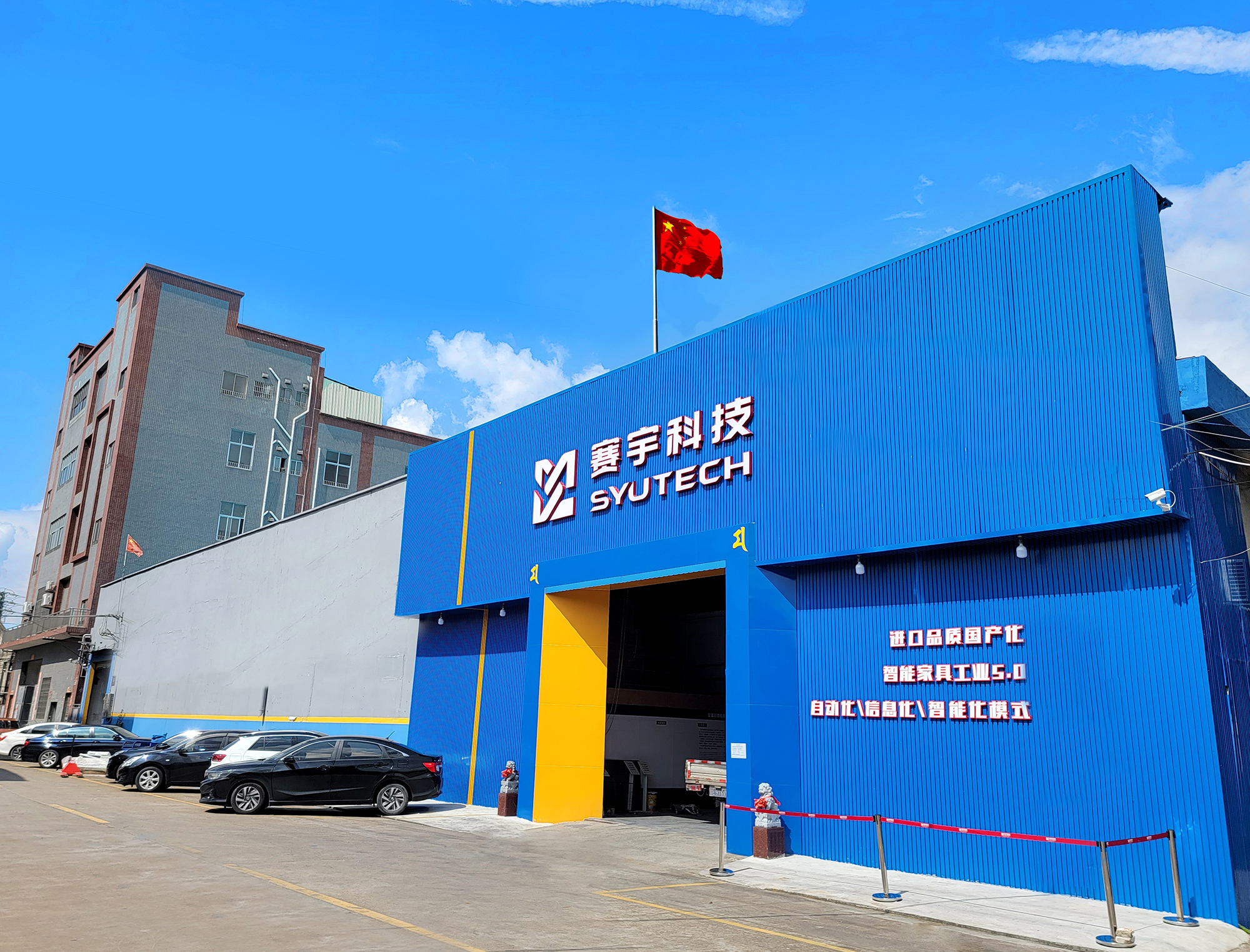

Factory Exterior
Factory exterior view.

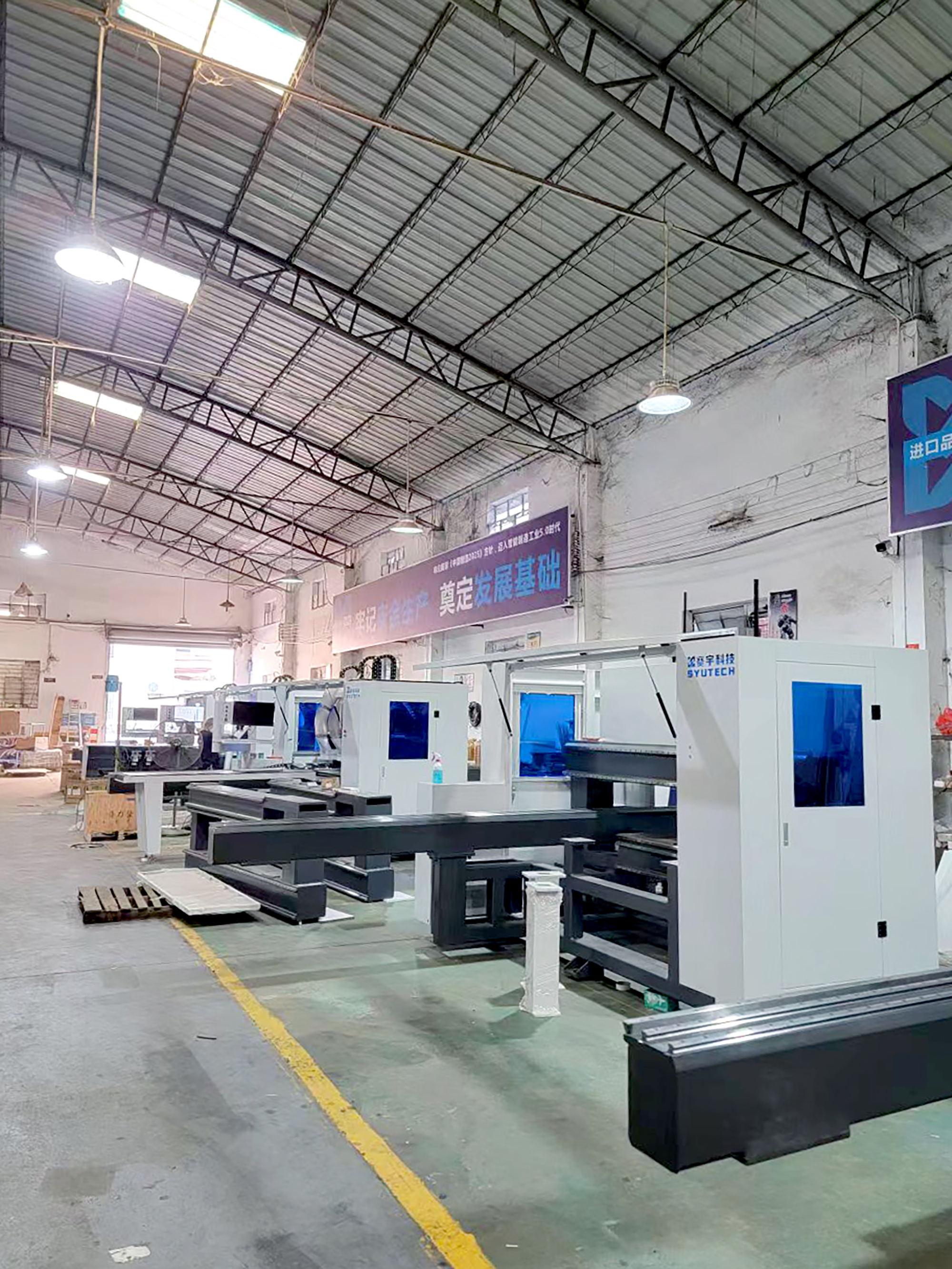

Six-Sided Drilling Workshop
Main production area for six-sided drilling machines and line solutions.

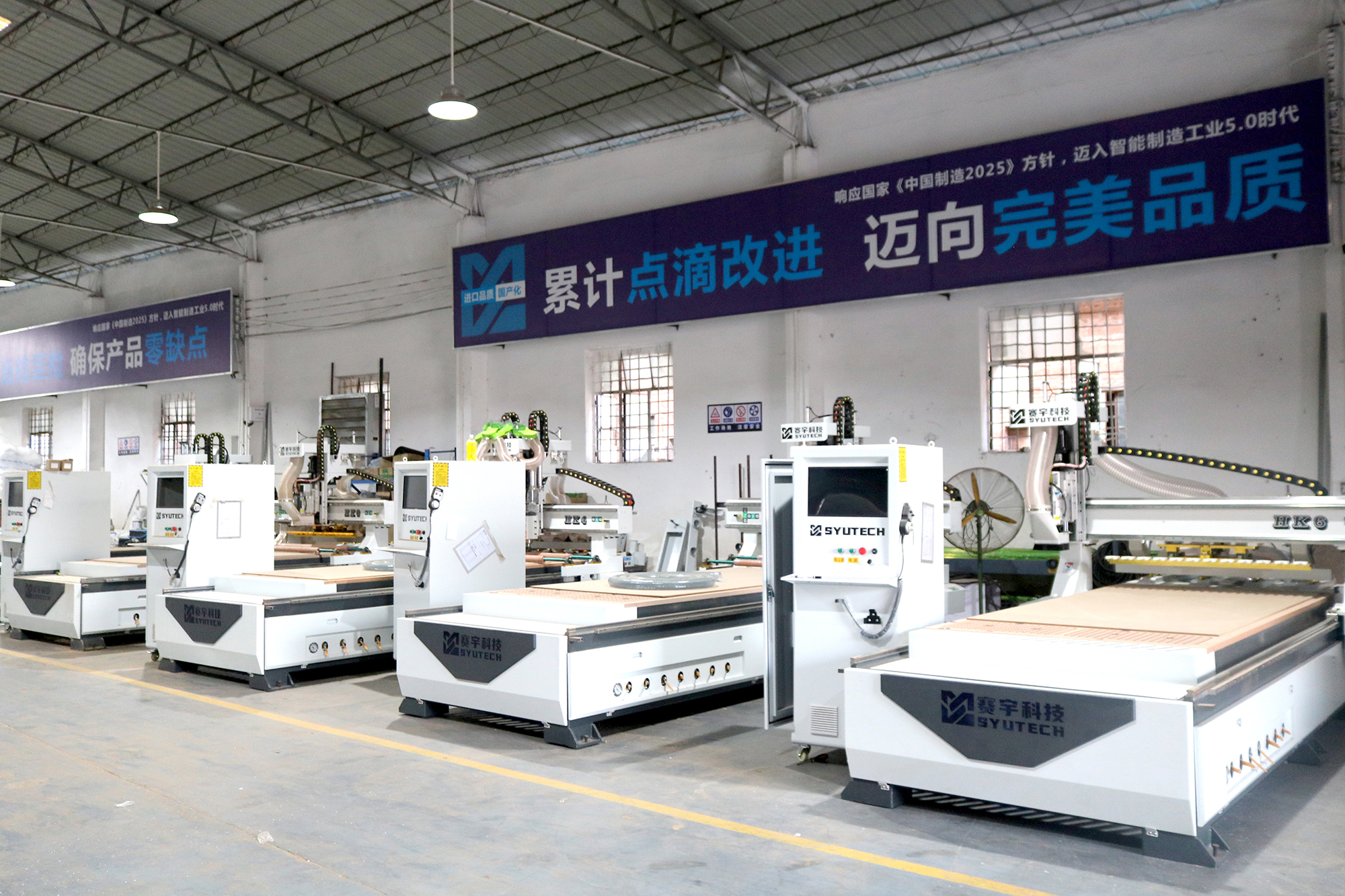

CNC Cutting Workshop
Main production area for CNC nesting machines and cutting line solutions.

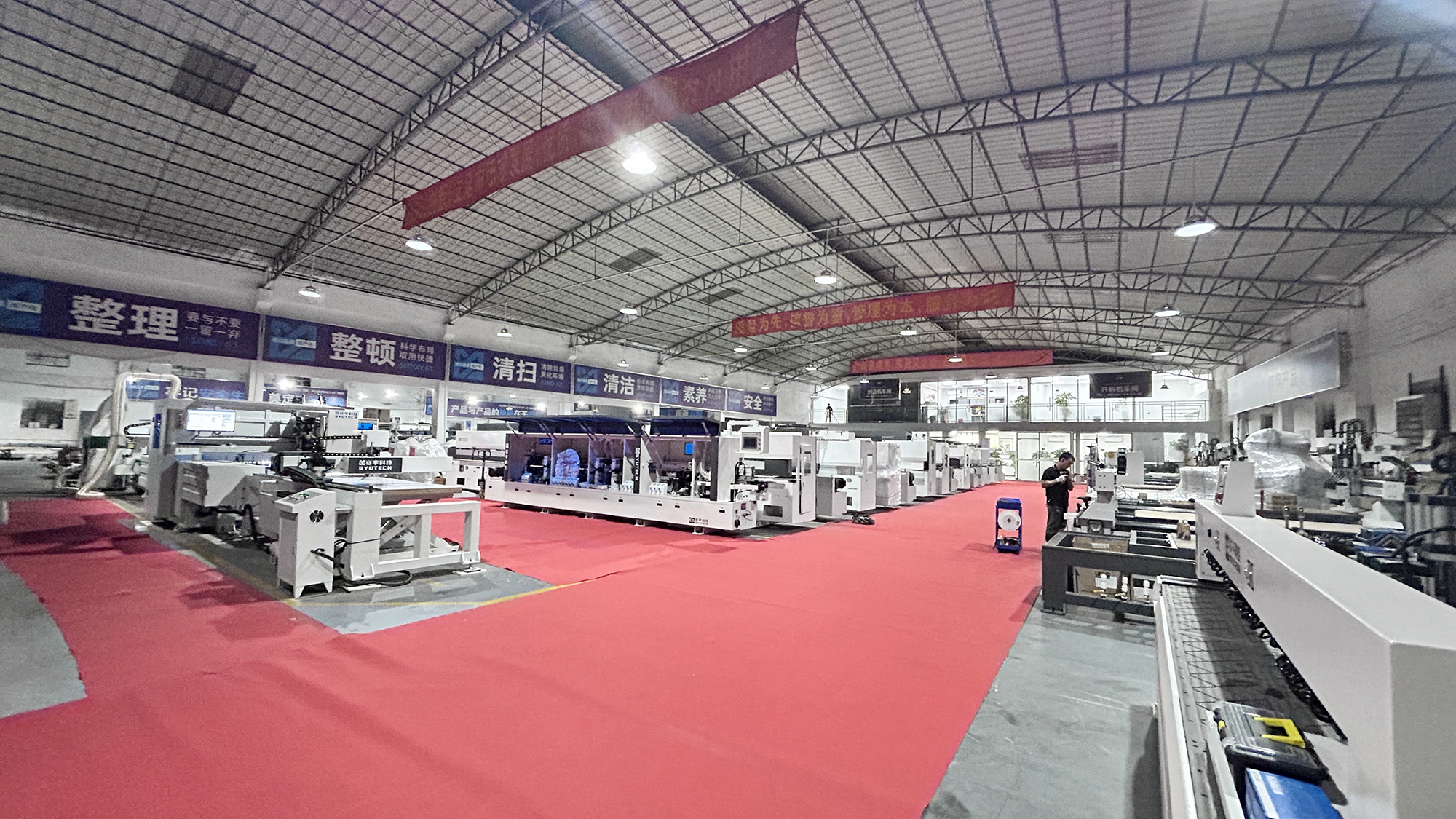

Edge Banding Workshop
Main production area for small, medium and large edge banding machines.
Shanghai Exhibition Site
Exhibition team display.
Foshan Lunjiao Exhibition Site
Exhibition team display.
FAQ
What is this machine mainly used for?
It is mainly used for side holes, connector holes, grooves and selected hardware processing in panel furniture.
What hole types can it process?
It can process common hole types such as three-in-one holes, dowel holes, blind holes and hinge holes.
Does it support grooving?
Yes. Groove type and size should be confirmed according to the tool and panel material.
Can it process invisible connectors?
Yes. It supports invisible connectors, Lamello, straighteners and invisible handle related processing.
Which factories is it suitable for?
It is suitable for panel furniture factories, custom furniture factories and cabinet panel production workshops.
What materials can it process?
It is suitable for common panel furniture materials such as particle board, plywood, MDF and melamine board.
Can it work with code scanning production?
Yes. It supports code scanning identification for order-based panel processing workflows.
What are the production lead time and warranty?
The production lead time is 30 working days, and the warranty period is one year.
