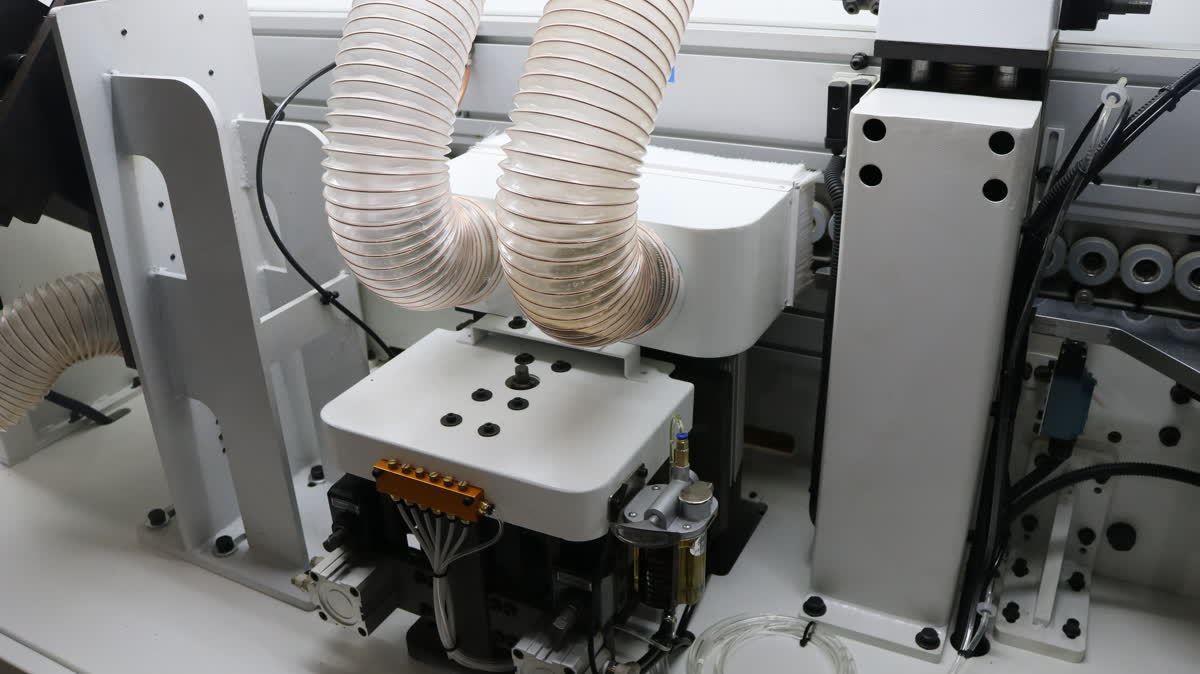

Pre-Milling
Dual diamond cutters with pneumatic front and rear feeding remove surface waves and swollen board edges for a smoother edge.
HK620 Skeleton Line Edge Banding Machine
HK620 is designed for skeleton line, handle line, and decorative strip edge banding. It supports stable processing of 38° skeleton lines, 45° skeleton lines, and 90° grille strips.
Straight Pre-Milling
Bevel Saw Cutting
Bevel and Straight Gluing
Edge Band Grooving
Dual Upper and Lower Grooving
A Dedicated Edge Banding Solution for Skeleton Line Cabinet Doors
Skeleton line designs add rhythm, depth, and structure to cabinet door surfaces. They are widely used in handleless cabinet doors, modern minimalist interiors, vintage-style designs, custom cabinetry, balcony storage, and sideboard applications.
- The profile can replace protruding handles, reducing exposed hardware for cleaner integrated cabinet designs.
- Sloped or recessed lines fit the fingertip for convenient opening while keeping the surface visually simple.
- Skeleton line profiles strengthen light and shadow details, giving cabinets a more customized appearance.
Key Structure and Functional Modules
Detailed module images show the HK620 configuration for pre-milling, saw cutting, glue application, pressing, grooving, trimming, end cutting, and polishing.

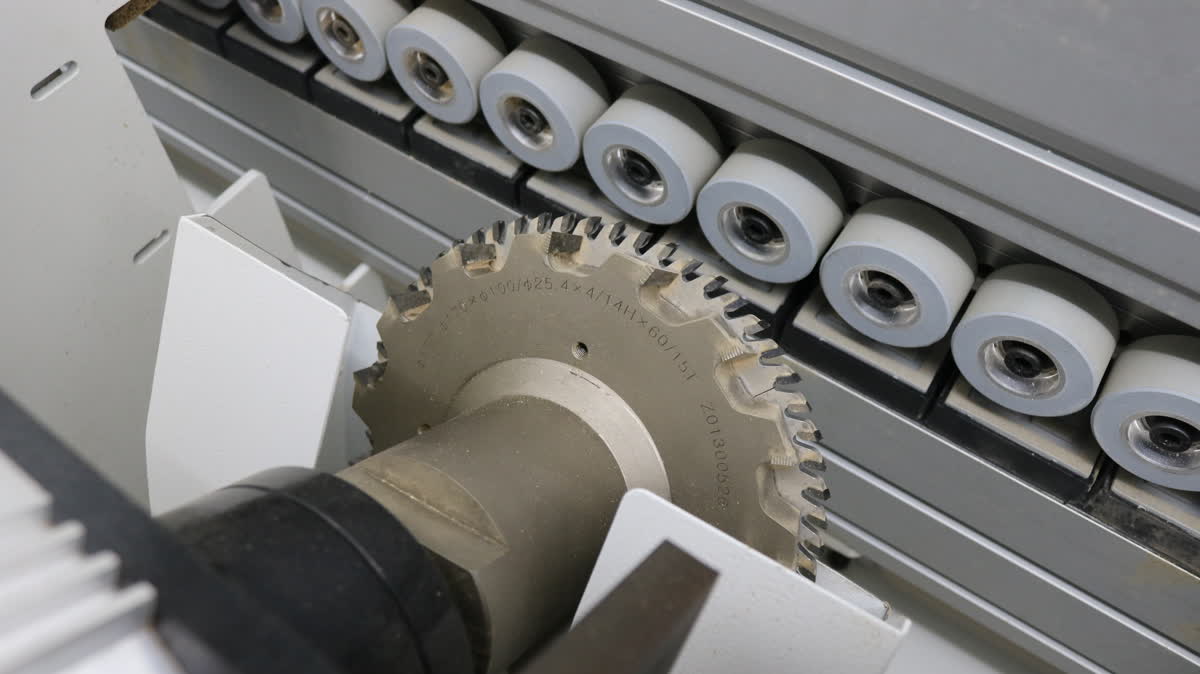

Bevel Saw Cutting
Accurately cuts the bevel edge in one pass, preparing a stable base for gluing and edge banding.

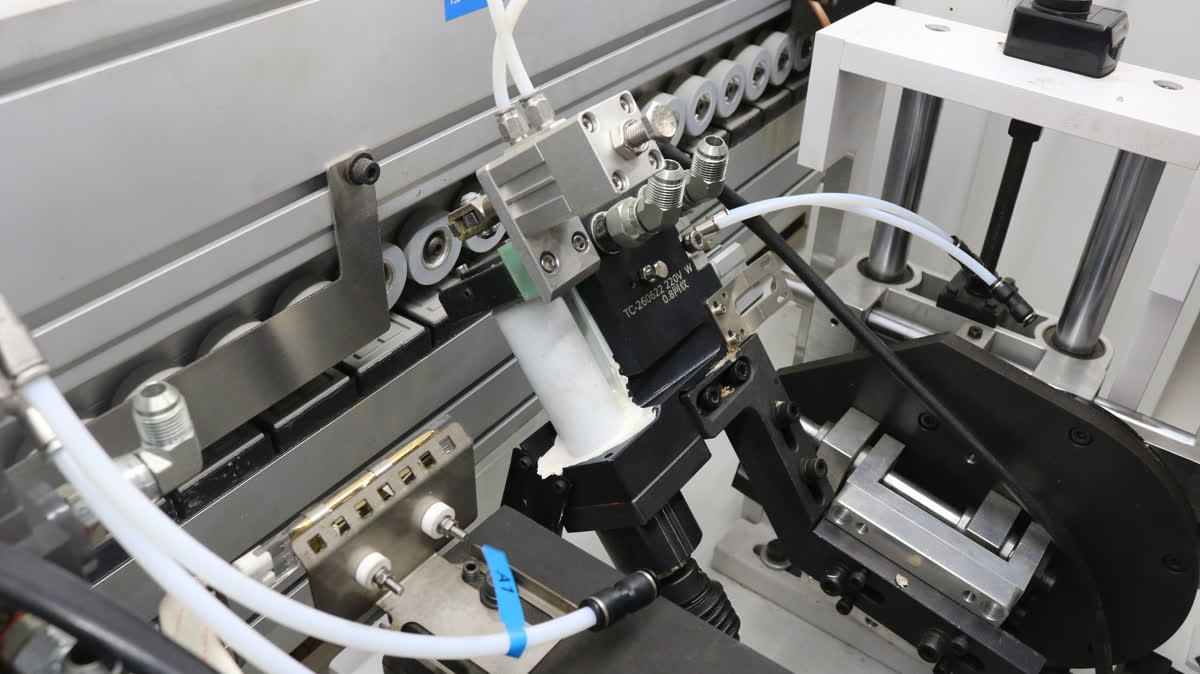

Bevel Glue Pot
PUR no-clean glue pot for bevel strip bonding, improving glue application quality on angled profiles.

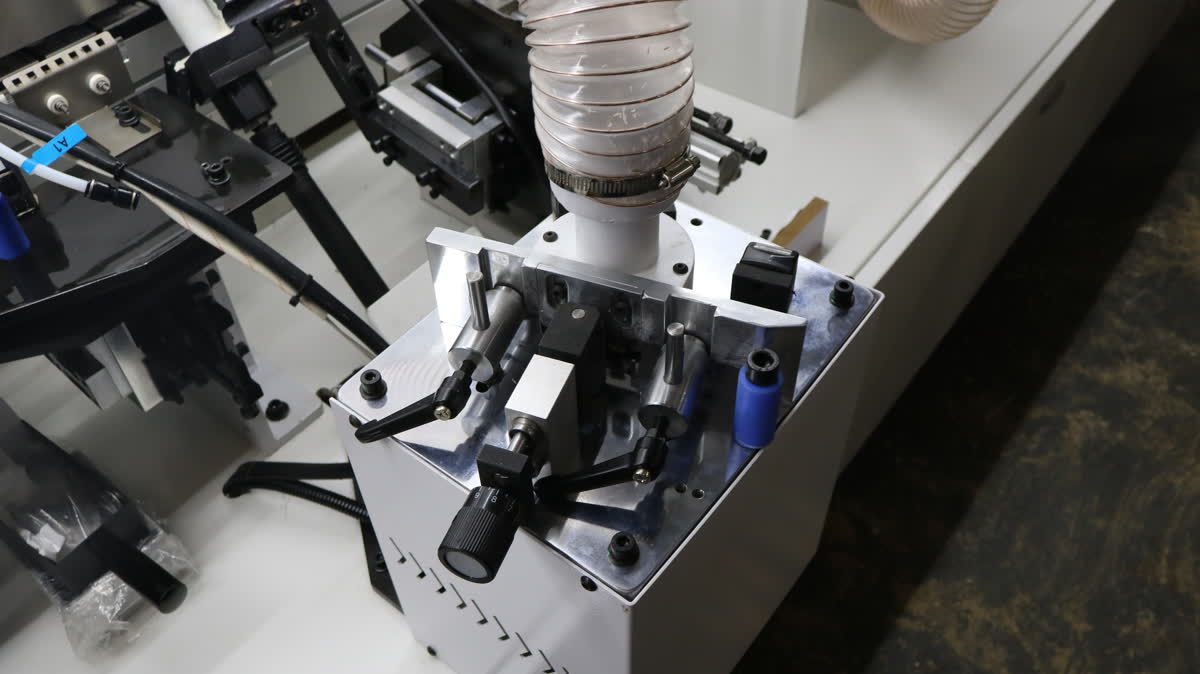

Edge Band Grooving
Precise grooving for bevel and straight edge banding keeps profile corners cleaner and supports line forming.

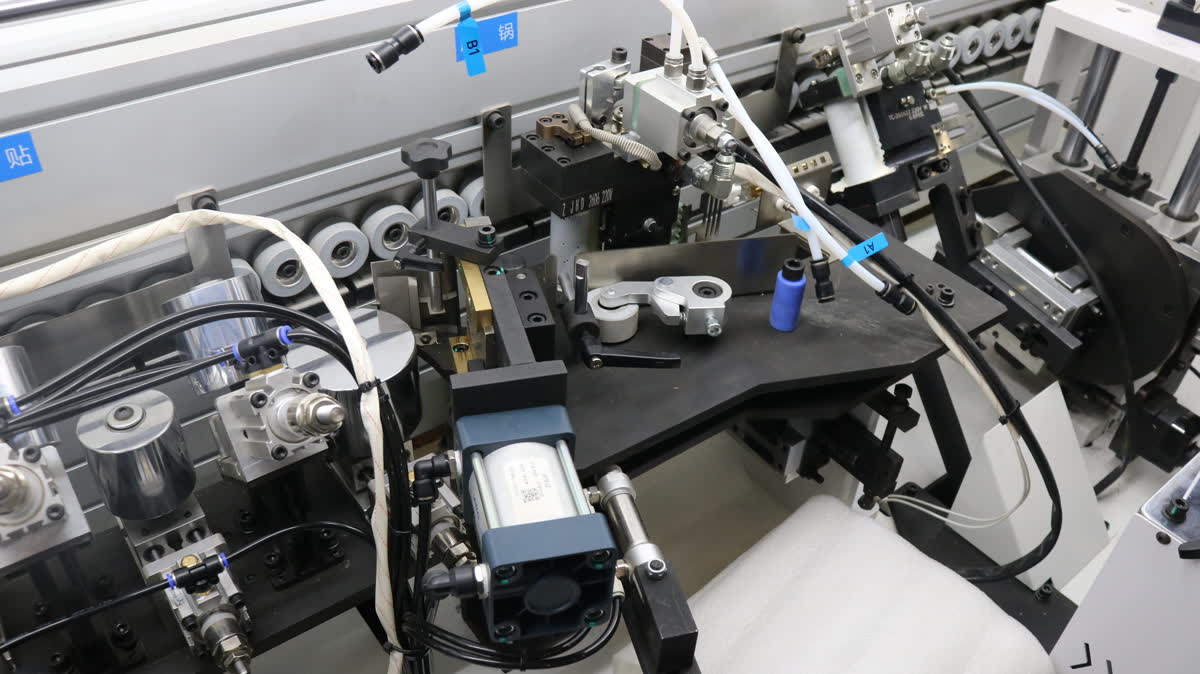

Straight Glue Pot
PUR no-clean glue pot for straight edge banding, with stable glue output and fine glue lines.

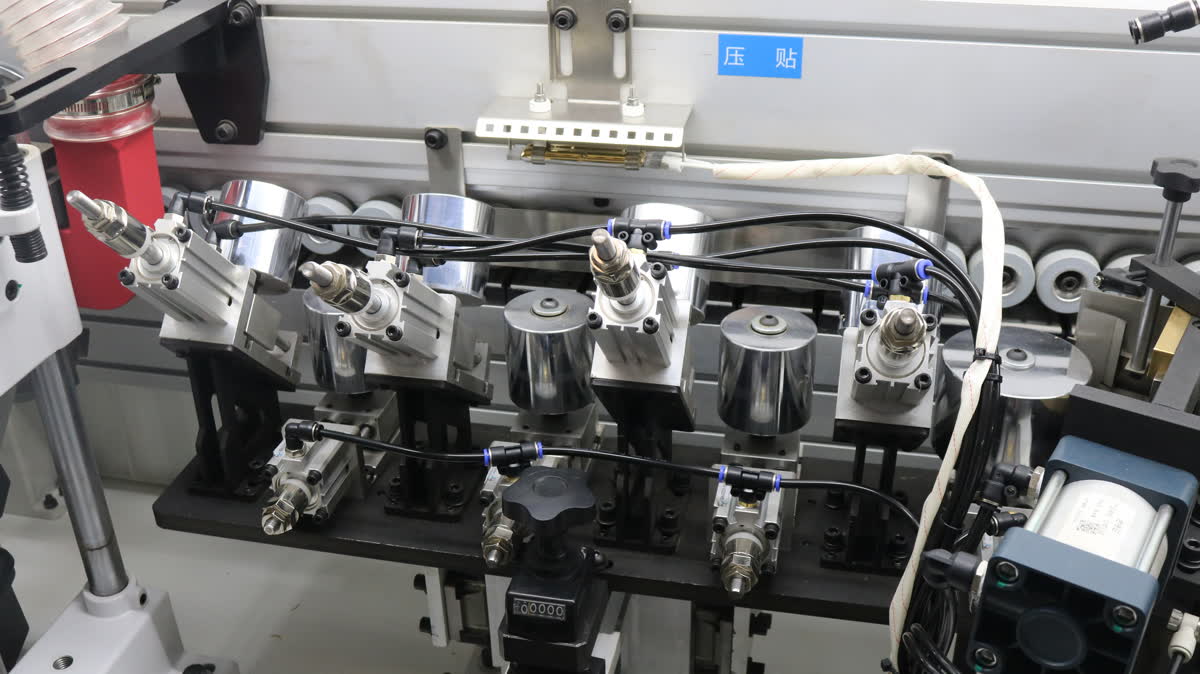

Pressing
The pressure wheel structure helps the edge band bond firmly to the panel edge, with adjustable pressure and angle.

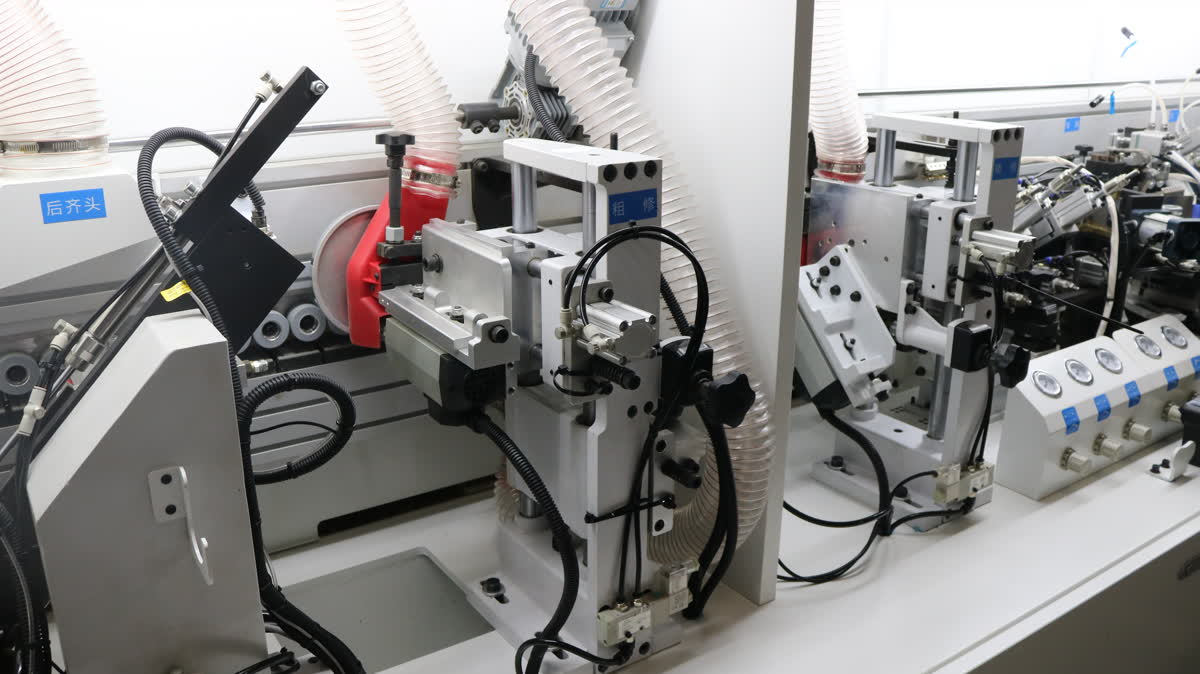

Straight Fine Trimming
Trims excess edge banding on the upper and lower sides of straight edges for a cleaner finished edge.

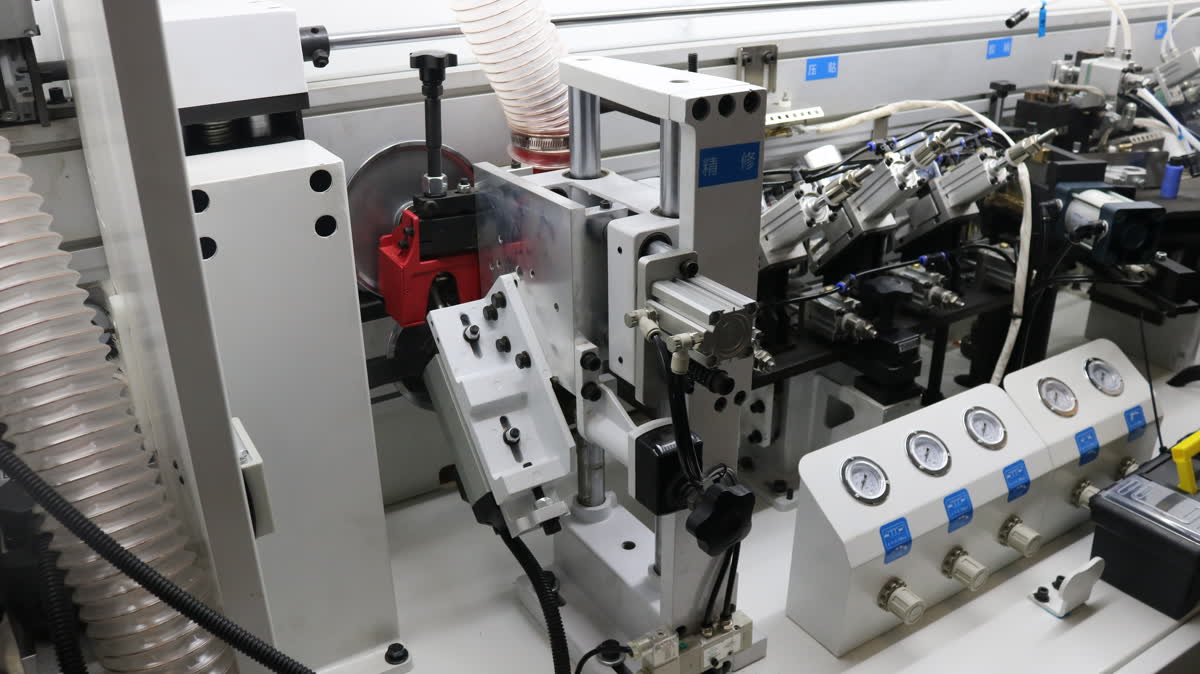

Bevel Fine Trimming
Finishes bevel profiles so the angled edge is smoother and the decorative line is cleaner.

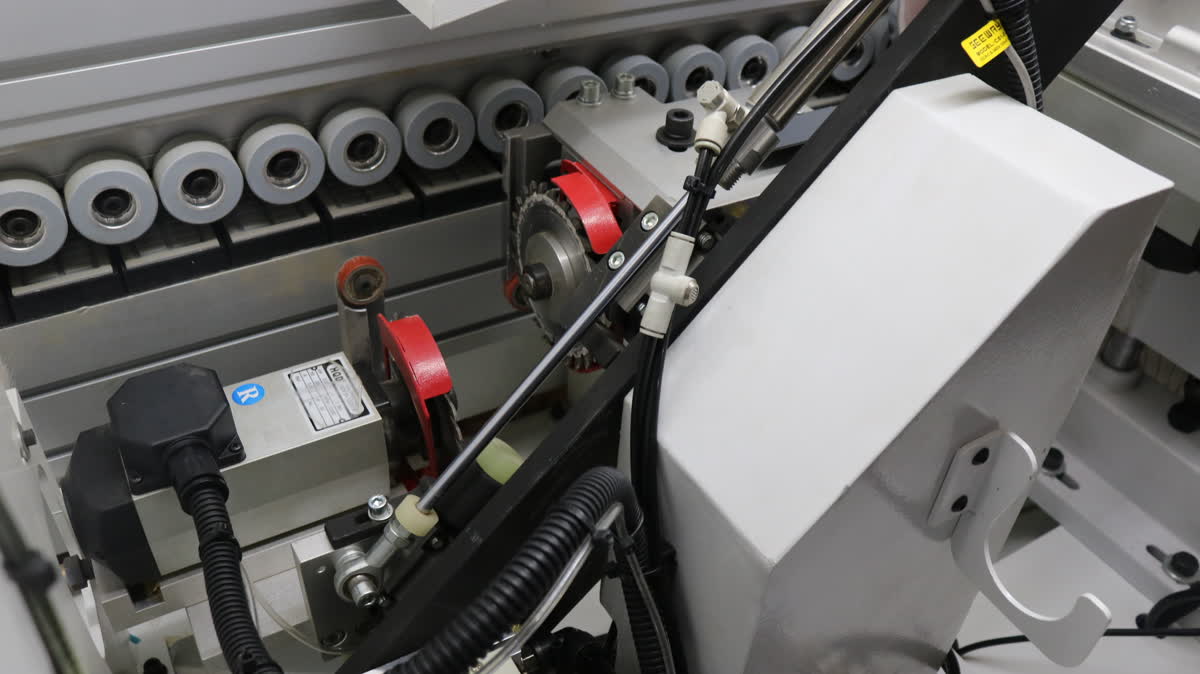

End Trimming
Two independent high-frequency motors cut front and rear excess material, with linear guide rails for faster and more accurate cutting.

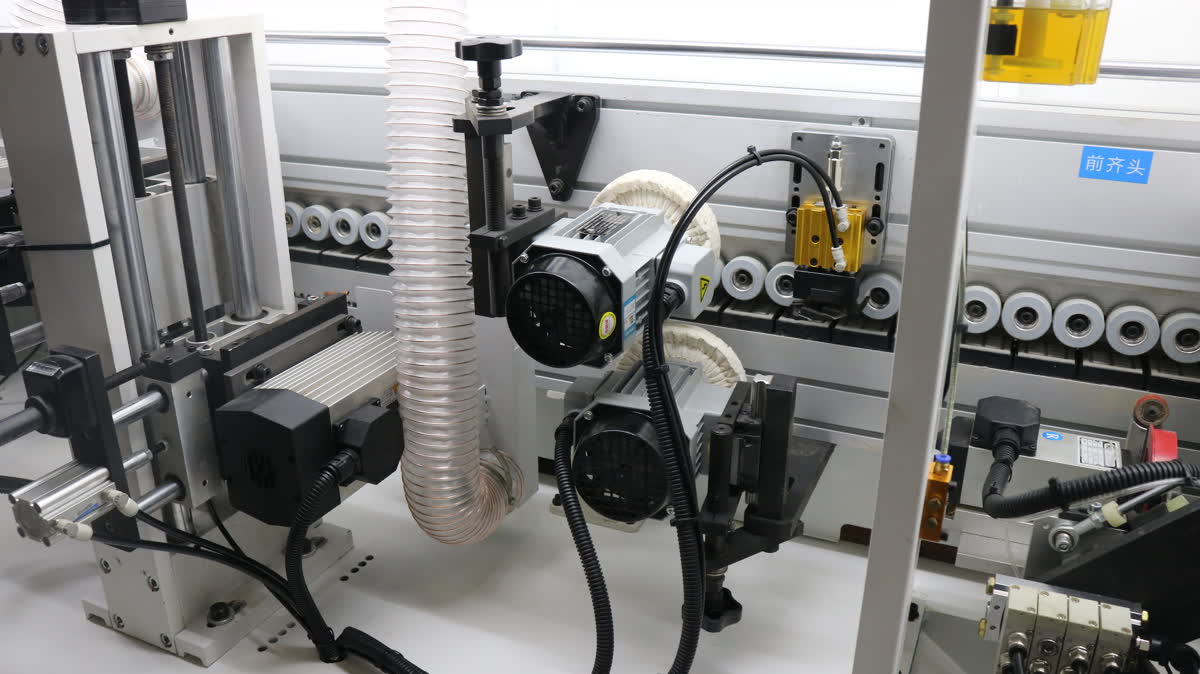

Polishing
High-speed polishing wheels clean the processed panel and make the edge banding section smoother and more attractive.

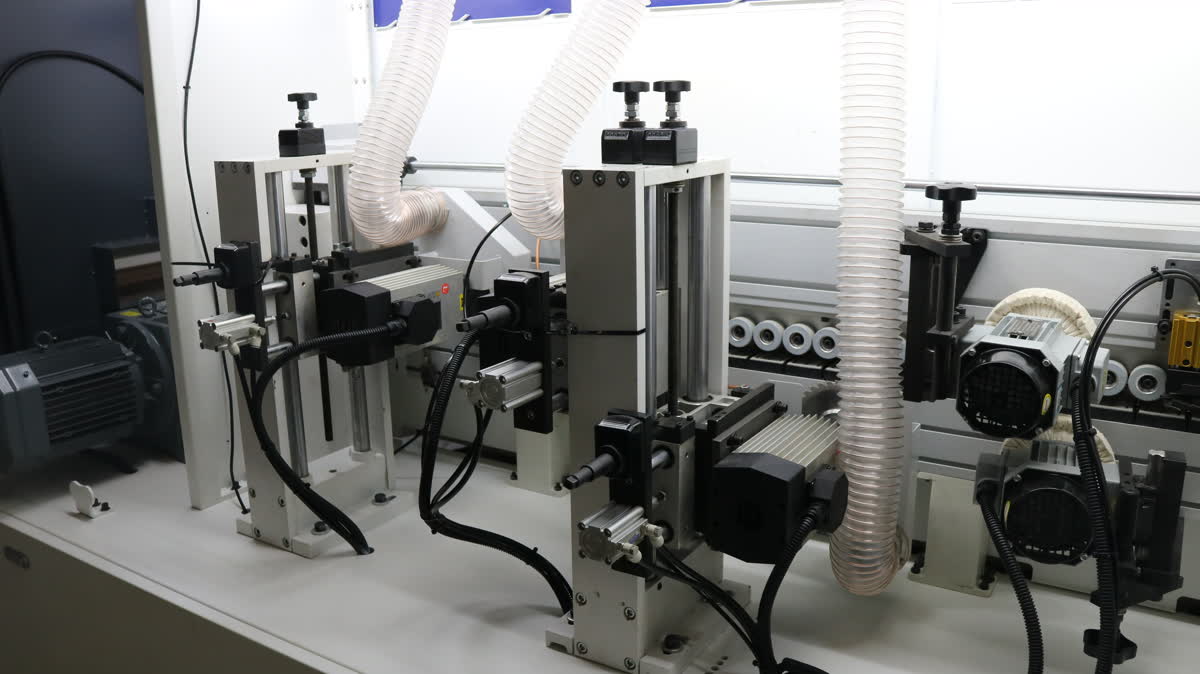

Double Grooving
Two upper and lower grooving units support accurate skeleton line grooving for decorative profile processing.
Skeleton Line Effect
Technical Specifications
Final specifications are subject to the actual machine.
| Machine Model | HK-620 |
|---|---|
| Product Name | Skeleton Line Edge Banding Machine |
| Applicable Process | 38° skeleton line, 45° skeleton line, 90° grille strip |
| Overall Dimensions | 7800*850*1700MM |
| Machine Weight | 3T |
Target Users
Suitable for whole-house customization factories, cabinet and wardrobe manufacturers, office furniture producers, panel furniture factories, and skeleton line cabinet door production plants.
Application Direction
Used for skeleton line processing in modern minimalist spaces, vintage-style interiors, integrated cabinets, floating bedside cabinets, balcony storage, sideboards, and related furniture scenes.
Factory Strength

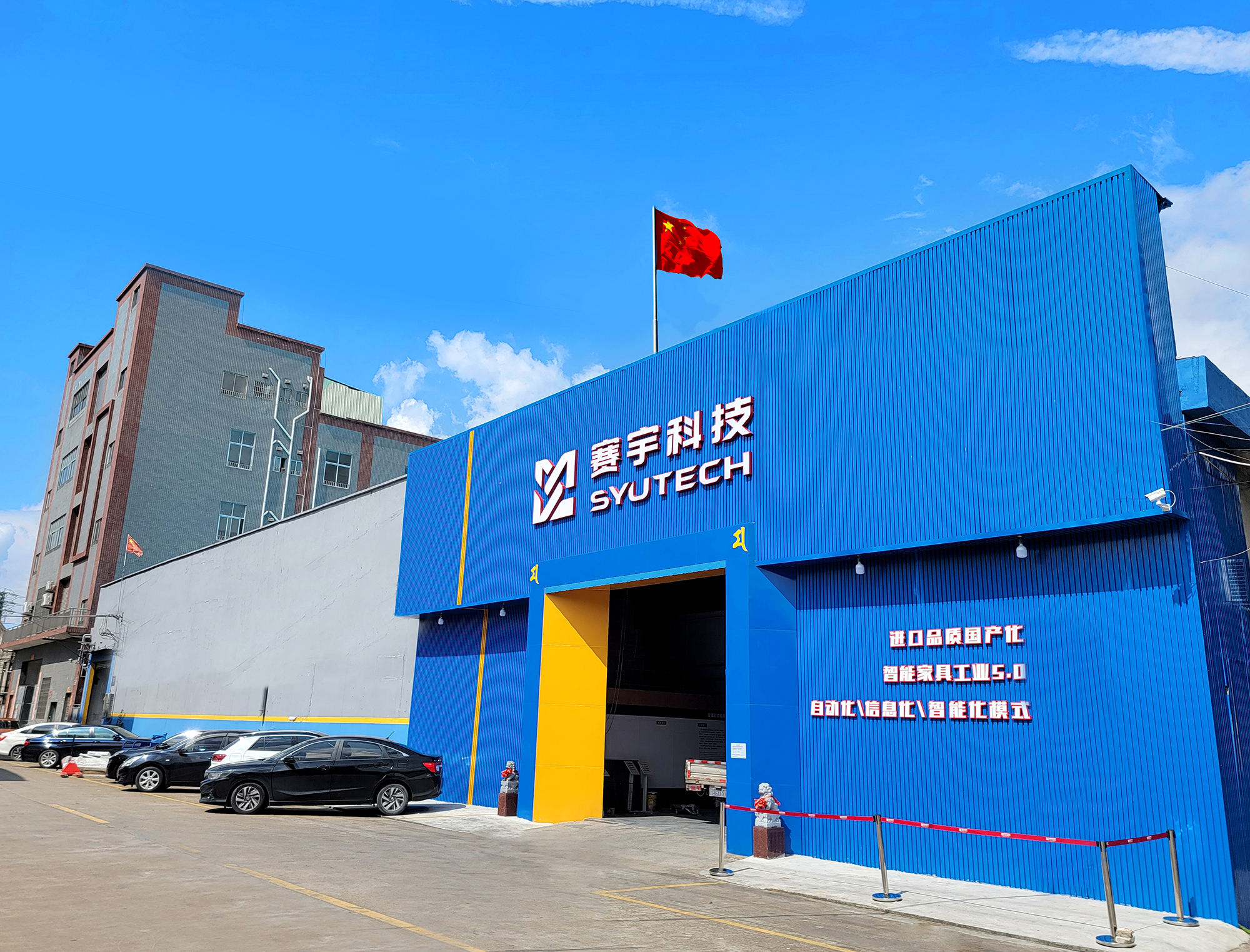

Factory Exterior
Factory exterior view.

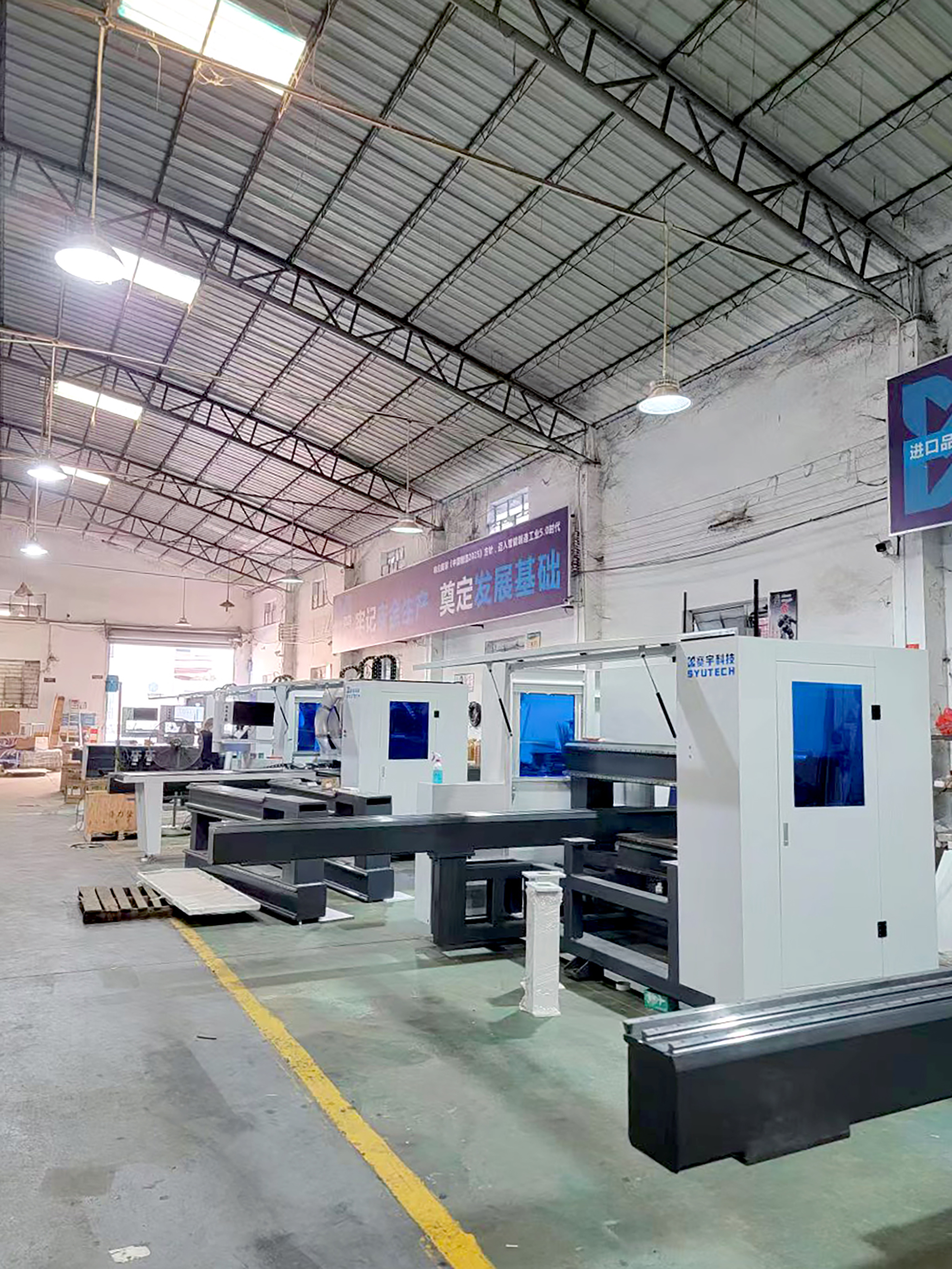

Six-Sided Drilling Workshop
Main production area for six-sided drilling machines and line solutions.

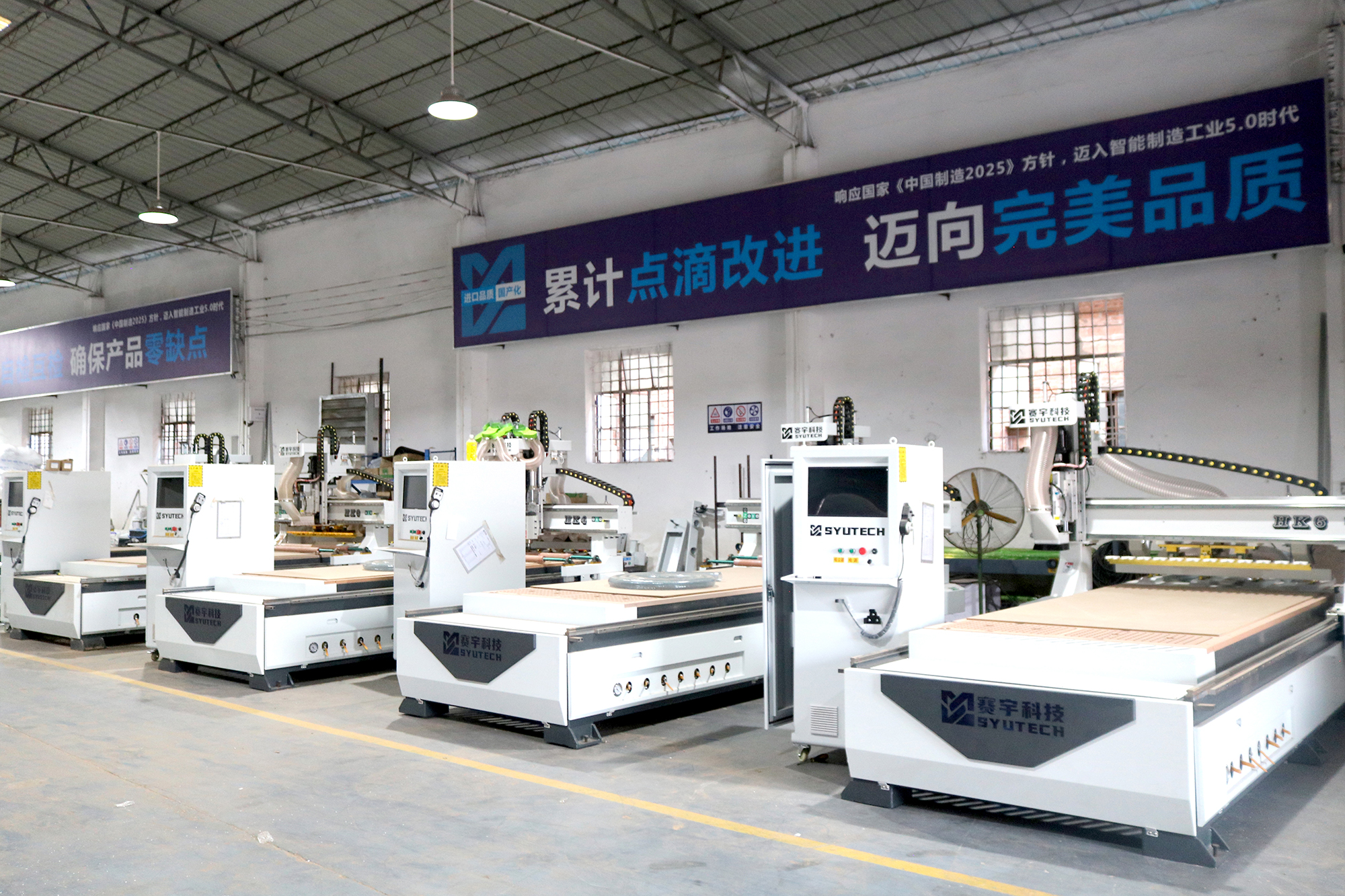

CNC Cutting Workshop
Main production area for CNC nesting machines and cutting line solutions.

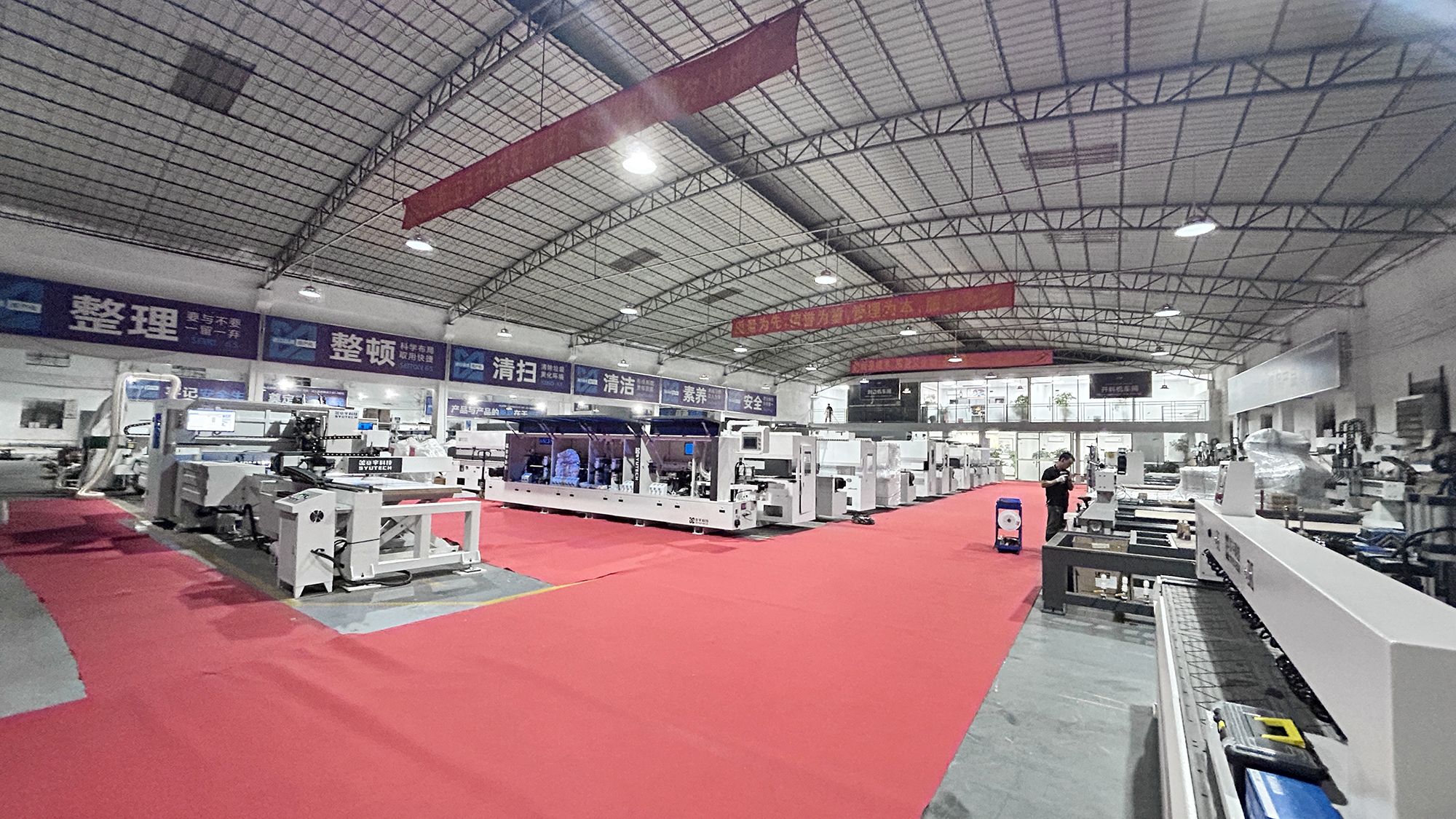

Edge Banding Workshop
Main production area for small, medium and large edge banding machines.
Shanghai Exhibition Site
Exhibition team display.
Foshan Lunjiao Exhibition Site
Exhibition team display.
FAQ
What processes is HK620 suitable for?
It is suitable for 38° skeleton lines, 45° skeleton lines, and 90° grille strips.
What design value does a skeleton line provide?
It adds three-dimensional lines and light-shadow layers to cabinet door surfaces, making it suitable for minimalist and vintage-style furniture designs.
Is it suitable for handleless cabinet doors?
Yes. Sloped or recessed profiles fit the fingertip and reduce the need for protruding handles or exposed hardware.
Does it support PUR glue pots?
Yes. Straight and bevel gluing both use PUR no-clean glue pots for even glue application and fine glue lines.
Does it include grooving functions?
Yes. It includes edge band grooving and two upper and lower grooving units for accurate skeleton line processing.
What furniture applications is it suitable for?
It is suitable for whole-house customization, cabinets, wardrobes, office furniture, balcony storage, sideboards, and panel furniture.
What should final specifications be based on?
The page specifications are for product display. Final specifications are subject to the actual machine.
