High-speed four-spindle machining
Documented in the supplied product brochure.

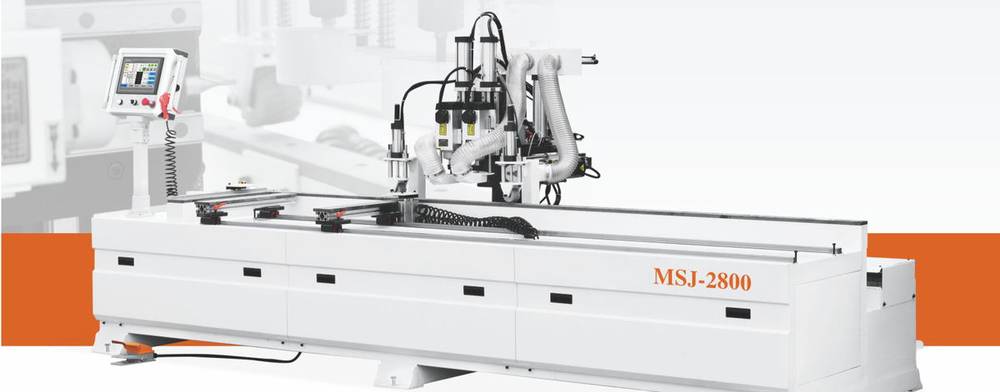

MSJ-2800 Four-Spindle Door Lock & Hinge Machine
A four-spindle machine for door lock, door closer and hinge processing, designed to support wooden-door production workflows.
High-speed four-spindle machiningRoller-type auxiliary material pressingDual-gripper guide-rail clampingServo control
Applications and Processing
Door lock holes, door closers, hinges, silent slots and double-door processing in wooden-door production.
Confirm your drawing, material, tooling and process requirement before final configuration and quotation.
Documented Machine Features
Feature wording is based on the supplied brochure.
Roller-type auxiliary material pressing
Documented in the supplied product brochure.
Dual-gripper guide-rail clamping
Documented in the supplied product brochure.
Servo control
Documented in the supplied product brochure.
Processes Listed in the Brochure
Check the actual workpiece and tooling requirement with the sales team.
Door closers
Process or application listed in the supplied brochure.
Three-layer cross hinges
Process or application listed in the supplied brochure.
Blank rectangular hinges
Process or application listed in the supplied brochure.
Lock mortise guide plates
Process or application listed in the supplied brochure.
Fingerprint locks
Process or application listed in the supplied brochure.
Rounded four-hole hinges
Process or application listed in the supplied brochure.
Heaven-and-earth hinges
Process or application listed in the supplied brochure.
Double-hole locks
Process or application listed in the supplied brochure.
Technical Specifications
Values transcribed from the supplied product brochure. Final configuration is subject to confirmation before quotation.
| X-axis working stroke | 2800 mm |
|---|---|
| Y-axis working stroke | 150 mm |
| Z-axis working stroke | 70 mm |
| System | Project-customized system |
| Reducer | Planetary reducer |
| Drive motor power | 750 W servo x 3 |
| Spindle motor power | 2.2 kW x 1; 3.5 kW x 2; 6 kW x 1 |
| Guide rail | Taiwan Hiwin |
| Rack | High-precision ground 1.5 helical rack |
| Inverter | Zhongda |
| Electrical components | Chint electrical components |
| Main functions | Door lock holes, door closers and hinges |
| Workbench calibration stroke | 2800 mm |
| Overall dimensions | 4000 x 1500 x 1500 mm |
Before a Quote
Provide the workpiece drawing, material, dimensions, processing sequence and required output.
Source Basis
Machine functions and configuration on this page are based on the supplied product brochure.
Factory Strength
Factory and workshop images used across existing Wood Machinery Network product-detail pages.
Factory Exterior
Factory exterior view.
Six-Sided Drilling Workshop
Production workshop view.
CNC Cutting Workshop
Production workshop view.
Edge Banding Workshop
Production workshop view.
Shanghai Exhibition
Exhibition site view.
Foshan Lunjiao Exhibition
Exhibition site view.
FAQ
What should I provide for a configuration discussion?
Send a workpiece drawing, material, dimensions and required process.
Are the displayed specifications final?
They are transcribed from the supplied brochure. Confirm the final configuration before quotation.
Can this page be used to compare processes?
Yes. Use the listed processes as a starting point, then confirm suitability for your own component.
