Reinforced pressing mechanism
Documented in the supplied product brochure.

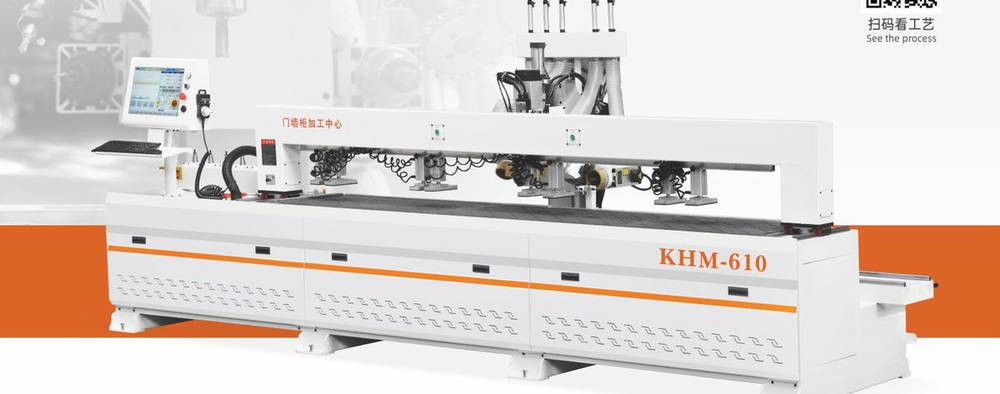

KHM-610 Door, Wall & Cabinet Machining Center
A drilling-and-milling machining center with a five-spindle configuration and six straight-line tool magazine, as stated in the supplied brochure.
Reinforced pressing mechanismHigh-speed five-spindle machiningSix straight automatic tool changerMovable cylinder locking crossbeam
Applications and Processing
Three-in-one holes, dowel holes, blind holes, slotting, code scanning, concealed fittings, 45-degree Lamello, hinge holes, straighteners and hidden handles.
Confirm your drawing, material, tooling and process requirement before final configuration and quotation.
Documented Machine Features
Feature wording is based on the supplied brochure.
High-speed five-spindle machining
Documented in the supplied product brochure.
Six straight automatic tool changer
Documented in the supplied product brochure.
Movable cylinder locking crossbeam
Documented in the supplied product brochure.
Processes Listed in the Brochure
Check the actual workpiece and tooling requirement with the sales team.
Arc pulls
Process or application listed in the supplied brochure.
45-degree Lamello joints
Process or application listed in the supplied brochure.
Semi-pass pulls
Process or application listed in the supplied brochure.
Rectangular pulls
Process or application listed in the supplied brochure.
Rocket pulls
Process or application listed in the supplied brochure.
Straightener grooves
Process or application listed in the supplied brochure.
U-shaped pulls
Process or application listed in the supplied brochure.
Door lock slots
Process or application listed in the supplied brochure.
Technical Specifications
Values transcribed from the supplied product brochure. Final configuration is subject to confirmation before quotation.
| X-axis working stroke | 3050 mm |
|---|---|
| Y-axis working stroke | 120 mm |
| Z-axis working stroke | 70 mm |
| System | Taiwan Baoyuan system |
| Drive motor power | 1.5 kW servo x 2; 750 W servo x 1 |
| Spindle motor power | 6 kW air-cooled spindle x 1; 3.5 kW x 3; 6 kW tool-change spindle x 1 |
| Guide rail | Taiwan Hiwin |
| Rack | High-precision ground 1.5 helical rack |
| Inverter | Zhongda |
| Electrical components | Chint electrical components |
| Sensor | Banner sensor |
| Workbench calibration stroke | 3050 mm |
| Overall dimensions | 4900 x 1400 x 1300 mm |
Before a Quote
Provide the workpiece drawing, material, dimensions, processing sequence and required output.
Source Basis
Machine functions and configuration on this page are based on the supplied product brochure.
Factory Strength
Factory and workshop images used across existing Wood Machinery Network product-detail pages.
Factory Exterior
Factory exterior view.
Six-Sided Drilling Workshop
Production workshop view.
CNC Cutting Workshop
Production workshop view.
Edge Banding Workshop
Production workshop view.
Shanghai Exhibition
Exhibition site view.
Foshan Lunjiao Exhibition
Exhibition site view.
FAQ
What should I provide for a configuration discussion?
Send a workpiece drawing, material, dimensions and required process.
Are the displayed specifications final?
They are transcribed from the supplied brochure. Confirm the final configuration before quotation.
Can this page be used to compare processes?
Yes. Use the listed processes as a starting point, then confirm suitability for your own component.
