High-speed six-spindle machining
Documented in the supplied product brochure.

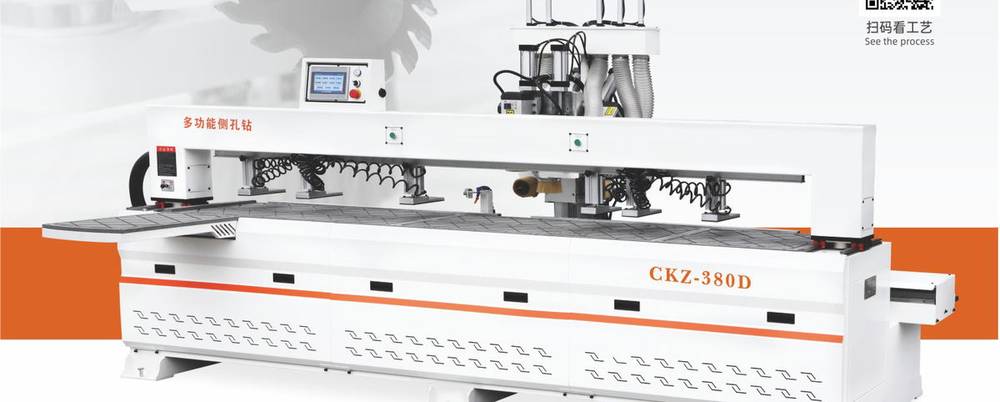

CKZ-380D Six-Axis CNC Side Hole Drill
For door, wall and cabinet hardware fittings and connectors. The supplied brochure presents CKZ-380D as a six-axis CNC side-hole drill for multiple connector, slot and handle processes.
High-speed six-spindle machiningPneumatic material pressingAutomatic tool-setting deviceCylinder lifting baffle
Applications and Processing
45-degree Lamello joints, 45-degree holes and grooves, 45-degree panel through-tenons, concealed fittings, blind holes, three-in-one connectors and snap-fit holes.
Confirm your drawing, material, tooling and process requirement before final configuration and quotation.
Documented Machine Features
Feature wording is based on the supplied brochure.
Pneumatic material pressing
Documented in the supplied product brochure.
Automatic tool-setting device
Documented in the supplied product brochure.
Cylinder lifting baffle
Documented in the supplied product brochure.
Processes Listed in the Brochure
Check the actual workpiece and tooling requirement with the sales team.
Side grooving
Process or application listed in the supplied brochure.
45-degree Lamello processing
Process or application listed in the supplied brochure.
Pivot hinge boring
Process or application listed in the supplied brochure.
Arc pulls
Process or application listed in the supplied brochure.
Door lock slots
Process or application listed in the supplied brochure.
Horn pulls
Process or application listed in the supplied brochure.
Face grooves
Process or application listed in the supplied brochure.
Recessed pulls
Process or application listed in the supplied brochure.
Technical Specifications
Values transcribed from the supplied product brochure. Final configuration is subject to confirmation before quotation.
| X-axis working stroke | 2800 mm |
|---|---|
| Y-axis working stroke | 120 mm |
| Z-axis working stroke | 50 mm |
| Operating system | Xingte control system |
| Servo motor set | Xingte servo motor, 750 W x 3 |
| High-speed spindle | 3.5 kW x 4; 2.2 kW x 2 |
| Inverter | Zhongda, 4 kW |
| Pressing | 6 pneumatic cylinders with inclined pressing |
| Lubrication | Automatic oiler |
| Overall dimensions | 3800 x 1500 x 1500 mm |
| Weight | Approx. 1000 kg |
| Worktable | 3000 x 500 mm |
| Extension table | 400 x 600 mm |
Before a Quote
Provide the workpiece drawing, material, dimensions, processing sequence and required output.
Source Basis
Machine functions and configuration on this page are based on the supplied product brochure.
Factory Strength
Factory and workshop images used across existing Wood Machinery Network product-detail pages.
Factory Exterior
Factory exterior view.
Six-Sided Drilling Workshop
Production workshop view.
CNC Cutting Workshop
Production workshop view.
Edge Banding Workshop
Production workshop view.
Shanghai Exhibition
Exhibition site view.
Foshan Lunjiao Exhibition
Exhibition site view.
FAQ
What should I provide for a configuration discussion?
Send a workpiece drawing, material, dimensions and required process.
Are the displayed specifications final?
They are transcribed from the supplied brochure. Confirm the final configuration before quotation.
Can this page be used to compare processes?
Yes. Use the listed processes as a starting point, then confirm suitability for your own component.
