High-speed four-spindle machining
Documented in the supplied product brochure.

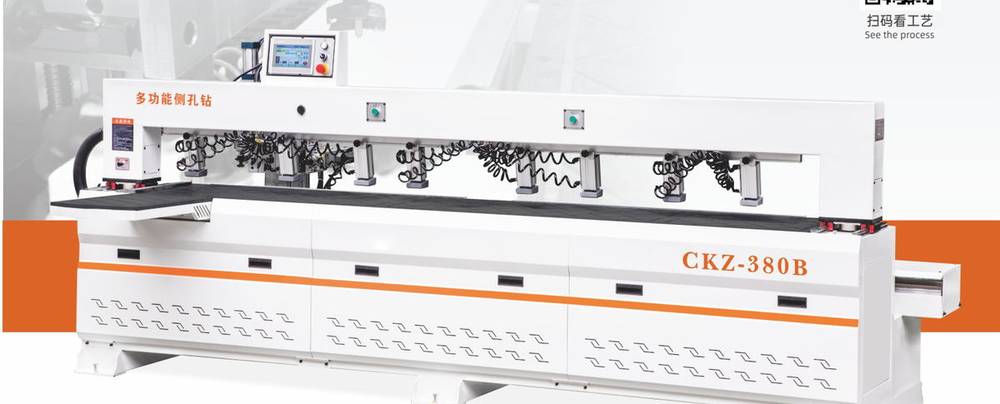

CKZ-380B Four-Axis CNC Side Hole Drill
For panel-furniture side-hole drilling and horizontal-hole processing, with four-spindle processing shown in the supplied brochure.
High-speed four-spindle machiningPneumatic material pressingAutomatic tool-setting devicePrecision rack-and-pinion guide rail
Applications and Processing
Panel furniture side-hole drilling, concealed fittings, blind holes, three-in-one connectors, groove and Lamello processing.
Confirm your drawing, material, tooling and process requirement before final configuration and quotation.
Documented Machine Features
Feature wording is based on the supplied brochure.
Pneumatic material pressing
Documented in the supplied product brochure.
Automatic tool-setting device
Documented in the supplied product brochure.
Precision rack-and-pinion guide rail
Documented in the supplied product brochure.
Processes Listed in the Brochure
Check the actual workpiece and tooling requirement with the sales team.
Side grooving
Process or application listed in the supplied brochure.
Three-in-one holes
Process or application listed in the supplied brochure.
Pivot hinge boring
Process or application listed in the supplied brochure.
Arc pulls
Process or application listed in the supplied brochure.
Door lock slots
Process or application listed in the supplied brochure.
Horn pulls
Process or application listed in the supplied brochure.
Face grooves
Process or application listed in the supplied brochure.
Recessed pulls
Process or application listed in the supplied brochure.
Technical Specifications
Values transcribed from the supplied product brochure. Final configuration is subject to confirmation before quotation.
| X-axis working stroke | 2800 mm |
|---|---|
| Y-axis working stroke | 120 mm |
| Z-axis working stroke | 50 mm |
| Operating system | Xingte control system |
| Servo motor set | Xingte servo motor, 750 W x 3 |
| High-speed spindle | 3.5 kW x 2; 2.2 kW x 2 |
| Inverter | Zhongda, 4 kW |
| Pressing | 6 pneumatic cylinders with inclined pressing |
| Lubrication | Automatic oiler |
| Overall dimensions | 3800 x 1500 x 1500 mm |
| Weight | Approx. 1000 kg |
| Worktable | 3000 x 500 mm |
| Extension table | 400 x 600 mm |
Before a Quote
Provide the workpiece drawing, material, dimensions, processing sequence and required output.
Source Basis
Machine functions and configuration on this page are based on the supplied product brochure.
