PLC numerical-control screen
Documented in the supplied product brochure.

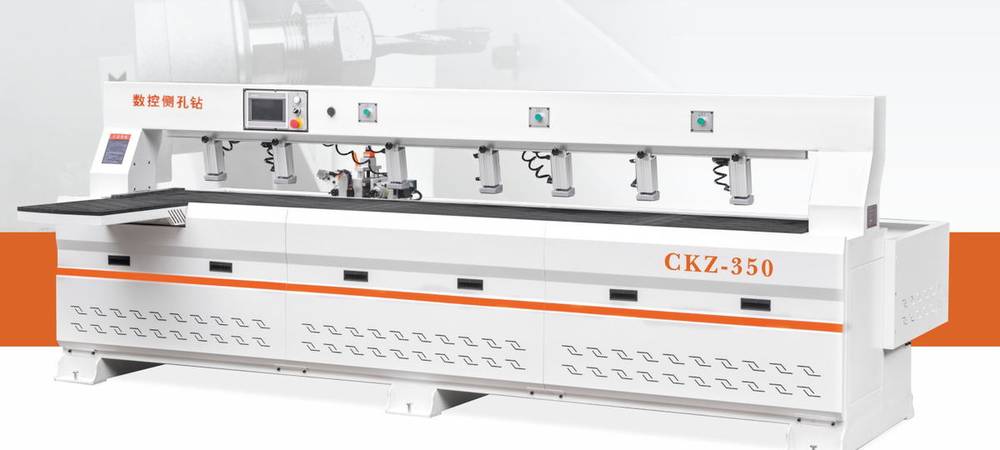

CKZ-350 Dual-Axis CNC Side Hole Drill
For panel-furniture side-hole drilling and connector processing. The supplied brochure positions CKZ-350 for horizontal-hole workflows and common furniture connector applications.
PLC numerical-control screenPhotoelectric sensorHigh-speed dual-spindle machiningPrecision screw rod
Applications and Processing
Panel furniture side-hole drilling, concealed fittings, blind holes, three-in-one connectors, handle grooves and Lamello processing.
Confirm your drawing, material, tooling and process requirement before final configuration and quotation.
Documented Machine Features
Feature wording is based on the supplied brochure.
Photoelectric sensor
Documented in the supplied product brochure.
High-speed dual-spindle machining
Documented in the supplied product brochure.
Precision screw rod
Documented in the supplied product brochure.
Processes Listed in the Brochure
Check the actual workpiece and tooling requirement with the sales team.
Dowel holes
Process or application listed in the supplied brochure.
Side holes
Process or application listed in the supplied brochure.
2-in-1 holes
Process or application listed in the supplied brochure.
Mude Yi holes
Process or application listed in the supplied brochure.
Snap-fit holes
Process or application listed in the supplied brochure.
Lamello processing
Process or application listed in the supplied brochure.
Side grooving
Process or application listed in the supplied brochure.
LED strip channels
Process or application listed in the supplied brochure.
Technical Specifications
Values transcribed from the supplied product brochure. Final configuration is subject to confirmation before quotation.
| X-axis working stroke | 2800 mm |
|---|---|
| Y-axis working stroke | 50 mm |
| Z-axis working stroke | 50 mm |
| Operating system | Xingte control system |
| Servo motor set | Xingte servo motor, 750 W x 2 |
| High-speed spindle | 2 x 2.2 kW |
| Inverter | Zhongda, 2.2 kW |
| Pressing | 6 pneumatic cylinders with inclined pressing |
| Lubrication | Automatic oiler |
| Overall dimensions | 3500 x 1300 x 1500 mm |
| Weight | Approx. 800 kg |
| Worktable | 3000 x 500 mm |
| Extension table | 400 x 600 mm |
Before a Quote
Provide the workpiece drawing, material, dimensions, processing sequence and required output.
Source Basis
Machine functions and configuration on this page are based on the supplied product brochure.
Factory Strength
Factory and workshop images used across existing Wood Machinery Network product-detail pages.
Factory Exterior
Factory exterior view.
Six-Sided Drilling Workshop
Production workshop view.
CNC Cutting Workshop
Production workshop view.
Edge Banding Workshop
Production workshop view.
Shanghai Exhibition
Exhibition site view.
Foshan Lunjiao Exhibition
Exhibition site view.
FAQ
What should I provide for a configuration discussion?
Send a workpiece drawing, material, dimensions and required process.
Are the displayed specifications final?
They are transcribed from the supplied brochure. Confirm the final configuration before quotation.
Can this page be used to compare processes?
Yes. Use the listed processes as a starting point, then confirm suitability for your own component.
