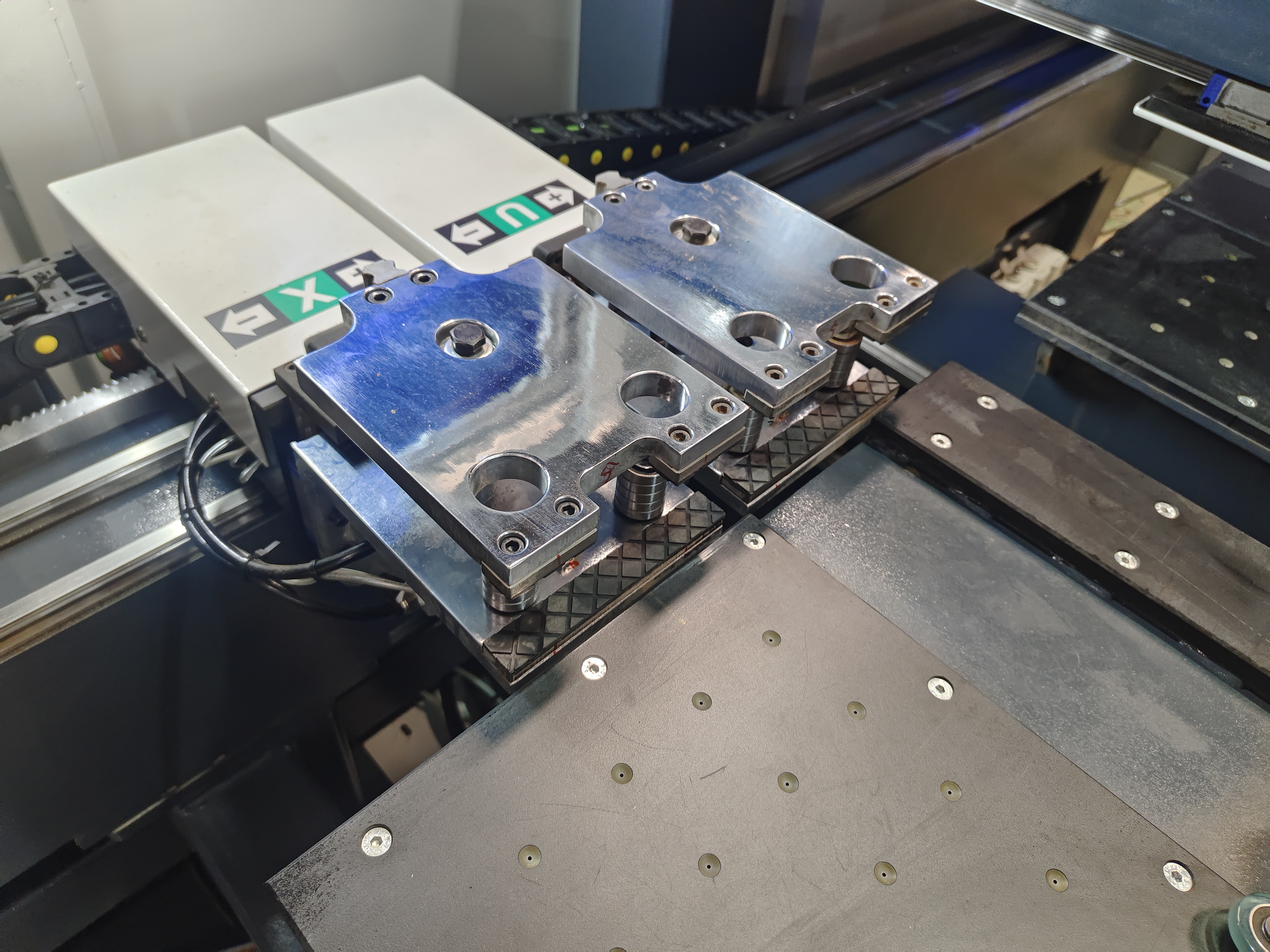

Reinforced C-Type Dual Grippers
Dual mechanical grippers automatically clamp the panel and feed it into the machining area for stable feeding.
Mini CNC Six-Sided Drilling Machine
Designed for panel furniture drilling, this mini CNC six-sided drilling machine supports six-sided processing and completes drilling, grooving, routing, cutting and other operations in one workflow.
Six-Sided Processing
Dual Gripper Feeding
Automatic Side Positioning
Disc Tool Magazine
Maintenance-Free Air Floating Table
Compact Six-Sided Drilling Solution for Custom Furniture Factories
The machine uses dual mechanical grippers to clamp panels and feed them into the processing area. It drills the top, bottom and four side faces, and can process circular, arc and other shaped cuts according to machining data.
- Suitable for drilling cabinet bodies, cabinet doors and custom furniture panels.
- Supports combined drilling, grooving, routing and cutting operations.
- Automatically positions against the panel side according to panel size for more stable machining.
Core Structures and Functional Modules
Key structures are configured around panel clamping, feeding, tool storage, positioning and machining stability.

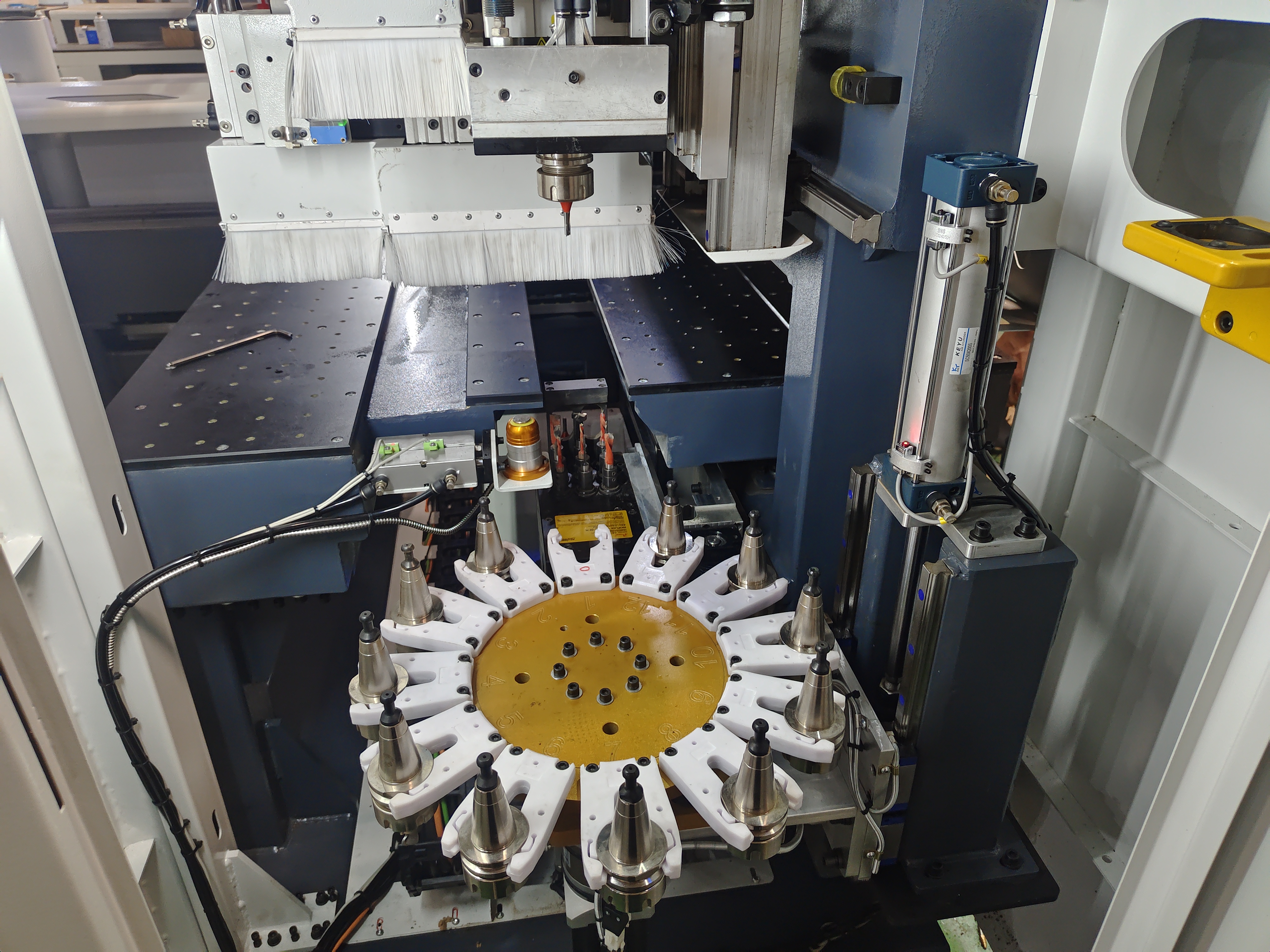

Disc Tool Magazine
Built-in disc tool magazine with support for 12-tool automatic tool change, suitable for multi-process machining.

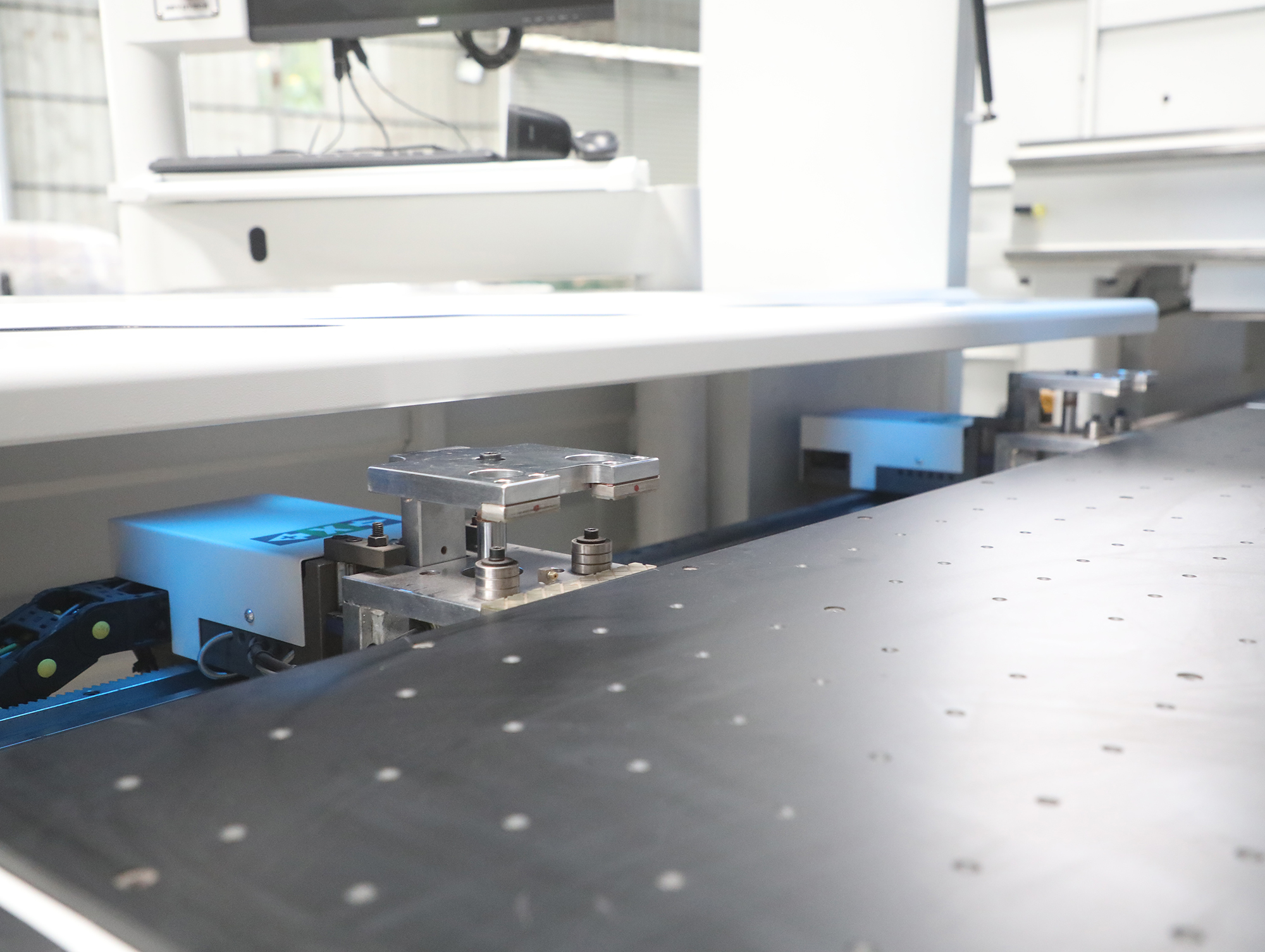

Maintenance-Free Air Floating Table
The air floating table helps panels move smoothly, reducing friction during feeding.

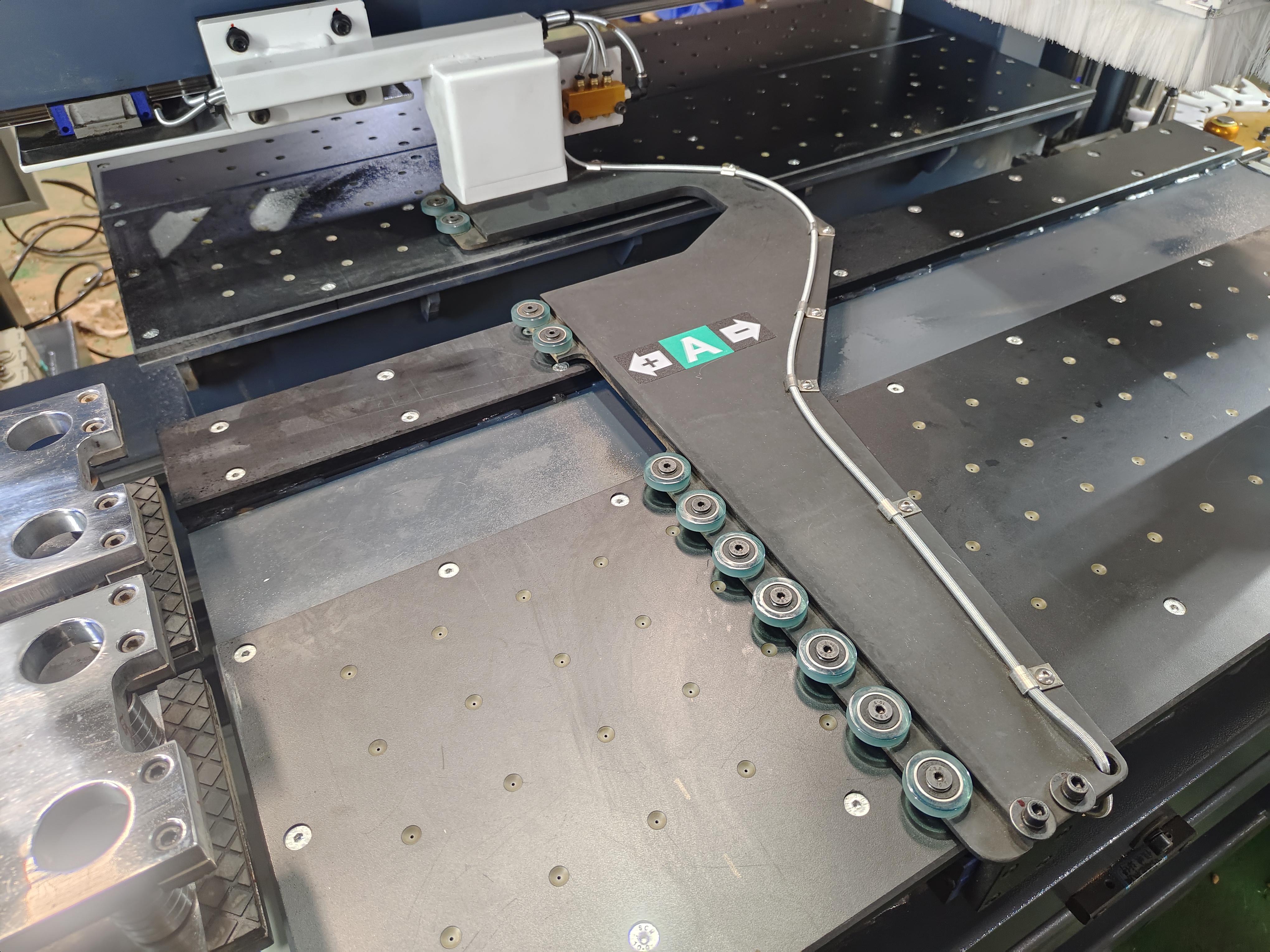

Automatic Side Positioning
Automatically positions against the side of the panel according to panel size to keep machining stable.

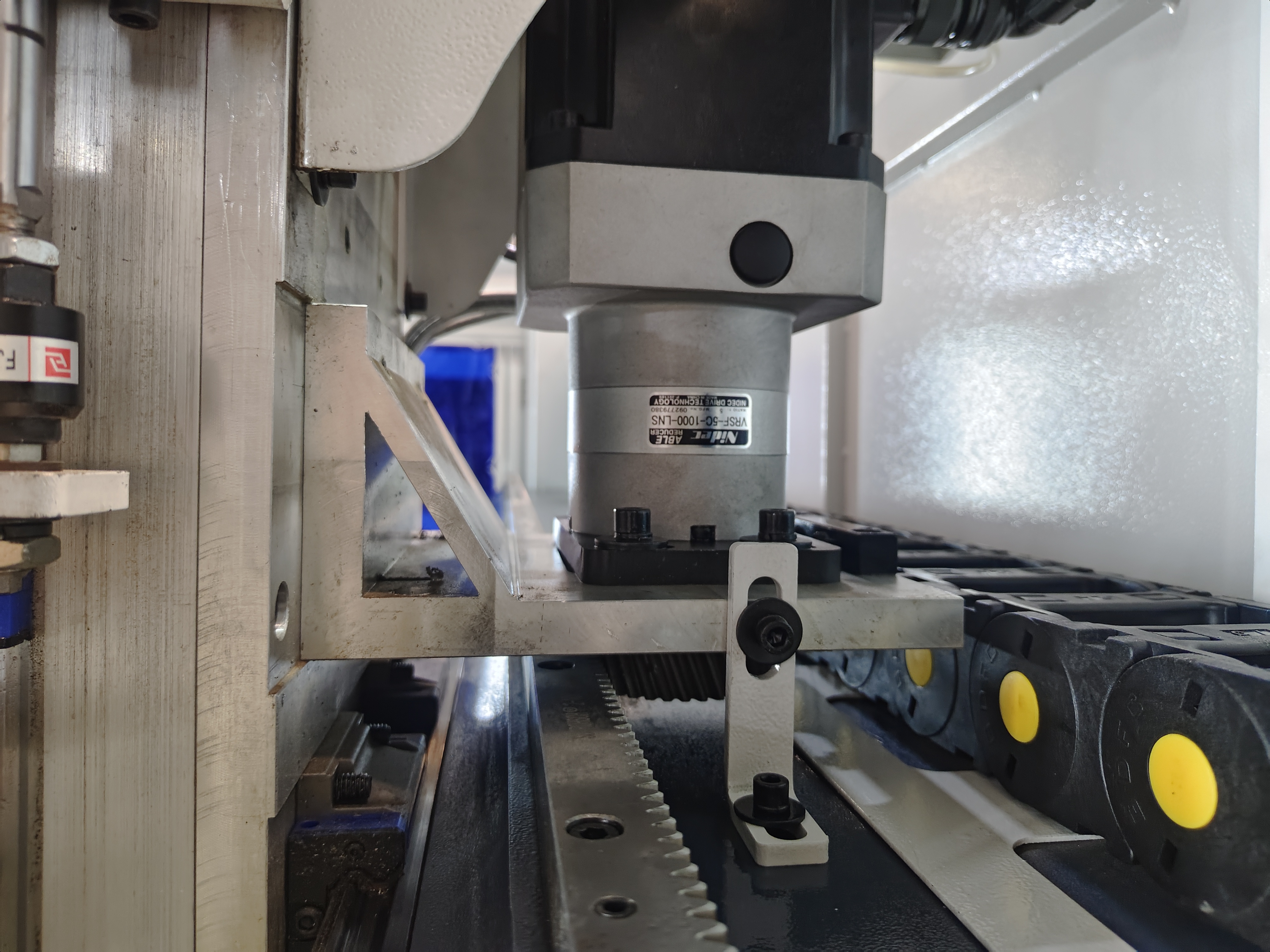

Japanese Shimpo Reducer
Used in the motion transmission system to improve operating stability and machining reliability.
Processing Capabilities
Covers common panel furniture operations including six-sided drilling, grooving, routing and cutting.
Six-Sided Processing
Drills the top, bottom and four side faces of the panel.
Grooving
Supports front, back and side grooving for cabinet connection and assembly needs.
Routing and Cutting
Processes circular, arc and other shapes based on machining data, with automatic cutting parameter adjustment.
Integrated Intelligent Control
Equipped with CNC control and an operator interface, supporting networked remote operation, collaboration, maintenance and software upgrades.
Technical Specs
Final specifications are subject to the actual machine.
| Product Name | Mini CNC Six-Sided Drilling Machine |
|---|---|
| Product Category | CNC six-sided drilling machine |
| Upper Horizontal Drills | 2 pcs * 2 + 12-tool automatic tool change |
| Upper Vertical Drills | 12 pcs + 1 saw blade |
| Lower Vertical Drills | 9 pcs |
| Spindle Motor Power | 6 kW tool-changing spindle + 3 kW |
| X-Axis Gripper Rail Length | 3000mm |
| Y-Axis Travel | 1200mm |
| Z-Axis Travel | 150mm |
| X-Axis Max. Speed | 70000mm/min |
| Y-Axis Max. Speed | 12000mm/min |
| Z-Axis Max. Speed | 15000mm/min |
| Min. Processing Size | 150*50mm |
| Max. Processing Size | 2800*1000mm |
| Workpiece Thickness | 9-50mm |
| Machine Overall Dimensions | 32000*2500*2300mm |
Suitable Users
Suitable for panel furniture factories, custom cabinet factories, cabinet door and cabinet body workshops, and production lines that need higher drilling automation.
Main Configuration
Typical configuration includes Pudding drill block, Syntec operating system, Inovance servo, Japanese Shimpo reducer, Syntec CNC drive, Ander guide rails / HIWIN and related components.
Factory Strength

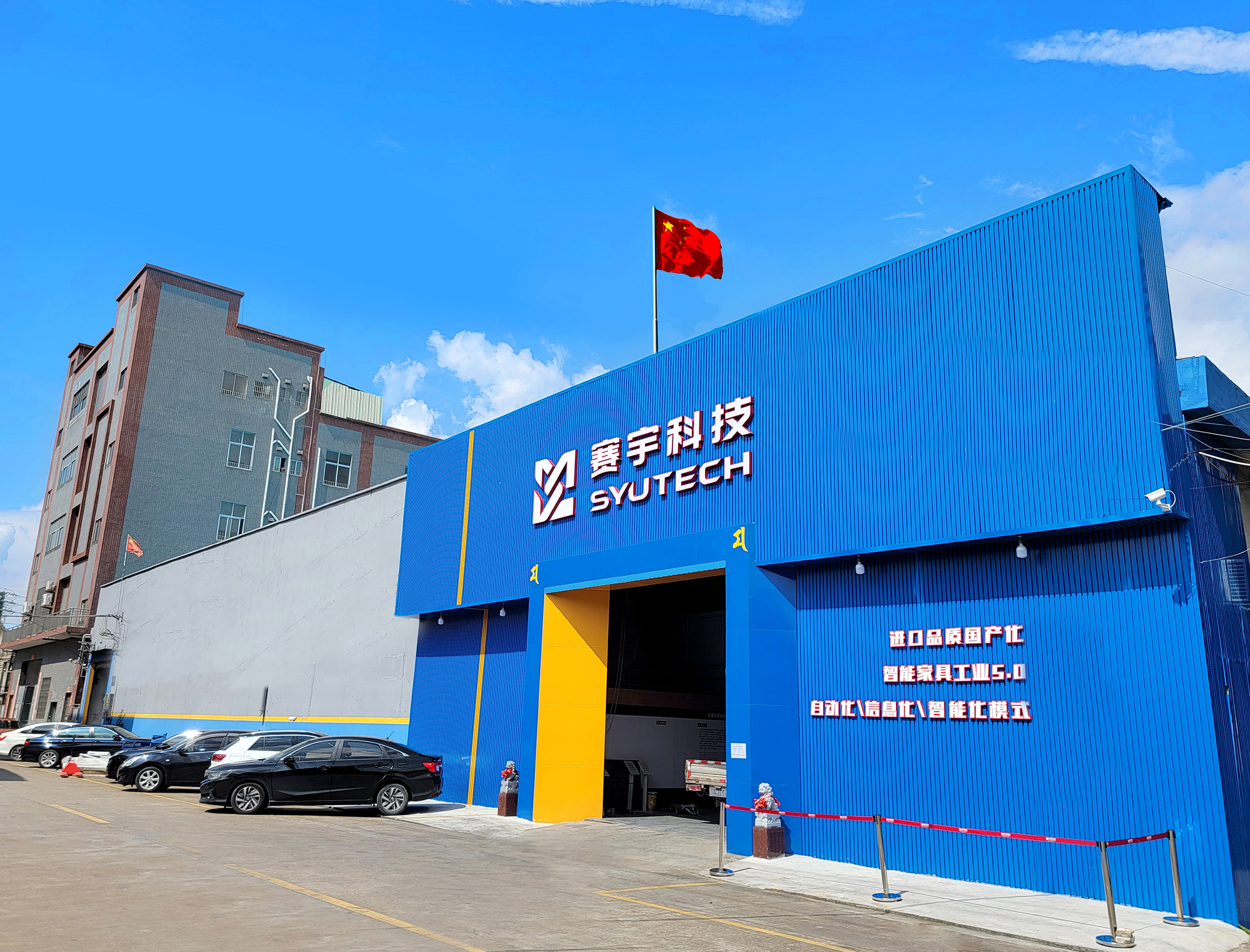

Factory Exterior
Factory exterior view.

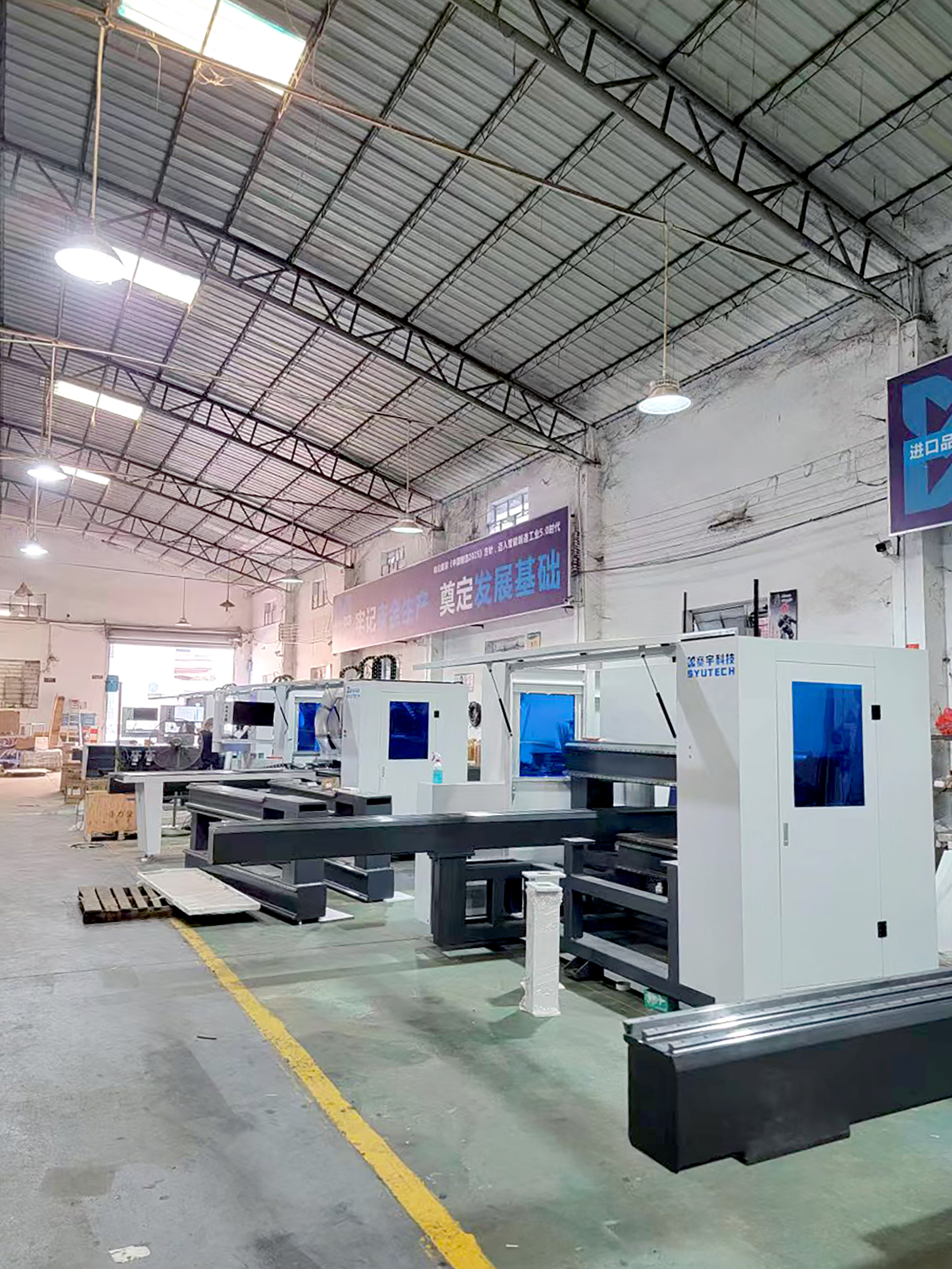

Six-Sided Drilling Workshop
Main production area for six-sided drilling machines and line solutions.

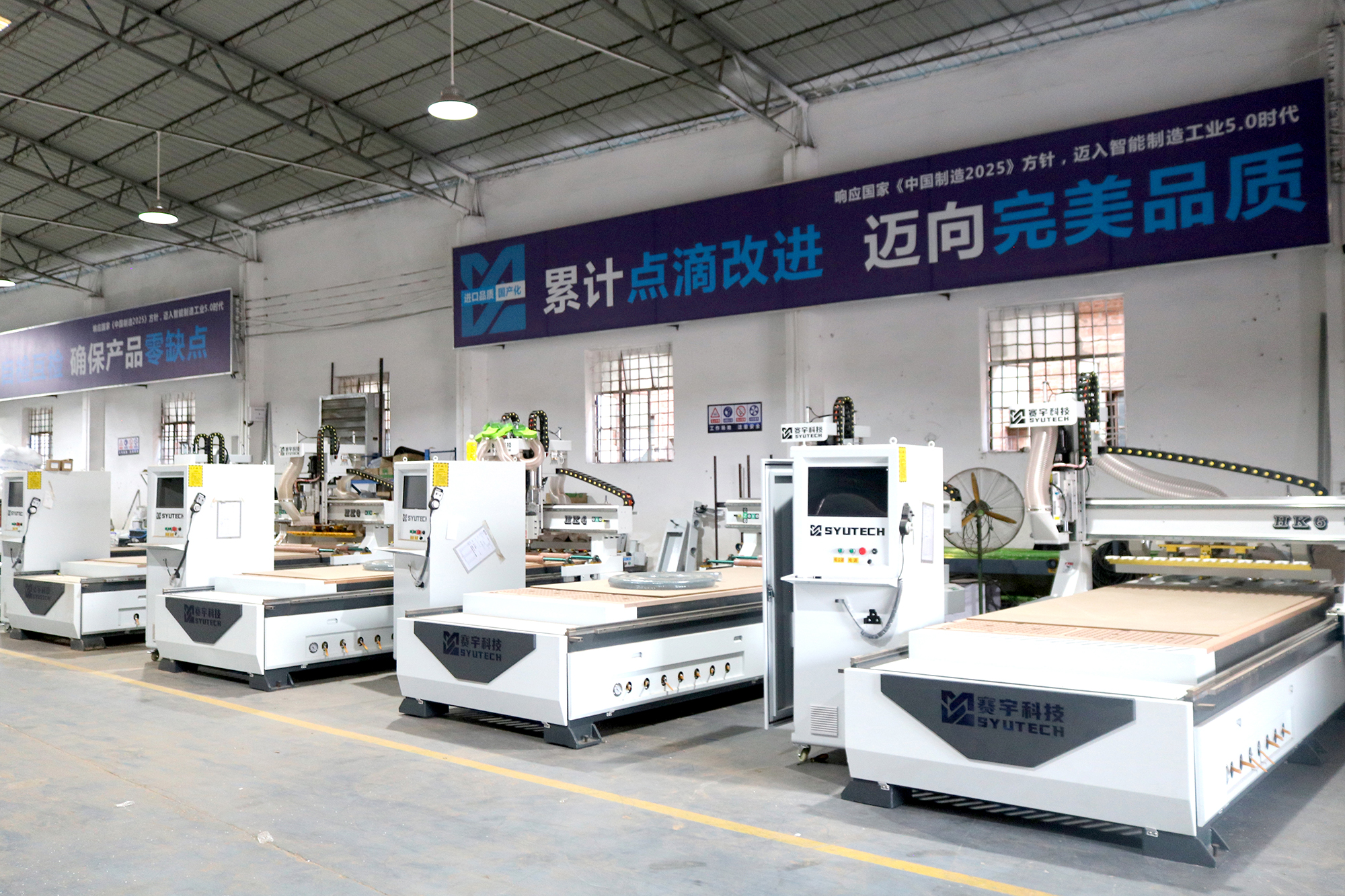

CNC Cutting Workshop
Main production area for CNC nesting machines and cutting line solutions.

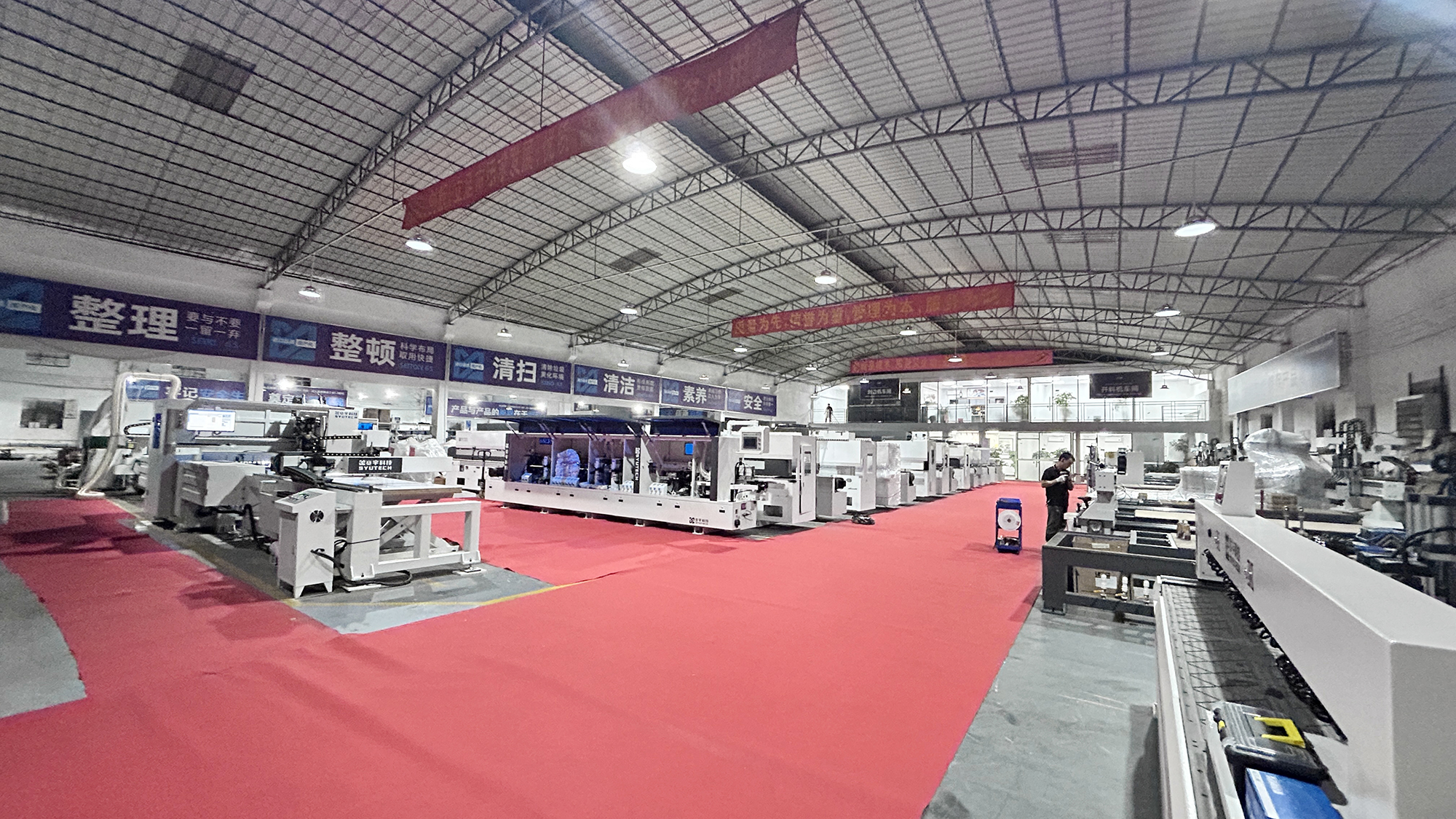

Edge Banding Workshop
Main production area for small, medium and large edge banding machines.
Shanghai Exhibition Site
Exhibition team display.
Foshan Lunjiao Exhibition Site
Exhibition team display.
FAQ
What factories is this mini CNC six-sided drilling machine suitable for?
It is suitable for panel furniture factories, custom cabinet factories and workshops that need to improve drilling automation.
What operations can it complete?
It supports six-sided processing and can complete drilling, grooving, routing and cutting in one workflow.
Does it support automatic tool change?
Yes. It supports 12-tool automatic tool change for continuous multi-process machining.
What do the dual grippers do?
The reinforced C-type dual grippers automatically clamp and feed panels, improving machining stability.
What is the purpose of the air floating table?
The air floating table reduces panel movement resistance and makes feeding smoother.
Does it support remote maintenance?
The machine supports networked remote operation, collaboration, maintenance and software upgrades.
What is the maximum processing size?
The maximum processing size is 2800*1000 mm. Final specifications are subject to the actual machine.
Which technical specifications should be considered final?
The page specifications are for product presentation. Final specifications are subject to the actual machine.
