Six-Sided Processing
Completes drilling on the top, bottom, and four side faces.
Six-Sided CNC Drilling Machine

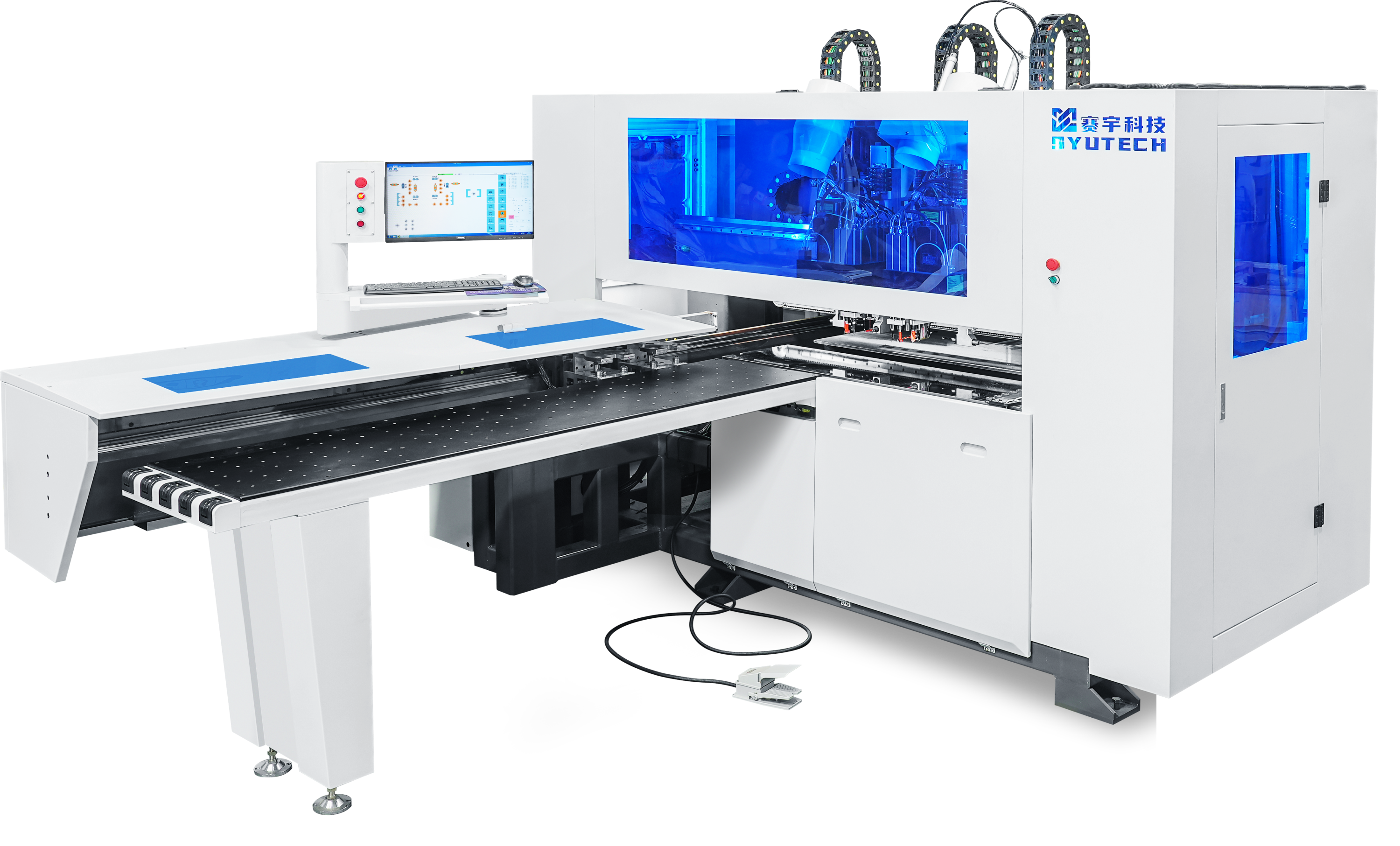

HK612B-C Six-Sided CNC Drilling Machine
The HK612B-C is an upgraded dual drill block six-sided CNC drilling machine manufactured by Saiyu Technology (WMN) in Foshan, China. Building on the HK612B platform with enhanced configuration, it handles six-sided drilling, grooving, milling, and cutting for panel furniture production with dual gripper feeding and automatic positioning. The HK612B-C is suitable for factories requiring premium six-sided drilling performance and expanded machining capabilities.
Dual drill blocks with a linear tool magazine. Drilling, grooving, milling, and cutting in one workflow.
Dual Upper Drill Blocks
Lower Vertical Drill
5-Tool Linear Magazine
Dual Gripper Feeding
Six-Sided Drilling And Grooving
Six-Sided Processing For Panel Furniture
For cabinet, door panel, and custom furniture panel drilling, grooving, milling, and cutting.
- Dual upper drill blocks with lower drilling for top, bottom, and side processing
- 5-tool linear magazine for automatic tool change and continuous machining
- Dual grippers clamp and feed panels automatically for production lines
Core Functions
Built around six-sided drilling, automatic tool change, stable clamping, and continuous multi-process machining.
Drilling, Grooving, And Milling
Supports drilling, grooving, milling, and cutting processes.
Dual Upper Drill Blocks
Two upper drill blocks work with the lower vertical drill for faster hole processing.
5-Tool Linear Magazine
Automatic tool change supports continuous multi-process machining.
Dual Gripper Feeding
Automatically clamps and feeds panels into the machining area.
Automatic Side Positioning
Positions the panel side automatically according to panel size.
Remote Maintenance
Supports remote operation, collaboration, maintenance, and software updates.
Air-Float Feeding Support
Air-float support helps move panels while protecting the surface.
Machine Details

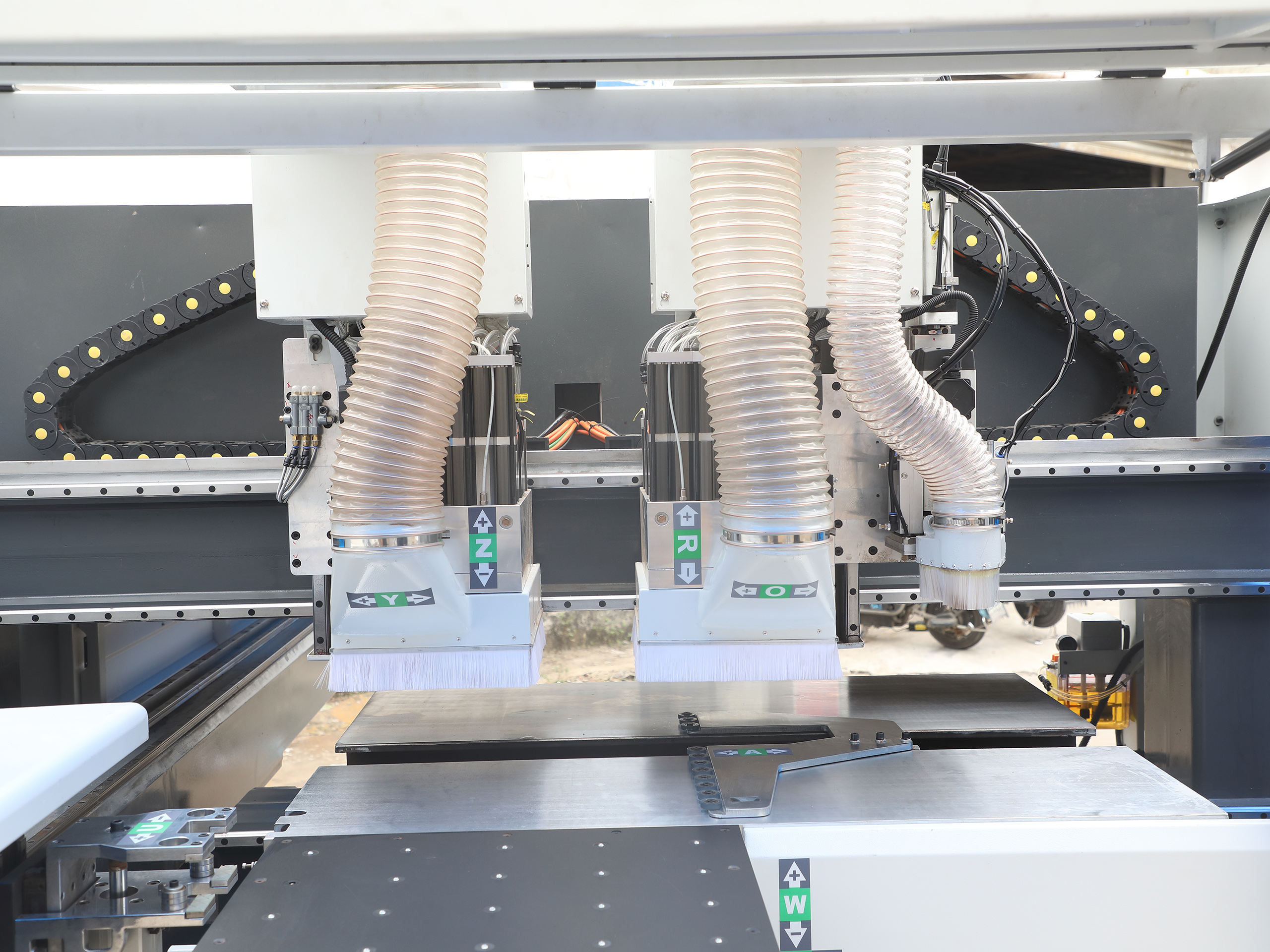

Dual Drill Blocks
Upper drill blocks and lower drilling cover multi-direction hole positions.

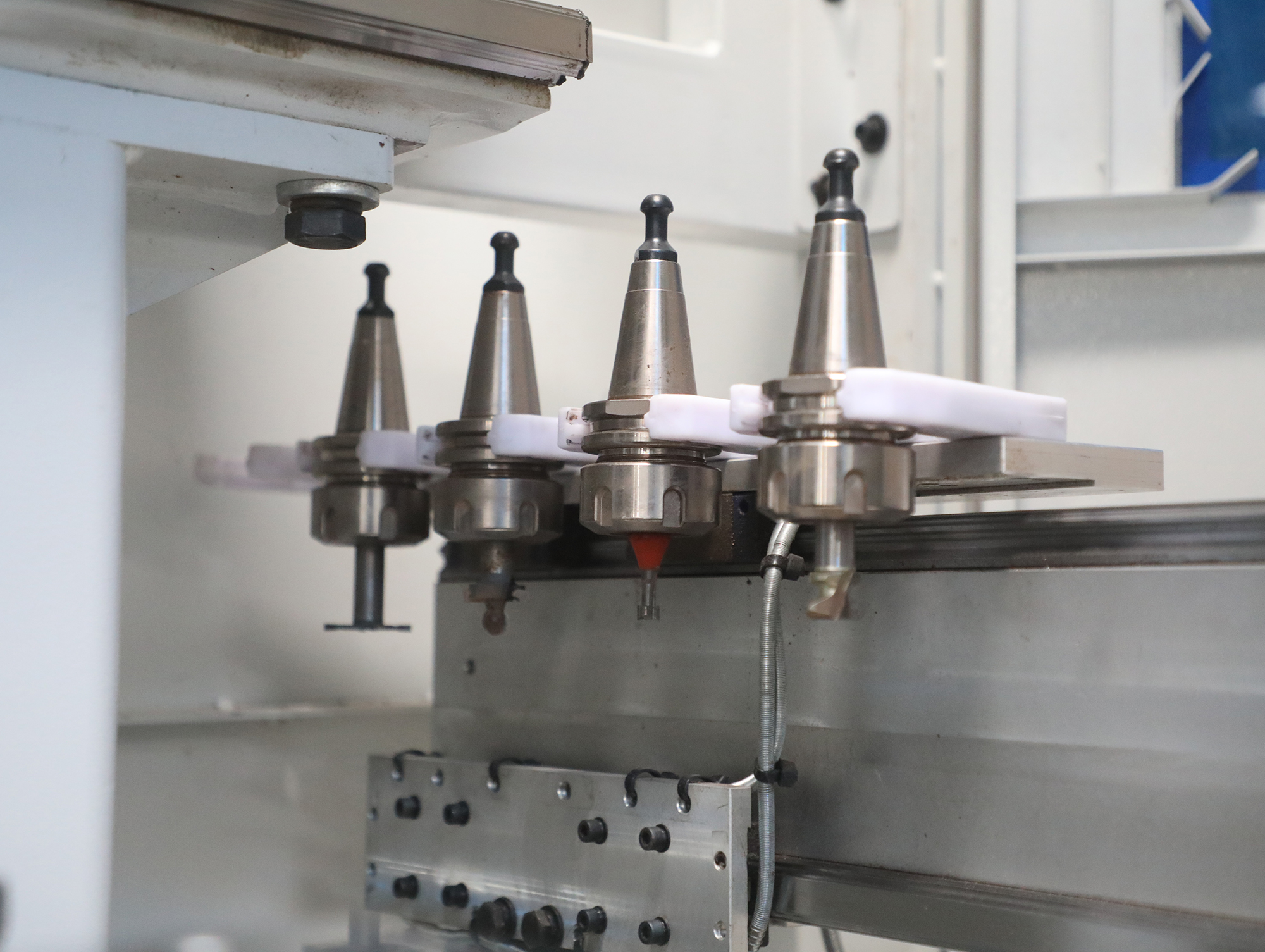

5-Tool Linear Magazine
Automatic tool change for continuous process switching.

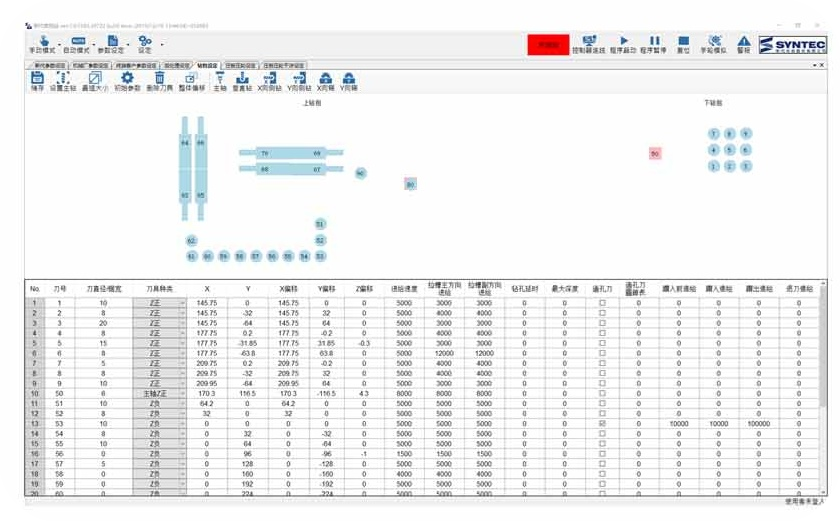

SYNTEC Control System
Clear interface with visible production data.

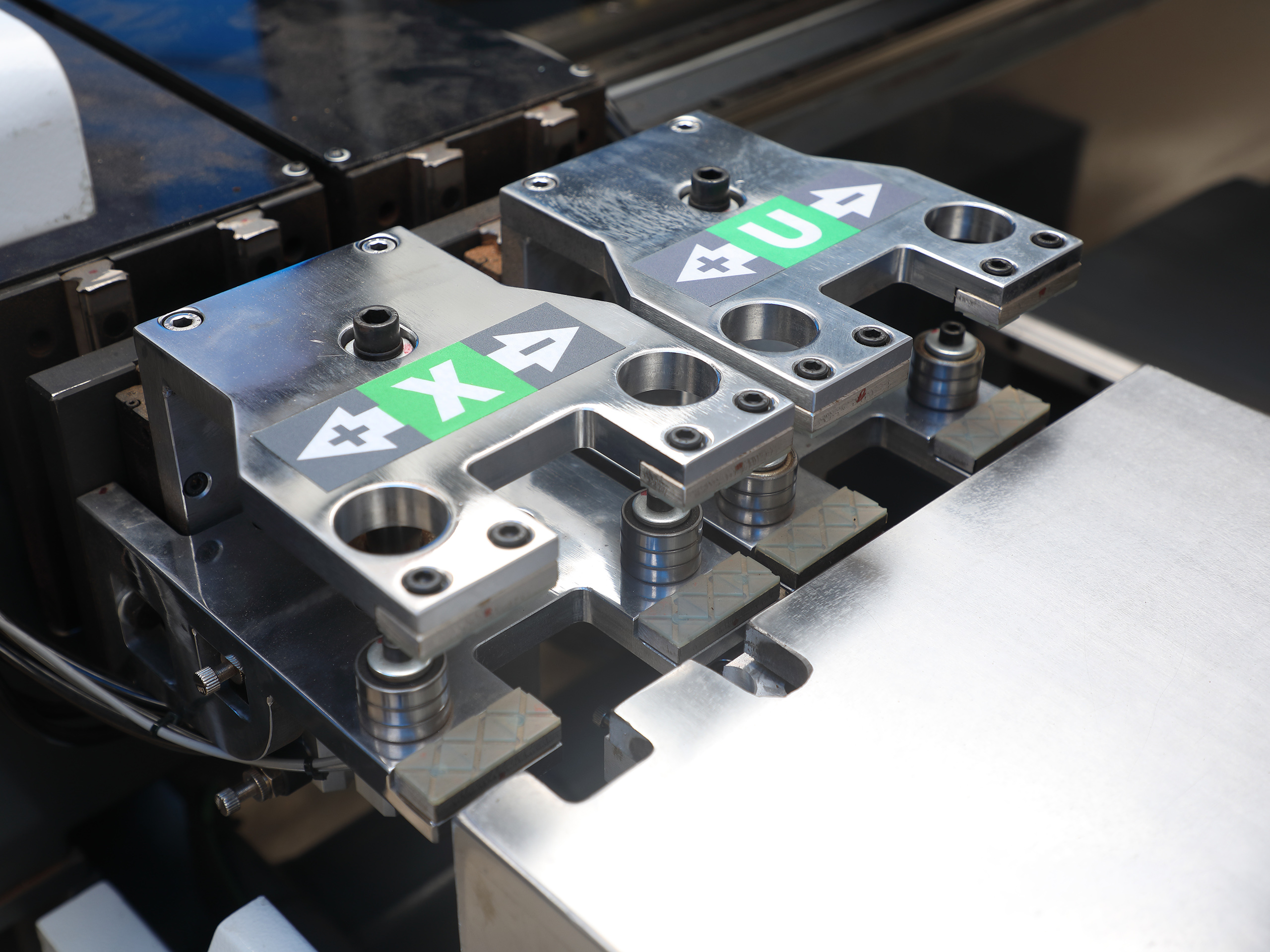

Reinforced C-Type Dual Grippers
Flexible clearance for hole positions and narrow panel processing.

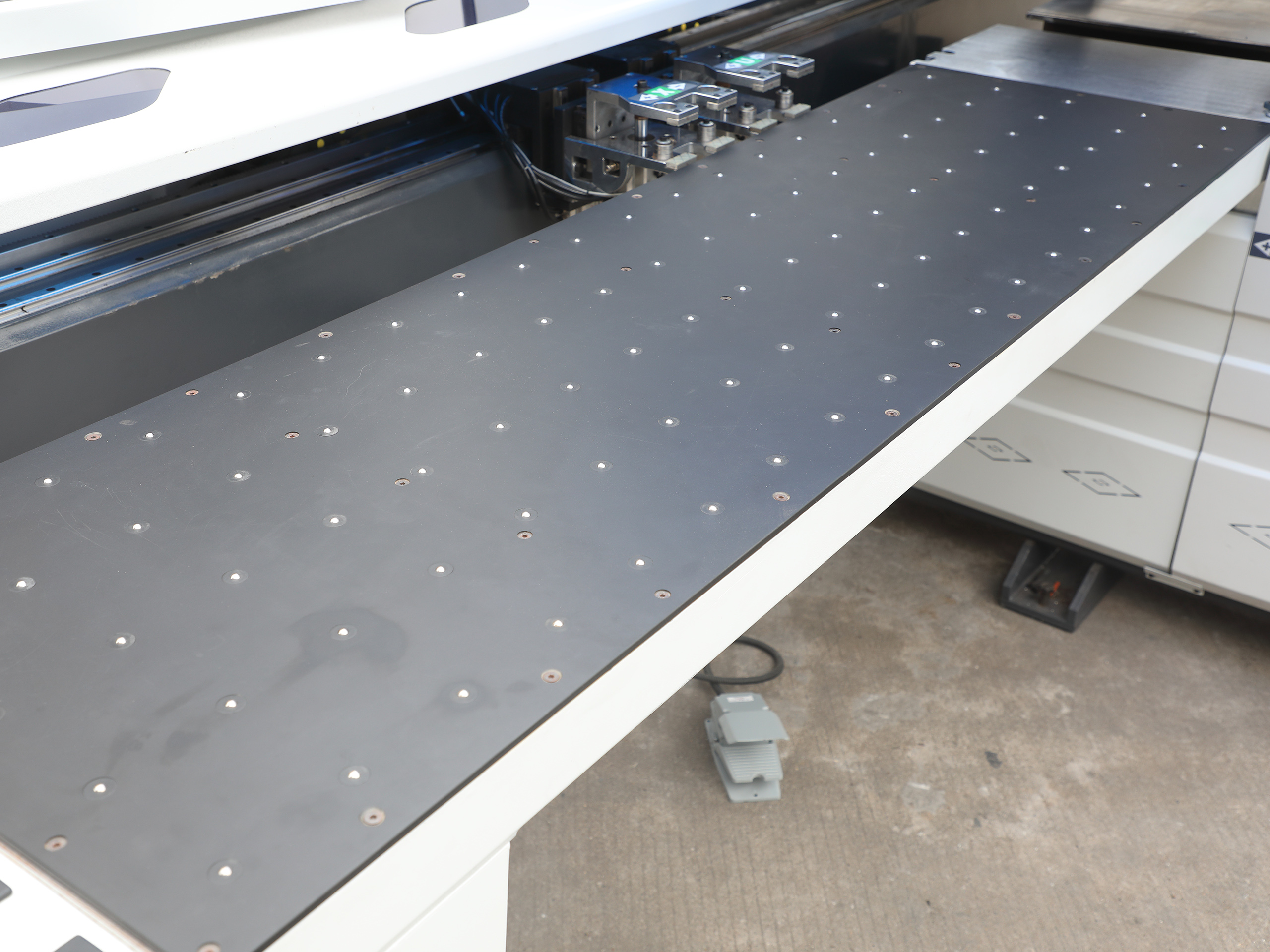

Air-Float Support Table
Assists panel feeding and reduces surface scratches.

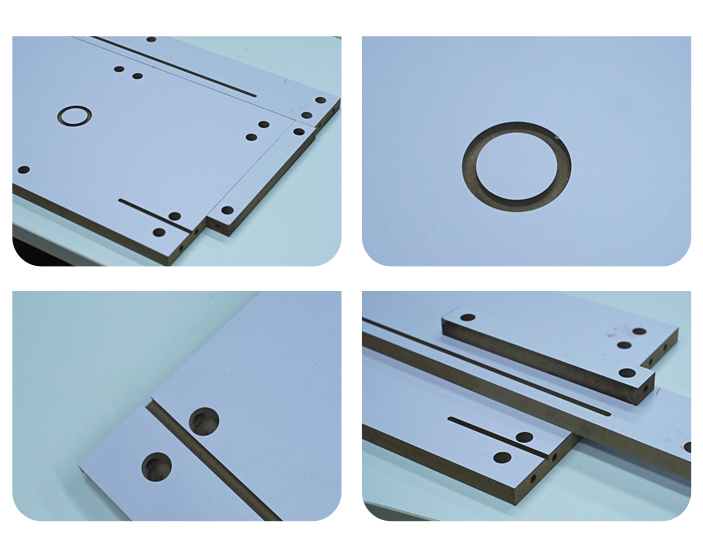

Machining Result
Technical Specifications
Detailed specifications are subject to the actual machine.
| Model | HK-612B-C Six-Sided CNC Drilling Machine With Dual Drill Blocks And Tool Magazine |
|---|---|
| Upper Horizontal Drills | 2 pcs x 2 |
| Upper Vertical Drills | 9 pcs x 2 |
| Lower Vertical Drills | 9 pcs |
| Spindle Motor Power | 6KW tool-change spindle + 3KW spindle |
| X-Axis Gripper Rail Length | 5000mm |
| Y-Axis Travel | 1200mm |
| Z-Axis Travel | 150mm |
| X-Axis Max Speed | 54000mm/min |
| Y-Axis Max Speed | 54000mm/min |
| Z-Axis Max Speed | 15000mm/min |
|---|---|
| Minimum Processing Size | 200 x 50mm |
| Maximum Processing Size | 2800 x 1200mm |
| Workpiece Thickness | 12-50mm |
| Machine Dimensions | 5000 x 2800 x 2300mm |
| Drill Block Configuration | Two upper drill blocks + one lower drill block |
| Tool Magazine | 5-tool linear magazine with automatic tool change |
| Control System | SYNTEC control system |
| Servo System | Inovance servo motor |
| Guide Rail | ROUST WORLD guide rail |
Factory Strength

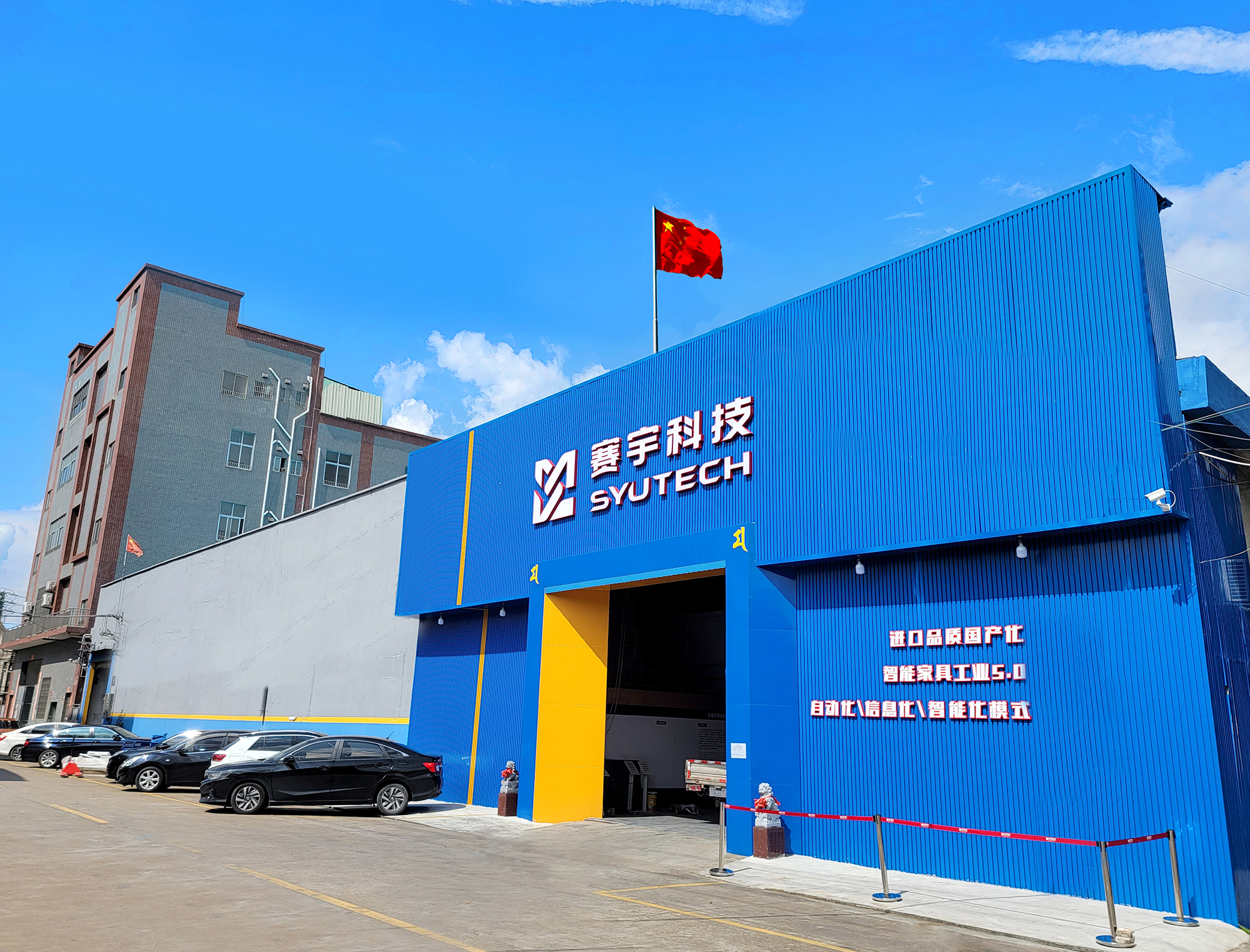

Factory Exterior
Factory view.

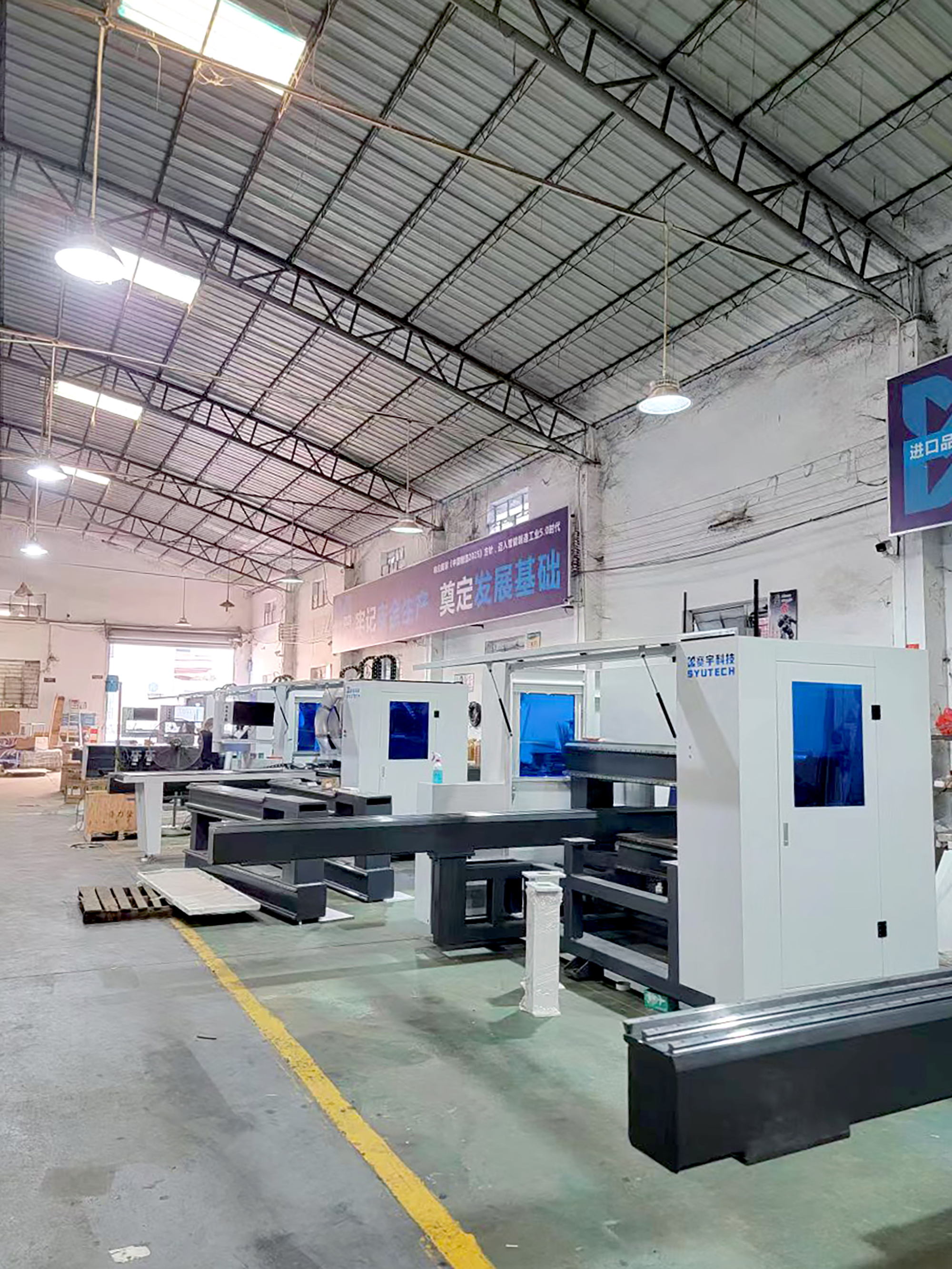

Six-Sided Drilling Workshop
Six-sided drilling machines and lines.

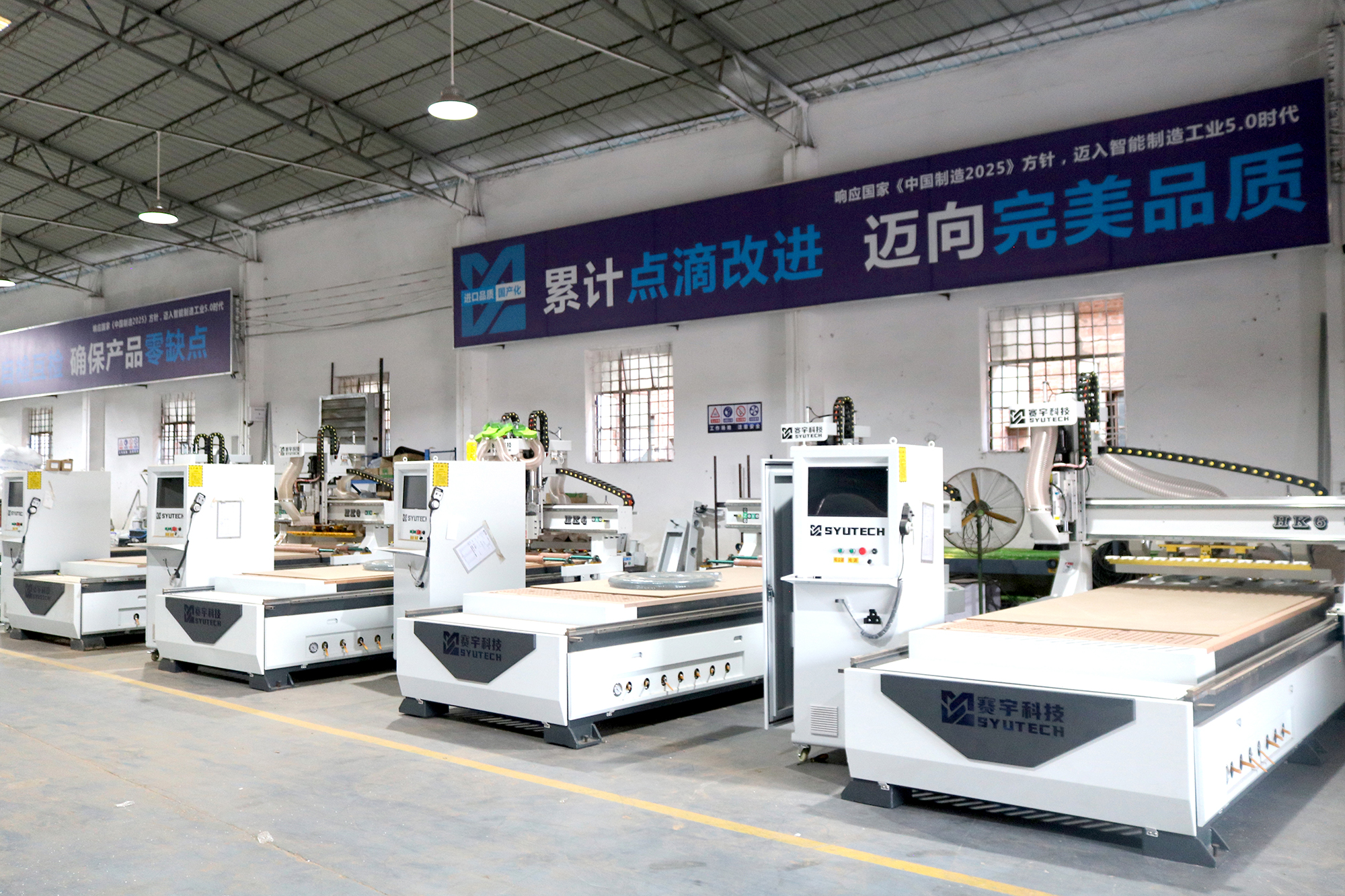

CNC Cutting Workshop
CNC cutting machines and lines.

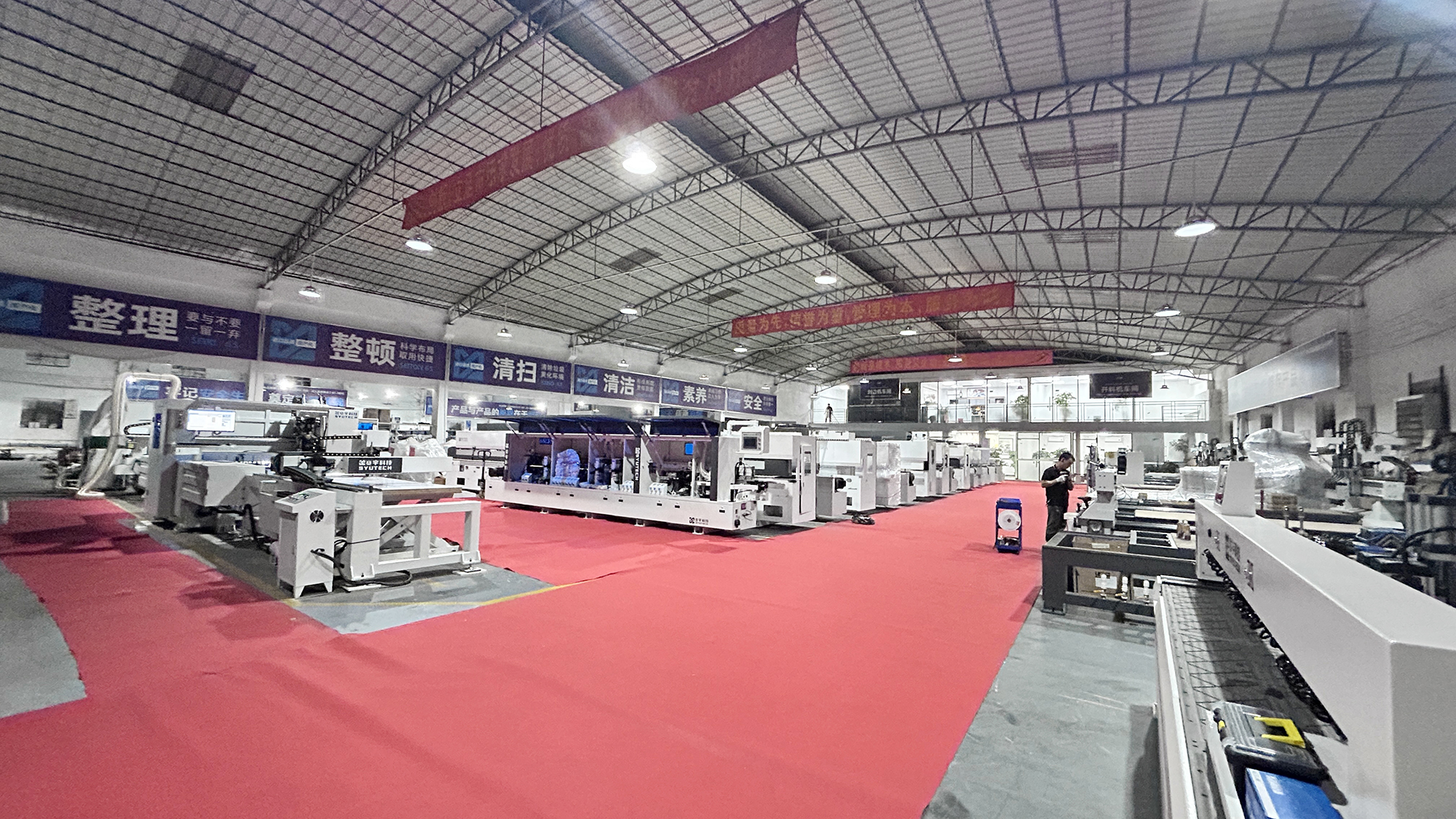

Edge Banding Workshop
Small and large edge banders.
Shanghai Exhibition Site
Exhibition site photo.
Foshan Lunjiao Exhibition Site
Exhibition site photo.
FAQ
What type of machine is HK612B-C?
HK612B-C is a six-sided CNC drilling machine with dual drill blocks and a tool magazine.
What processes can HK612B-C handle?
It supports drilling, grooving, milling, cutting, and six-sided hole processing.
What is the drill block configuration?
Two upper drill blocks plus one lower drill block, with 9 upper vertical drills x 2 and 9 lower vertical drills.
Does it support automatic tool change?
Yes. It is equipped with a 5-tool linear magazine.
What is the minimum processing size?
The minimum processing size is 200 x 50mm.
What is the maximum processing size?
The maximum processing size is 2800 x 1200mm.
What panel thickness does it support?
It supports 12-50mm panel thickness.
What is special about the gripper structure?
The reinforced C-type dual grippers avoid hole positions and support narrow panel processing.
Does it support remote maintenance?
Yes. It supports remote operation, collaboration, maintenance, and software updates.
What factories is it suitable for?
It is suitable for batch production of cabinets, door panels, and custom furniture panels.
