Shared Drilling and Cutting Reference
Drilling and cutting use the same positioning reference to reduce transfer errors.
Intelligent Drilling and Cutting Machine

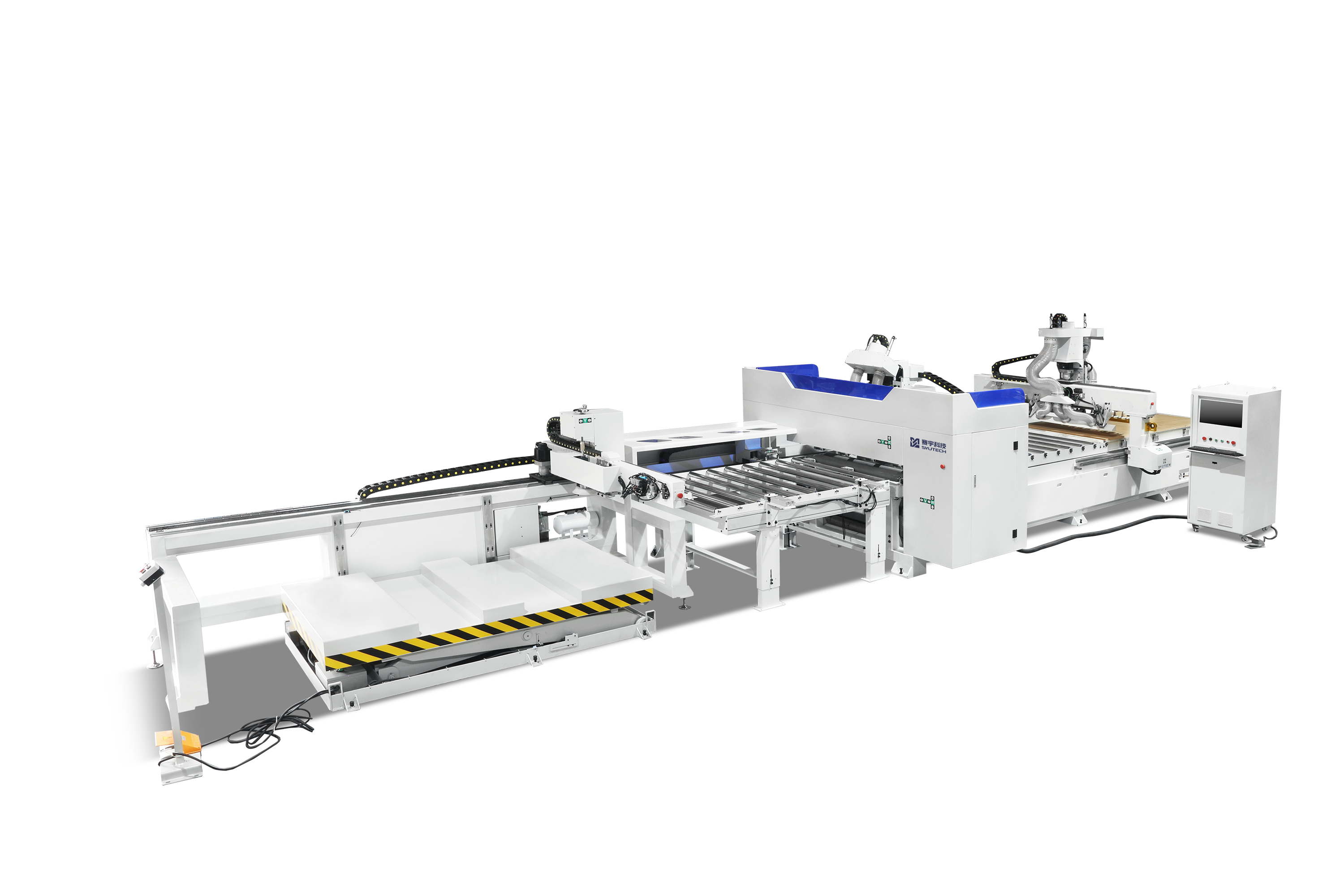

SY2.0 Intelligent Drilling and Cutting Machine
Automatic labeling, drilling, cutting, routing, loading, and unloading in one system, with support for multi-machine production lines.
Integrated Drilling and Cutting
Automatic Labeling
Upper and Lower Drill Blocks
12-Tool Linear Magazine
Multi-Machine Connection

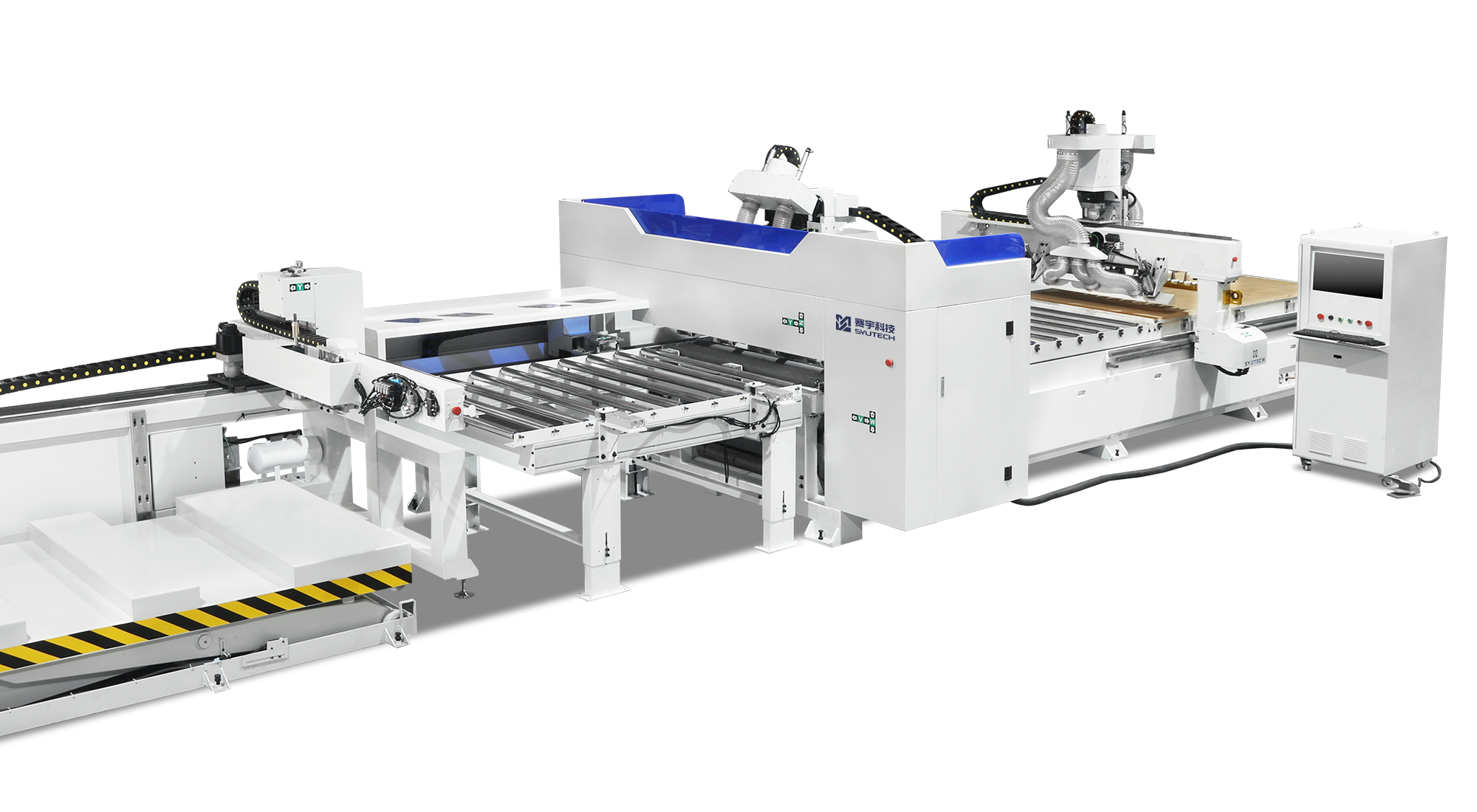

Integrated Drilling and Cutting for Panel Furniture Production
SY2.0 completes labeling, drilling, cutting, and routing from a shared reference, reducing panel transfers and repeated positioning.
- Drilling before cutting reduces panel deformation and hole-position deviation
- Processes 4 x 8 ft and 4 x 9 ft standard or irregular panels
- Automatic loading, labeling, drilling, cutting, and unloading with line connection support
Core Features
Configured for continuous panel processing, positioning accuracy, and automated production flow.
Automatic Labeling and Handling
Automatically loads panels, rotates and applies labels, and unloads by belt.
Upper and Lower Drill Blocks
Processes drilling and grooving on both panel faces with less panel flipping.
12-Tool Automatic Change
The linear tool magazine and high-speed spindle support continuous cutting and routing.
Three-Station Workflow
Processing and waiting stations connect automatically for continuous production.
Multi-Machine Connection
Connects with order splitting, optimization, tracking, and packing workflows.
Machine Structure and Function Modules

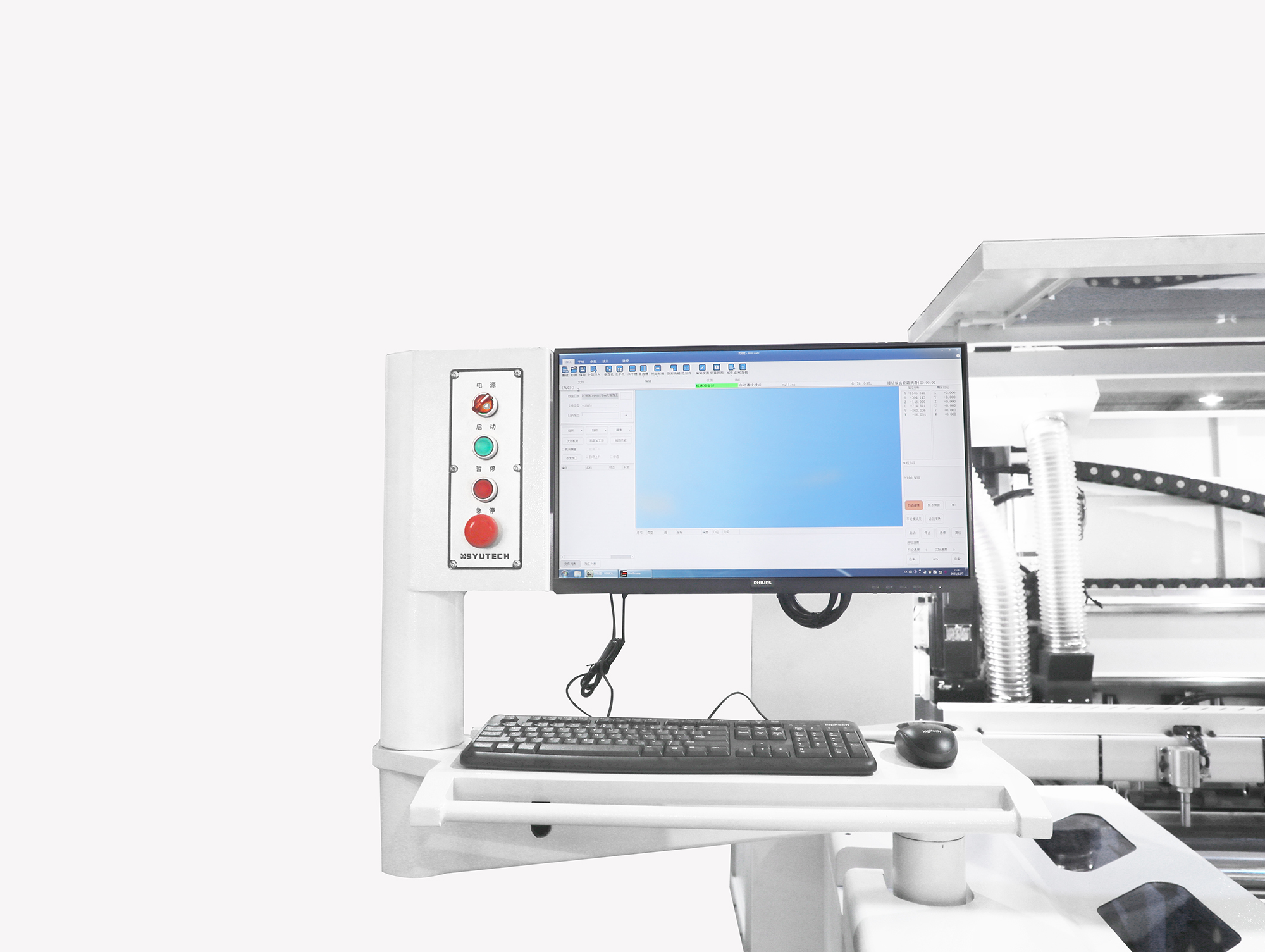

Intelligent Control System
A 21-inch display centralizes operation, real-time production data, and remote maintenance.
Integrated Frame and Fixed Table
The precision-machined frame and flat table maintain long-term stability and accuracy.

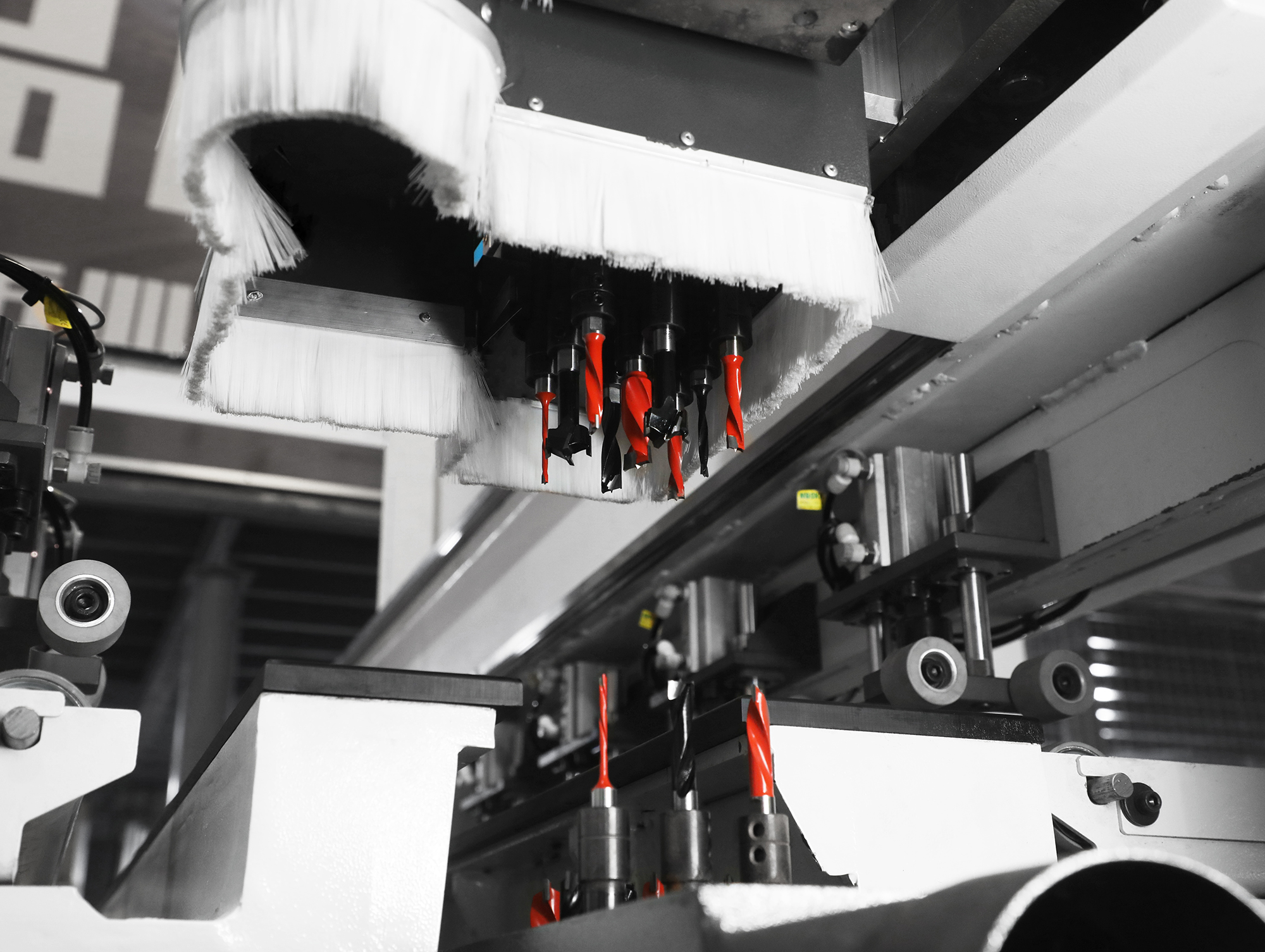

Precision Upper and Lower Drill Blocks
Completes drilling and grooving on both panel faces with dedicated dust outlets.

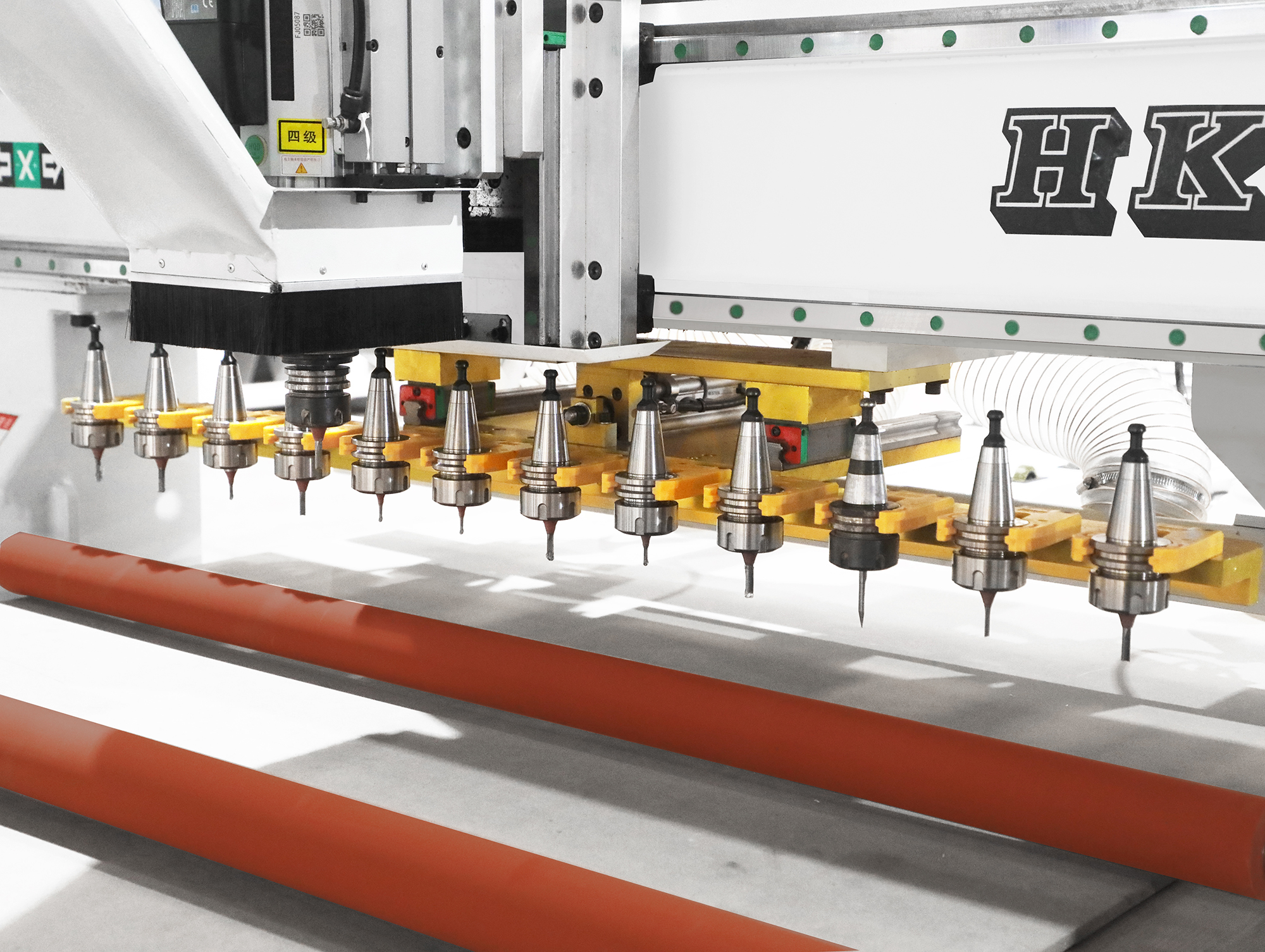

12-Tool Linear Magazine
The high-speed spindle changes tools automatically for cutting, grooving, and routing.

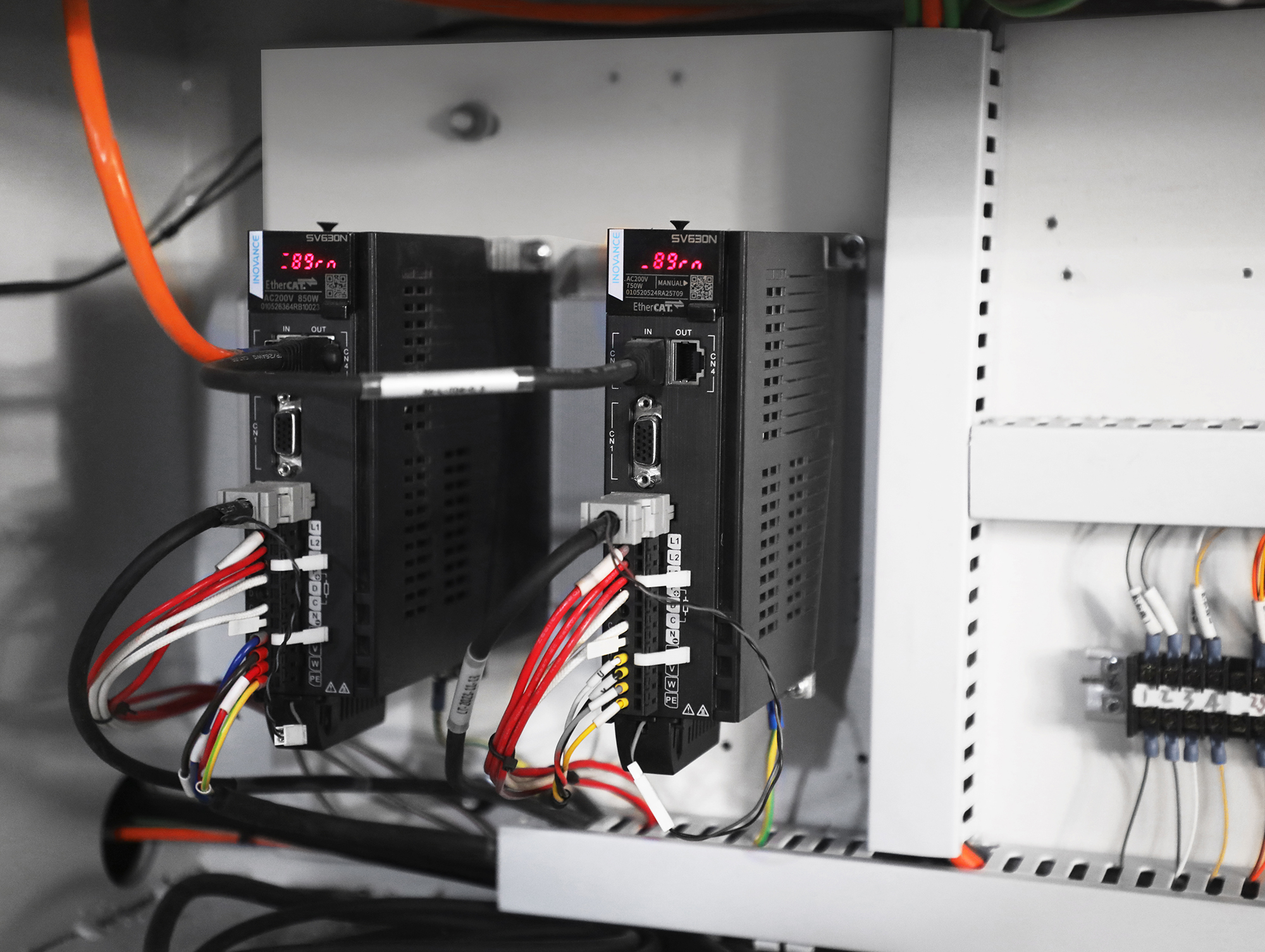

Stable Servo Drive
Servo motors, planetary reducers, precision guides, and racks provide stable motion.

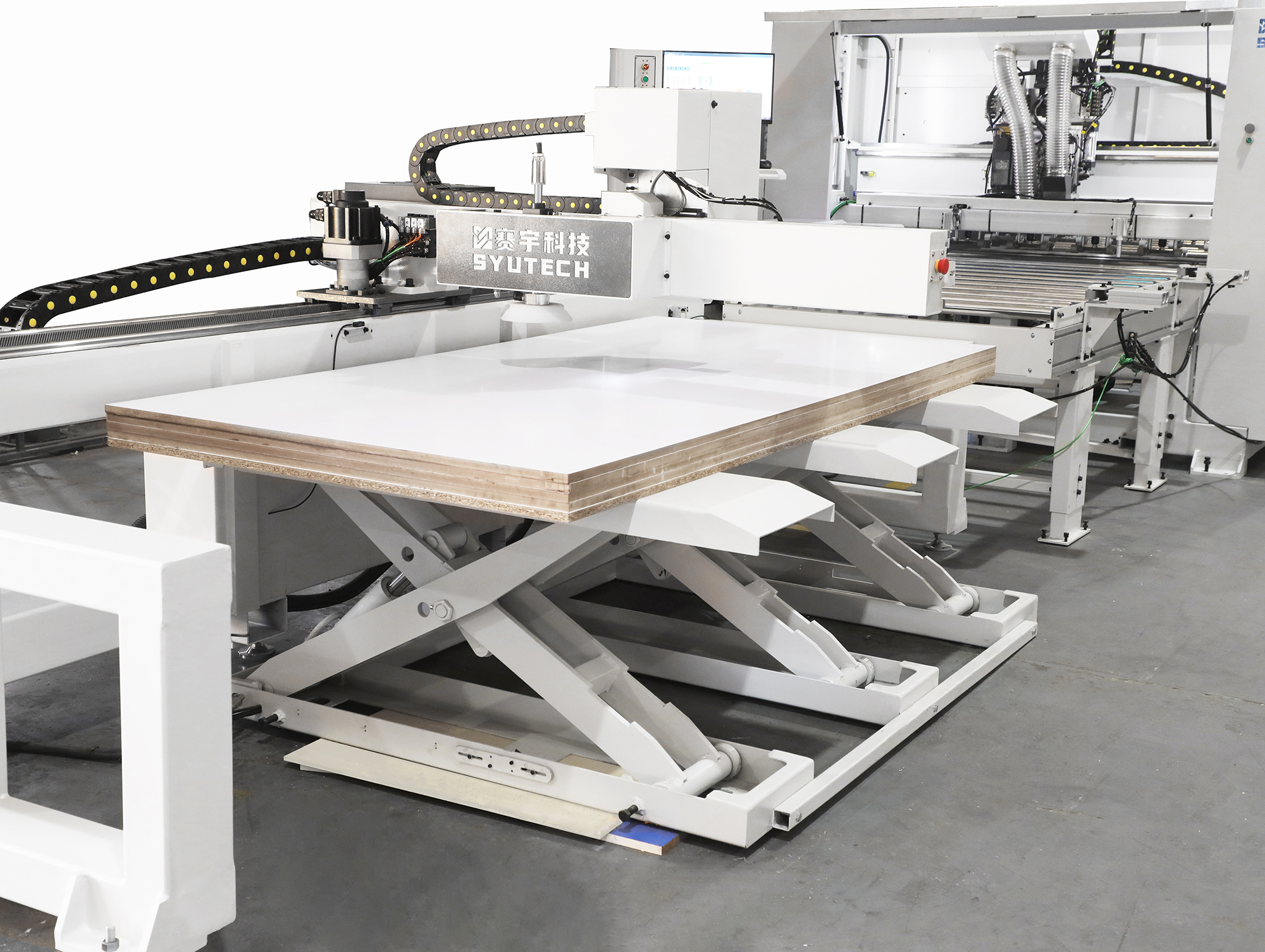

Automatic Lifting and Loading
The lifting table feeds panels automatically and reduces manual handling.

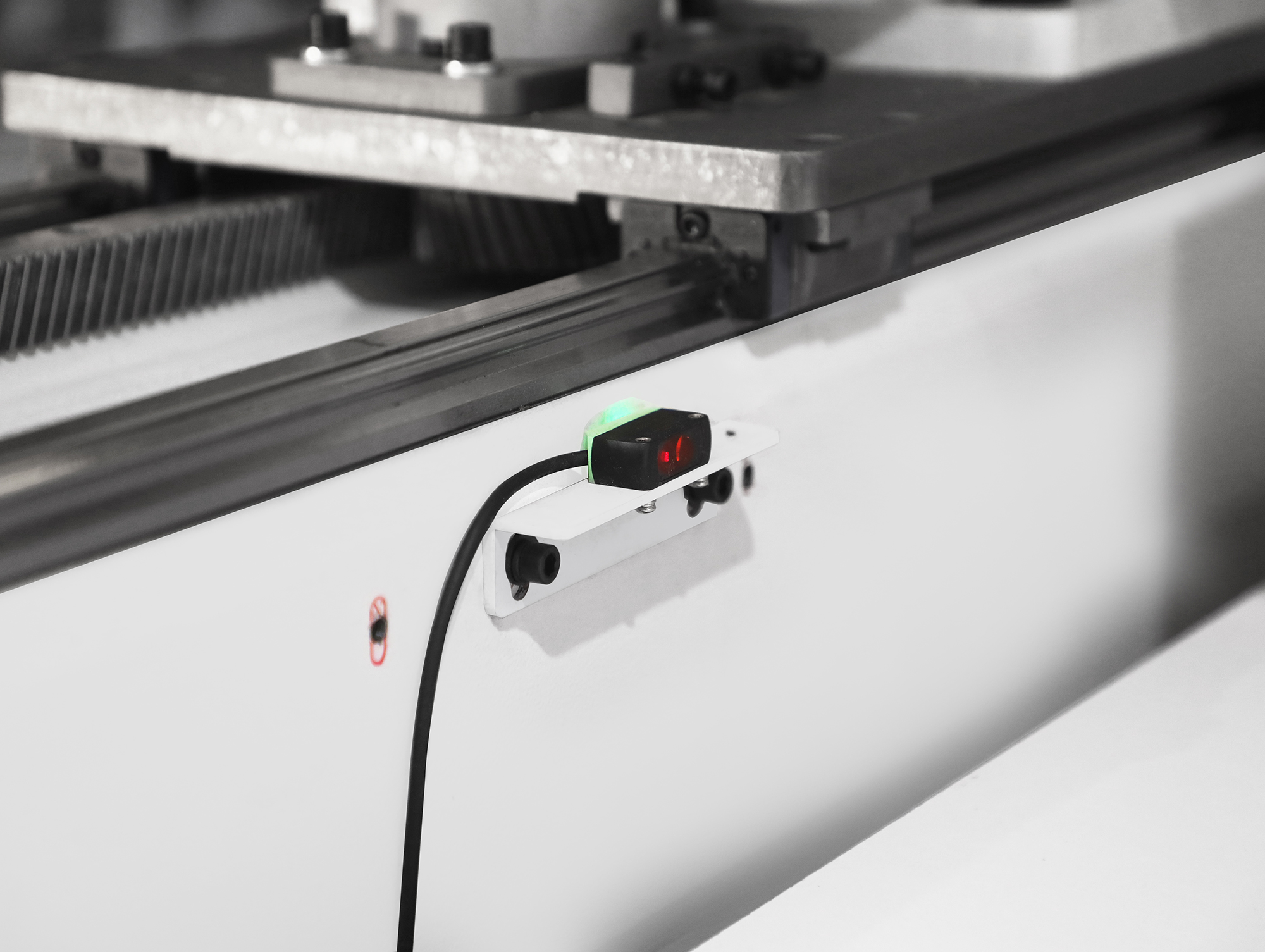

Infrared Positioning
Infrared sensing detects panel thickness and maintains one reference through processing.

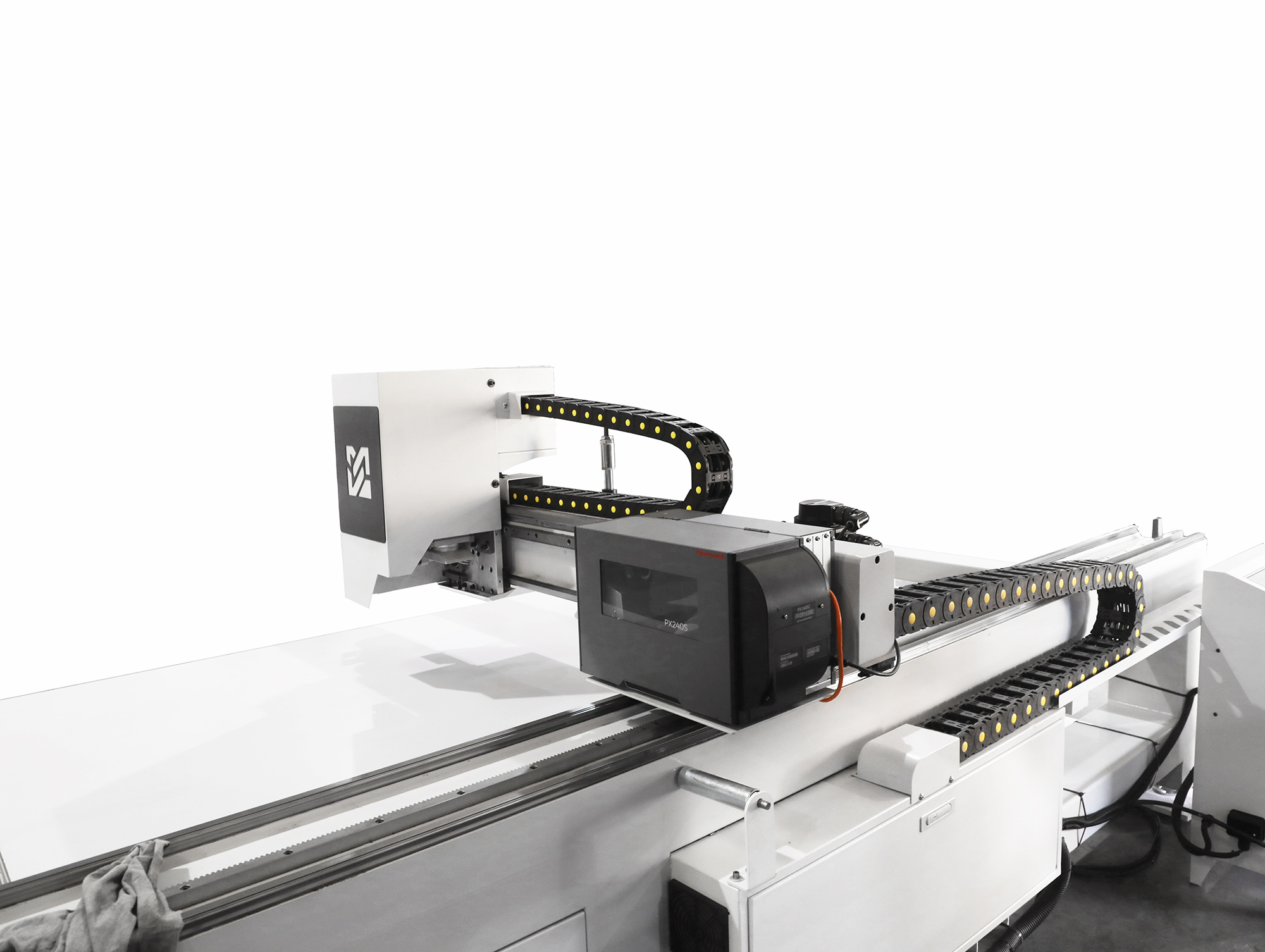

Automatic Rotary Labeling
Labels rotate intelligently by 90 degrees and avoid cutting areas.

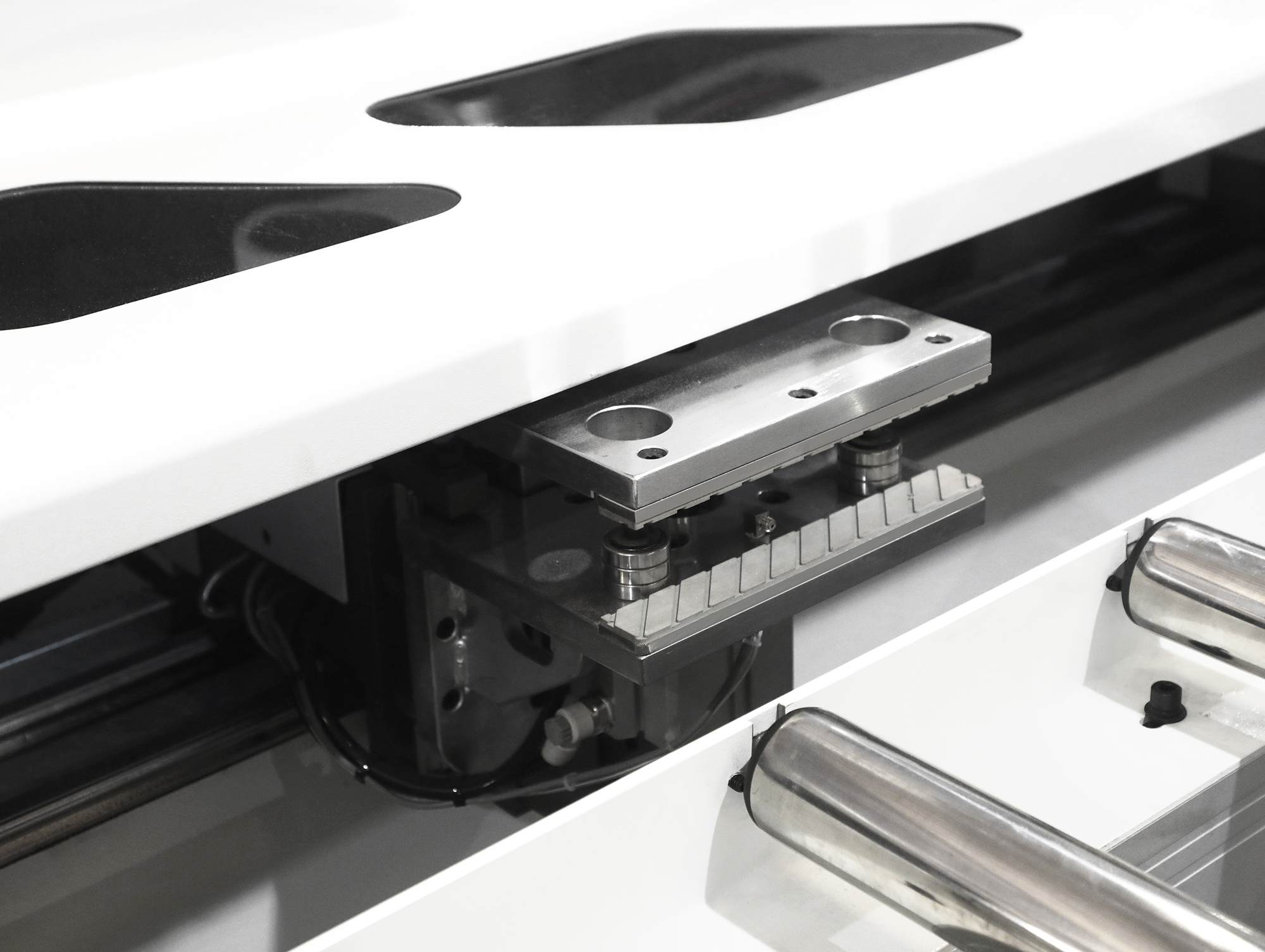

Enlarged Dual Grippers
Dual grippers feed and position panels while maintaining stable clamping.

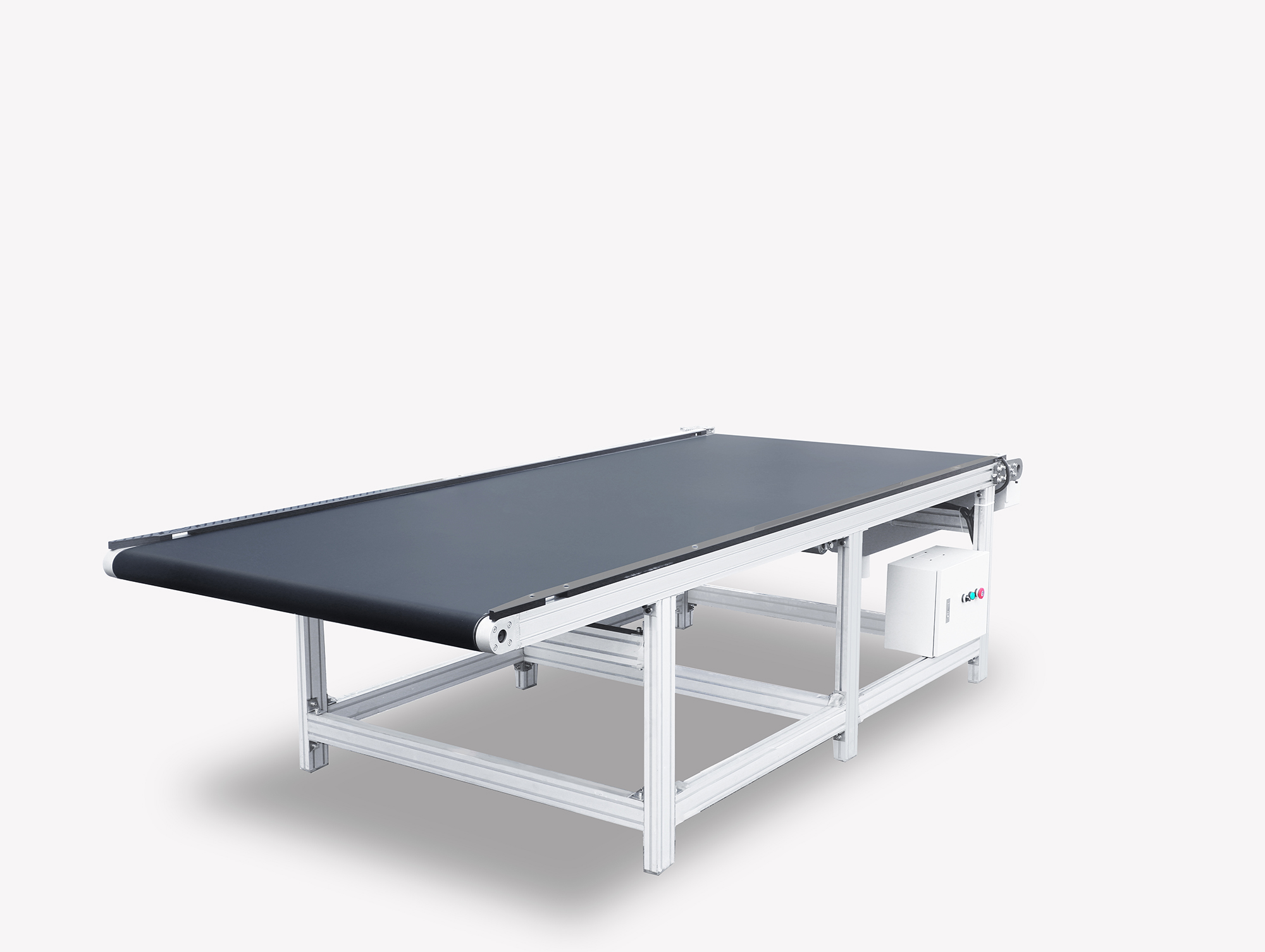

Belt Unloading
Finished panels are pushed automatically and transferred by belt for sorting.

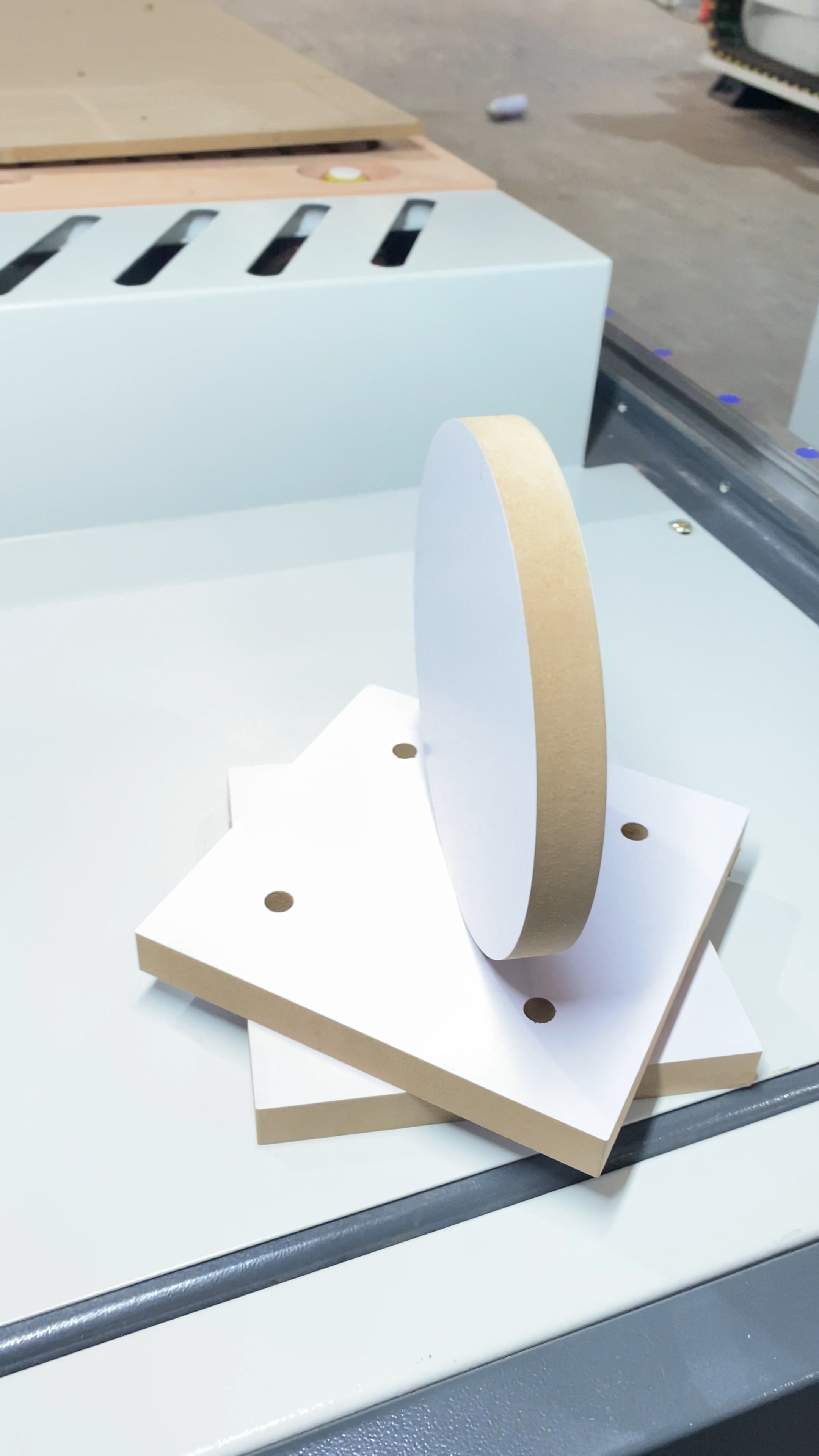

Machining Result
Technical Specifications
Specifications are subject to the final machine and confirmed configuration.
| Model | SY2.0 |
|---|---|
| Panel Width | 1220mm |
| Panel Length | 2440-2800mm |
| Panel Thickness | 12-25mm |
| Working Table Height | 900mm |
| Voltage | 380V / 50Hz |
| Air Pressure | 0.7-0.8MPa |
| Dust Outlets | 110mm*2, 145mm*1, 195mm*2 |
| Total Power | 42.1kW |
| Overall Size | 16200*2750*2990mm |
Target Users
Panel furniture and custom furniture manufacturers requiring automated drilling and cutting.
Applications
Labeling, drilling, grooving, and cutting for cabinet, furniture, door, standard, and irregular panels.
Configuration
Machine functions, software interfaces, and line connection are subject to the confirmed order.
Factory Strength

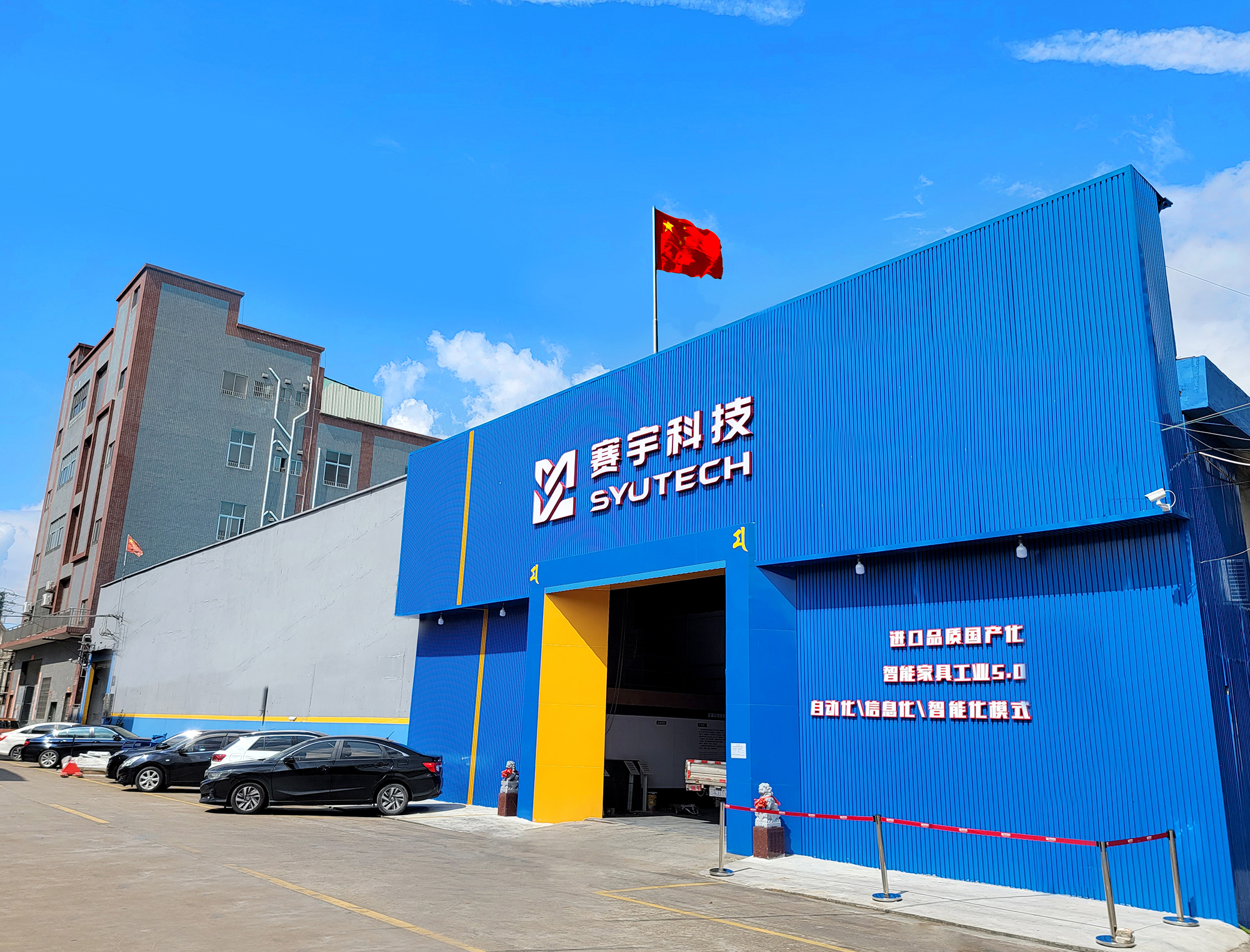

Factory Exterior
Factory exterior view.

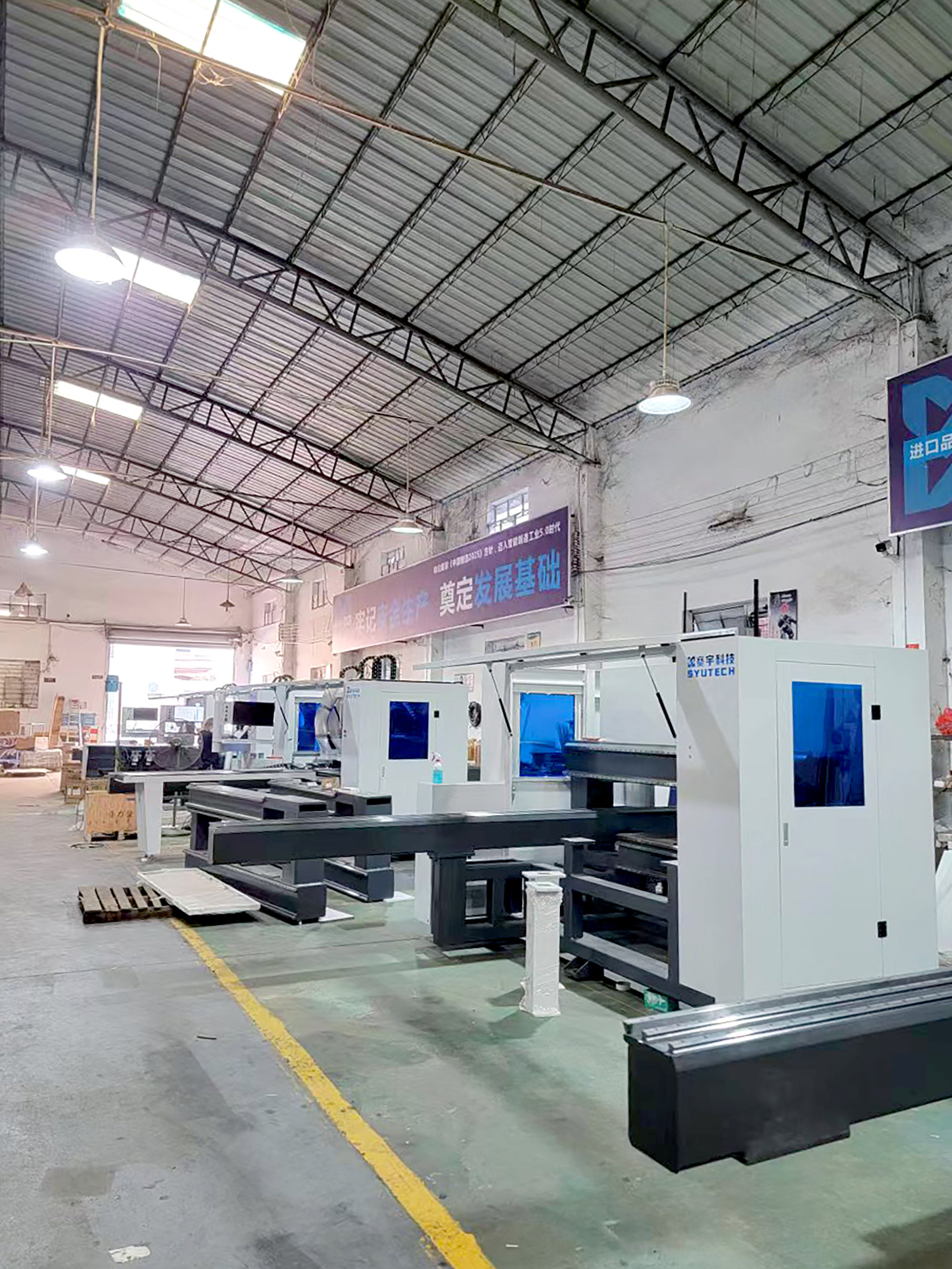

Six-Sided Drilling Workshop
Mainly produces six-sided drilling machines and production lines.

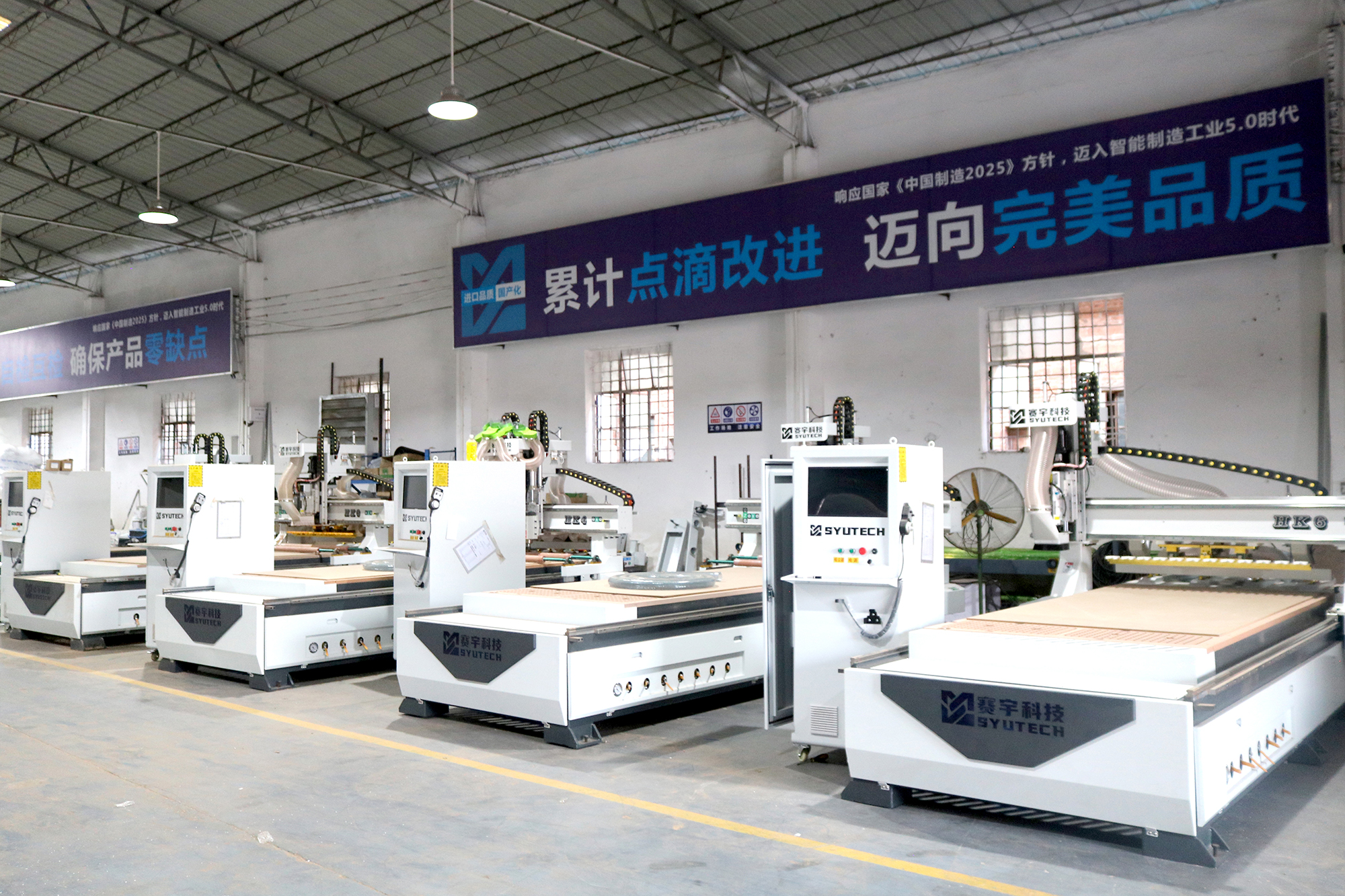

CNC Cutting Workshop
Mainly produces CNC cutting machines and cutting lines.

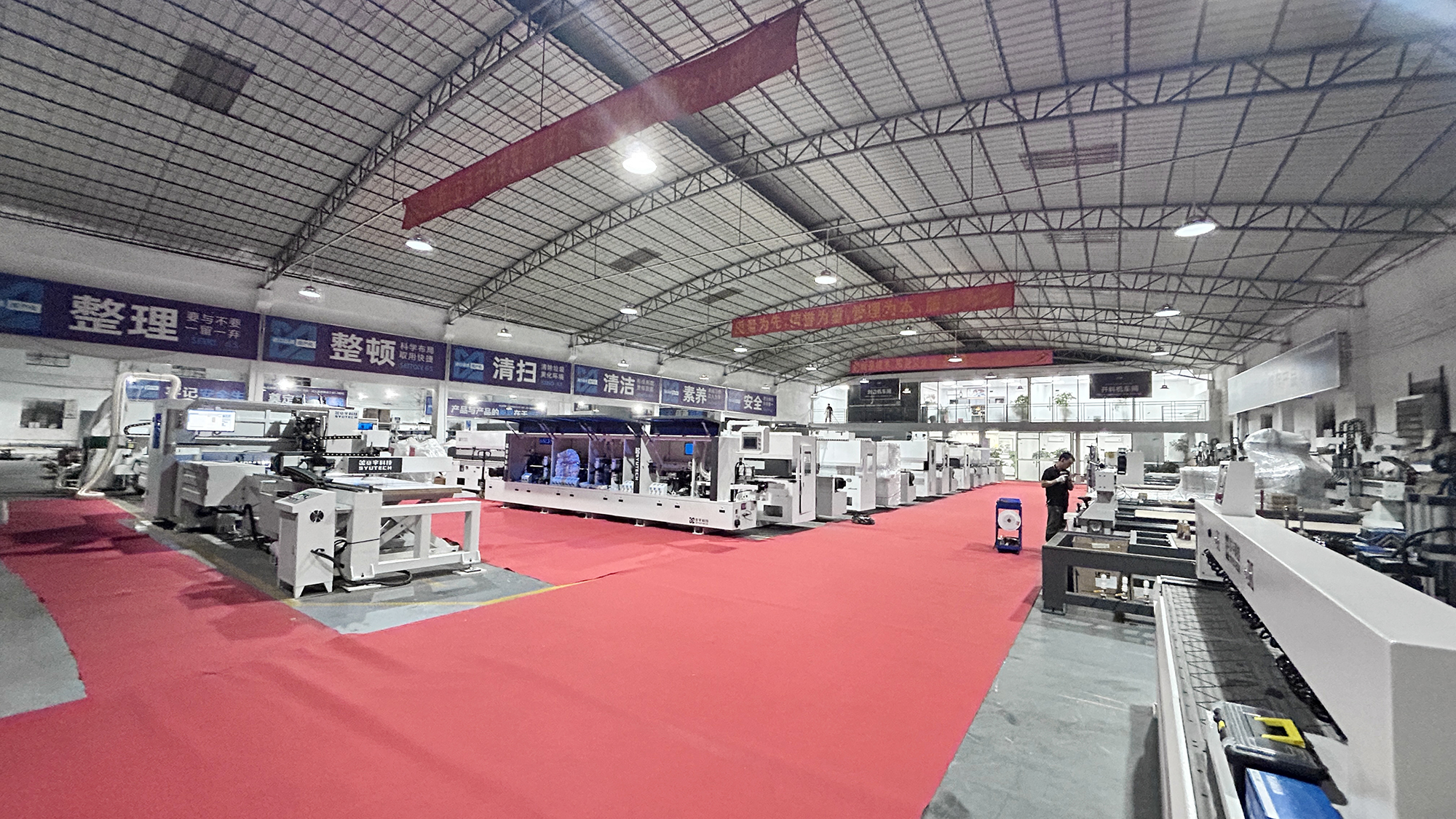

Edge Banding Workshop
Mainly produces small and large edge banding machines.
Shanghai Exhibition Site
Team photo at the exhibition.
Foshan Lunjiao Exhibition Site
Team photo at the exhibition.
FAQ
What is SY2.0?
SY2.0 integrates automatic labeling, drilling, cutting, routing, loading, and unloading.
Which processes can it complete?
It performs labeling, drilling on both panel faces, grooving, cutting, and routing.
Which panel sizes can it process?
It processes panels 1220mm wide, 2440-2800mm long, and 12-25mm thick.
Why does it drill before cutting?
Drilling first reduces panel deformation and hole deviation caused by cutting stress.
Does it support automatic labeling?
Yes. Labels can rotate by 90 degrees and automatically avoid cutting areas.
How many tool positions are available?
The 12-tool linear magazine supports automatic tool changes for multiple processes.
Does it support automatic loading and unloading?
Yes. It uses a lifting table for loading and push-panel belt unloading.
Can multiple machines be connected?
Yes. Multi-machine layouts can be configured for the required capacity and workflow.
Which data formats are supported?
The software connects with order splitting and optimization workflows and supports MPR, CIX, and BPP.
How is panel positioning accuracy maintained?
Infrared sensing, dual grippers, and shared-reference processing reduce positioning errors.
