Four-Process Machining
4 independent spindles reduce process switching time.
CNC Router

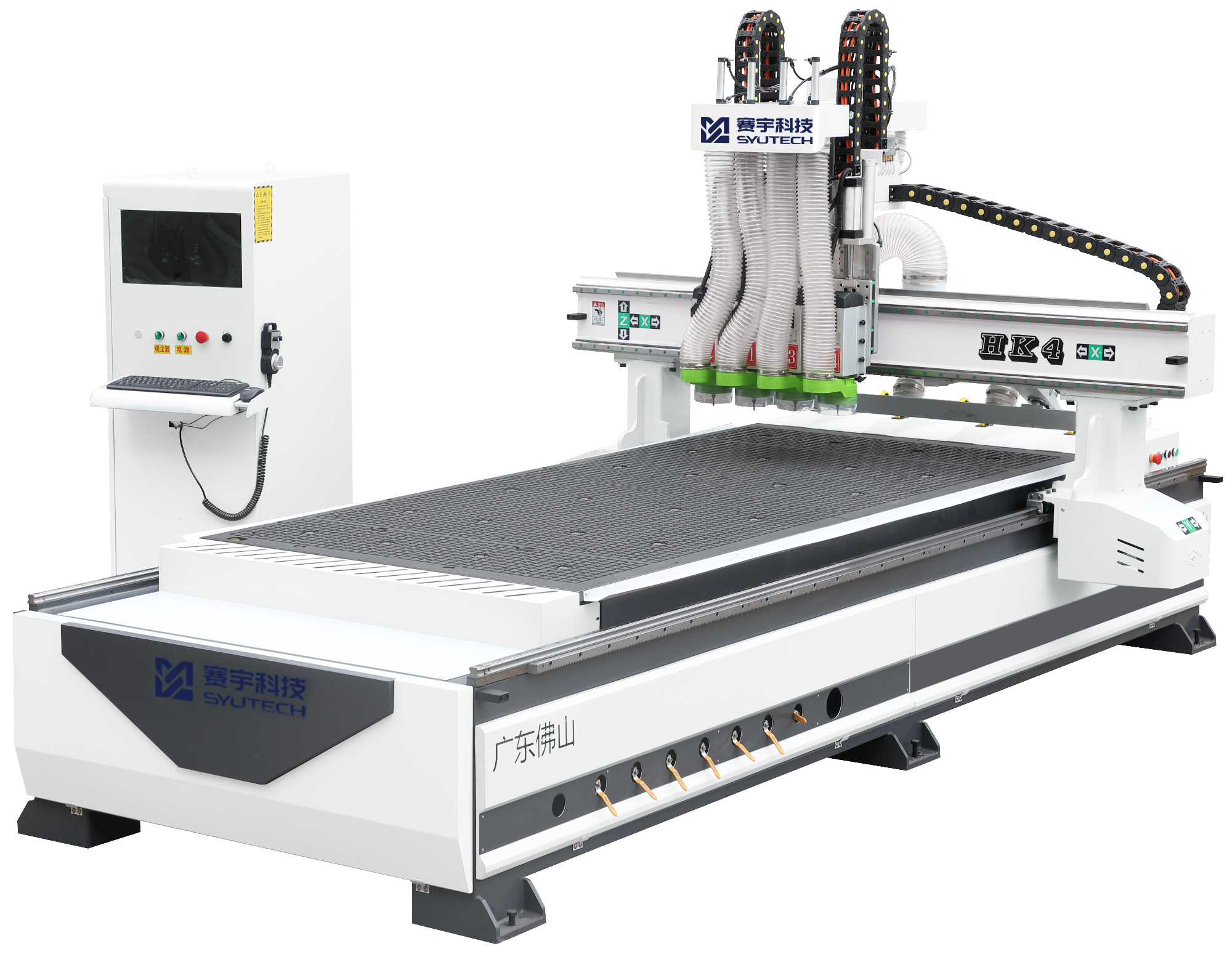

HK4 Four-Process CNC Router
HK4 uses 4 independent 6KW air-cooled spindles. Multi-process machining with less tool-change waiting and manual intervention.
4 Independent Spindles
6KW Air-Cooled Spindle
Baoyuan Control System
7-Zone Vacuum Hold-Down
Cutting, Drilling, Grooving
Four-Process Routing For Panel Furniture Factories
Built for cabinet, door panel, and custom furniture panel production.
- 4 independent spindles for flexible tool setup
- Cutting, drilling, grooving, and profile machining
- Connects with common furniture production software
Core Functions
Focused on four-spindle machining, stable positioning, and common panel furniture processes.
Flexible Tool Setup
Tools can be configured for cutting, grooving, drilling, and bottom cleaning.
Annealed Heavy Frame
Annealed frame structure improves long-term machining stability.
7-Zone Vacuum Hold-Down
Vacuum zones can be opened by work area for stable panel fixing.
Cabinet / Door Panel Modes
Fast switching between cabinet drilling and door panel shaping.
48 / 49 Sheet Mode Switch
One-key switching for 48 and 49 sheet processing modes.
Software And Process Integration
Supports common furniture software and connector machining processes.
Optional Automation
Optional vacuum pump, loading and unloading, pressure roller, and grabbing unit.
Machine Details

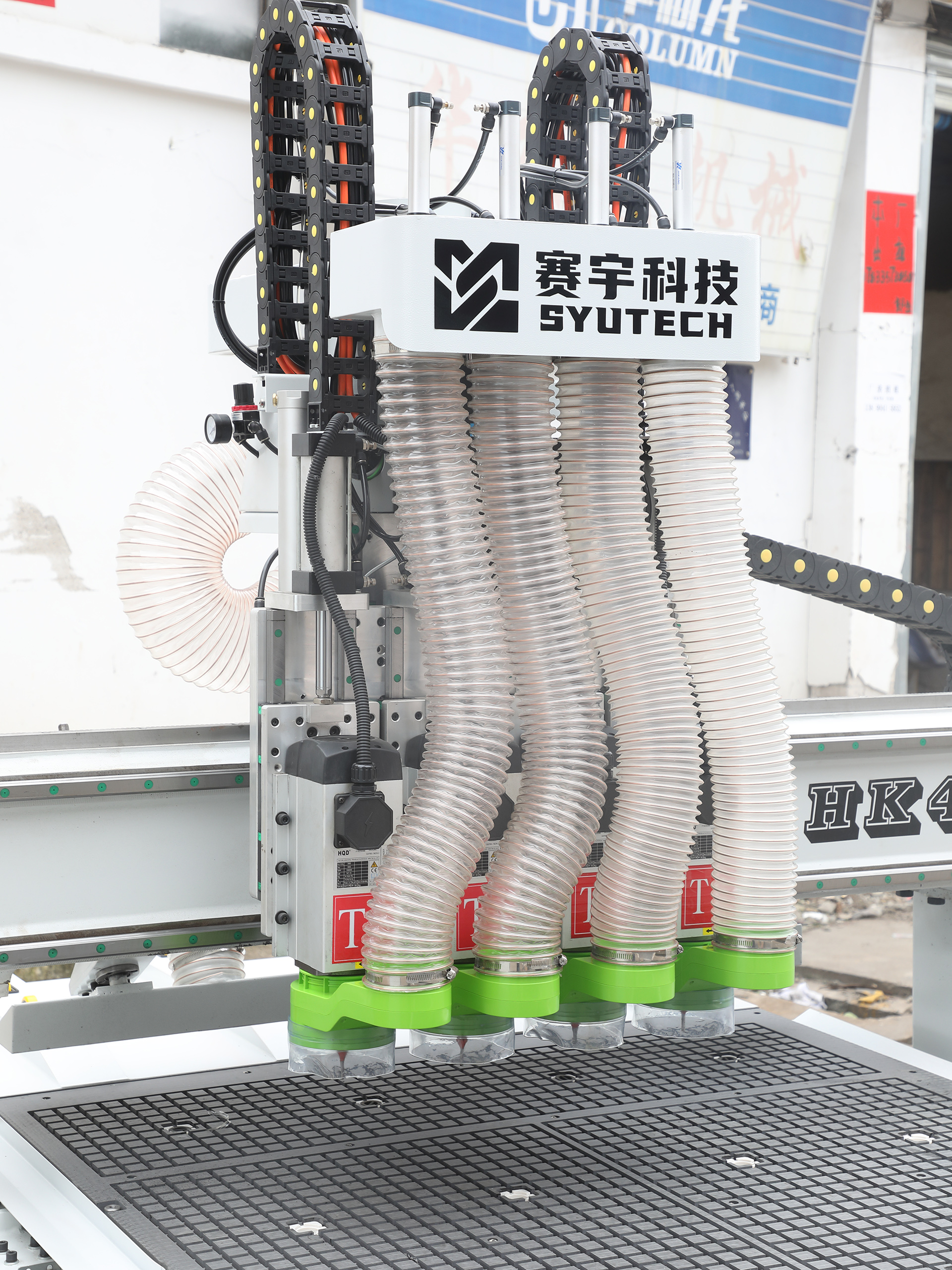

4 x 6KW Spindles
4 HQD air-cooled spindles for continuous multi-process machining.

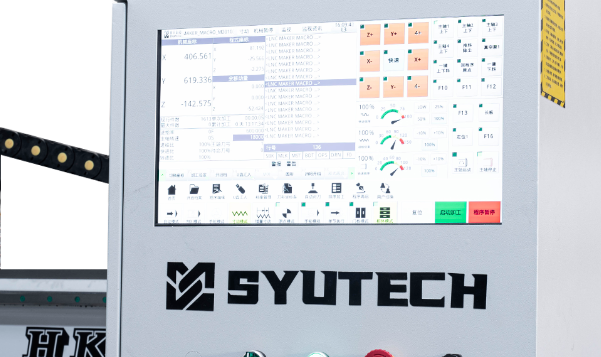

Taiwan Baoyuan System
Clear interface for automated production connection.

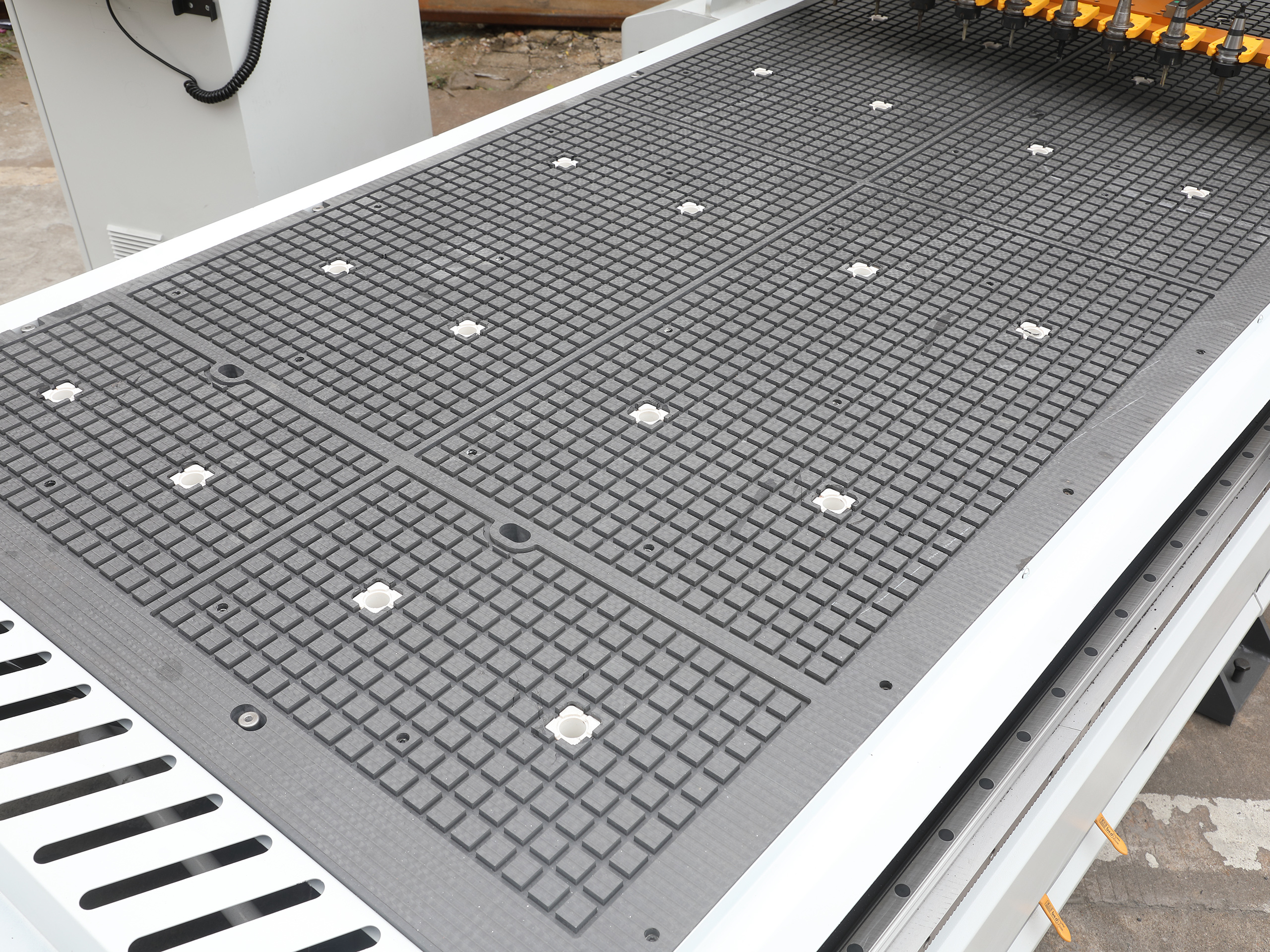

7-Zone Table
Zone vacuum hold-down supports different panel sizes.

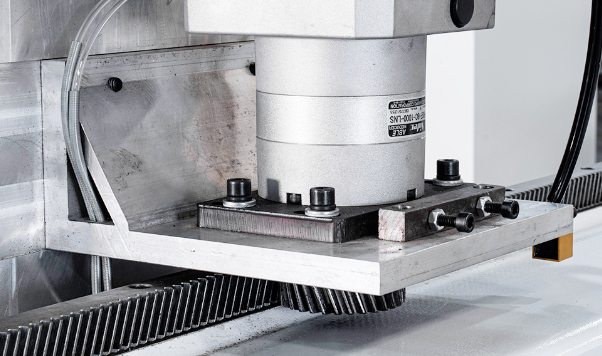

Reducer
Japan Shimpo reducer for stable transmission.

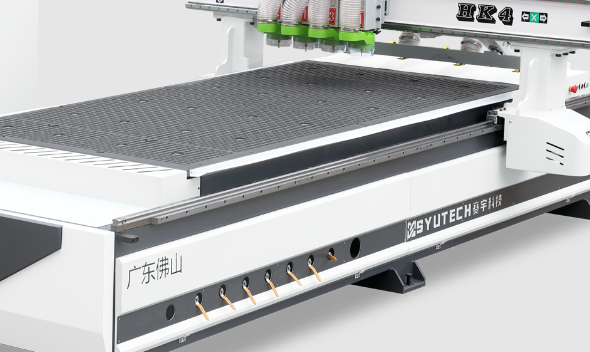

Heavy Frame
The full frame is annealed to improve material toughness and structural stability.

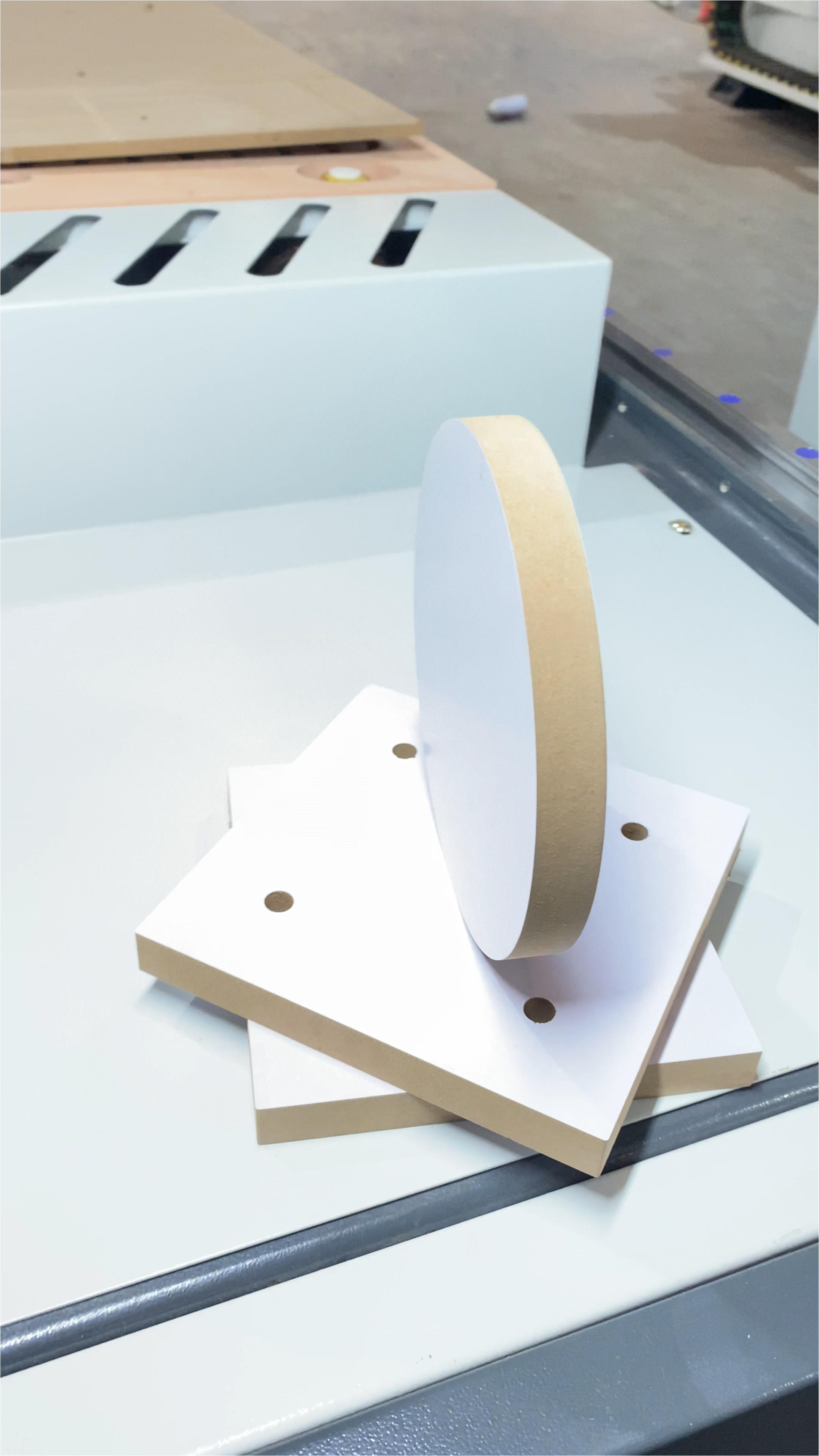

Machining Result
Technical Specifications
HK4 standard configuration.
| Model | HK4 Four-Process CNC Router |
|---|---|
| Working Travel | X 1300mm / Y 2800mm / Z 250mm |
| Effective Working Area | 1.3m x 2.8m |
| Transmission | X/Y axis: German BORCH high-precision rack; Z axis: Taiwan high-precision ball screw |
| Motion Guide | X/Y/Z axis: Taiwan 30 linear guide rail |
| Control System | Taiwan Baoyuan, simple interface |
| Servo Motor Group | Inovance 1.5KW x 4 |
| Spindle | HQD 6KW x 4 air-cooled spindle, 0-24000rpm |
| Inverter | Inovance 11KW |
| Reducer | Japan Shimpo reducer |
| Frame Structure | Heavy-duty rigid steel frame |
| Frame Treatment | Full machine aging and annealing treatment |
| Head Component Processing | Precision milling and drilling by machining center |
|---|---|
| Rack And Rail Installation | Installed within 0.02mm dial indicator tolerance |
| Worktable | Vacuum hold-down table with 7 zones |
| Vacuum Pump Power | 7.5KW high-power pump |
| Dust Collection | X-axis spindle automatic zoned full-cover dust collection |
| Tool Setting | Automatic tool setter |
| Positioning System | Automatic positioning |
| Unloading Function | Automatic pushing |
| Lubrication System | Dual digital automatic lubricator with volumetric distributors |
| Electrical Cabinet | Large electrical cabinet |
Factory Strength

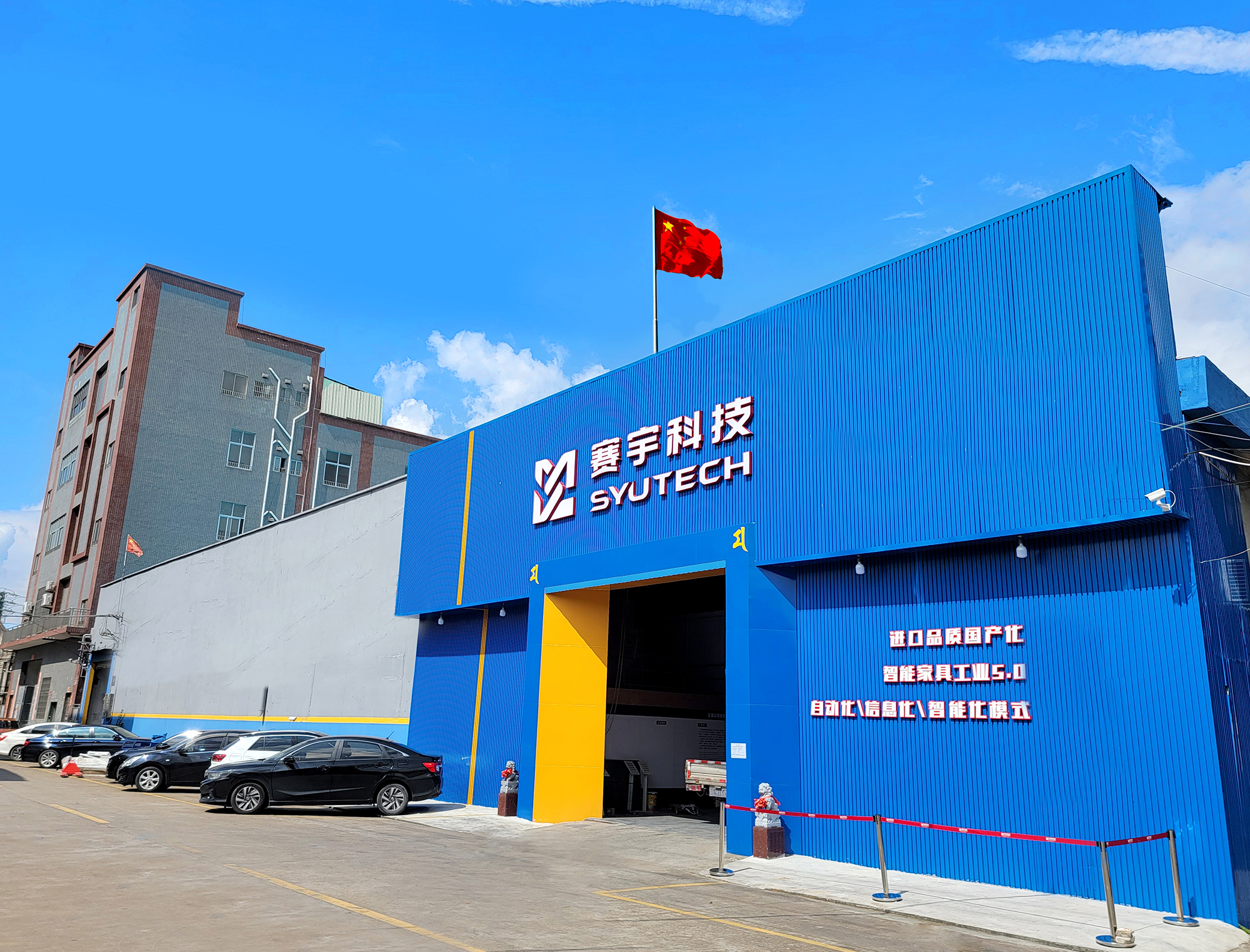

Factory Exterior
Factory view.

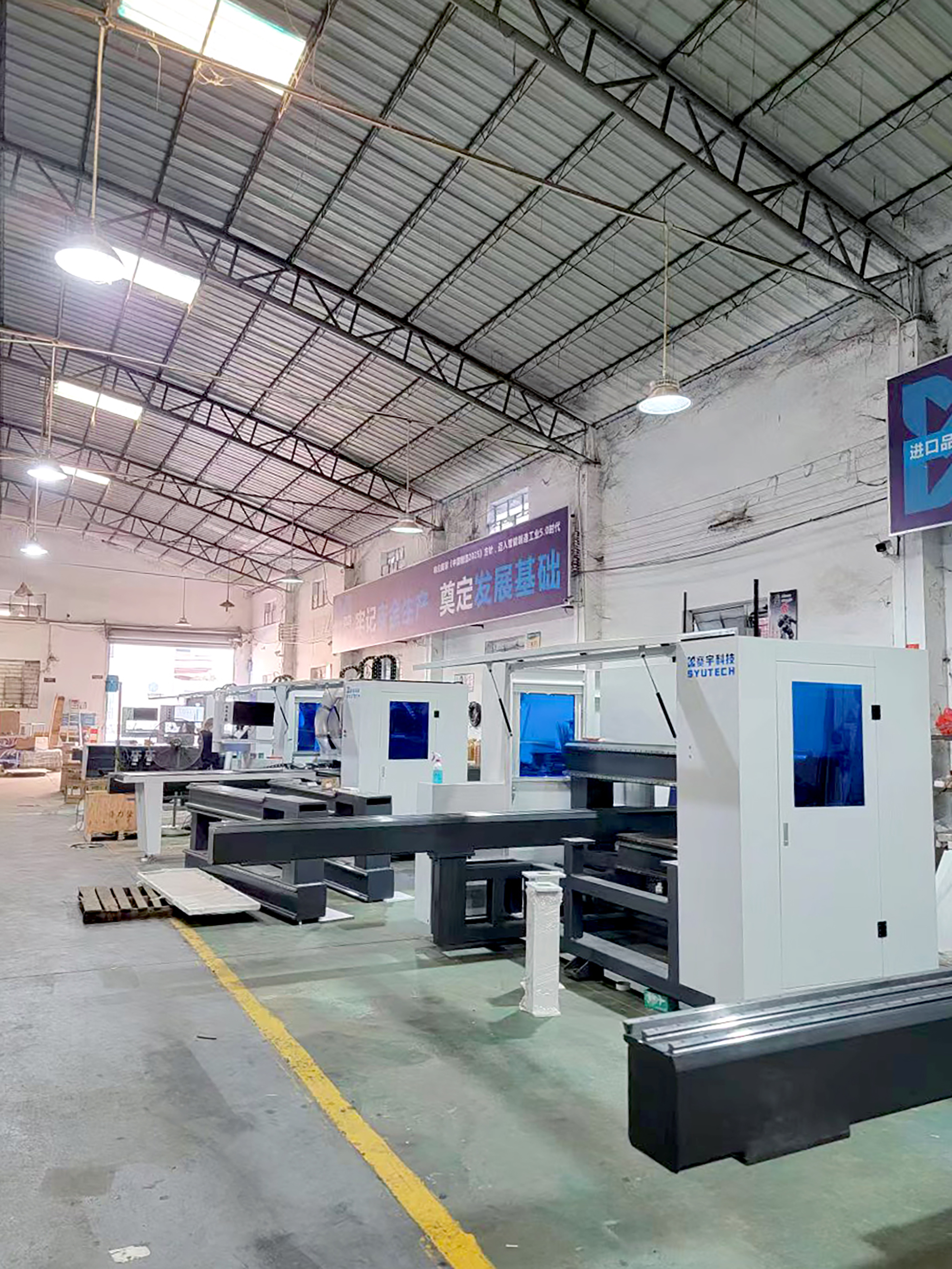

Six-Sided Drilling Workshop
Six-sided drilling machines and lines.

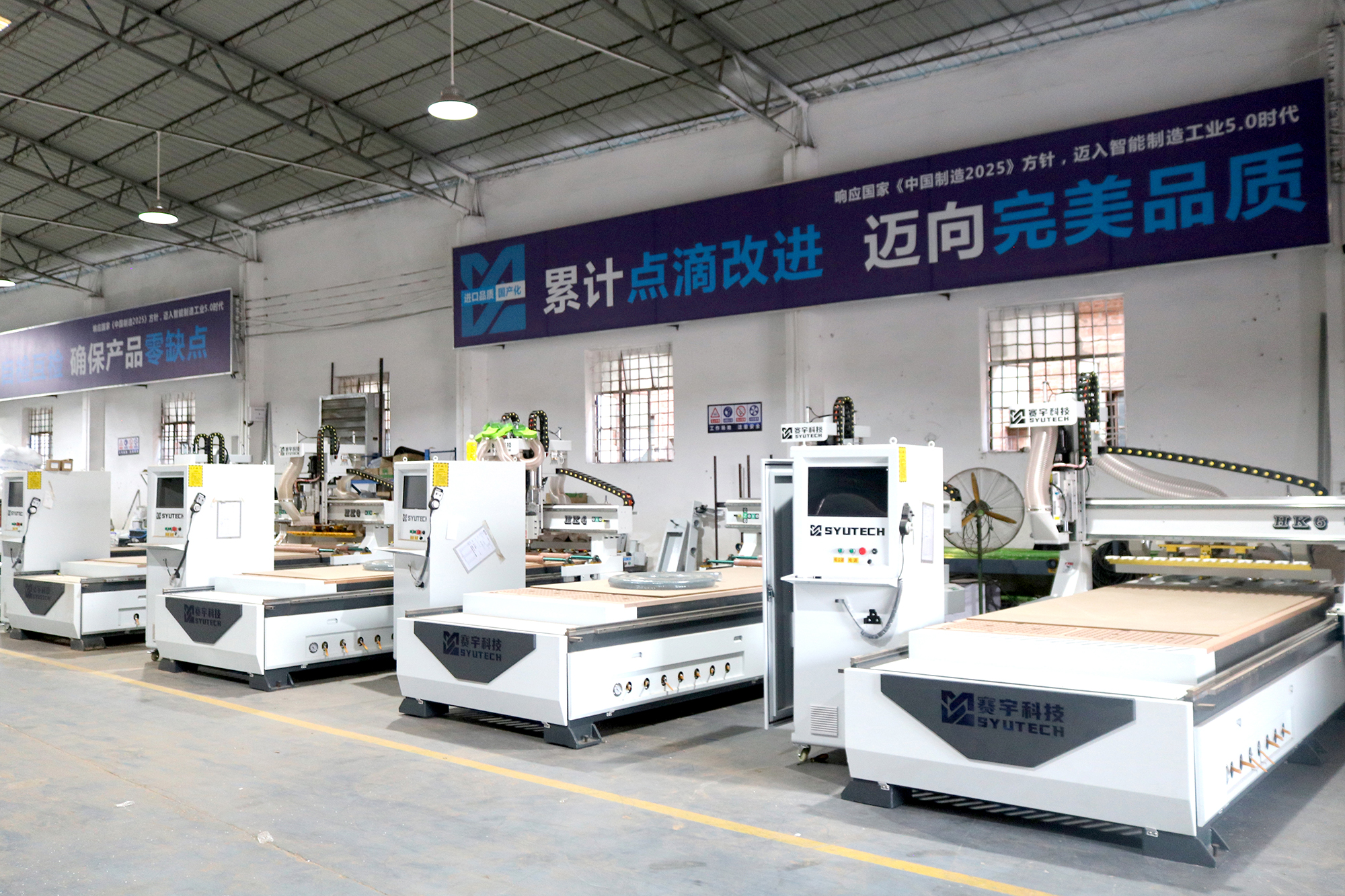

CNC Cutting Workshop
CNC cutting machines and lines.

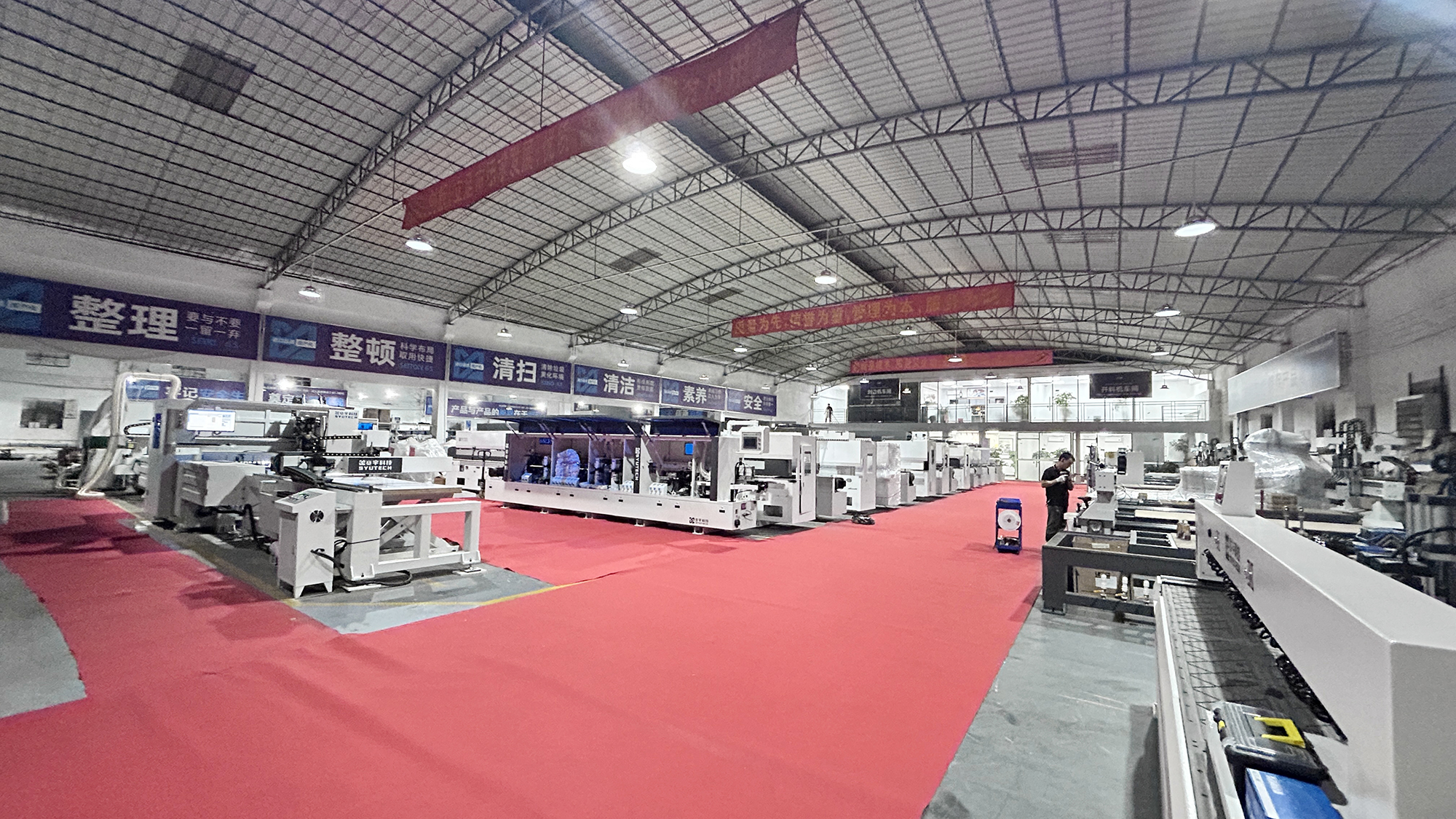

Edge Banding Workshop
Small and large edge banders.
Shanghai Exhibition Site
Exhibition site photo.
Foshan Lunjiao Exhibition Site
Exhibition site photo.
FAQ
What type of machine is HK4?
HK4 is a four-process CNC router with a non-ATC structure.
What spindle configuration does HK4 use?
It uses 4 independent 6KW air-cooled spindles.
What processes can HK4 handle?
Cutting, drilling, grooving, profile cutting, and bottom cleaning.
What furniture products is HK4 suitable for?
Cabinets, door panels, and custom furniture panels.
What control system does HK4 use?
HK4 uses a Taiwan Baoyuan control system.
What servo system does HK4 use?
It uses Inovance 1.5KW x 4 servo motors.
What is special about the worktable?
The 7-zone vacuum table provides flexible panel fixing.
What optional configurations are available?
Optional loading and unloading, pressure roller, grabbing unit, and 11KW vacuum pump.
How is HK4 different from a linear ATC router?
HK4 uses 4 independent spindles instead of an ATC magazine.
Can HK4 connect with furniture production software?
Yes. It can connect with common furniture production software.
